Collapsed subprocess - bluesoft-rnd/aperte-workflow-core GitHub Wiki

Its a process that hides its flow details. The collapsed subprocess object has a marker that distinguishes it as a subprocess, rather than a task. The marker is a small square with a plus sign inside. Modeler alows to map variables from super proces to subprocess and vice versa.

General rules

• Input/Output map must be defined in attributes in "json" style.
• Subprocess references must be set to the name of process. Set in "name" atribute.

Attributes

Attribute name	Type	Required	Default value	Description
Name	String	True		The name of this element.
Description	String	False		The additional description for this element.
Input/Output maps	String	True		Mapping variables from super process to subprocess and vice versa, in json style. Template:. input: {super variable:sub variable}, output{sub variable: super variable}
Subprocess references	String	True		Name of proces, to call.

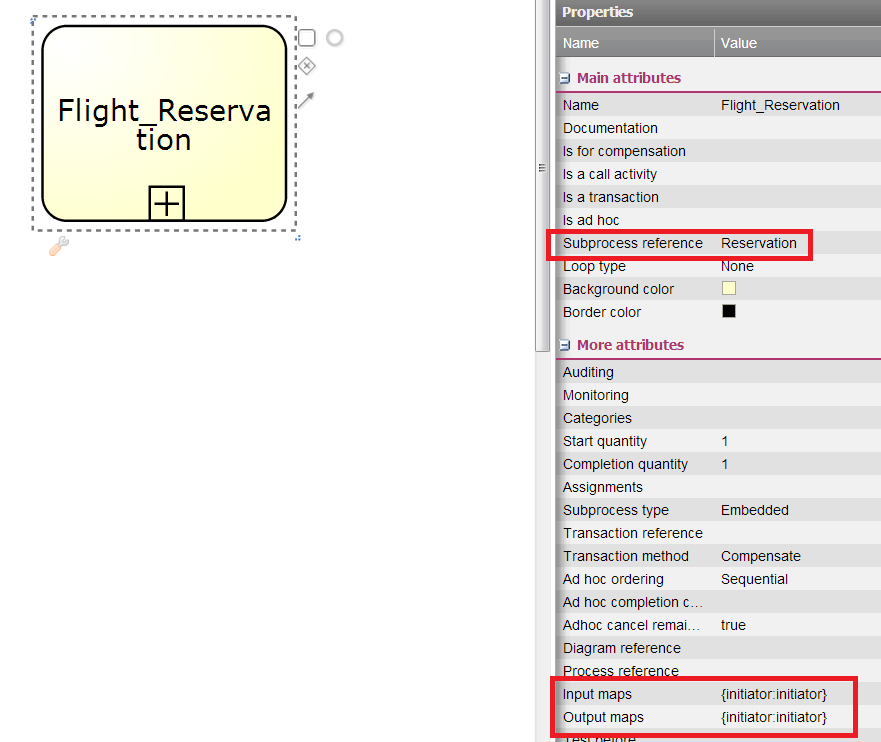

Aperte Modeler examples

Working with transition conditions

1. Open the Attributes palette on the right side of editor.
2. Fill subprocess references, with name of process (not diagram).
3. Under the More attributes section, fill input/output maps with json maping style i.e. If you are interested in maping initiator: {initiator:initiator}.
