All clients of Pathfinder SSO will use Authorization Code Flow. This is the modern, recommended OIDC setup for web applications and mobile applications.

When requesting a new client you can specify whether you want it set up as a Confidential client or you want it set up as a Public Client with PKCE.

With a confidential client, the back-end component securely stores an application secret that allows it to communicate with the KeyCloak server to facilitate the OIDC authentication process. A public client is slightly less secure because there is no secret, but this configuration is required by some architectures and is supported as well. Public clients can use PKCE (Proof Key for Code Exchange) as a more secure flow.

PKCE provides dynamic client secrets, meaning your app’s client secrets can stay secret (even without a back end for your app). PKCE is better and more secure than the implicit flow (AKA the “token flow”). If you’re using the implicit flow, then you should switch to PKCE. If you use an implicit flow to authorize your Dropbox app, then PKCE is a better, more secure replacement, and you should no longer use implicit flow.

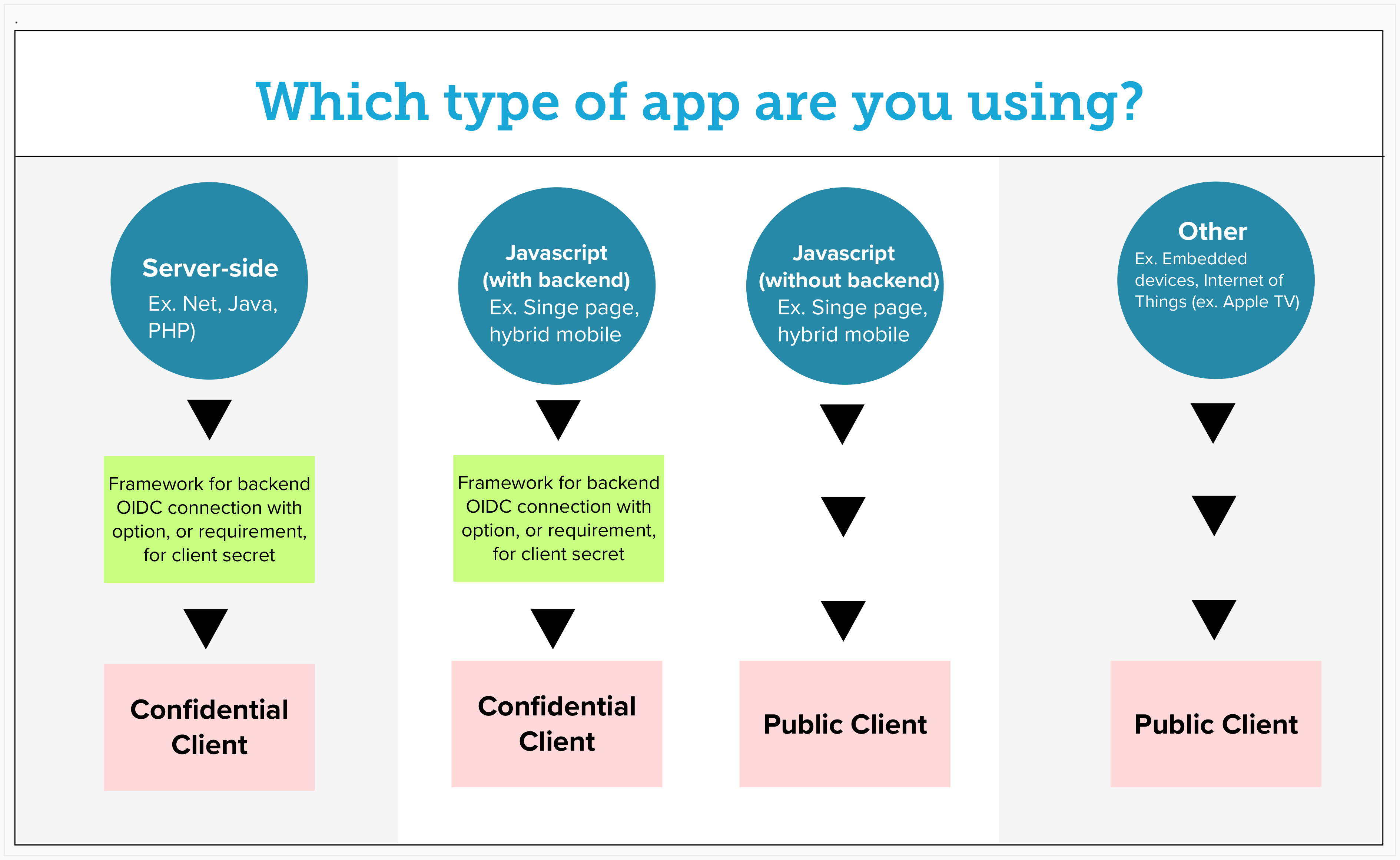

See the diagram below for use cases where each option is appropriate.

The javascript adapter for keycloak has built-in support for using PKCE. See the documentation under the init method here, specifically the pkceMethod. For example, when initializing the adapter you can call keycloak.init({ pkceMethod: 'S256' }) to use PKCE. Use the 'S256' method for you public client.

If not using the adapter, you can use a custom implementation. This will require 4 steps:

1. Create a code_verifier (cryptographically secure string)
2. Hash the code verifier with the SHA256 method to create a code_challenge
3. Send the code challenge and code challenge method (S256) as query parameters when redirecting users to the authorization endpoint
4. When exchanging the received code for an access token, send the initial code_verifier to ensure your application initiated the current exchange.

For an example of a custom PKCE implementation, see here for generating the authentication URL and here for exchanging the received code for an access token.

It is important to register redirect URIs as specifically as possible to prevents bad guys from accessing your client and obtaining your users' information.

• Please see here for more detail.

Redirect URI(s) is a required field to enable standard OpenID Connect redirect based authentication with authorization code. In terms of OpenID Connect or OAuth2 specifications, this enables support of 'Authorization Code Flow' for this client.

• Wildcards (*) are commonly used to allow dynamical redirect URIs and can be added at the end of a URI only, i.e. http://host.com/*
• For local dev environment, localhost URIs can be used, i.e. http://localhost:3000/*

Once your request has been completed, you will be able to download your installation file for each environment. It includes the client information to set up your SSO configuration.

• an example Installation JSON for confidential client types

{
  "realm": "<standard_realm_name>",
  "auth-server-url": "https://<env>.oidc.gov.bc.ca/auth/",
  "ssl-required": "external",
  "resource": "<client_id>",
  "credentials": {
    "secret": "<client_secret>"
  },
  "confidential-port": 0
}

• an example Installation JSON for public client types

{
  "realm": "<standard_realm_name>",
  "auth-server-url": "https://<env>.oidc.gov.bc.ca/auth/",
  "ssl-required": "external",
  "resource": "<client_id>",
  "public-client": true,
  "verify-token-audience": true,
  "use-resource-role-mappings": true,
  "confidential-port": 0
}

• The main difference between confidential and public clients is that confidential clients require client secret.

After having your Installation JSON, you can setup your application quickly using the Keycloak adapters. Keycloak has adapters for a number of languages, including java, javascript and C#. For a list of adapters and instructions on how to connect see here.

• There are example applications available to demonstrate integrating with Keycloak here
• In most cases, it does not require any additional information than the Installation JSON you can download.

If you are not using an adapter, you will require some additional information to set up your OpenID connection. Required information can be found behind the publicly accessible provider configuration endpoint for your environment. These are:

• Dev: https://dev.oidc.gov.bc.ca/auth/realms/<realm_name>/.well-known/openid-configuration
• Test: https://test.oidc.gov.bc.ca/auth/realms/<realm_name>/.well-known/openid-configuration
• Prod: https://oidc.gov.bc.ca/auth/realms/<realm_name>/.well-known/openid-configuration

Where <realm_name> needs to be replaced with the standard realm you are using, one of:

• onestopauth (For IDIR only)
• onestopauth-basic (For IDIR and BCeID basic)
• onestopauth-business (For IDIR and BCeID business)
• onestopauth-both (For IDIR and BCeID basic and business)

It gives you OpenID Provider Metadata required for the OpenID connect configration:

{
  "issuer": "https://<env>.oidc.gov.bc.ca/auth/realms/<realm_name>", // Issuer URL
  "authorization_endpoint": "https://<env>.oidc.gov.bc.ca/auth/realms/<realm_name>/protocol/openid-connect/auth", // Authorization URL
  "token_endpoint": "https://<env>.oidc.gov.bc.ca/auth/realms/<realm_name>/protocol/openid-connect/token", // Token URL
  "userinfo_endpoint": "https://<env>.oidc.gov.bc.ca/auth/realms/<realm_name>/protocol/openid-connect/userinfo", // User Info UR
  "end_session_endpoint": "https://<env>.oidc.gov.bc.ca/auth/realms/<realm_name>/protocol/openid-connect/logout", // Logout URL
  "jwks_uri": "https://<env>.oidc.gov.bc.ca/auth/realms/<realm_name>/protocol/openid-connect/certs", // JSON Web Key Set URL
  ...
}

• According to OpenID Connect Discovery documentation, "OpenID Providers have metadata describing their configuration. These OpenID Provider Metadata values are used by OpenID Connect"

• You can find the client_id and client_secret from the Installation JSON downloaded through the request process.

• Please see here for a full list of endpoints and their descriptions.

• Please see here for a other OpenID Connect Libraries.

If there is more than one IDP in the realm, the Keycloak server directs your users into a login page to let them choose the IDP that they want to authenticate with. It is possible to skip the login page or override the default IDP in Keycloak by passing the optional query param" kc_idp_hint".

• If using an adapter, there is an option for providing idpHint, and
• if not, please specify it in the Authorization URL in your code or configuration, i.e. http://localhost:8080/auth?kc_idp_hint=<idp_name>
• Please see here for more detail.

If the framework you are using prevents you from being able to pass through the IDP hint, please reach out to our team through rocket chat or email to ask about alternative options.

The KeyCloak adapter for a Confidential client is configured in your server-side component because it requires a client ID and client secret that must be kept securely on the server and never provided to the user's browser. You can specify in your application logic which routes are secure and which are not. Use the adapter for this unless you really want to code your own OIDC logic. Your secure routes should invoke the adapter on each request to make sure the user is authenticated.

If you have an insecure "Home" page, the URI to load that page should not be secured and should not invoke authentication. If you create a "Login" button that makes an http request to a secure resource, that should kick off an authentication process. Any non-public API calls to your server-side component should be secured with the KeyCloak adapter.

You can use any valid URI for your redirect URIs. At least one redirect URI is required for each or DEV, TEST and PROD. If you don't know the redirect URI for one or more of these environments, you may provide any valid URI for now and change it later. We suggest something like 'http://localhost:1000'

This can potentially bring down the shared service for all clients. This was the issue we saw with Flask-OIDC with some teams. The adapter was making a call to the Token Introspection Endpoint with every request and it was a high-volume service. Most adapters don't do this as the token information is available within the token itself, but this one adapter seems to have a defect.

Another important technique to be aware of is that you should cache the JWT in a cookie so that you don't have to check the status of your session with every request. Keycloak has a feature that provides a cookie for you, and libraries like keycloak-js make use of this to limit the number of round trips to the Keycloak server.

Please let the SSO team in advance when you want to do load testing in DEV and TEST so we can plan ahead and coordinate with other teams. These are shared environments that many teams are actively using. A failed load test can affect many other teams.

It stays on the server. Use OCP secrets if you are on OpenShift. Don't put it in your public JavaScript or in your GitHub repository. Don't build it into your Docker image.

Your redirect URIs should only be resources that you control. Most of the time you will only need one URI (the one that you want the client to return to after a login event).

In KeyCloak, if the realm that contains your client has more than one IDP configured, KeyCloak shows a page that prompts the user to select which IDP they want to log in with. Almost all teams have chosen to hide this page from their users by specifying the IDP as a query string parameter in the KeyCloak Authorization URI value behind their login button. The querystring is 'kc_idp_hint'. (The IDPs available will depend on the standard realm in which your client exists.) By specifying the IDP in this way, the user will be redirected directly to the login page for the identity provider and will not see the KeyCloak login choice page at all.

• IDIR: kc_idp_hint=idir
• BCeID Basic: kc_idp_hint=bceid-basic
• BCeID Business: kc_idp_hint=bceid-business
• BCeID Basic or Business: kc_idp_hint=bceid-basic-and-business
• GitHub: kc_idp_hint=github (Available in DEV and TEST)

Because there are multiple IDPs available to your client in the standard realm, if your application has business logic that specifies a particular login method, you have to enforce that. For example, if your application requires BCeID to authenticate, you have to make sure that the user didn't somehow log in with IDIR instead. Your client has a mapper configured to provide the alias of the IDP that was used to log in. The name of the claim is 'identity_provider' and the possible aliases are the same as the ones that are used for the kc_idp_hint query parameter (see above).

In the standard realms that support BCeID there are multiple IDPs (both BCeID and IDIR) and it is theoretically possible for a user to change the IDP hint (see above) maliciously using scripting or other techniques. Additionally, a user that is signed into another application that shares the same realm will get single sign-on with your app, so if you want to enforce a particular IDP, that's another good reason to validate the IDP that they used to sign in. It's up to you and your business logic requirements to make sure that your users have a good user experience and that you don't leave any room for unintended login flows.

If for some reason you want to make sure that your users do NOT have a single sign-on experience, you can force them to re-authenticate according to the OIDC spec at: 3.1.2.3. Authorization Server Authenticates End-User.
