Generating Artificial Natural Graphs - andrew-nguyen/titan GitHub Wiki

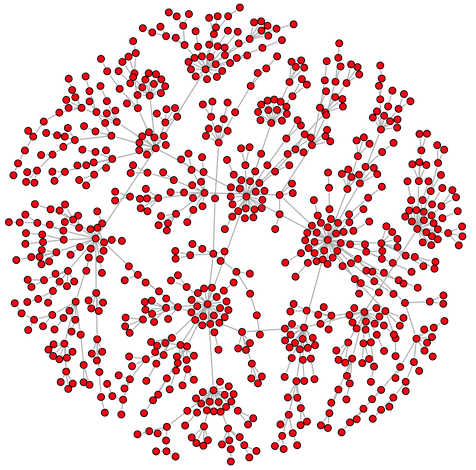

Real-world graphs are not random. Example real-world graphs include social graphs, word graphs, neural graphs, airline graphs, water flow graphs, etc. Interestingly enough, there is a simple statistical understanding of most natural graphs. In short, many vertices have few connections and very few vertices have many connections. A popular algorithm to generate a graph that has this connectivity pattern is known as the preferential attachment algorithm which can be simply described with the colloquial phrase: “the rich get richer.” This section provides some simple code to artificially generate a natural looking graph in Titan using Gremlin.

The first thing to do is to connect to a Cassandra cluster with Titan. In the example below, a local connection is used where storage.batch-loading ensures more speedy performance.

conf = new BaseConfiguration()
conf.setProperty('storage.backend','cassandra')
conf.setProperty('storage.hostname','127.0.0.1')
conf.setProperty('storage.batch-loading','true');
g = TitanFactory.open(conf)

Next, the following script generates a graph with size number of edges.

size = 100000; ids = [g.addVertex().id]; rand = new Random();
(1..size).each{
  v = g.addVertex();
  u = g.v(ids.get(rand.nextInt(ids.size())))
  g.addEdge(v,u,'linked');
  ids.add(u.id);
  ids.add(v.id);
  if(it % 1000 == 0)
    g.commit()
}

indegree = [:].withDefault{0}
ids.unique().each{
  count = g.v(it).inE.count();
  indegree[count] = indegree[count] + 1;
}
indegree.sort{a,b -> b.value <=> a.value}
