Using mgmt01 to Manage VMs

  • Network Configuration:
    • Adapter: SEC350 LAN
    • IP Address: 172.16.150.10
    • Netmask: 255.255.255.0
    • Gateway: 172.16.150.2
    • DNS: 172.16.150.2

NAT setup for LAN to WAN on fw01

  • I used the following commands in order to set up NAT from LAN to WAN on fw01
  • I made sure to change the rule to an unused one
    • set nat source rule 20 description "NAT FROM LAN to WAN"
    • set nat source rule 20 outbound-interface eth0
    • set nat source rule 20 source address 172.16.150.0/24
    • set nat source rule 20 translation address masquerade
    • commit
    • save

DNS forwarding for the LAN Network on fw01

  • I used the following commands to configure DNS forwarding for the LAN network on fw01
    • set service dns forwarding listen-address 172.16.150.2
    • set service dns forwarding allow-from 172.16.150.0/24
    • set service dns forwarding system
    • commit
    • save

Chrome Remote Desktop on mgmt01

  • I installed Chrome remote Desktop on mgmt01 to remotely access it.
  • From mgmt01, I am able to SSH into systems such as log01 and web01

SSH keybased authentication

  • To use keybased authentication for an ssh connection, use the command sudo ssh-keygen
  • Then use the command sudo ssh-copy-id USER@DESTINATIONHOST
  • You will then be able to ssh into the host using ssh keybased authentication.

Changing the Vyos Password

  • To change a Vyos Password, even when forgotten, you can reboot the system, and when the GRUB menu appears, select the "Lost Password(KVM)" option.
  • You can then follow the prompts to set a new password for your chosen user.
  • Alternatively, in configuration mode, the command set system login user [username] authentication plaintext-password [password] can be used to set a user password

Log Organization on log01

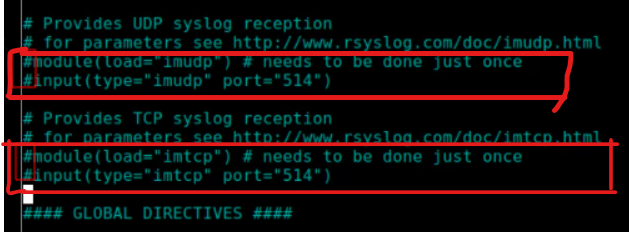

  • Comment out the following lines, shown in the screenshot below, in /etc/rsyslog.conf if they are not already commented out. image
  • Create a file in the /etc/rsyslog.d/ directory. My file is called sec350.conf. Add the following contents to the file:
module(load="imudp")
input(type="imudp" port="514" ruleset="RemoteDevice")
template(name="DynFile" type="string"
	string="/var/log/remote-syslog/%HOSTNAME%/%$YEAR%.%$MONTH%.%$DAY%.%PROGRAMNAME%.log"
)
ruleset(name="RemoteDevice"){
	action(type="omfile" dynaFile="DynFile")
}
  • After creating the file, restart the rsyslog service.
  • To test this, from web01, run the command logger -t SEC350 Testing web01->log01 custom rsyslog configuration
  • Back on log01, in the /var/log/remote-syslog/ directory, there should now be a directory for the web01 system logs. Mine is called web01-zachary.
  • In the directory, you should see the test log that was just sent.

Logging Authorization Events from web01

  • On web01 in the /etc/ryslog.d/ directory create a sec350-client.conf file and add the following contents to the file."
user.notice @172.16.50.5
authpriv.* @172.16.50.5
  • Restart the rsyslog service
  • To test this change, from rw01, ssh into web01, but make sure to type the password wrong at least once.
  • On log01 navigate to the web01 directory in the /var/log/remote-syslog/ directory and in it, you should see a log with the .sshd.log extension.
  • cat that log and what you see should contain lines similar to what is shown in the screenshot below image

Logging authorization events on fw01.

  • On fw01 in configuration mode, use the command set system syslog host 172.16.50.5 facility authpriv level info
  • Don't forget to commit and save
  • Restart the rsyslog service
  • Log out of vyos and then log back in via ssh, but type the wrong password a couple times.
  • Back on log01, there is now a fw01 related directory in /var/log/remote-syslog/, containing a .sshd.log file. cat the file to see logs of the failed login attempts.
  • NOTE: A useful command to see log files in a user-friendly format is the tree command

Reflection

This lab didn't prove to be very difficult. Some things I found notable was making sure to ensure that I used the correct subnet mask in my configurations. I also found chrome remote desktop and SSH very convenient in this lab. I haven't worked much with logs yet, so this lab was a good introduction to logging for me.
