rw01 Setup

Network Adapter:

• SEC350-WAN
• I set the hostname on the rw01 system to rw01-zachary
• I added a new sudo user to the system
• I adjusted the network configuration as follows:

Network configuration:

• IP: 10.0.17.33
• Default Gateway: 10.0.17.2
• DNS: 10.0.17.2

fw01 Setup

Network Adapters:

• SEC350-01-WAN
• SEC350-01-DMZ-zachary.morris
• SEC350-01-LAN-zachary.morris
• I set the hostname on the fw01 system to fw1-zachary
• I adjusted the network configuration as follows, while disabling DHCP:

Network configuration:

• eth0 IP: 10.0.17.133/24 (WAN)
• eth1 IP: 172.16.50.2/29 (DMZ)
• eth2 IP: 172.16.50.2/24 (LAN)

Internet Access

• I used the following commands, in configuration mode, to allow fw01 to reach the internet:
  • set protocols static route 0.0.0.0/0 next-hop 10.0.17.2
  • set system name-server 10.0.17.2

web01 setup

Network Adapter:

• SEC350-01-DMZ-zachary.morris
• I set the hostname on the fw01 system to web01-zachary
• I added a new sudo user to the system, called zachary
• Using the nmtui configuration tool, I set the network configuration as follows

Network configuration:

• IP: 172.16.50.3/29
• Default Gateway: 172.16.50.2
• DNS: 172.16.50.2

NAT and DNS Forwarding Setup on fw01

• Using the following commands in configuration mode on fw01, I configured NAT from the DMZ to the WAN:
  • set nat source rule 10 description "NAT FROM DMZ to WAN"
  • set nat source rule 10 outbound-interface eth0
  • set nat source rule 10 source address 172.16.50.0/29
  • set nat source rule 10 translation address masquerade
  • commit
  • save
• Now the web01 system can ping out to the internet, but still can't perform DNS lookup
• DNS Forwarding can be set up using the following commands in configuration mode:
  • set service dns forwarding listen-address 172.16.50.2
  • set service dns forwarding allow-from 172.16.50.0/29
  • set service dns forwarding system
• Now web01 is able to resolve dns names. I tested this by pinging google.com

log01 setup

Network Adapter:

• SEC350-01-DMZ-zachary.morris
• I set the hostname on the fw01 system to log01-zachary
• I added a new sudo user to the system, called zachary
• Using the nmtui configuration tool, I set the network configuration as follows

Network configuration:

• IP: 172.16.50.5/29
• Default Gateway: 172.16.50.2
• DNS: 172.16.50.2

HTTPD and Firewall on web01

• I installed httpd on web01 using the command sudo yum install httpd. Once installed, I started httpd
• I then configured the firewall on web01 using the commands
  • firewall-cmd --permanent --add-service http
  • firewall-cmd --permanent --add-service https
• I then restart the firewall service using firewall-cmd --reload

Testing HTTPD on web01 from rw01

• On rw01, I configured static routing in the network configuration to route addresses in the DMZ to fw01's WAN interface.
• The static routing configuration is as follows:
  • Address: 172.16.50.0
  • Netmask: 255.255.255.248
  • Gateway: 10.0.17.133
• I then reset the network interface by disconnecting and reconnecting it.

Configuring rsyslog services on log01

• On log01, I allowed traffic for TCP/UDP port 514 using the commands:
  • firewall-cmd --permanent --add-port 514/tcp
  • firewall-cmd --permanent --add-port 514/udp
• I then restarted the firewall using firewall-cmd --reload
• I then installed the rysylog service on log01 using sudo yum install rsyslog

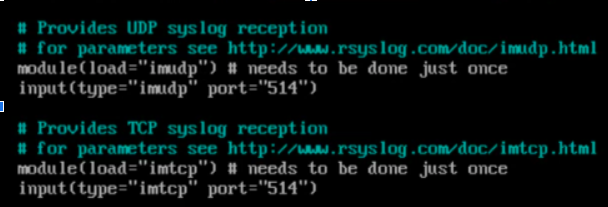

• I then edited the /etc/rsyslog.conf file, and uncommented lines as shown below:
• I then started the rsyslog service and ensure my configuration was applied using the command netstat -tupan | grep 514

Configuring rsyslog services on web01

• I installed the rysylog service on web01 using sudo yum install rsyslog
• I then created and edited the /etc/rsyslog.d/sec350.conf file, and added the line user.notice @172.16.50.5
• I then started the rsyslog service
• I then tested rsyslog messaging from web01 to log01 by using the command, logger -t test TESTFROMWEB01TOLOG01
• I confirmed that the message worked by tailing the /var/log/messages file on log01

Notes

• VYOS Notes
