Electronic

Because of the few space available arround the display, the FCU electronic card has been splited into two boards :

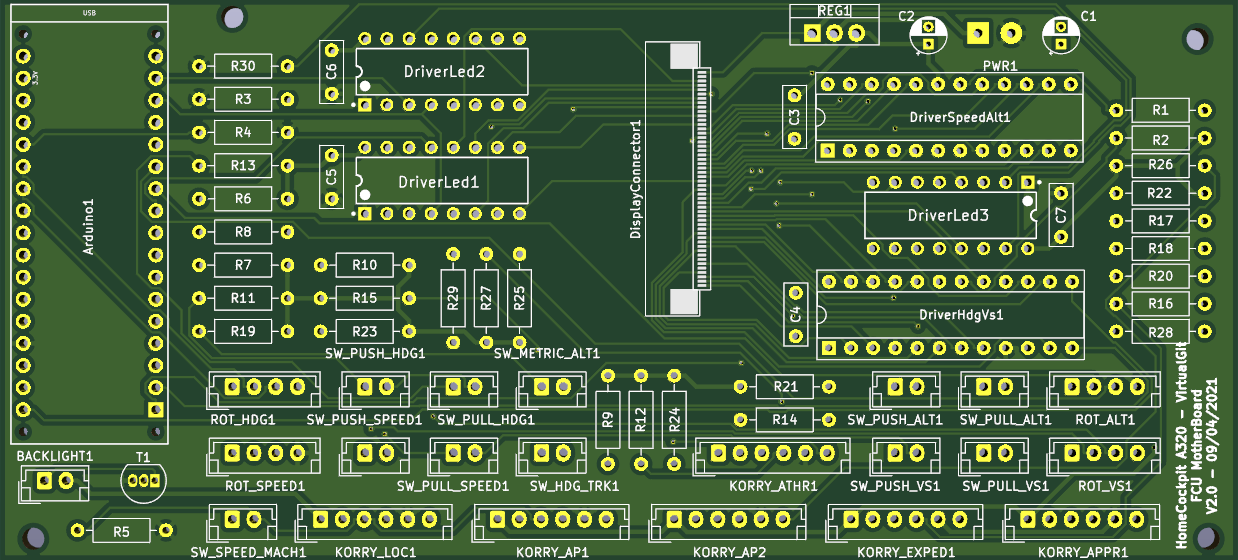

• Motherboard : Manage all stuff except display
• Display : support digits, leds and Pad leds for symbols and texts

Status

• PCB design [95%] : draft v2
• Arduino program [80%] : draft
• Common libraries and Arduino-Jeehell bridge [50%] : draft
• Buy parts [50%] : partial, to test and validate PCB design
• Prototype build [20%] : -
• Tests [10%] : -
• Mechanical design [5%] : -
• Final build and assembly [0%] : -

Parts

Motherboard

Name	Quantity	Reference	Brand
Arduino Micro	1		Arduino
7-segment driver	2	MAX7219	Maxim Integrated
Led driver	3	TLC5917IN	Texas Instrument
Resistor 100 kΩ	2
Resistor 53 kΩ	2
Resistor 8,2 kΩ	2
Resistor 15 kΩ	2
Resistor 22 kΩ	2
Resistor 33 kΩ	2
Resistor 47 kΩ	2
Resistor 68 kΩ	2
Resistor 91 kΩ	2
Resistor 120 kΩ	2
Resistor 150 kΩ	1
Capacitor 100 µF	1
Capacitor 10 µF	1
Capacitor 1 µF	3
Capacitor 0,1 µF	2
JST Connector male header + wired female 2 pins	12	JST XH	JST
JST Connector male header + wired female 4 pins	4	JST XH	JST
JST Connector male header + wired female 6 pins	6	JST XH	JST
Backlight MOSFET	1	BS170	ON SEMICONDUCTOR
Voltage Regulator	1	L7805	STMICROELECTRONICS

Display board

Name	Quantity	Reference	Brand
7-segment digits	16	SA36-11SYKWA	KingBright
Pad Led	14	DE-2YD	KingBright
Led	3	L-424YDT	KingBright

Link betweek Motherboard and Display board

Name	Quantity	Reference	Brand
ZIF FPC flat-cable connector	2	ZIF FPC	Würth Elektronik
Flat cable WR-FFC (50 pins 0.5mm)	1	WR-FFC	Würth Elektronik

Control components

Name	Quantity	Reference	Brand
Rotary encoder	4	EN11-HSB1AQ20	BI TECHNOLOGIES
Push black round buttons	3
Push buttons (push/pull on rotary encoders)	8
Korry buttons	3	Korry	Home made
Korry slim buttons	3	KorrySlim	Home made

Electronic boards

Available here

Software

Coming later...
