Map Introduction

24 October personal gameplay evidence

24 October final acceptance: Sprint 4 Tutorial Acceptance 24 October 2026 records main 6c7a8d37, 15 captures, 2,711 tests/336 suites and the tester-reported combined player journey. The Status prompt/Poison-hover overlap is retained as a known UI limitation; resizing was not tested.

Fresh display, collapse/reopen, Combat return and save restoration were checked. These are new execution records; earlier #493 images retain their build-specific captions.

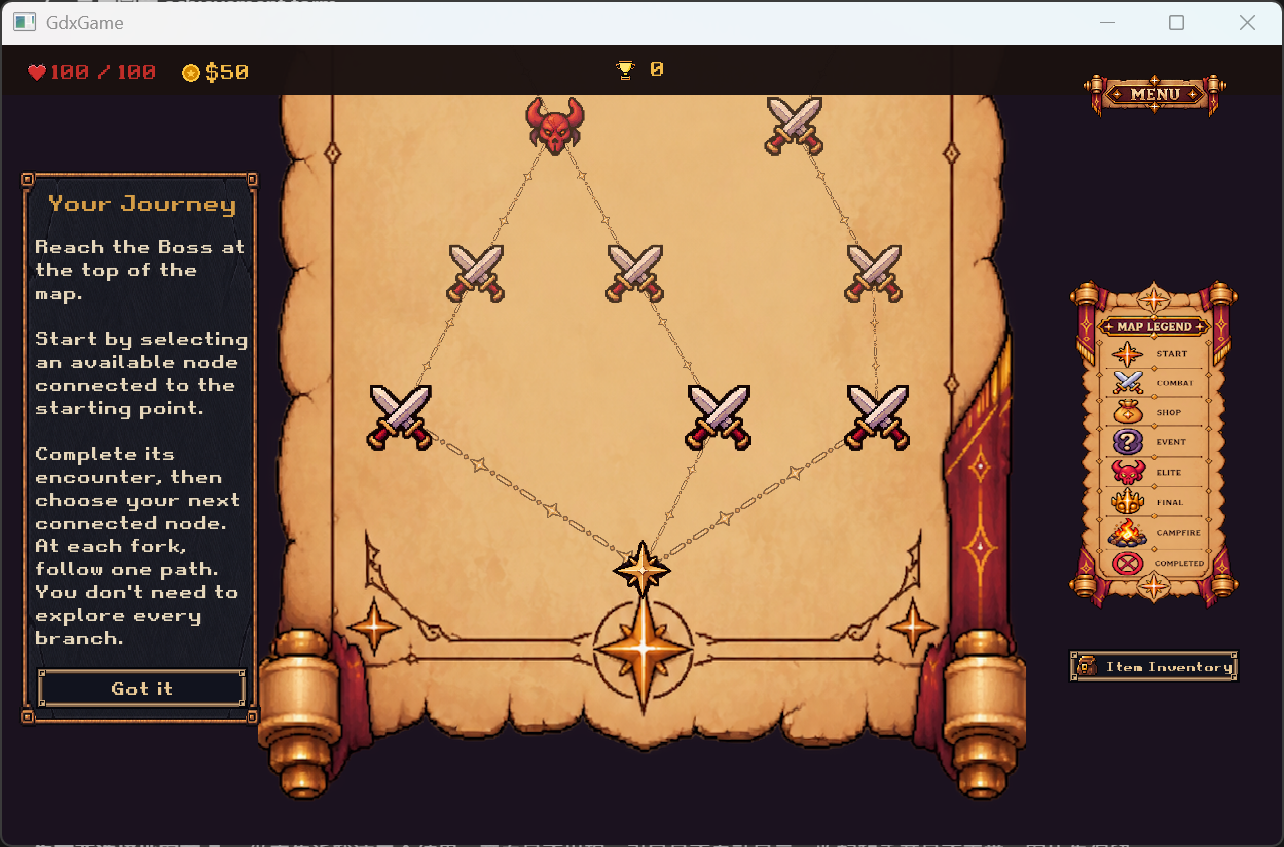

Fresh Map introduction after Skip; HUD shows 100/100 HP and 50 Gold.

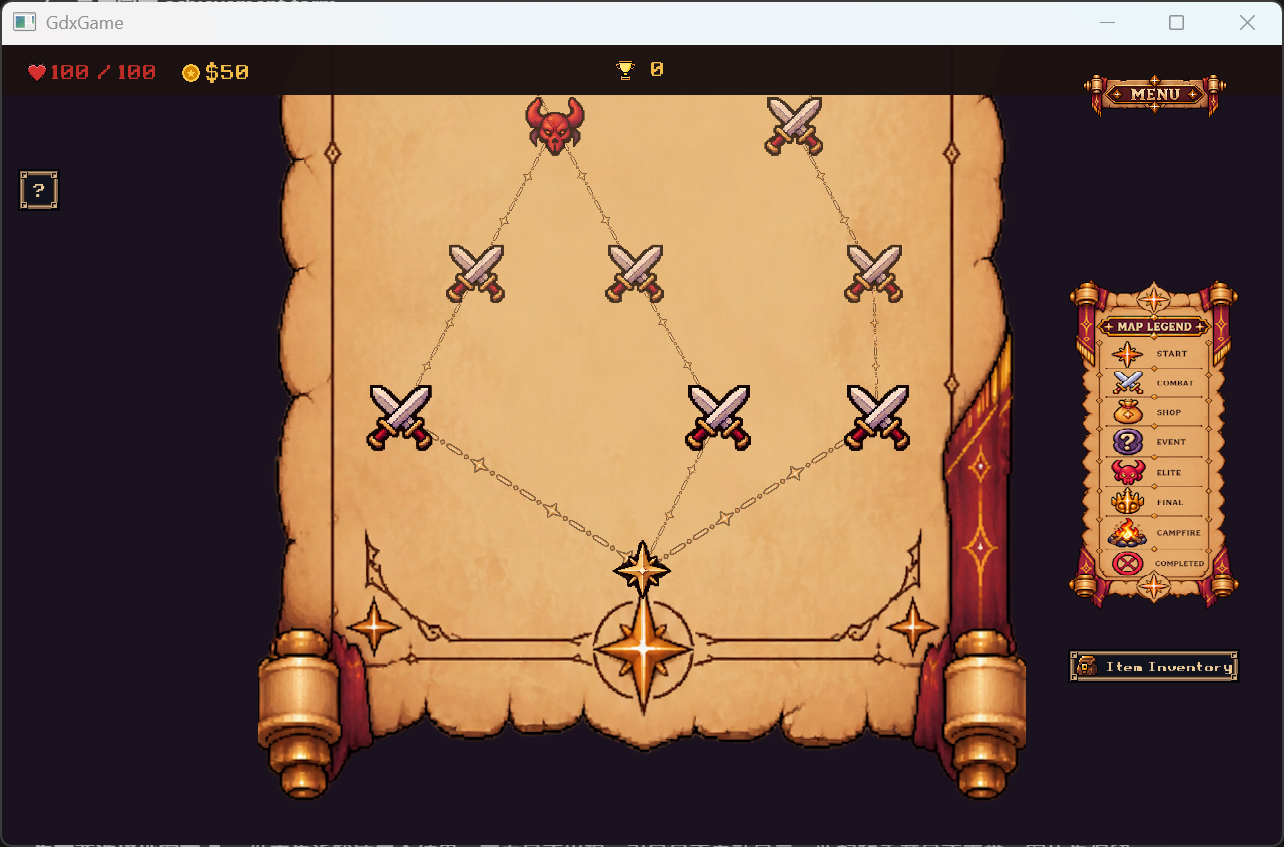

Map help collapsed to the question-mark control.

Map after returning from Combat; help remains collapsed.

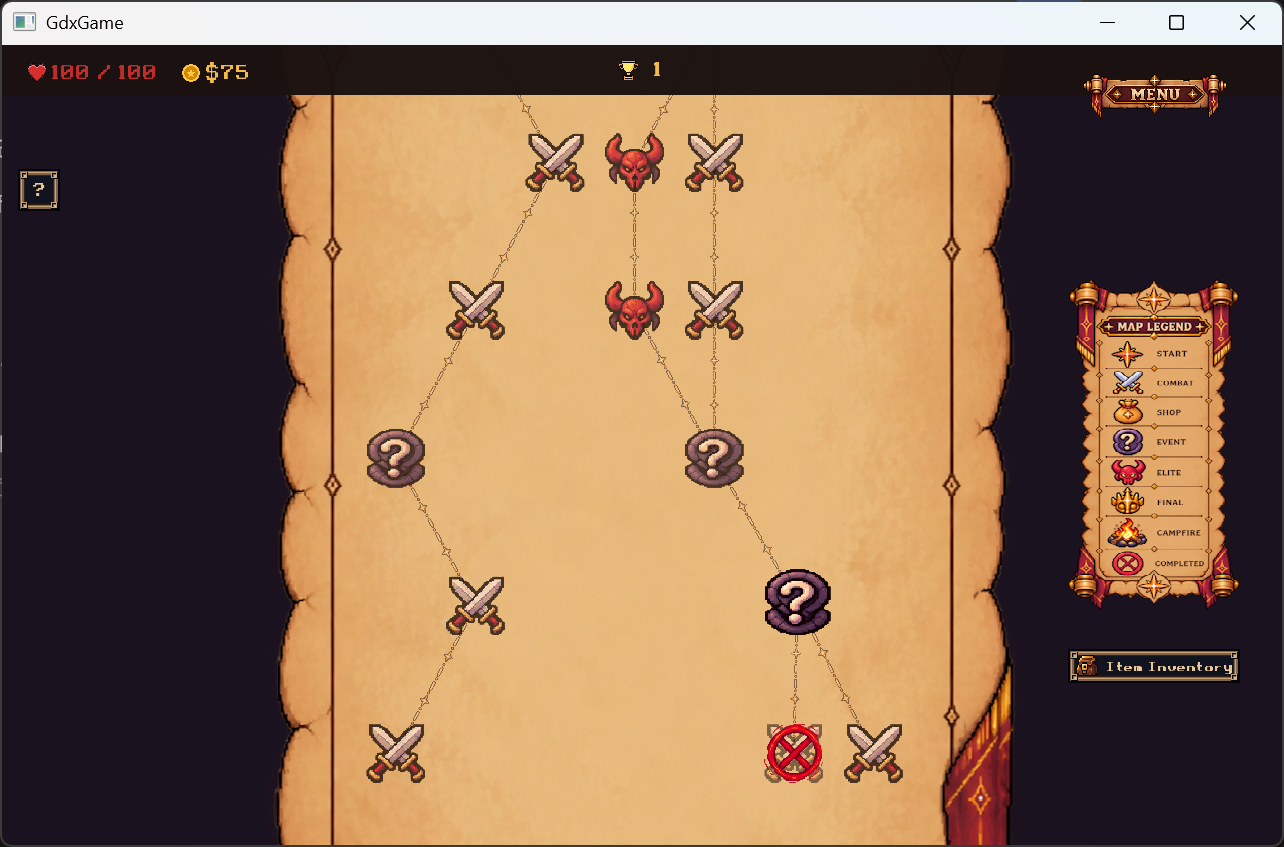

Restored Map with collapsed help, 100/100 HP and 75 Gold. Restoration comparison and working question-mark control were confirmed by the tester.

Owner: Joel Zhan (@Joel9368), Team 2 Sprint: 4 Task: #448 Feature: #439 Implementation: #450, #493; delivered to main through #531. Reviewed: 21 October 2026 against main 80a33a33.

Player behaviour

The first Map of a fresh run displays Your Journey below the player HUD. It explains reaching the Boss, choosing an available node connected to the starting point, completing encounters and following one route at each fork. The existing Map legend explains room types.

Got it collapses the panel into ?; that button reopens the explanation. The panel has no modal overlay and does not capture keyboard or scroll focus. Nodes outside its bounds remain usable. Returning from an encounter or restoring a saved run keeps it collapsed, including a save at the starting point. A new fresh run makes it available again. The save format is unchanged.

Implementation and integration

Source paths below are relative to source/core/src/main/com/csse3200/game/ in the reviewed main build.

Component	Responsibility
maps/MapIntroduction.java	Builds the explanation, collapse/reopen controls and layout.
maps/RunState.java	Tracks and consumes first-display eligibility per fresh run; clears it on restoration/end.
maps/MapDisplay.java	Owns the panel, positions it below the HUD, updates layout on resize and cleans it up.
components/spritedisplay/clickable/BattleMenuSkins.java	Supplies the shared bronze button style.

The panel borrows Map fonts and uses the existing Inventory texture as a nine-patch. Gold headings, cream body text and bronze buttons match the Inventory presentation. Maria/Team 3 introduced the shared frame API in #487; Joel integrated that API and appearance in #493. Existing artwork and the underlying Map system retain their original ownership.

Verification

These are retained implementation records, not new test executions for this Wiki edit.

Build	Evidence
#450, 73a05f3b, 13 October	73 focused tests passed, including MapIntroduction, RunState, selection/progression, save restoration and GdxGame regressions. Formatting, Desktop compilation and diff checks passed.
#493, c385c909, 18 October	31 focused Map/Inventory/shared-button/layout tests passed; formatting, Desktop compilation and diff checks passed.
Desktop records for #450/#493	Fresh display, collapse, reopen, encounter return, restored run, another fresh run and resizing checked at 1280 x 800 and 1600 x 900.

Focused tests cover first-display flags, unobstructed selection, resizing and disposal. They do not alone establish final pixel appearance. The screenshots below are the retained #493 UI-consistency checks, not a newly executed playthrough of today's main build.

Changes from plan and reflection

#450 delivered the lightweight explanation using the available skin. Team 3's later consistency feedback required #493 to reuse Inventory artwork and the shared button frame. This was necessary to make onboarding fit the surrounding UI without changing Map interaction or first-display behaviour. The follow-up retained those behaviours and passed the shared-UI regressions and two-resolution visual checks. The lesson is to review new panels beside existing screens early and agree reusable style interfaces before separate styling spreads.

Related documentation

• Map Display System
• Tutorial Entry and Fresh Run Transition
• Tutorial Acceptance Test Plan
• Repository Map guide

Codex assisted with documentation drafting and evidence checking. Ownership, source references and the limits of recorded verification are stated above.
