Specs | |
---|---|
Manufacturer | Livox |
Model | Horizon |
Product | Solid-State LiDAR |
Category | Sensor/Perception |
MSRP | $800 |
Product Page | Livox Horizon |

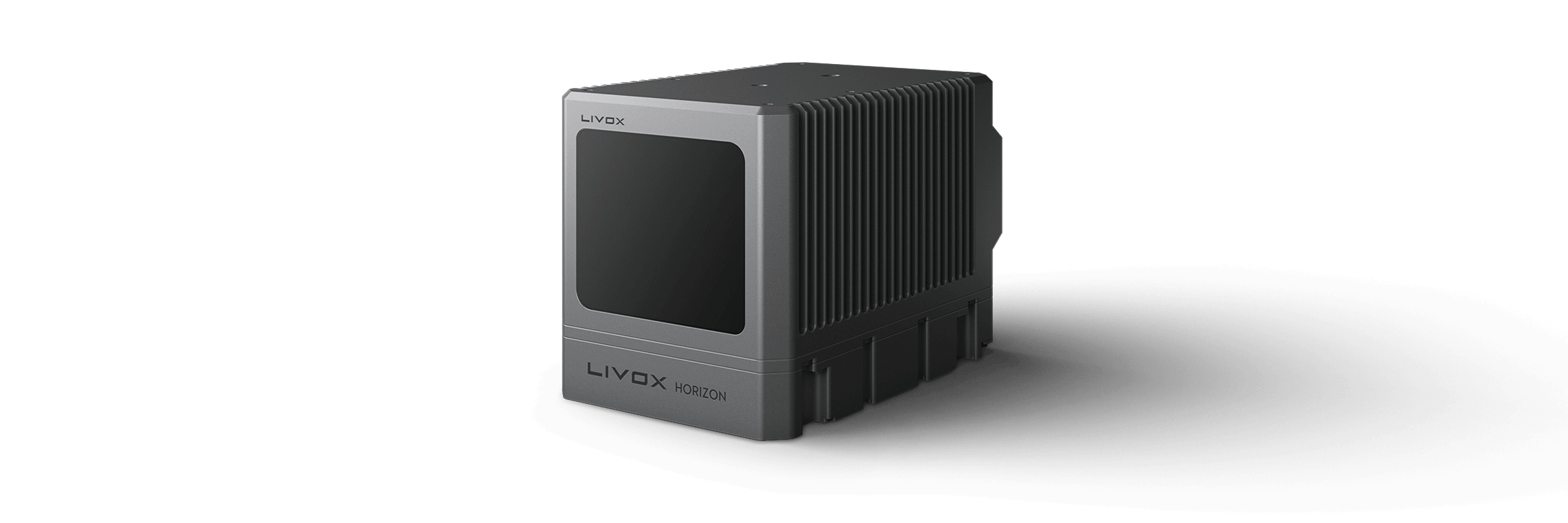

The Horizon LiDAR by Livox is currently the main 3D perception sensor on both Triton AI's go kart and the IAC race car(Luminar Lidars are the official ones on the IAC racecar).
As of 7 July 2021, IAC is switching from Luminar to Livox Horizon for its 3D perception solution. A plan has been made to reproduce the IAC perception setup on the go kart for easiler migration and data collection.
Technical Specs | |
---|---|
Range | 260 m |
Range Percision | 2 cm |
Angular Percision | 0.5° |
Horizontal FOV | 81.7° |
Vertical FOV | 25.1° |
Typical Power | 12 W |
Startup Power | 30 W |
Power Supply | 10-15 V DC |
IO
The LiDAR unit has a proprietary power/data connector.
Each individual unit comes with an adapter box which accepts the aformentioned connector and interfaces with a proprietary power connector and an Ethernet port.
The power connector that comes with the package has loose ends for custom power jacks.
A minimum of CAT-5 ethernet cable is advised.
On the Kart
There are a total of 6 units on UoH's kart (2 on the front, 4 on the back), configured to replicate the mounting height and position on the IAC car. The Mako cameras are mounted right next to them.
API
Livox provides ROS/ROS2/SDK for the unit.
Good to Know
The Horizon Lidar uses a peculiar scanning pattern different than the concept of "scan lines" called " non-repetitive horizontal scanning patterns", the details of which can be found on the product page. This scan pattern offers much higher scanning densities.
Livox used to manufacture a LiDAR hub which could easily fuse the point clouds of multiple LiDARs and manage the power deliveries, but the product has been discontinued.
