Project photos and reference photos for the parts on the Parts to buy page. One folder per part. Component images come from manufacturer/vendor photography, a freely licensed source, or a file already in this project, and are for builder identification only.

SparkFun and Adafruit images are used here so a builder can recognize the part when it arrives — not redistributed as marketing material. Those vendor photos stay under their owners' terms. Link to the product page for authoritative specs.

File	Part	Source
esp32-thing-plus/esp32-thing-plus.jpg	SparkFun ESP32 Thing Plus (micro-USB), WRL-15663	Copied from BuildYourOwn/images/esp32-thing-plus.jpg. SparkFun product page
qwiic-micropressure/qwiic-micropressure.jpg	SparkFun Qwiic MicroPressure Sensor, SEN-16476	Copied from BuildYourOwn/images/qwiic-micropressure.jpg. SparkFun product page
qwiic-button/qwiic-button.jpg	SparkFun Qwiic Button, red, BOB-15932	Copied from BuildYourOwn/images/qwiic-button.jpg. SparkFun product page
attiny1616-seesaw/attiny1616-seesaw.jpg	Adafruit ATtiny1616 Breakout with seesaw, STEMMA QT/Qwiic (PID 5690)	Copied from BuildYourOwn/images/adafruit-attiny1616-seesaw.jpg. Adafruit product page, image via https://cdn-shop.adafruit.com/970x728/5690-00.jpg
air-pump-4699/air-pump-4699.jpg	Adafruit 4699 — Air Pump and Vacuum DC Motor (ZR370-02PM)	Copied from BuildYourOwn/images/adafruit-4699-air-pump.jpg. Adafruit product page
air-valve-4663/air-valve-4663.jpg	Adafruit 4663 — 6V Air Valve (FA0520E)	Copied from BuildYourOwn/images/adafruit-4663-air-valve.jpg. Adafruit product page
power-adapter-alt-1202/power-adapter-alt-1202.jpg	Cysljoyful AC/DC adapter, model ALT-1202, output 12 V DC 2 A	Copied from BuildYourOwn/images/power-adapter-alt-1202.jpg. Product photo for the Amazon listing. The label in the photo reads AC/DC ADAPTER, MODEL ALT-1202, INPUT 100-240V AC 50-60Hz, OUTPUT 12V 2A, MADE IN CHINA. Vendor photo for identification; it stays under the seller's terms.
l298n/l298n.jpg	Generic L298N dual H-bridge module	Copied from BuildYourOwn/images/l298n-motor-driver.jpg. Cropped from Wikimedia Commons: Dosmotorsl298n.jpg by Quel.soler, CC BY-SA 4.0. No single canonical vendor page exists for this generic module, so this is the best-effort stand-in; swap for your exact board's photo if it differs.
silicone-tube-4661/silicone-tube-4661.jpg	Adafruit 4661 silicone tubing, 3 mm ID, 5 mm OD, 1 m	Downloaded from https://cdn-shop.adafruit.com/640x480/4661-00.jpg, the product image on https://www.adafruit.com/product/4661

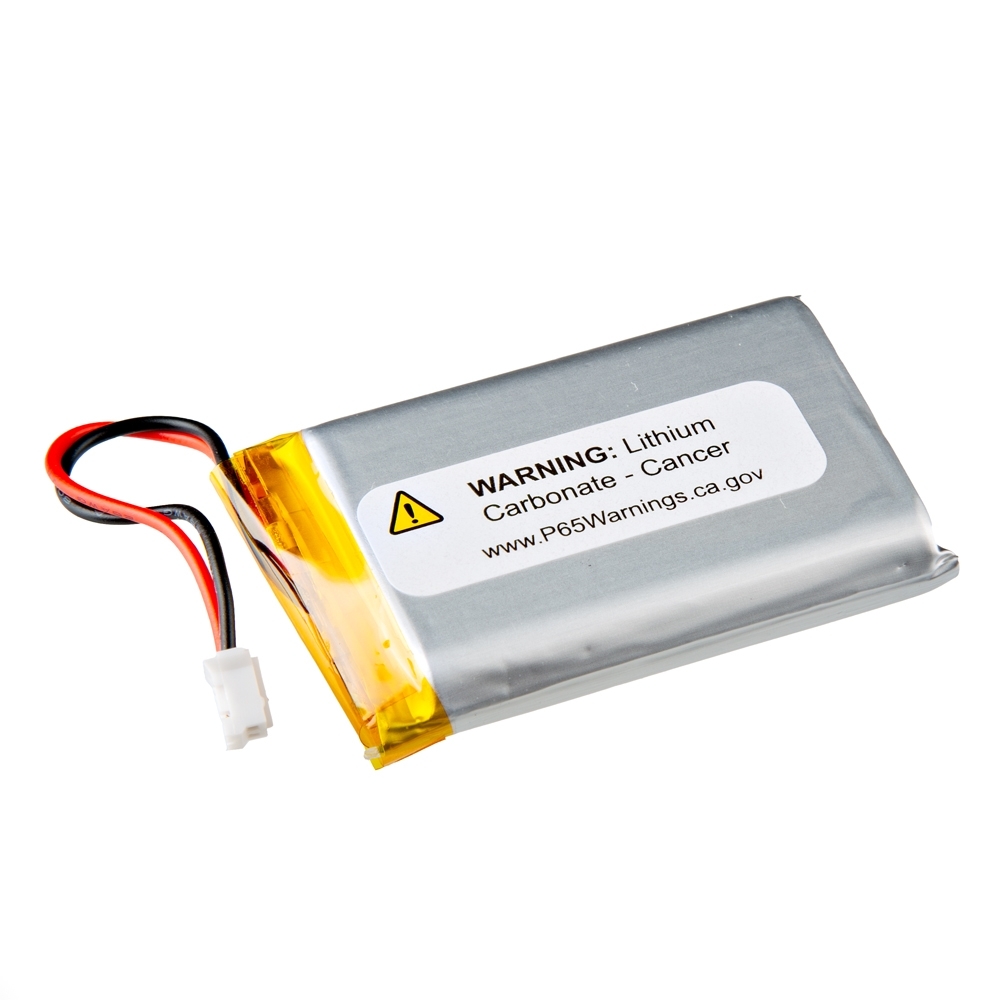

battery-prt-26059/battery-prt-26059.jpg	SparkFun Lithium Ion Battery 1500 mAh, IEC62133 certified (PRT-26059)	Downloaded from https://www.sparkfun.com/media/catalog/product/cache/f8158826193ba5faa8b862a9bd1eb9e9/P/R/PRT-26059-Lithium-Ion-Battery-Feature.jpg, the product image on https://www.sparkfun.com/lithium-ion-battery-1500mah-iec62133-certified.html
qwiic-cable/qwiic-cable.jpg	SparkFun Flexible Qwiic Cable, 50 mm (PRT-17260)	Downloaded from https://www.sparkfun.com/media/catalog/product/cache/f8158826193ba5faa8b862a9bd1eb9e9/1/7/17260-Flexible_Qwiic_Cable_-_50mm-01.jpg, the product image on https://www.sparkfun.com/flexible-qwiic-cable-50mm.html

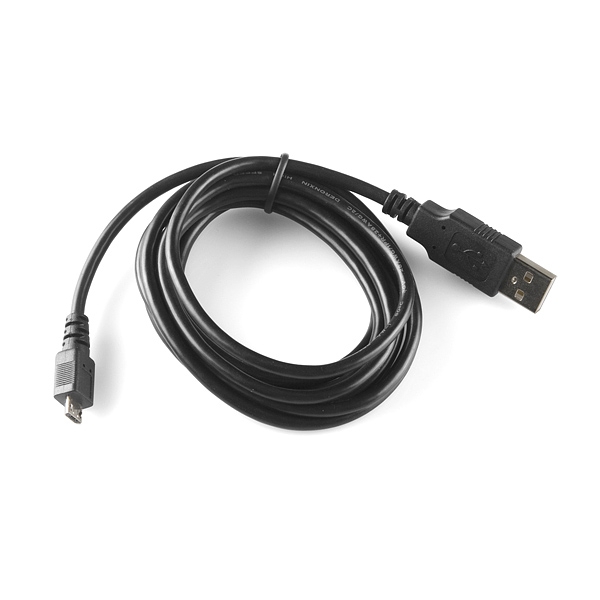

micro-usb-cable/micro-usb-cable.jpg	SparkFun USB Micro-B Cable, 6 foot (CAB-10215)	Downloaded from https://www.sparkfun.com/media/catalog/product/cache/f8158826193ba5faa8b862a9bd1eb9e9/1/0/10215-01.jpg, the product image on https://www.sparkfun.com/usb-micro-b-cable-6-foot.html
ftllb220-6005/ftllb220-6005.jpg	Value Plastics FTLLB220-6005 female luer-thread panel-mount fitting	Saved from the manufacturer drawing https://fluid-components.nordsonmedical.com/files/partcontent/part-images/fluid-components/FTLLB220-6005.png on https://fluid-components.nordsonmedical.com/shop/fluid-components/Luer%20Fitting/FTLLB220-6005
gl45-bottle/gl45-bottle.jpg	Example GL45 lab reagent bottle, DURAN 250 mL with a GL45 cap	Downloaded from https://commons.wikimedia.org/wiki/File:DURAN%C2%AE_laboratory_bottle_250ml.jpg by Lucasbosch, CC BY-SA 3.0. An example only. Any GL45 bottle is fine.
panel/panel-annotated.pdf	Annotated photo of the flat 3D-printed panel	Copied from BuildYourOwn/cad/encloser/panel-annotated.pdf. Not fetched.
panel/panel-annotated.jpg	Same annotated panel photo, as a JPEG	Exported from that one-page PDF (embedded photo, 480×510) so the picture can be shown on a page. Not a new photograph.
cad/base_panel.jpg	Shaded view of the base panel	Rendered from BuildYourOwn/cad/encloser/part/base_panel.STEP. Not a photograph.
cad/pump_holder.jpg	Shaded view of the pump holder	Rendered from BuildYourOwn/cad/encloser/part/pump_holder.STEP. Not a photograph.
cad/valve_bracket.jpg	Shaded view of the valve bracket	Rendered from BuildYourOwn/cad/encloser/part/valve_bracket.STEP. Not a photograph.
cad/sensing_tube.jpg	Shaded view of the sensing tube	Rendered from BuildYourOwn/cad/connector/sensing_tube.stl. Not a photograph.
cad/connector_small.jpg	Shaded view of the small connector	Rendered from BuildYourOwn/cad/connector/connector_small.stl. Not a photograph.
panel/assembly-open.jpg	Drawing of the assembly with the lid off	Copied from BuildYourOwn/cad/encloser/assembly-open.jpg. Supplied drawing, cropped to the box. Not a photograph.
panel/encloser_pic1.jpg	CAD view stored beside the panel print files	Copied from BuildYourOwn/cad/encloser/encloser_pic1.jpg and resaved as JPEG. That source file is PNG data with a .jpg name. Not fetched.
panel/encloser_pic2.jpg	CAD view stored beside the panel print files	Copied from BuildYourOwn/cad/encloser/encloser_pic2.jpg and resaved as JPEG. That source file is PNG data with a .jpg name. Not fetched.
panel/encloser_pic3.jpg	CAD view stored beside the panel print files	Copied from BuildYourOwn/cad/encloser/encloser_pic3.jpg and resaved as JPEG. That source file is PNG data with a .jpg name. Not fetched.
teaser/teaser.jpg	Assembled bench prototype used as the project hero image	Copied from BuildYourOwn/images/teaser.jpg. User-provided project photo.
panel/diy-annotated.jpg	Annotated photo of the RheoBoardOTS - DIY panel, with callouts	Rendered from the one-page PDF supplied for the wiki RheoBoardOTS page. The photo and the callout labels are in that PDF. Not a new photograph.
portable/portable-concept.jpg	Packaging concept titled "Compact stack + cable routing"	Copied from the supplied concept image. Packaging concept only. The picture says board, battery, and connector dimensions must be measured.
portable/thing_plus_tray.png	CAD view of thing_plus_tray.stp	Rendered from BuildYourOwn/cad/portable_holder/thing_plus_tray.stp. Tray for the SparkFun ESP32 Thing Plus (micro-USB). Not a photograph.
portable/micropressure_tray.png	CAD view of micropressure_tray.stp	Rendered from BuildYourOwn/cad/portable_holder/micropressure_tray.stp. Tray for the SparkFun Qwiic MicroPressure sensor. Not a photograph.
portable/battery_tray.png	CAD view of battery_tray.stp	Rendered from BuildYourOwn/cad/portable_holder/battery_tray.stp. Tray for the SparkFun Lithium Ion Battery 1500 mAh (PRT-26059). Not a photograph.
home-versions.png	Four-panel Home figure	Composite of existing pictures, not a new illustration. (a) panel/diy-annotated.jpg. (b) panel/encloser_pic2.jpg, the open gray box. It is not the current flat-panel print. (c) Submitted Rheoboard V1 placement RheoBoard_PCB/RheoBoard_v1.05/Archive_v1_outputs/8815214A_Y73_SMT026093063736_top.png, with the black order-number banner cropped off. Not a v1.05 qualification. (d) Pipette-only crop from the supplied reference figure, because portable/portable-concept.jpg is the wide multi-view sheet.

• Originals in BuildYourOwn/images/ and BuildYourOwn/cad/encloser/ are left in place.
• If a part is substituted, replace the photo here and update the Parts to buy page.
• No photo is stored here for the GL45 two-port cap or the tube that connects to that cap. Those print files are not in the repository. The GL45 bottle photo is an example of the recommended sample container, not one of those printed parts.
