Introuction

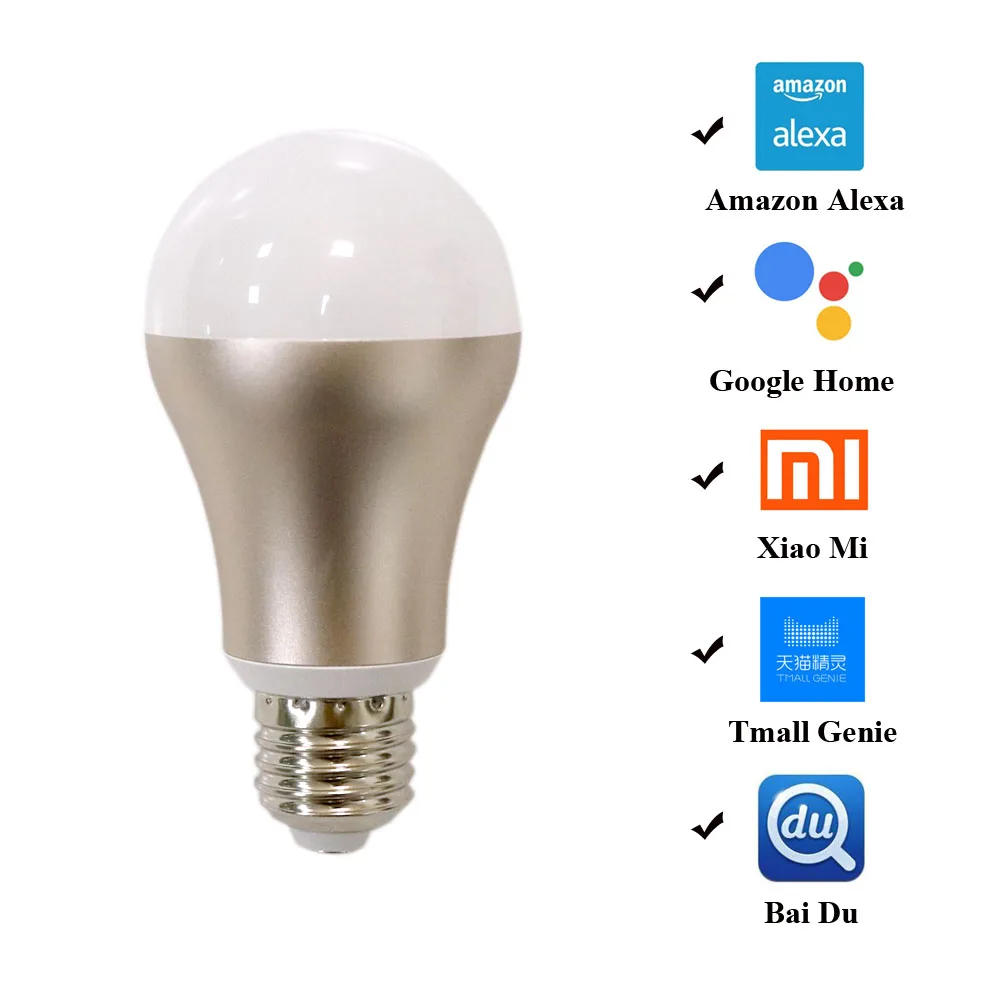

This smart bulb is developed by WiFi, which can be controlled by internet, voice (now support Amazon, Google, Tmall, and Xiao Mi). https://ae01.alicdn.com/kf/HTB18FsDqhuTBuNkHFNRq6A9qpXa4.jpg

User Manual

How to buy:

Parameters

  • Model: DoLED05
  • Mode: Wi-Fi
  • APP Name: DoHome
  • OS version: Android 4.0/IOS9.0
  • Channel: 4（RGBW）
  • Watt: <7.5W
  • Power Factor: 0.6
  • Lumen: 550lm
  • Luminous Angle: 120
  • Temperature: 3000K, RGB
  • Beads Number: RGB: 5050-0.2W5, warm white: 2835-0.5W16
  • Working Voltage: 100-264VAC, 50/60HZ
  • Lampholder: E27 B22
  • Effective control of distance: 40 meters for visual distance
  • Material: shade: PC, holder: aluminum
  • working time: 40000H

Specifications

  • Brightness adjustment
  • 16 million color
  • Heating adjustment
  • Custom pattern
  • Timing delay
  • Mobile phone control
  • Remote upgrade
  • Voice control
  • Tmall Genie
  • Google assistant
  • Amazon Alexa
  • Xiao Mi

Usage Steps

Install bulb

In your actual case to install the bulb, and then open the power switch.

App Download

In the app store to search “DoHome”, an/or scan the following QR code to download and install the App “DoHome” in your phone.

Three control modes

Our bulb can be controlled by the following three modes:

  • Directly connect the local area network
  • Remote control by internet
  • Voice control with the following supporting AI box
    • Tmall Genie
    • Google Assistant
    • Amazon Alexa
    • xiaomi

Control at local area network

  • Open the WiFi setting in your phone, find and connect the WiFi for bulb with its SSID name “DoHome_xxxx”, and the default password is 12345678;
  • Open the “DoHome” App, click the device name (as shown in the following Fig. 2) to be able to enter the bulb functions, and then can control the bulb randomly. Note:： Under this local control mode, some control functions for the bulb would not be finished, e.g., remote control, remote update, voice control, and so on.

Remote control by internet

Before you use this remote control function, you must register a DoHome ACCOUNT at DoHome App. Since this section has many navigation applications. So, please click this link to download the PDF user manual.

Q & A

  • Q: What is the WiFi name for this bulb? and its password?

  • A: The SSID is “DoHome_xxxx”, where, xxxx is denoted the ID for this device, and the default password is 12345678.

  • Q: When add the device, if pop a message says whether accept APP to get the location, how to handle it?

  • A：This is very important. Must click "accept or Yes".

  • Q: At step 3.2, if the progress bar is 0% and then don't move, how to do it?

  • A: there is two ways:

    1. Open the phone WiFi setting, select "forget/don't save" the WiFi signal "DoHome_xxxx" for this device, and then go on the WiFi configuration by the above;
    1. Manually connect the WiFi signal "DoHome_xxxx", and press the phone return key to back "DoHome" interface.

  • Q: If I want to use the voice function, What are the issues to be aware of?

  • A：1） please make sure that the device have already open the remote function, and bind the DoHome account; 2） Any problem, please click the menu logo to get the help for the other applications.

  • Q: How to restore the system?

  • A: on/off device for 5 times with each 2s to restore the factory setting. Note, if the time is too long for each time, then would re-compute the number of times.

  • Q: Why should the device name be short?

  • A: Convenient for the voice control, for example, DoHome.
