Manual

This is the best manual (chinese english) I have found: https://www.machsupport.com/forum/index.php?action=dlattach;topic=33543.0;attach=44811

Do the installation, wiring as described in the manual.

SAFETY WARNING

!!! ATTENTION YOU ARE DEALING WITH HIGH VOLTAGES. PLEASE TAKE CARE AND DOUBLE CHECK !!!

1. Test

  1. Put the motor on the ground
  2. Secure the motor.
  3. DO NOT ASSEMBLE THE MOTOR TO THE ACTUATOR!!!

Next you can perform a simple test.

Change to the functions level and use

Fn002 JOG Trial operation

This function allows you to spin the motor.

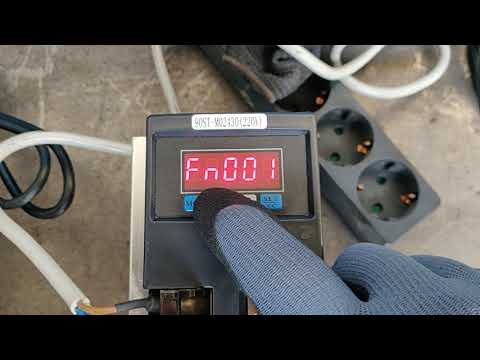

Motor Jog Test
