Introduction

For the Rpi the following steps will be done.

  • Install Raspbian
  • SSH into Pi3
  • Remote tunnel via VS code
  • Install UV-Python
  • Set up PS3 controller
  • I2C communication to Arduino

Raspbian (OS) installation

OS installation via SD card

Set up the the SD card of the raspberry pi with an OS using the Raspberry Pi Imager software. The settings that can be put in are:

  • Hostname
  • Username & password
  • Wireless settings

Setup OS

SSH to Raspberry Pi (via Wi-Fi)

The Raspbery Pi 3 does not allow for the direct USB connection as for the Raspberry Pi zero and zero W. Connecting can best be done via Wifi via the command:

$ ssh [email protected]
$ ssh [email protected]

Remote tunnel VS code

Tunneling via VS code is very straightforward. This is just like a normal SSH connect and on the Pi3, the code folder is set up in the explorer.

Set up Python

Installation virtual environment venv

On the Raspberry Pi, the picamera2 package does not install using uv or pip. The picamera2 package is already pre-installed in all Raspberry Pi OS images, such that installing a virtual environment with system packages, will have the system wide (already installed) version of the picamera2.

Step Script
Create virtual environment venv $ python3 -m venv venv/
Activate environment venv $ source venv/bin/activate
Deactivate environment venv (venv) $ deactivate
Install packages (venv) $ python -m pip install <package-name>
Remove environment venv $ rm -R /venv

Install the packages:

opencv-contrib-python
pygame

Installation uv python

Enable Snap store

We can install uv from the snapstore on Raspbian.

First we have to enable SNAPD

sudo apt update
sudo apt install snapd
sudo reboot
sudo snap install snap

Install uv

After which we install uv using the command:

sudo snap install astral-uv --classic

Set up Python project

To install the latest Python version in project:

uv init RC-tank
cd RC-tank

The following structure is created in RC-tank:

.
β”œβ”€β”€ .python-version
β”œβ”€β”€ README.md
β”œβ”€β”€ main.py
└── pyproject.toml

Run with uv run:

uv run main.py

Set up PS3 controller

The setting up of the PS3 controller through bluetooth is via these link1, link2.

Preparing PS3 controller to connect to the Raspberry Pi

An update of the OS results in a PIN asked for connecting a Bluetooth connection of the controller. This is not possible for the gamepads and a workaround is necessary.

[workaround]

  1. Open the file /etc/bluetooth/input.conf, set part ClassicBondedOnly=false and save
  2. Run: systemctl restart bluetooth # or reboot

Update the Raspberry Pi.

sudo apt update
sudo apt upgrade

Install USB library that will be compiled in the sixpair software. The package libusb-dev is for programs to interact with USB devices.

sudo apt install libusb-dev

Download the sixpair code and make a folder for it.

$ mkdir ~/sixpair
$ cd ~/sixpair
$ wget http://www.pabr.org/sixlinux/sixpair.c

Compile the downloaded sixpair.c code, using the command:

$ gcc -o sixpair sixpair.c -lusb

Execute the compiled sixpair with the PS3 Controller plugged into a USB port.

$ sudo ~/sixpair/sixpair
Current Bluetooth master: b8:27:eb:af:bf:30
Setting master bd_addr to b8:27:eb:af:bf:30

Using bluetoothctl to connect PS3 controller

Disconnect the PS3 controller from the USB and start up the Bluetooth configuration tool

$ sudo bluetoothctl
Agent registered
[bluetooth]#

Enable and configure the agent

[bluetooth]# agent on
[bluetooth]# default-agent
[bluetooth]# power on
[bluetooth]# discoverable on
[bluetooth]# pairable on

Scan for bluetooth devices

[bluetooth]# scan on
[CHG] Controller B8:27:EB:AF:BF:30 Discovering: yes
[CHG] Device 00:06:F7:4F:F2:B1 Connected: yes

Any Bluetooth device in the area will start showing up in your command line. Only look for the PS3 controller which shows up when pressing the PS button. If a PIN is requested, try 0000.

Connect PS3 controller

With the MAC adress known, it is necessary to connect and trust the PS3 controller as a Bluetooth device. After a succesful connection and trust procedure, quit the Bluetooth controller and reboot the RPi.

[bluetooth]# connect 00:06:F7:4F:F2:B1
Attempting to connect to 00:06:F7:4F:F2:B1
[CHG] Device 00:06:F7:4F:F2:B1 Connected: yes
[Sony PLAYSTATION(R)3 Controller]# trust 00:06:F7:4F:F2:B1
Changing 00:06:F7:4F:F2:B1 trust succeeded
[Sony PLAYSTATION(R)3 Controller]# quit
$ sudo reboot

With the Raspberry Pi now restarted, press the PS button on your controller to test the connection between it and the Raspberry Pi.

The LED’s on the controller should briefly flash as it connects, afterward however if everything has worked correctly only one LED should remain lit on the controller.

Access Controller Inputs in Python

To access the inputs of the paired bluetooth connected controller the libraries of python3-pygame or evdev can be used. The evdevallows for low-level acces of the controller.

Install the packages

sudo apt install joystick  python3-evdev
sudo apt install python3-pygame

Find the correct device /dev/input/js0, run:

$ ls /dev/input/
by-path/ event0   event1   event2   event3   js0      mice

Raspberry pi zero W

Set usb connection

Pi Zero setup

Connect either via USB or via Wifi:

$ ssh piTank2.local
$ ssh [email protected]

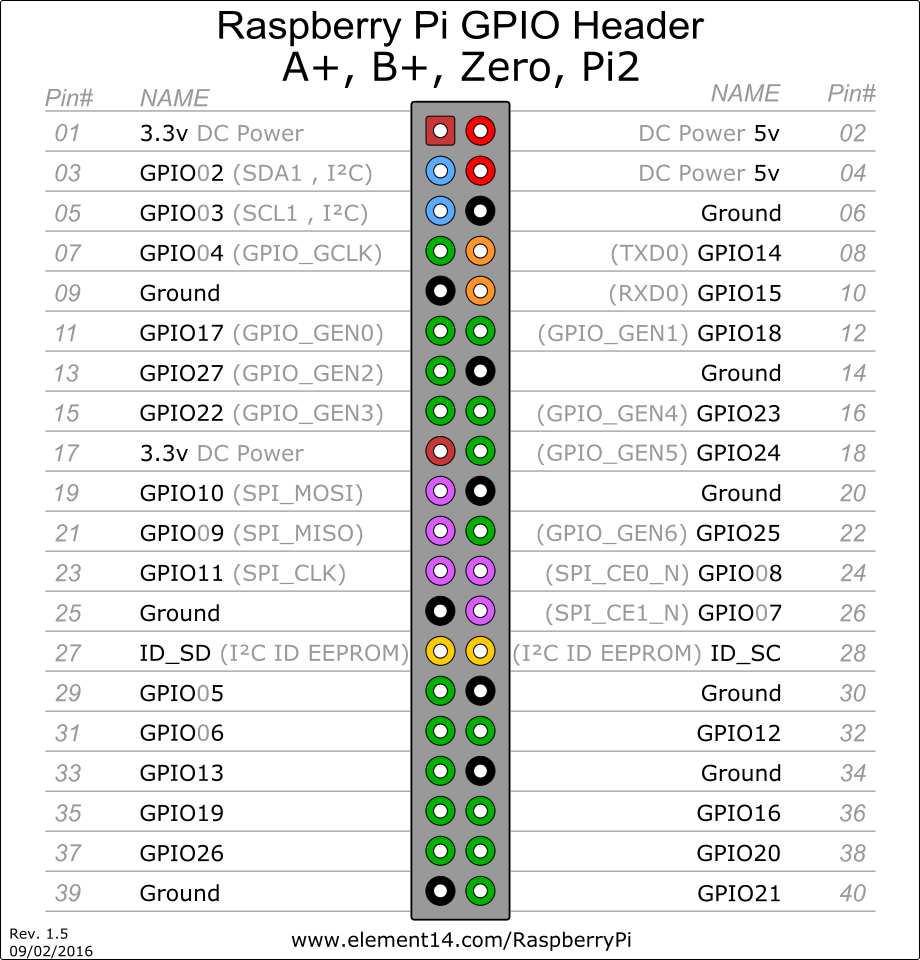

Pinout
