RAM64

// This file is part of www.nand2tetris.org
// and the book "The Elements of Computing Systems"
// by Nisan and Schocken, MIT Press.
// File name: projects/03/a/RAM64.hdl

/**
 * Memory of 64 registers, each 16 bit-wide. Out holds the value
 * stored at the memory location specified by address. If load==1, then
 * the in value is loaded into the memory location specified by address
 * (the loaded value will be emitted to out from the next time step onward).
 */

CHIP RAM64 {
    IN in[16], load, address[6];
    OUT out[16];

    PARTS:
    // Put your code here:
    DMux8Way(in=load, sel=address[0..2], a=r1, b=r2, c=r3, d=r4, e=r5, f=r6, g=r7, h=r8);
    RAM8(in = in, load = r1, address = address[3..5], out = ro1);
    RAM8(in = in, load = r2, address = address[3..5], out = ro2);
    RAM8(in = in, load = r3, address = address[3..5], out = ro3);
    RAM8(in = in, load = r4, address = address[3..5], out = ro4);
    RAM8(in = in, load = r5, address = address[3..5], out = ro5);
    RAM8(in = in, load = r6, address = address[3..5], out = ro6);
    RAM8(in = in, load = r7, address = address[3..5], out = ro7);
    RAM8(in = in, load = r8, address = address[3..5], out = ro8);
    Mux8Way16(a = ro1, b = ro2, c = ro3, d = ro4, e = ro5, f = ro6, g = ro7, h = ro8, sel = address[0..2], out = out);
}

RAM512

// This file is part of the materials accompanying the book
// "The Elements of Computing Systems" by Nisan and Schocken,
// MIT Press. Book site: www.idc.ac.il/tecs
// File name: projects/03/b/RAM512.hdl

/**
 * Memory of 512 registers, each 16 bit-wide. Out holds the value
 * stored at the memory location specified by address. If load==1, then
 * the in value is loaded into the memory location specified by address
 * (the loaded value will be emitted to out from the next time step onward).
 */

CHIP RAM512 {
    IN in[16], load, address[9];
    OUT out[16];

    PARTS:
    // Put your code here:
    DMux8Way(in = load, sel = address[0..2], a = r1, b = r2, c = r3, d = r4, e = r5, f = r6, g = r7, h = r8);
    RAM64(in = in, load = r1, address = address[3..8], out = ro1);
    RAM64(in = in, load = r2, address = address[3..8], out = ro2);
    RAM64(in = in, load = r3, address = address[3..8], out = ro3);
    RAM64(in = in, load = r4, address = address[3..8], out = ro4);
    RAM64(in = in, load = r5, address = address[3..8], out = ro5);
    RAM64(in = in, load = r6, address = address[3..8], out = ro6);
    RAM64(in = in, load = r7, address = address[3..8], out = ro7);
    RAM64(in = in, load = r8, address = address[3..8], out = ro8);
    Mux8Way16(a = ro1, b = ro2, c = ro3, d = ro4, e = ro5, f = ro6, g = ro7, h = ro8, sel = address[0..2], out = out);
}

RAM4K

// This file is part of www.nand2tetris.org
// and the book "The Elements of Computing Systems"
// by Nisan and Schocken, MIT Press.
// File name: projects/03/b/RAM4K.hdl

/**
 * Memory of 4K registers, each 16 bit-wide. Out holds the value
 * stored at the memory location specified by address. If load==1, then
 * the in value is loaded into the memory location specified by address
 * (the loaded value will be emitted to out from the next time step onward).
 */

CHIP RAM4K {
    IN in[16], load, address[12];
    OUT out[16];

    PARTS:
    // Put your code here:
    DMux8Way(in = load, sel = address[0..2], a = r1, b = r2, c = r3, d = r4, e = r5, f = r6, g = r7, h = r8);
    RAM512(in = in, load = r1, address = address[3..11], out = ro1);
    RAM512(in = in, load = r2, address = address[3..11], out = ro2);
    RAM512(in = in, load = r3, address = address[3..11], out = ro3);
    RAM512(in = in, load = r4, address = address[3..11], out = ro4);
    RAM512(in = in, load = r5, address = address[3..11], out = ro5);
    RAM512(in = in, load = r6, address = address[3..11], out = ro6);
    RAM512(in = in, load = r7, address = address[3..11], out = ro7);
    RAM512(in = in, load = r8, address = address[3..11], out = ro8);
    Mux8Way16(a = ro1, b = ro2, c = ro3, d = ro4, e = ro5, f = ro6, g = ro7, h = ro8, sel = address[0..2], out = out);
}

RAM16K

// This file is part of www.nand2tetris.org
// and the book "The Elements of Computing Systems"
// by Nisan and Schocken, MIT Press.
// File name: projects/03/b/RAM16K.hdl

/**
 * Memory of 16K registers, each 16 bit-wide. Out holds the value
 * stored at the memory location specified by address. If load==1, then
 * the in value is loaded into the memory location specified by address
 * (the loaded value will be emitted to out from the next time step onward).
 */

CHIP RAM16K {
    IN in[16], load, address[14];
    OUT out[16];

    PARTS:
    // Put your code here:
    DMux8Way(in = load, sel = address[0..1], a = r1, b = r2, c = r3, d = r4);
    RAM4K(in = in, load = r1, address = address[3..13], out = ro1);
    RAM4K(in = in, load = r2, address = address[3..13], out = ro2);
    RAM4K(in = in, load = r3, address = address[3..13], out = ro3);
    RAM4K(in = in, load = r4, address = address[3..13], out = ro4);
    Mux8Way16(a = ro1, b = ro2, c = ro3, d = ro4, sel = address[0..1], out = out);
}

PC

// This file is part of www.nand2tetris.org
// and the book "The Elements of Computing Systems"
// by Nisan and Schocken, MIT Press.
// File name: projects/03/a/PC.hdl

/**

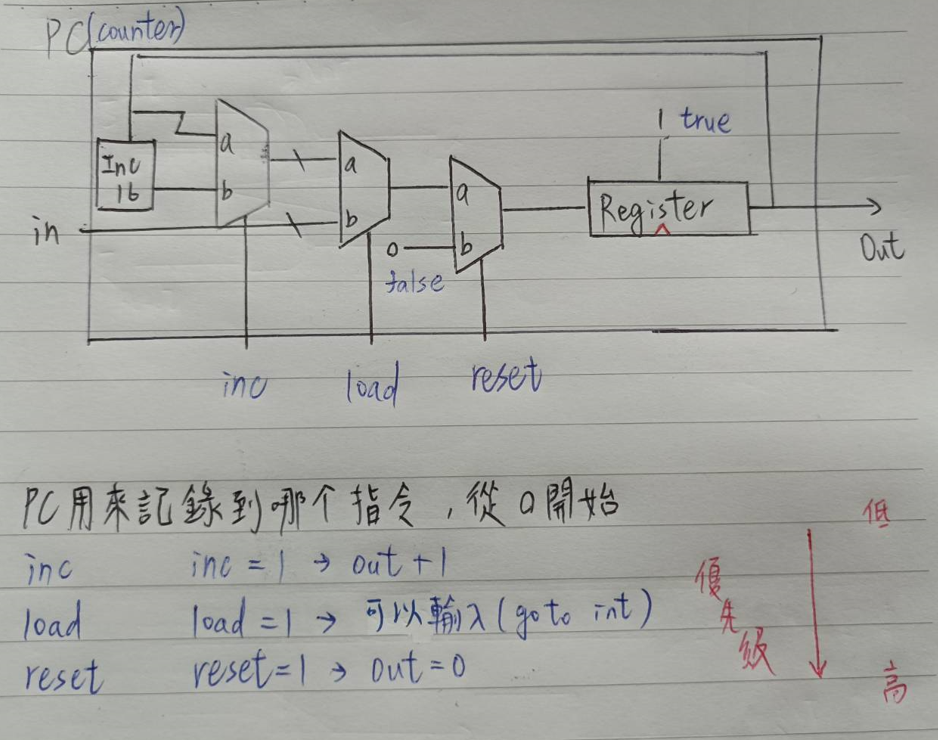

 * A 16-bit counter with load and reset control bits.
 * if      (reset[t] == 1) out[t+1] = 0
 * else if (load[t] == 1)  out[t+1] = in[t]
 * else if (inc[t] == 1)   out[t+1] = out[t] + 1  (integer addition)
 * else                    out[t+1] = out[t]
 */

CHIP PC {
    IN in[16],load,inc,reset;
    OUT out[16];

    PARTS:
    // Put your code here:
    Register(in=resetOut,load=true,out=out,out=out2);
    Inc16(in=out2,out=incOut);
    Mux16(a=out2,b=incOut,sel=inc,out=incMuxOut);
    Mux16(a=incMuxOut,b=in,sel=load,out=loadOut);
    Mux16(a=loadOut,b=false,sel=reset,out=resetOut);
}
