CPU

// This file is part of www.nand2tetris.org
// and the book "The Elements of Computing Systems"
// by Nisan and Schocken, MIT Press.
// File name: projects/05/CPU.hdl

/**

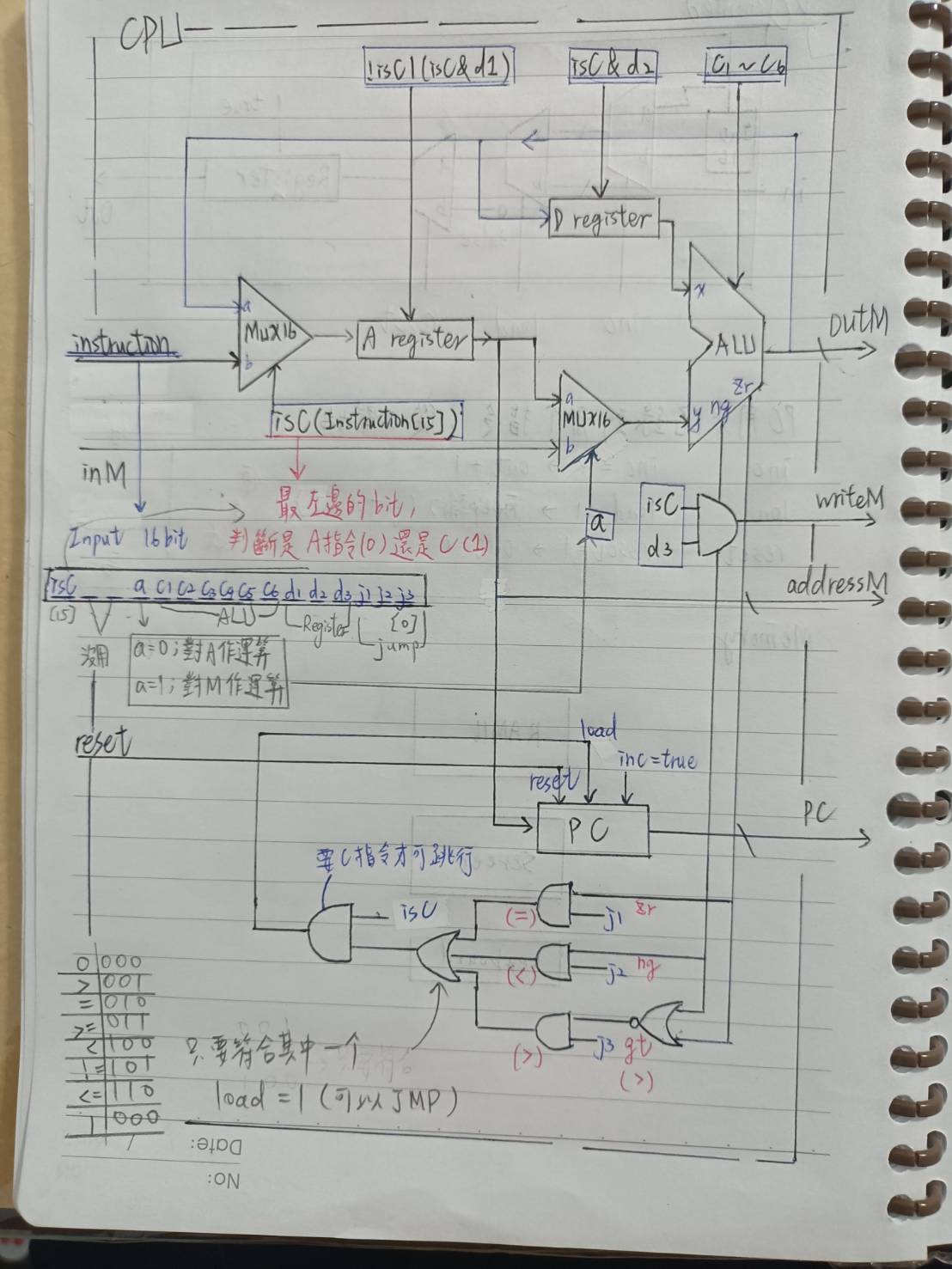

 * The Hack CPU (Central Processing unit), consisting of an ALU,
 * two registers named A and D, and a program counter named PC.
 * The CPU is designed to fetch and execute instructions written in
 * the Hack machine language. In particular, functions as follows:
 * Executes the inputted instruction according to the Hack machine
 * language specification. The D and A in the language specification
 * refer to CPU-resident registers, while M refers to the external
 * memory location addressed by A, i.e. to Memory[A]. The inM input
 * holds the value of this location. If the current instruction needs
 * to write a value to M, the value is placed in outM, the address
 * of the target location is placed in the addressM output, and the
 * writeM control bit is asserted. (When writeM==0, any value may
 * appear in outM). The outM and writeM outputs are combinational:
 * they are affected instantaneously by the execution of the current
 * instruction. The addressM and pc outputs are clocked: although they
 * are affected by the execution of the current instruction, they commit
 * to their new values only in the next time step. If reset==1 then the
 * CPU jumps to address 0 (i.e. pc is set to 0 in next time step) rather
 * than to the address resulting from executing the current instruction.
 */

CHIP CPU {

    IN  inM[16],         // M value input  (M = contents of RAM[A])
        instruction[16], // Instruction for execution
        reset;           // Signals whether to re-start the current
                         // program (reset==1) or continue executing
                         // the current program (reset==0).

    OUT outM[16],        // M value output
        writeM,          // Write to M?
        addressM[15],    // Address in data memory (of M)
        pc[15];          // address of next instruction

    PARTS:
    // Put your code here:
    And16(a=true, b=instruction, out[15]=isC, out[12]=a, out[11]=c1, out[10]=c2,out[9]=c3, out[8]=c4, out[7]=c5, out[6]=c6, out[5]=d1, out[4]=d2, out[3]=d3, out[2]=j1, out[1]=j2, out[0]=j3);

    Not(in=isC, out=isA);
    And(a=isC, b=d1, out=AluToA);
    Or(a=isA, b=AluToA, out=Aload);

    Mux16(a=instruction, b=ALUback, sel=isC, out=sc1);
    ARegister(in=sc1, load=Aload, out=Aout, out[0..14]=addressM);
    Mux16(a=Aout, b=inM, sel=a, out=sc2);

    And(a=isC, b=d2, out=Dload);
    DRegister(in=ALUback, load=Dload, out=Dout);

    ALU(x=Dout, y=sc2, zx=c1, nx=c2, zy=c3, ny=c4, f=c5, no=c6, out=ALUback, out=outM, zr=zr, ng=ng);

    And(a=isC, b=d3, out= writeM);

    Or(a=ng, b=zr, out=ngzr);
    Not(in=ngzr, out=bg);
    And(a=ng, b=j1, out=pass1);
    And(a=zr, b=j2, out=pass2);
    And(a=bg, b=j3, out=pass3);
    Or(a=pass1, b=pass2, out=pass4);
    Or(a=pass4, b=pass3, out=pass);
    And(a=isC, b=pass, out=PCload);
    PC(in=Aout, load=PCload, inc=true, reset=reset, out[0..14]=pc);
}
