PRODUCT ARCHITECTURE - Sagar-I-Holennavar/sagar GitHub Wiki

PUGH CHART

Objectives	Weightage
Portable	7
Affordable	8
Easy to use	9
Less Maintenance	6
Used on any plane surface	5

Objectives	Weightage	Concept 1	Concept 2	Concept 3	Concept 4
Portable	7	+	Datum	+	+
Affordable	8	+	Datum	+	--
Easy to use	9	+	Datum	++	-
Less Maintenance	6	-	Datum	-	+
Used on any plane surface	5	0	Datum	+	+
+Score		+24	0	+38	+18
-Score		-6	0	-6	-25
Total		+18	0	+32	-7

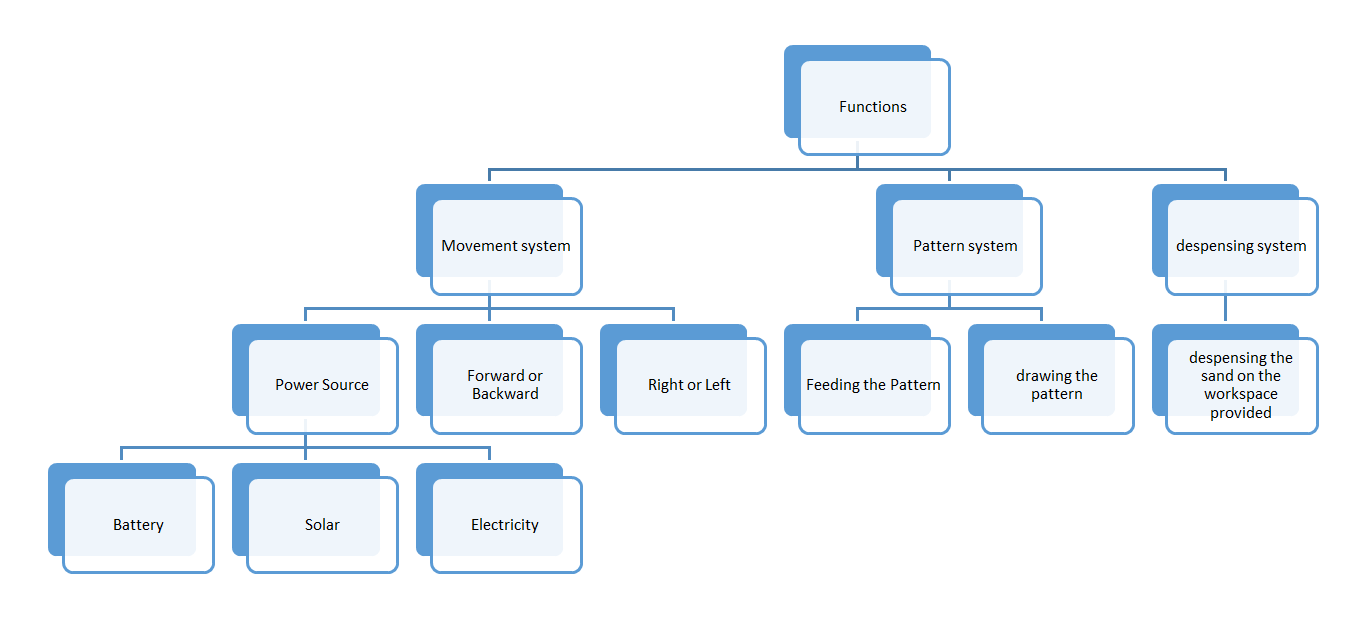

Step 1.Creation Of Functional Structure:

https://user-images.githubusercontent.com/42510280/49456739-9c94de80-f80f-11e8-928c-c78b7c6eb43c.PNG

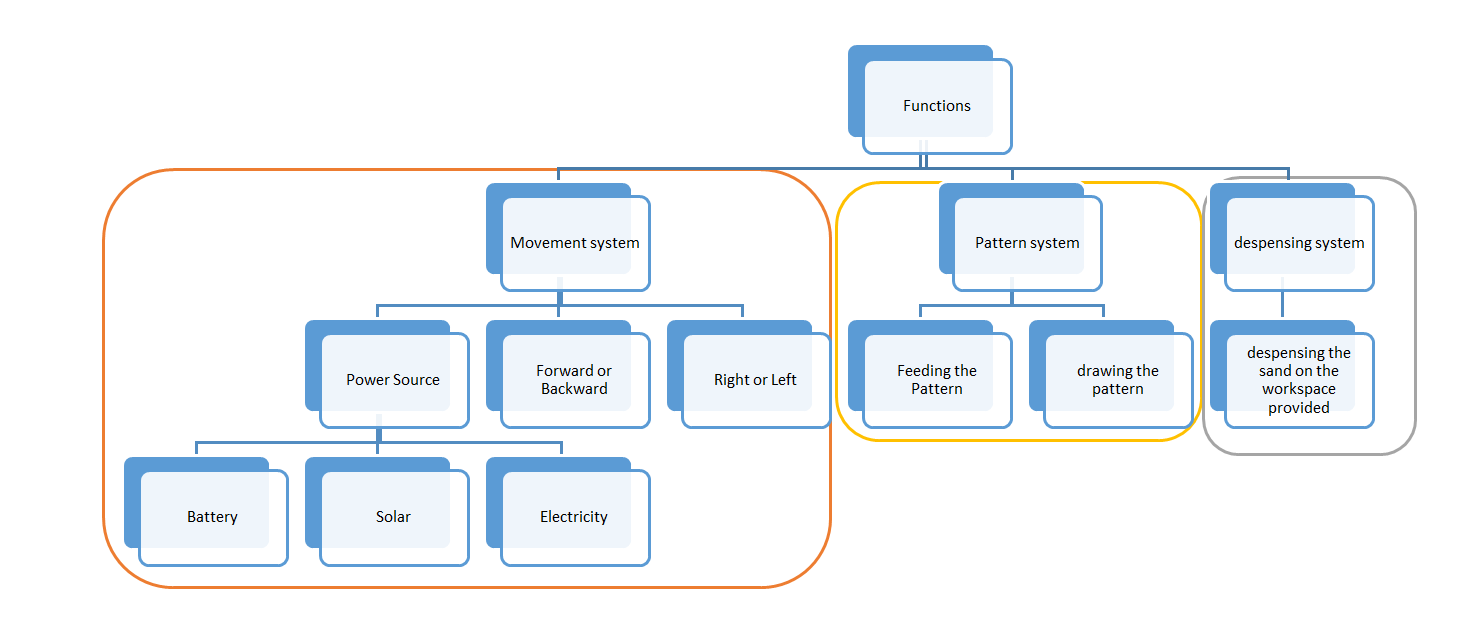

Step 2.Clustering of associated functions and sub functions into module chunks

https://user-images.githubusercontent.com/42510280/49456747-a1599280-f80f-11e8-8d7c-0730992e8a1e.PNG

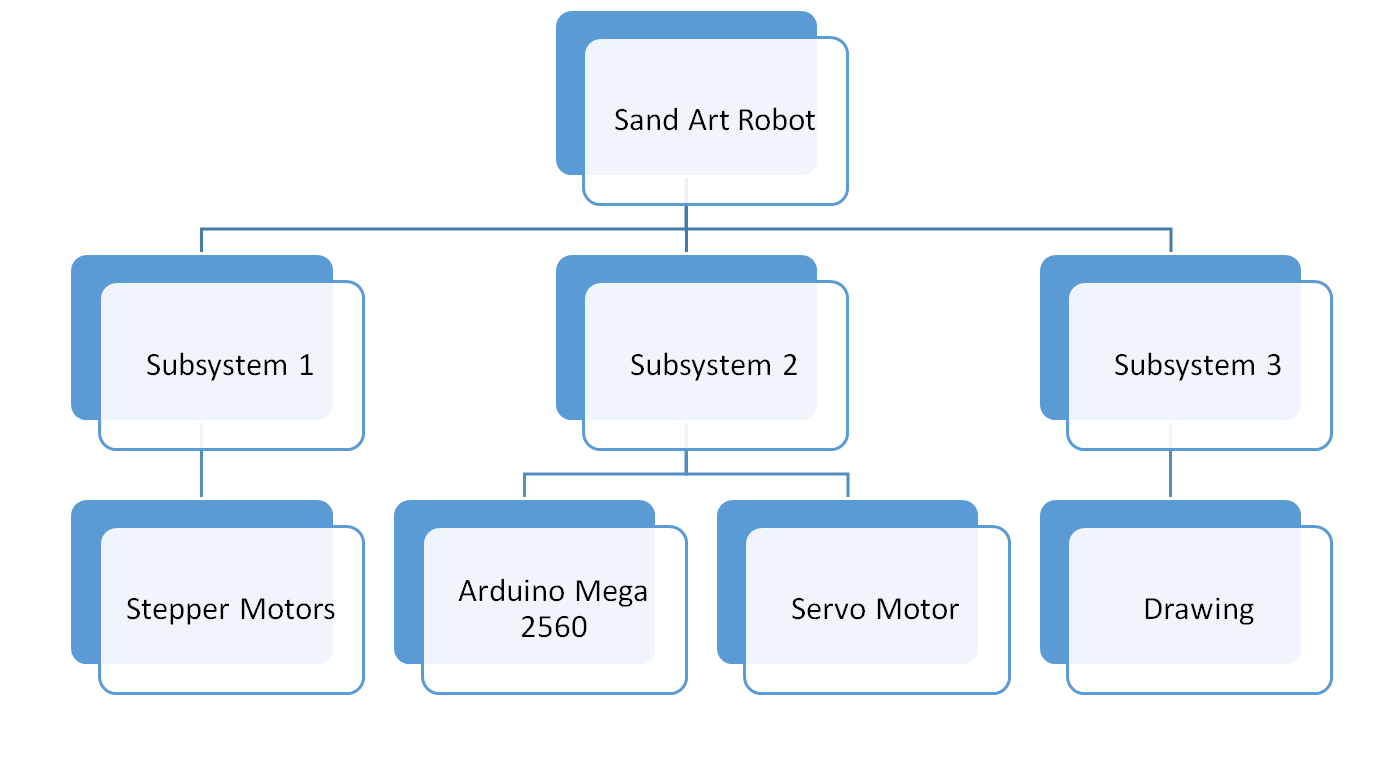

Component Hierarchy

https://user-images.githubusercontent.com/42510280/49456751-a1f22900-f80f-11e8-9d71-bb51c2e8b7a3.PNG

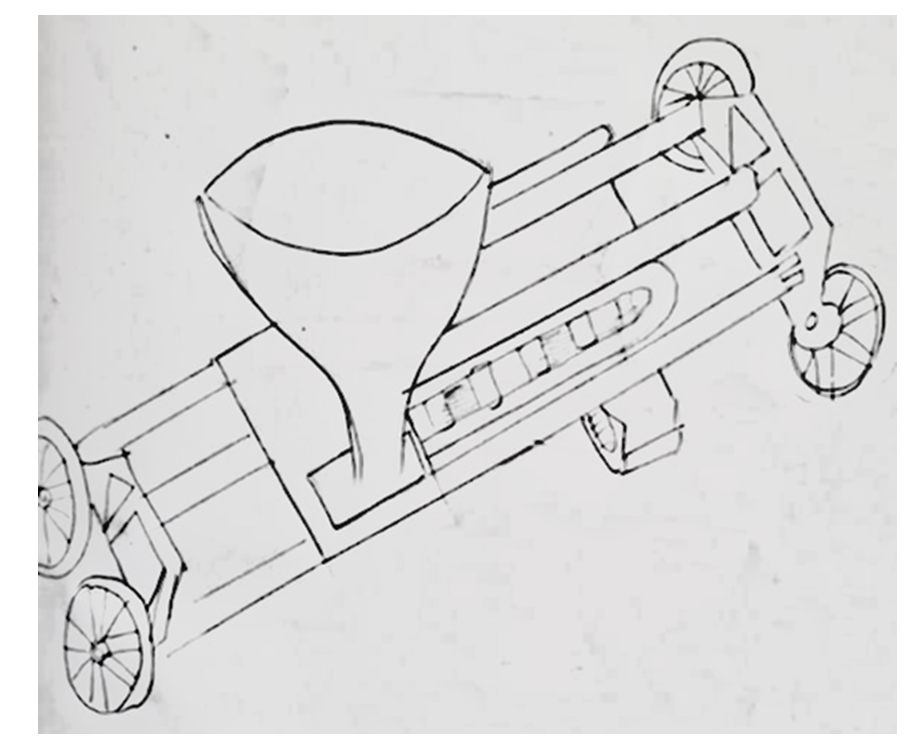

Geometric Layout

https://user-images.githubusercontent.com/42510280/49457267-8cc9ca00-f810-11e8-9ee7-be3fc46d6c25.PNG
