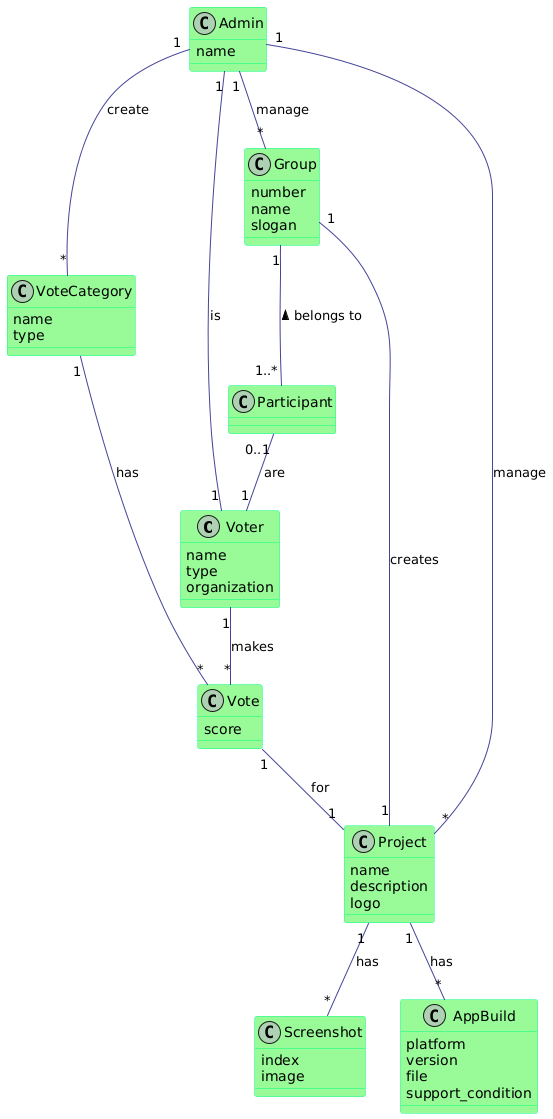

Domain model

(The source is in this page's commit history)

Relational model

Group table

Name	Type	Note
id	int PRIMARY KEY AUTO_INCREMENT
name	varchar(255)
number	tinyint NULL	Group number (like 1, 2, 3). It might be changed so we doesn't store it in the primary key

Project table

Name	Type	Note
id	int PRIMARY KEY AUTO_INCREMENT
name	varchar(255)
group_id	int	Foreign key to group table
description	text DEFAULT ""	I think the application should set like 250 maximum length but text type is used to support possible requirement changes
logo	varchar(255) DEFAULT ""	Path to the image file

User table

Name	Type	Note
id	int PRIMARY_KEY AUTO_INCREMENT
username	varchar(255)	For KU login use [email protected], otherwise it is username without @...
password	varchar(255)	For KU login the password is NOT stored. Otherwise it MUST be hashed (scrypt?).
type	tinyint	0=voter, 1=instructor, 2=organizer. (2 can do everything 1 can, 1 can do everything 0 can but not vice-versa)
name	varchar(255) NULL DEFAULT NULL	Human name (eg. Manatsawin instead of b5610545757)
organization	varchar(255) NULL	Their organization. Not parsed by application
group_id	int NULL DEFAULT NULL	Foreign key to group. Can be null if user does not belongs to any group. Having a group make user type 0 able to access group backoffice

Organizer can allow students access beforehand by adding their usernames into this table.

Token table

Note: If Play framework has good session system it can be used instead of this

Name	Type	Note
id	varchar(255) PRIMARY_KEY	Generated randomly
user_id	int	Foreign key to user table

VoteCategory table

Name	Type	Note
id	int PRIMARY_KEY AUTO_INCREMENT
name	varchar(255)
type	tinyint	0=best of, 1=star

Configuration table

Name	Type	Note
key	varchar(255) PRIMARY_KEY
value	text NULL

Example of configuration keys: allow_voting, announcement, allow_group_edit

Vote table

Name	Type	Note
id	int PRIMARY_KEY AUTO_INCREMENT
category_id	int	Foreign key to vote_category table
user_id	int	Foreign key to user table
project_id	int	Foreign key to project table
score	int DEFAULT 1	For best of vote it is always 1

Additional tables

These additional tables may or may not be used:

• Screenshots
• AppBuild

If you need it, please design it or ask @whs to make one.

Swagger API

The API is documented as Swagger API at Swagger UI (source)
