4.1 Establishing Functions
Table 1: List of all established functions
Sl.no | Functions from user perspective | Functions from designer perspective |
---|---|---|
1 | Switch on the system | Indicate that the system is turn on |
2 | Command to perform aarti | Sense the command received |
3 | Provides all the resources | Check availability of all required material |
4 | Start the aarti process | Start rotating in clockwise direction. |
Ring the bell | ||
Move the aarti thali for 1/2 min continuously | ||
5 | Stop the process | Indicate that the system is turned off |
If required indicate that task is done |
4.2 Function tree
FUNCTION TREE CLUSTERING..!!
4.3 Establishing Means- Morphological Chart
4.4 Generated concepts:

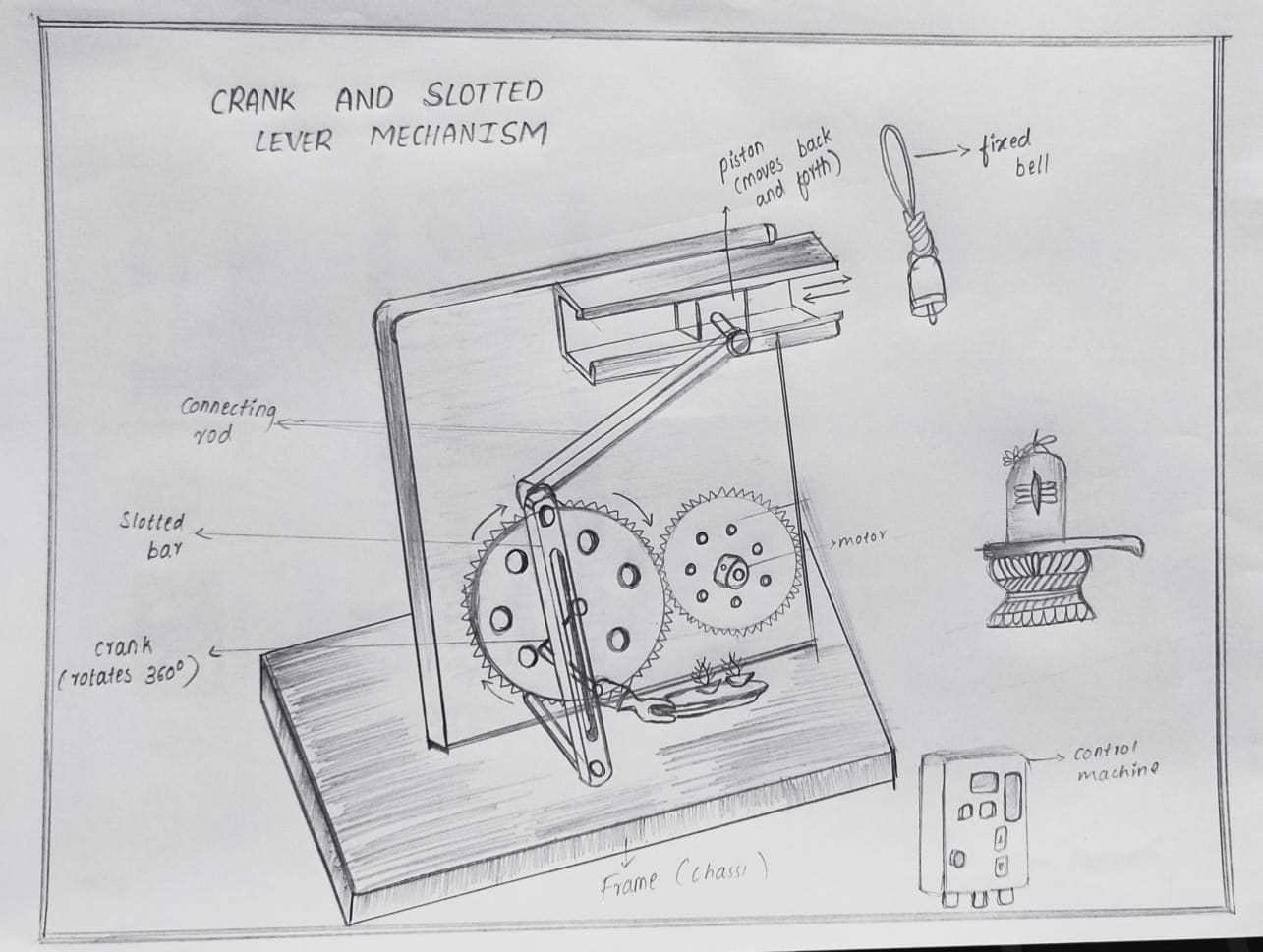

Design 1- by Abhay k
Design 2- by Ganga A
Design 3- by Sanika P
Design 4- by Soniya Patil
Design 5- by Aniruddh O
Product Architecture
Interaction Between Subsystem
Subsystem list
sl.no | subsystem |
---|---|
1 | Performing arti unit |
2 | Ringing belt unit |
3 | Indication unit |
Interaction details
subsystem 1 | subsystem 2 | subsystem 3 |
---|---|---|
Spatial | yes | no |
Data | no | yes |
Material | no | no |
subsystem 2 | subsystem3 | subsystem 1 |
---|---|---|
Spatial | no | yes |
Data | yes | yes |
Material | no | no |
subsystem 3 | subsystem 1 | subsystem 2 |
---|---|---|
Spatial | no | no |
Data | no | no |
Material | yes | yes |
