6.VIRTUAL IMPLEMENTATION - S-Division-2022-2023-Odd/Repo-13 GitHub Wiki
6.1 3D MODELING
CRANK AND SLOTTED LIVER MECHANISM

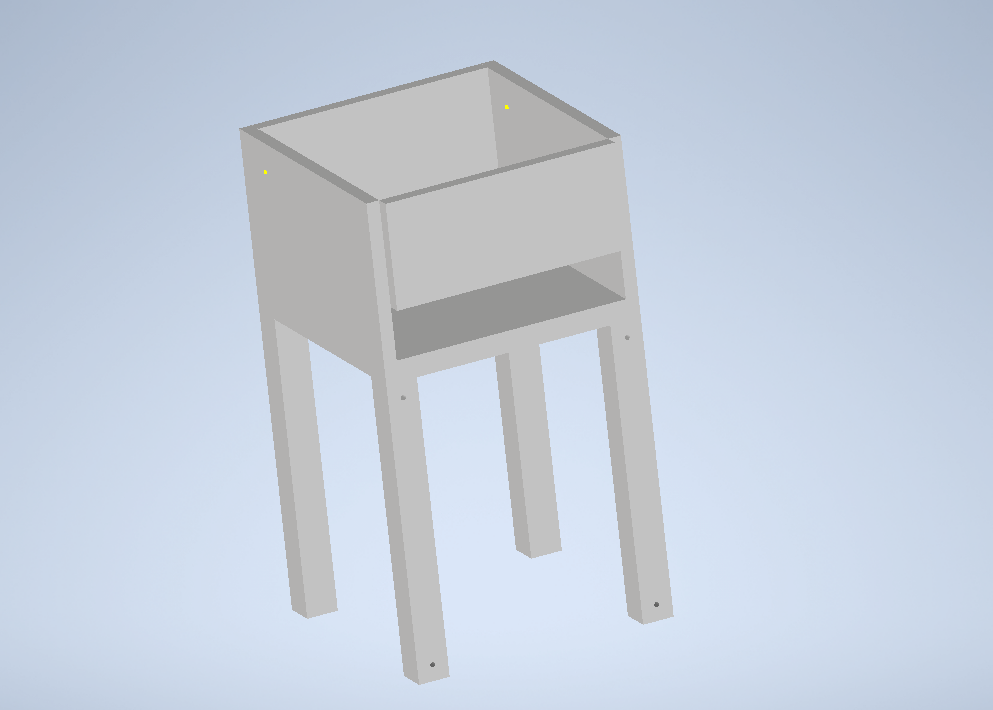

WOOD STORING UNIT

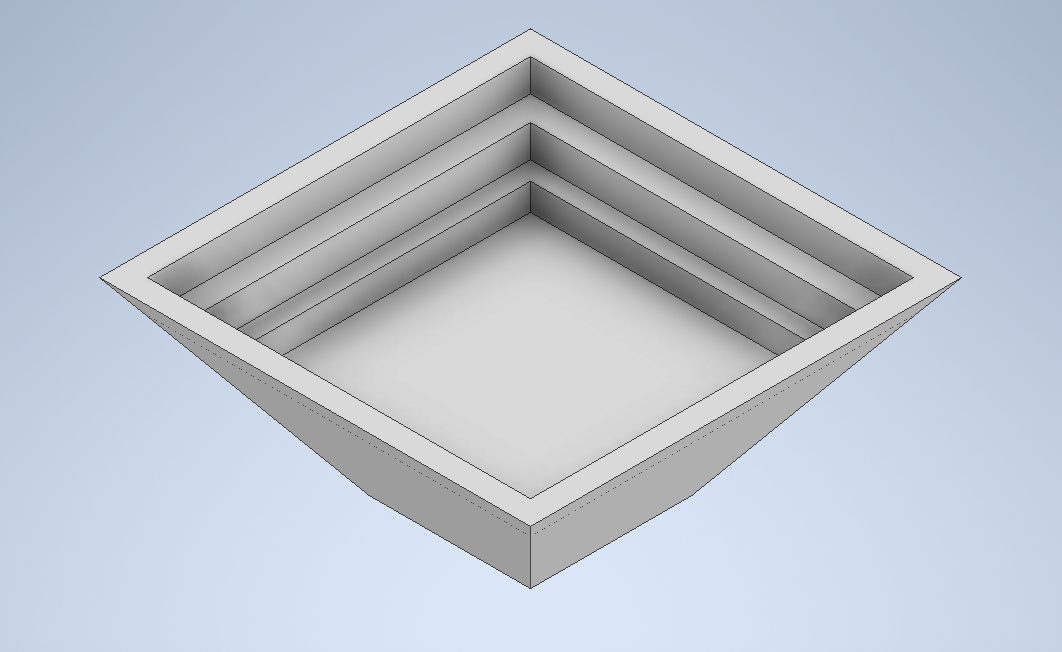

KUNDALA

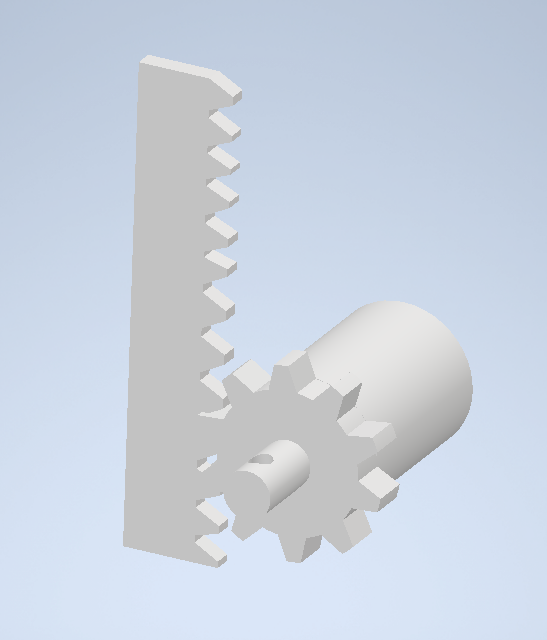

RACK AND PINION MECHANISM

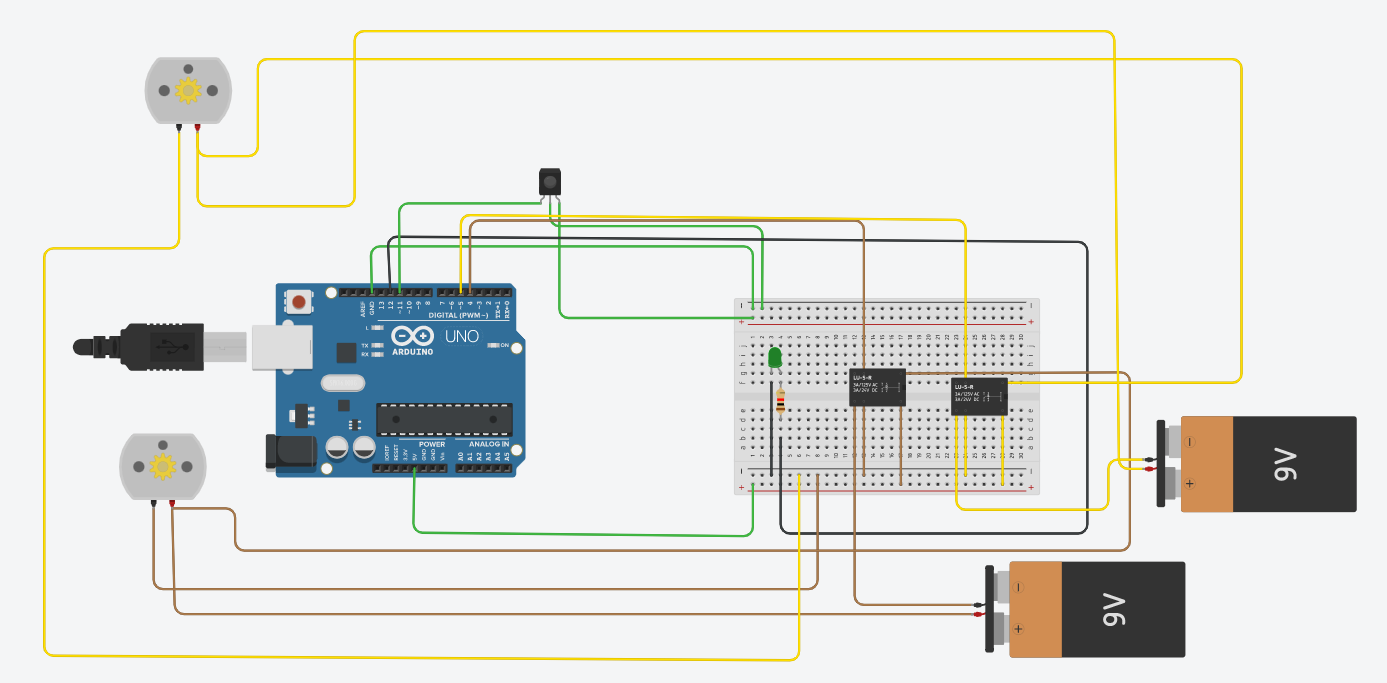

6.2 CIRCUIT DIAGRAM
6.3 FLOWCHART
Flowchart for Wood handling and user interface:
Flowchart for Ghee handling and user interface:
SYSTEM FLOWCHART:
6.4 BILL OF MATERIALS:
| Sl.no | Part Name | material of the part | Discription about the part | Quantity | Fabrication(if required) |
|---|---|---|---|---|---|
| 1 | DC Motor | - | 30 rpm | 1 | |
| 2 | DC motor relay | - | 2 | ||
| 3 | IR sensor | _ | 1 | ||
| 4 | Ultra-sonic sensor | - | 1 | ||
| 5 | LED | - | 1 | ||
| 6 | Aurdino mega 2560 | - | 1 | ||
| 7 | Crank and slotted liver mechanism | acrylic and foam sheets sheets | thickness varies | ||
| 8 | Storing mechanism | Acrylic sheect | 8mm | Laser cutting | |
| 9 | C channel | Aluminum | 12mm | ||
| 9 | Base for storing | Foam sheets | 8mm | - | |
| 10 | U clamp | 1 inch | 1 | ||
| 11 | Aluminium square rod | 16mm | |||
| 12 | L Clamps | 20 | |||
| 13 | Bread board | Aurdino | Project board GL-12 | 1 | |
| 14 | Male to male wires | Aurdino | 15 | ||
| 15 | Buzzer | Indicating part | DC 3-24V | 1 | |
| 16 | Male to female wire | Aurdino | 15 | ||
| 17 | Adapter | crank and slotted liver mechanism | 12V 1Ampere | 2 | |
| 18 | bolts | 40 | |||
| 19 | DC Motor | - | 60rpm | 1 |

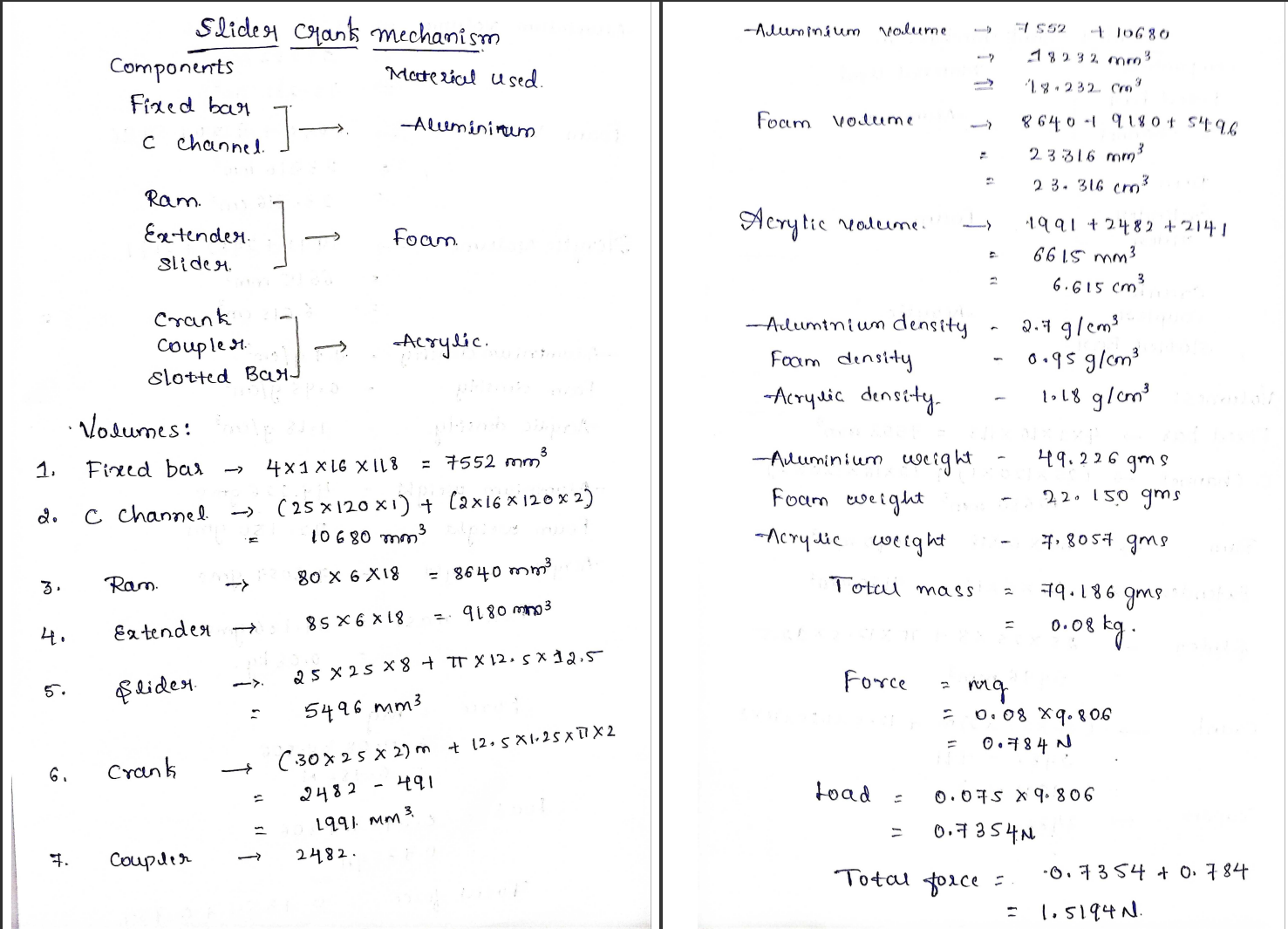

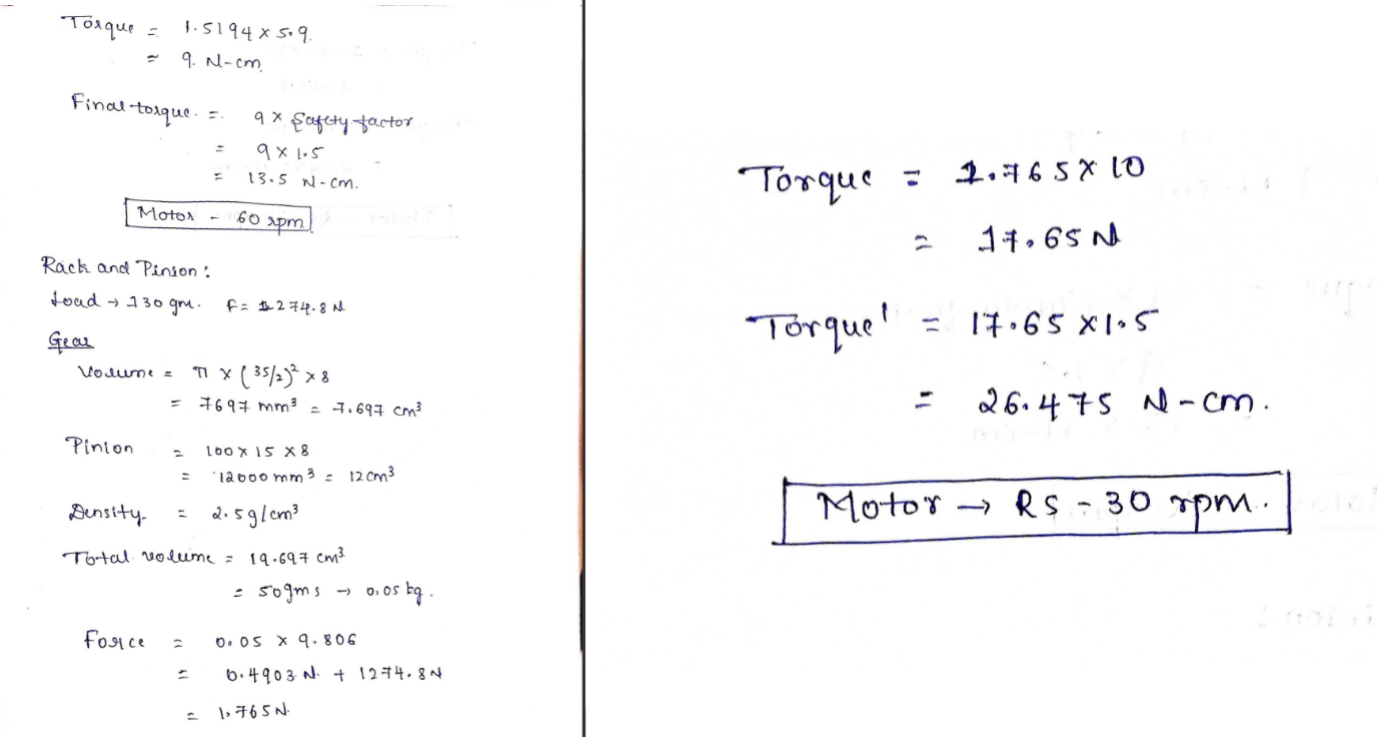

6.5 MECHANISMS AND RESOURCE SPECIFICATIONS:
