5. CONCEPT EVALUATION AND PRODUCT ARCHITECTURE - S-Division-2022-2023-Odd/Repo-13 GitHub Wiki

1.ASSIGN WEIGHTS TO THE OBJECTIVES

SL.NO	OBJECTIVES	WEIGHTS
1	Semi- automatic	7
2	Light weight	8
3	Good looking	3
4	Portable	6
5	High heat resistant material	8
6	User friendly	6

---

2.PUGH CHART

SL.NO	OBJECTIVES	WEIGHTS	DESIGN 1	DESIGN 2	DESIGN 3	DESIGN 4
1	Semi- automatic	7	Datum	++	+	++
2	Light weight	8	Datum	+	+	+
3	Good looking	3	Datum	++	-	0
4	Portable	6	Datum	0	++	0
5	High heat resistant material	8	Datum	++	0	+
6	User friendly	6	Datum	++	+	+
	Score(+)		0	56	36	36
	Score(-)		0	0	-3	0
	Total Score		0	56	33	36

---

5.1 JUSTIFICATION

---

5.2.SELECTED DESIGN

5.3 PRODUCT ARCHITECTURE

SUB-SYSTEM LIST

Sl.no	Sub-Systems
1	USER INDICATION
2	WOOD HANDLING
3	GHEE HANDLING
4	CASING

---

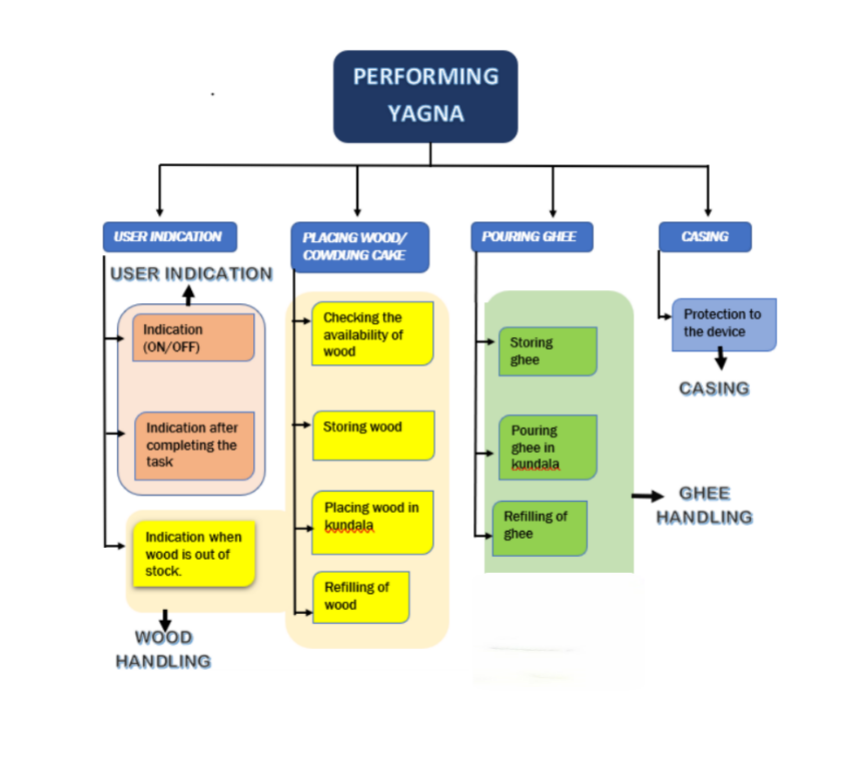

5.4 FUNCTION CLUSTERING

---

5.5 SUB-SYSTEM INTERACTION

User Indication	Wood Handling	Ghee Handling	Casing
Spatial	NO	NO	NO
Data	YES	YES	NO
Material	NO	NO	NO

---

Wood Handling	User Indication	Ghee Handling	Casing
Spatial	YES	NO	YES
Data	YES	NO	NO
Material	NO	NO	NO

---

Ghee Handling	User Indication	Wood Handling	Casing
Spatial	YES	NO	YES
Data	YES	NO	NO
Material	NO	NO	NO

---

Casing	User Indication	Wood Handling	Ghee Handling
Spatial	NO	YES	YES
Data	NO	NO	NO
Material	NO	NO	NO
