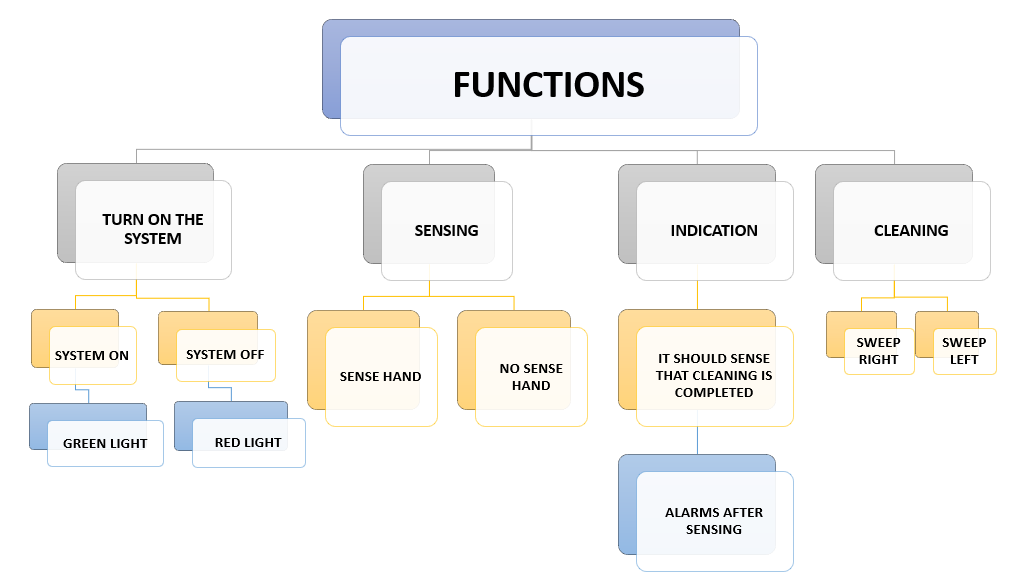

# FUNCTION TREE
1 | TURN ON SYSTEM | Indicating the system is on (indicates green light ). |
---|---|---|
2 | Indicating the system is off(indicates red light). | |
3 | SENSING | Detecting the palm access. |
4 | Input formate is given to start machine. | |
5 | Detecting the command . | |
6 | Executing the command. | |
7 | INDICATION | Indicating that the machine is on. |
8 | Indicating modes of cleaning. | |
9 | CLEANING | Starts cleaning after input command . |
10 | Indicating after the cleaning is done. | |
11 | TURN OFF SYSTEM | Then system is turned off. |
