DAuth Server - RainMz/NintendoClients GitHub Wiki

Switch > Device Authentication

URL: https://dauth-lp1.ndas.srv.nintendo.net

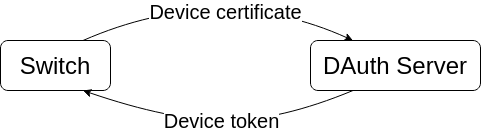

Many Switch servers can only be accessed after obtaining a token from the dauth server. The dauth server only accepts requests with a valid client certificate. Every Switch has its own client certificate, which stored in PRODINFO.

Because the certificate is signed by Nintendo there is only one way to get a valid certificate: buy a Switch and dump it.

The dauth server takes form-encoded requests and responds with json-encoding. It uses base64url, and the client does not add any padding characters.

Headers
Methods
Errors
Examples

Headers

Up to 17.0.1:

Header	Description
Host	`dauth-lp1.ndas.srv.nintendo.net`
User-Agent	User agent
Accept	`/`
X-Nintendo-PowerState	`FA` (fully awake) or `HA` (half awake) (7.0.0 and later, see note below)
Content-Length	Content length
Content-Type	`application/x-www-form-urlencoded`

The X-Nintendo-PowerState header is only present on system version 7.0.0 and later. In 7.0.0, there is a space between X-Nintendo-PowerState and the colon. This was fixed in 7.0.1.

Between 18.0.0 and 19.0.1, the user agent is no longer present and the headers are reordered:

Header	Description
Host	`dauth-lp1.ndas.srv.nintendo.net`
Accept	`/`
Content-Type	`application/x-www-form-urlencoded`
X-Nintendo-PowerState	`FA` (fully awake) or `HA` (half awake)
Content-Length	Content length

In 20.0.0 and later, the user agent is back again, between the Accept and Content-Type headers:

Header	Description
Host	`dauth-lp1.ndas.srv.nintendo.net`
Accept	`/`
User-Agent	User agent
Content-Type	`application/x-www-form-urlencoded` or `application/json`
X-Nintendo-PowerState	`FA` (fully awake) or `HA` (half awake)
Content-Length	Content length

User Agents

System Version	User agent
1.0.0	`libcurl (nnAccount; 789f928b-138e-4b2f-afeb-1acae821d897; SDK 0.16.29.0; Add-on 0.11.29.0)`
2.0.0 - 2.3.0	`libcurl (nnAccount; 789f928b-138e-4b2f-afeb-1acae821d897; SDK 1.3.0.0; Add-on 1.3.0.0)`
3.0.0 - 3.0.2	`libcurl (nnAccount; 789f928b-138e-4b2f-afeb-1acae821d897; SDK 3.4.0.0; Add-on 3.4.0.0)`
4.0.0 - 4.1.0	`libcurl (nnAccount; 789f928b-138e-4b2f-afeb-1acae821d897; SDK 4.4.0.0; Add-on 4.4.0.0)`
5.0.0 - 5.1.0	`libcurl (nnDauth; 789f928b-138e-4b2f-afeb-1acae821d897; SDK 5.3.0.0; Add-on 5.3.0.0)`
6.0.0 - 6.1.0	`libcurl (nnHttp; 789f928b-138e-4b2f-afeb-1acae821d897; SDK 6.4.0.0; Add-on 6.4.0.0)`
6.2.0	`libcurl (nnDauth; 16f4553f-9eee-4e39-9b61-59bc7c99b7c8; SDK 6.4.0.0)`
7.0.0 - 7.0.1	`libcurl (nnDauth; 16f4553f-9eee-4e39-9b61-59bc7c99b7c8; SDK 7.3.0.0)`
8.0.0	`libcurl (nnDauth; 16f4553f-9eee-4e39-9b61-59bc7c99b7c8; SDK 8.2.99.0)`
8.0.1 - 8.1.1	`libcurl (nnDauth; 16f4553f-9eee-4e39-9b61-59bc7c99b7c8; SDK 8.2.0.0)`
9.0.0 - 9.2.0	`libcurl (nnDauth; 16f4553f-9eee-4e39-9b61-59bc7c99b7c8; SDK 9.3.0.0)`
10.0.0 - 10.2.0	`libcurl (nnDauth; 16f4553f-9eee-4e39-9b61-59bc7c99b7c8; SDK 10.4.0.0)`
11.0.0 - 11.0.1	`libcurl (nnDauth; 16f4553f-9eee-4e39-9b61-59bc7c99b7c8; SDK 11.4.0.0)`
12.0.0 - 12.1.0	`libcurl (nnDauth; 16f4553f-9eee-4e39-9b61-59bc7c99b7c8; SDK 12.3.0.0)`
13.0.0	`libcurl (nnDauth; 16f4553f-9eee-4e39-9b61-59bc7c99b7c8; SDK 13.3.0.0)`
13.1.0 - 13.2.1	`libcurl (nnDauth; 16f4553f-9eee-4e39-9b61-59bc7c99b7c8; SDK 13.4.0.0)`
14.0.0 - 14.1.2	`libcurl (nnDauth; 16f4553f-9eee-4e39-9b61-59bc7c99b7c8; SDK 14.3.0.0)`
15.0.0 - 15.0.1	`libcurl (nnDauth; 16f4553f-9eee-4e39-9b61-59bc7c99b7c8; SDK 15.3.0.0)`
16.0.0 - 16.1.0	`libcurl (nnDauth; 16f4553f-9eee-4e39-9b61-59bc7c99b7c8; SDK 16.2.0.0)`
17.0.0 - 17.0.1	`libcurl (nnDauth; 16f4553f-9eee-4e39-9b61-59bc7c99b7c8; SDK 17.5.0.0)`
20.0.0 - 20.0.1	`libcurl (nnDauth; 16f4553f-9eee-4e39-9b61-59bc7c99b7c8; SDK 20.5.4.0)`

No user agent is present between system version 18.0.0 and 19.0.1.

Methods

In API version 3 and later, one must perform a cryptographic challenge to obtain a device token or edge token:

Method	Path
POST	`/v3-59ed5fa1c25bb2aea8c4d73d74b919a94d89ed48d6865b728f63547943b17404/challenge`
POST	`/v4-fb411cdeda62ff6da97e57c29d6300bc12b6b709869e56906aec88cb42a299cd/challenge`
POST	`/v5/challenge`
POST	`/v6/challenge`
POST	`/v7/challenge`
POST	`/v8/challenge`

The following methods return a device token as JWT:

Method	Path
POST	`/v1/device_auth_token`
POST	`/439528b578b74475d24ec19264097f17d2cc578c8584816b644e7b7fa93044d7/device_auth_token`
POST	`/v3-59ed5fa1c25bb2aea8c4d73d74b919a94d89ed48d6865b728f63547943b17404/device_auth_token`
POST	`/v4-fb411cdeda62ff6da97e57c29d6300bc12b6b709869e56906aec88cb42a299cd/device_auth_token`
POST	`/v5/device_auth_token`
POST	`/v6/device_auth_token`
POST	`/v7/device_auth_token`
POST	`/v8/device_auth_tokens`

The following methods return a different kind of device token:

Method	Path
POST	`/v3-59ed5fa1c25bb2aea8c4d73d74b919a94d89ed48d6865b728f63547943b17404/edge_token`
POST	`/v4-fb411cdeda62ff6da97e57c29d6300bc12b6b709869e56906aec88cb42a299cd/edge_token`
POST	`/v5/edge_token`
POST	`/v6/edge_token`
POST	`/v7/edge_token`
POST	`/v8/edge_tokens`

System Versions

System	API
1.0.0 - 3.0.0	v1
3.0.1 - 4.1.0	v2
5.0.0 - 6.1.0	v3
6.2.0	v4
7.0.0 - 8.1.1	v5
9.0.0 - 12.1.0	v6
13.0.0 - 19.0.1	v7
20.0.0 - 20.0.1	v8

API Changes

API	Changelog
v1	Initial version.
v2	The API path is obfuscated with random hex string.
v3	The challenge was added and the format of the system version parameter was changed. Device authentication now requires knowledge of the master key, and the client can no longer fake an unreleased system version. Also, the `edge_token` route was added.
v4	The prefix of the system version digest was changed.
v5	The `X-Nintendo-PowerState` header was added. The API path is no longer obfuscated.
v6	The `ist` parameter was added.
v7	The `vendor_id` parameter was added to the edge token request.
v8	The token endpoints were renamed and now allow the client to request multiple tokens at once

Challenge Request

Param	Description
key_generation	Master key revision

Response:

Field	Description
challenge	Base64-encoded challenge (35 bytes)
data	Base64-encoded AES key required for MAC calculation (16 bytes)

The data value never changes, but it depends on the given key generation. It is even consistent across environments. The challenge value is valid for one minute.

The challenge field used to contain 32 unknown bytes. However, at the end of 2024, the challenge was updated and contains the following 35 bytes instead:

Offset	Size	Description
0x0	1	Always 2
0x1	4	Timestamp
0x5	1	Always 0 or 2
0x6	29	Unknown

Since the challenge is treated as an opaque piece of data, no changes were needed on the client side.

At the same time, the server stopped adding base64 padding to the challenge and data fields.

Device Token Request

This method returns a device token as JWT.

Version 1 - 2

Param	Description
client_id	Application-specific client id
system_version	System version (`%08x`)

Response on success:

Field	Description
expires_in	Expiration in seconds (86400)
device_auth_token	Device token

Version 3 - 5

A challenge was added and the format of the system version parameter was changed:

Param	Description
challenge	Base64-encoded challenge
client_id	Application-specific client id
key_generation	Master key revision
system_version	System version digest
mac	Base64-encoded AES-CMAC of all previous fields in form-encoding

The key for the AES-CMAC is calculated as follows, using AES-ECB:

The aes_kek_generation_source is decrypted with the master key.
The dauth key source is decrypted with the key from step 1.
The key from the data field of the challenge is decrypted with the key from step 2.

The dauth key source is: 8be45abcf987021523ca4f5e2300dbf0

Version 6 - 7

An ist parameter was added:

Param	Description
challenge	Base64-encoded challenge
client_id	Application-specific client id
ist	`true` or `false` (depends on platform region)
key_generation	Master key revision
system_version	System version digest
mac	Base64-encoded AES-CMAC of all previous fields in form-encoding

Version 8

The endpoint now accepts a JSON body instead of form-encoding, and allows the client to request multiple tokens at once:

Field	Description
system_version	System version in hexadecimal (e.g. `00140001` for 20.0.1)
fw_revision	System version hash (hex string)
ist	`true` or `false` (depends on platform region)
token_requests	List of token requests
key_generation	Master key revision
challenge	Base64-encoded challenge
mac	Base64-encoded AES-CMAC of all previous fields in form-encoding. The fields are encoded in the following order: `challenge`, `fw_revision`, `ist`, `key_gneration`, `system_version` and `token_requests`. The `token_requests` field is encoded with JSON without whitespace and without percent-encoding any characters.

Every token request is a dictionary with one or two fields:

Field	Description
client_id	Client id
vendor_id	`akamai`, `llnw`, `lumen`, `fastly` or `cloudflare` (only present in edge token requests)

Response on success:

Field	Description
results	List of token results

Every token result contains the following fields:

Field	Description
client_id	Client id from request
device_auth_token	Device token
expires_in	Expiration in seconds (86400)

Edge Token Request

This method returns a different kind of device token. Up to v6, it takes the same parameters as /device_auth_token.

Response on success:

Field	Description
expires_in	Expiration in seconds (86400)
dtoken	Edge token

Version 7

A vendor_id parameter was added:

Param	Description
challenge	Base64-encoded challenge
client_id	Application-specific client id
ist	`true` or `false` (depends on platform region)
key_generation	Master key revision
system_version	System version digest
vendor_id	`akamai`, `llnw` or `lumen`
mac	Base64-encoded AES-CMAC of all previous fields in form-encoding

Version 8

The request is the same as the /device_auth_tokens request, except that a vendor_id field is present next to each client id. The response contains a results array, where every element contains the following fields:

Field	Description
client_id	Client id from request
vendor_id	Vendor id from request
dtoken	Edge token
expires_in	Expiration in seconds (86400)

Master Key Revisions

System version	Key generation
5.0.0 - 5.1.0	5
6.0.0 - 6.1.0	6
6.2.0	7
7.0.0 - 8.0.1	8
8.1.0 - 8.1.1	9
9.0.0 - 9.0.1	10
9.1.0 - 12.1.0	11
13.0.0 - 13.2.1	13
14.0.0 - 14.1.2	14
15.0.0 - 15.0.1	15
16.0.0 - 16.1.0	16
17.0.0 - 18.1.0	17
19.0.0 - 19.0.1	19
20.0.0 - 20.0.1	20

Known Client IDs

Device tokens:

Client ID	Description
`146c8ac7b8a0db52`	SCSI storage
`16e96f76850156d1`	Crash reports
`6ac5a6873fe5f68c`	SATA storage
`75fe236362ff5f8b`	Nintendo account applet
`81333c548b2e876d`	Nintendo account API
`83b72b05dc3278d7`	NPNS
`8f849b5d34778d8e`	AAuth and BaaS
`93af0acb26258de9`	Beach and Bugyo
`bad8156f44ac935a`	SProfile
`d5b6cac2c1514c56`	Dragons and Vermillion
`dc656ea03b63cf68`	Parental controls
`df51c436bc01c437`	Prepo
`e58171fe439390ce`	Penne

Edge tokens:

Client ID	Description
`146c8ac7b8a0db52`	SCSI storage
`3117b250cab38f45`	Atum and IDBE
`41f4a6491028e3c4`	Pushmo and Tagaya
`67bf9945b45248c6`	BCAT
`93af0acb26258de9`	Beach and Bugyo
`d98185acb55994b4`	SCSI policy

Errors

On error, the server sends the following response:

Field	Description
errors	List of errors

Every error is encoded like this:

Field	Description
code	Error code (string with 4 digits)
message	Error message

Known Errors

For more detailed descriptions, see below.

Most errors use HTTP status code 400. The only known exception is error 0009, which uses status code 500.

Code	Message
0004	Unauthorized device.
0007	System update is required.
0008	Device has been banned.
0009	Internal Server Error.
0010	?
0011	?
0013	?
0014	Invalid parameter in request.
0015	Invalid parameter in request.
0016	Invalid parameter in request.
0017	This device might be broken.
0018	?
0019	?
0020	?
0021	?
0022	?
0023	?
0024	?
0025	?
0026	?
0027	?
0028	?
0029	?
0030	?
0031	?

Code	Description
0004	The device certificate belongs to a different environment.
0007	A system update is required.
0008	The device is banned permanently.
0009	An internal server error has occurred.
0014	Generic error.
0015	The challenge has expired.
0016	The MAC is wrong.
0017	The device is banned.

Examples

Note that the client must always use a valid device certificate as the client certificate. If the client does not provide a certificate, the nginx server used to reject the request:

HTTP/1.1 400 Bad Request
Server: nginx
Date: Sun, 26 Sep 2021 19:21:43 GMT
Content-Type: text/html
Content-Length: 246
Connection: close

<html>
<head><title>400 No required SSL certificate was sent</title></head>
<body bgcolor="white">
<center><h1>400 Bad Request</h1></center>
<center>No required SSL certificate was sent</center>
<hr><center>nginx</center>
</body>
</html>

Nowadays, the server terminates the connection immediately after the TLS handshake instead.

Before anything else, one must obtain a challenge:

POST /v7/challenge HTTP/1.1
Host: dauth-lp1.ndas.srv.nintendo.net
User-Agent: libcurl (nnDauth; 16f4553f-9eee-4e39-9b61-59bc7c99b7c8; SDK 13.3.0.0)
Accept: */*
X-Nintendo-PowerState: FA
Content-Length: 17
Content-Type: application/x-www-form-urlencoded

key_generation=13

HTTP/1.1 200 OK
Server: nginx
Date: Sun, 26 Sep 2021 19:21:43 GMT
Content-Type: application/json; charset=utf-8
Transfer-Encoding: chunked
Connection: keep-alive
X-Frame-Options: SAMEORIGIN
X-XSS-Protection: 1; mode=block
X-Content-Type-Options: nosniff
X-Download-Options: noopen
X-Permitted-Cross-Domain-Policies: none
Referrer-Policy: strict-origin-when-cross-origin
Vary: Accept
ETag: W/"eb797bb39b7f70a033c7bbd5020bf9f0"
Cache-Control: max-age=0, private, must-revalidate
X-Request-Id: b1afb7d0-b6d9-4eff-8561-0159c97cdf58
X-Runtime: 0.009675
X-Nintendo-Used-Directive: global auth
X-Nintendo-Request-Host-Header: dauth-lp1.ndas.srv.nintendo.net
X-Nintendo-Request-SNI: dauth-lp1.ndas.srv.nintendo.net

{"challenge":"mtAvqNqzYSoCEixxL_rjWoHfdDjAH51h5XcKZ6ksq2s=","data":"1OikFLkHptkhDpqy7VHb3g=="}

Then, one can obtain a device token:

POST /v7/device_auth_token HTTP/1.1
Host: dauth-lp1.ndas.srv.nintendo.net
User-Agent: libcurl (nnDauth; 16f4553f-9eee-4e39-9b61-59bc7c99b7c8; SDK 13.3.0.0)
Accept: */*
X-Nintendo-PowerState: FA
Content-Length: 211
Content-Type: application/x-www-form-urlencoded

challenge=mtAvqNqzYSoCEixxL_rjWoHfdDjAH51h5XcKZ6ksq2s=&client_id=8f849b5d34778d8e&ist=false&key_generation=13&system_version=CusHY#000d0000#r1xneESd4PiTRYIhVIl0bK1ST5L5BUmv_uGPLqc4PPo=&mac=AW9LE1TSN0xrzY1FfHHXwg

HTTP/1.1 200 OK
Server: nginx
Date: Sun, 26 Sep 2021 19:21:43 GMT
Content-Type: application/json; charset=utf-8
Transfer-Encoding: chunked
Connection: keep-alive
...
X-Nintendo-Used-Directive: global auth
X-Nintendo-Request-Host-Header: dauth-lp1.ndas.srv.nintendo.net
X-Nintendo-Request-SNI: dauth-lp1.ndas.srv.nintendo.net

{"expires_in":86400,"device_auth_token":"eyJqa3UiOiJodHRwczovL2RjZXJ0LWxwMS5uZGFzLnNydi5uaW50ZW5kby5uZXQva2V5cyIsImtpZCI6IjM2NzllMTg4LTI5ZWUtNDE4Zi04ZDkwLWI3MjRjYzg1MzQ0MSIsInR5cCI6IkpXVCIsImFsZyI6IlJTMjU2In0.eyJzdWIiOiI2ODMzN2FjYTI4ODE1Y2JiIiwiaXNzIjoiZGF1dGgtbHAxLm5kYXMuc3J2Lm5pbnRlbmRvLm5ldCIsImF1ZCI6IjhmODQ5YjVkMzQ3NzhkOGUiLCJleHAiOjE2MzI3NjMzMDEsImlhdCI6MTYzMjY3NjkwMSwianRpIjoiZTU5YTBiMGUtOTRlMS00NGFhLWI1ZGItMGZjMGNmNTAyYWRhIiwibmludGVuZG8iOnsic24iOiJYQVcxMDAxMjM0NTY3OCIsInBjIjoiSEFDIiwiZHQiOiJOWCBQcm9kIDEiLCJpc3QiOmZhbHNlfX0.Mdl42B_tWnQQZkpp0qkvEwpkAFGos1YQ8OBKDr_rJCQlNVZLrP6_sd53U8kvwI6TWbnuxFtNxcVJh21kbbY23WsjwQN9Ph2pbjEmneov5b5SfAjWSvfEqt_ViKFQVLv_MZZXQpBYZSQmJ3sA-BbOjeEO6JI5XI3_KR0uj9IxSH_LNSiEwMMNLkP0PcC3gO5cSKcmnb1NPW2BMMdlKOSIbxDSWE4sEuYt2Pl_u2F6hVMVeoC-4z43lIv2tv7aF9Pwv-D7MR-mOxQaxYVHw2Ux4FL0zPZOJMU6qPgfzACeItd6H_A4OBMKSQwBl4DEbSwdle5tph-ur01K91FhXhI6BA"}

Or an edge token:

POST /v7/edge_token HTTP/1.1
Host: dauth-dd1.ndas.srv.nintendo.net
User-Agent: libcurl (nnDauth; 16f4553f-9eee-4e39-9b61-59bc7c99b7c8; SDK 13.3.0.0)
Accept: */*
X-Nintendo-PowerState: FA
Content-Length: 228
Content-Type: application/x-www-form-urlencoded

challenge=mtAvqNqzYSoCEixxL_rjWoHfdDjAH51h5XcKZ6ksq2s=&client_id=67bf9945b45248c6&ist=false&key_generation=13&system_version=CusHY#000d0000#r1xneESd4PiTRYIhVIl0bK1ST5L5BUmv_uGPLqc4PPo=&vendor_id=akamai&mac=8HKiiCC5Zqp3zxut8sSWZw

HTTP/1.1 200 OK
Server: nginx
Date: Sun, 26 Sep 2021 19:21:43 GMT
Content-Type: application/json; charset=utf-8
Transfer-Encoding: chunked
Connection: keep-alive
...
X-Nintendo-Used-Directive: global auth
X-Nintendo-Request-Host-Header: dauth-dd1.ndas.srv.nintendo.net
X-Nintendo-Request-SNI: dauth-dd1.ndas.srv.nintendo.net

{"expires_in":86400,"dtoken":"exp=1632763301~acl=%2F%2A~data=sub=68337aca28815cbb.sn=XAW10012345678.id=a73ff2b9-e772-4dc6-a01e-0861227bd202~hmac=bb7c0f27edddeb50777ec6a2fba6deacd8b8fc04faeaaaa864027c54767dea6c"}

Example of an error response:

HTTP/1.1 400 Bad Request
Server: nginx
Date: Sun, 26 Sep 2021 19:21:43 GMT
Content-Type: application/json; charset=utf-8
Transfer-Encoding: chunked
Connection: keep-alive
X-Frame-Options: SAMEORIGIN
X-XSS-Protection: 1; mode=block
X-Content-Type-Options: nosniff
X-Download-Options: noopen
X-Permitted-Cross-Domain-Policies: none
Referrer-Policy: strict-origin-when-cross-origin
Vary: Accept
Cache-Control: no-cache
X-Request-Id: 84a8a661-a312-480a-b389-35cf83106b51
X-Runtime: 0.007699

{"errors":[{"code":"0014","message":"Invalid parameter in request."}]}

DAuth Server - RainMz/NintendoClients GitHub Wiki

Switch > Device Authentication

Headers

User Agents

Methods

System Versions

API Changes

Challenge Request

Device Token Request

Version 1 - 2

Version 3 - 5

Version 6 - 7

Version 8

Edge Token Request

Version 7

Version 8

Master Key Revisions

Known Client IDs

Errors

Known Errors

Examples

⚠️ **GitHub.com Fallback** ⚠️

⚠️ GitHub.com Fallback ⚠️
