AMTM - RMerl/asuswrt-merlin.ng GitHub Wiki

About

amtm - the Asuswrt-Merlin Terminal Menu

amtm is a shell-based front end that manages popular scripts for wireless routers running Asuswrt-Merlin firmware.

Starting with Asuswrt-Merlin 384.15, amtm is included in the firmware.

amtm is maintained by @decoderman, aka thelonelycoder. GitHub repo, Website.
There are support threads at SNBForums that are dedicated to amtm.

Features

amtm currently supports these popular scripts:

Script	Maintainer	Infos
Diversion	thelonelycoder	Link
Skynet	Adamm	Link
FlexQoS	dave14305	Link
YazFi	Jack Yaz	Link
scribe	cmkelley	Link
x3mRouting	Xentrk	Link
unbound Manager	Martineau	Link
connmon	Jack Yaz	Link
ntpMerlin	Jack Yaz	Link
scMerlin	Jack Yaz	Link
spdMerlin	Jack Yaz	Link
uiDivStats	Jack Yaz	Link
uiScribe	Jack Yaz	Link
DNSCrypt	bigeyes0x0, SomeWhereOverTheRainBow	Link
YazDHCP	Jack Yaz	Link
Vnstat	dev_null	Link
WireGuard Session Manager	Martineau	Link
Asuswrt-Merlin-AdGuardHome-Installer	SomeWhereOverTheRainBow	Link
VPNMON-R3	Viktor Jaep	Link
VPNMON-R2 (Sunsetted)	Viktor Jaep	Link
RTRMON	Viktor Jaep	Link
WICENS	Maverickcdn	Link
KILLMON	Viktor Jaep	Link
Dual WAN Failover	Ranger802004	Link
BACKUPMON	Viktor Jaep	Link
Domain-based VPN Routing	Ranger802004	Link
MerlinAU Firmware Auto-Updater	ExtremeFiretop	Link
TAILMON Tailscale installer	Viktor Jaep	Link

amtm also offers an interface for managing a number of other features:

Other features	Maintainer
Entware	zyxmon, ryzhovau, themiron
USB disk check at boot	ColinTaylor, latenitetech, thelonelycoder
Format disk	thelonelycoder, ColinTaylor
Router LED control, smart router LED scheduler	thelonelycoder
Reboot scheduler via cron job	thelonelycoder
Swap file creation and management	thelonelycoder
amtm themes	thelonelycoder
email settings	thelonelycoder
10 router games to choose from	thelonelycoder
Keep a history of entered shell commands	thelonelycoder
Router date keeper	thelonelycoder
amtm and third party script reset/remove options	thelonelycoder
Show all cron jobs	thelonelycoder
Firmware update notification	thelonelycoder
Reboot router command	thelonelycoder
Scripts update notification	thelonelycoder

Usage

amtm can be launched over SSH, as there is no web interface for it. In addition to enabling SSH support on your router, some of its scripts will have additional requirements, most commonly you will need to set Enable JFFS custom scripts and configs on the web interface to Yes, under Administration -> System. A USB disk is also required by many of its scripts.

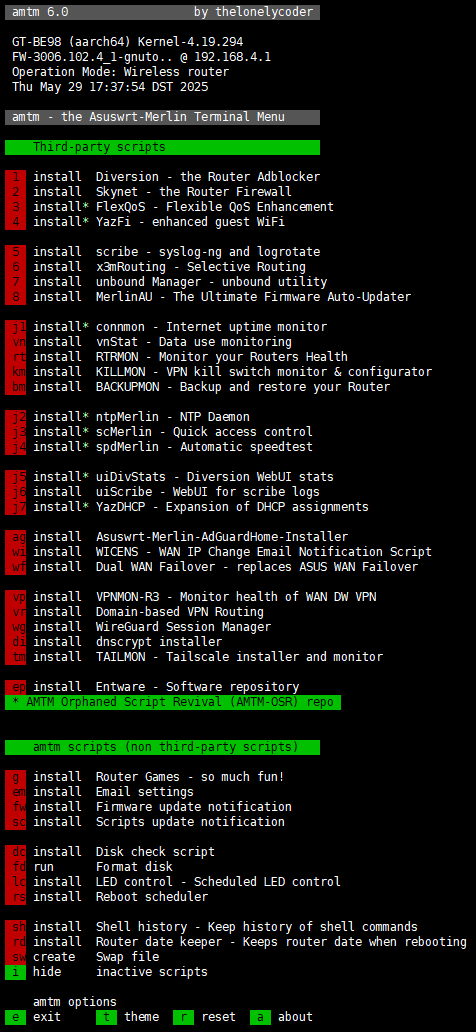

Connect to your router using an SSH client (Xshell, putty, etc...), then launch amtm by simply typing

amtm

in the console. A menu will appear, guiding you through the various options available. Installing Entware is usually the first step you should do, since many scripts will require it.

Before installing any of the scripts it is strongly recommended that you read the documentation for these scripts.

amtm License

amtm is free to use under the GNU General Public License, version 3 (GPL-3.0)
