4.CONCEPT GENERATION - R-Division-2022-2023-Odd/Repo-04 GitHub Wiki
4.1 ESTABLISHING THE FUNCTIONS
| Sl.no | Functions from the user perspective | Functions from the designer perspective |
|---|---|---|
| 1 | Start | Press the start button |
| 2 | Moving of wire | Stepper motor rotates to move the wire |
| 3 | Cutting of wire | DC motor completes one rotation which cuts the wire |
| 4 | Storing of wire |

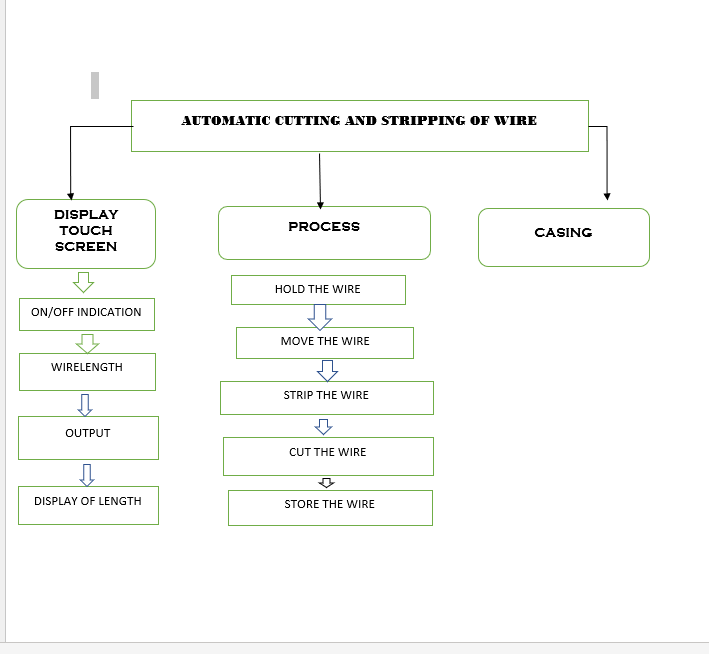

4.2 FUNCTION TREE
4.3 MORPHOLOGICAL CHART
| SL NO. | SUBFUNCTIONS | MEAN 1 | MEAN 2 | MEAN 3 | MEAN 4 |
|---|---|---|---|---|---|
| 1. | hold the wire | wire spool |
rod |
wood |
cable spool |
| 2. | move the wire | stepper motor |
Dc motor |
servo motor |
Arduino motor |
| 3. | Display | LCD display |
touch screen |
LED |
Segment display |
| 4. | Cut the wire | cutting pliers |
Blade |
Scissor |
cutter |
| 5. | Indication | buzzler |
LED light |
Alarm |
Bell |
| 6. | store the wire | plastic box |
steel metal box |
wooden box |
4.4 GENERATED CONCEPTS

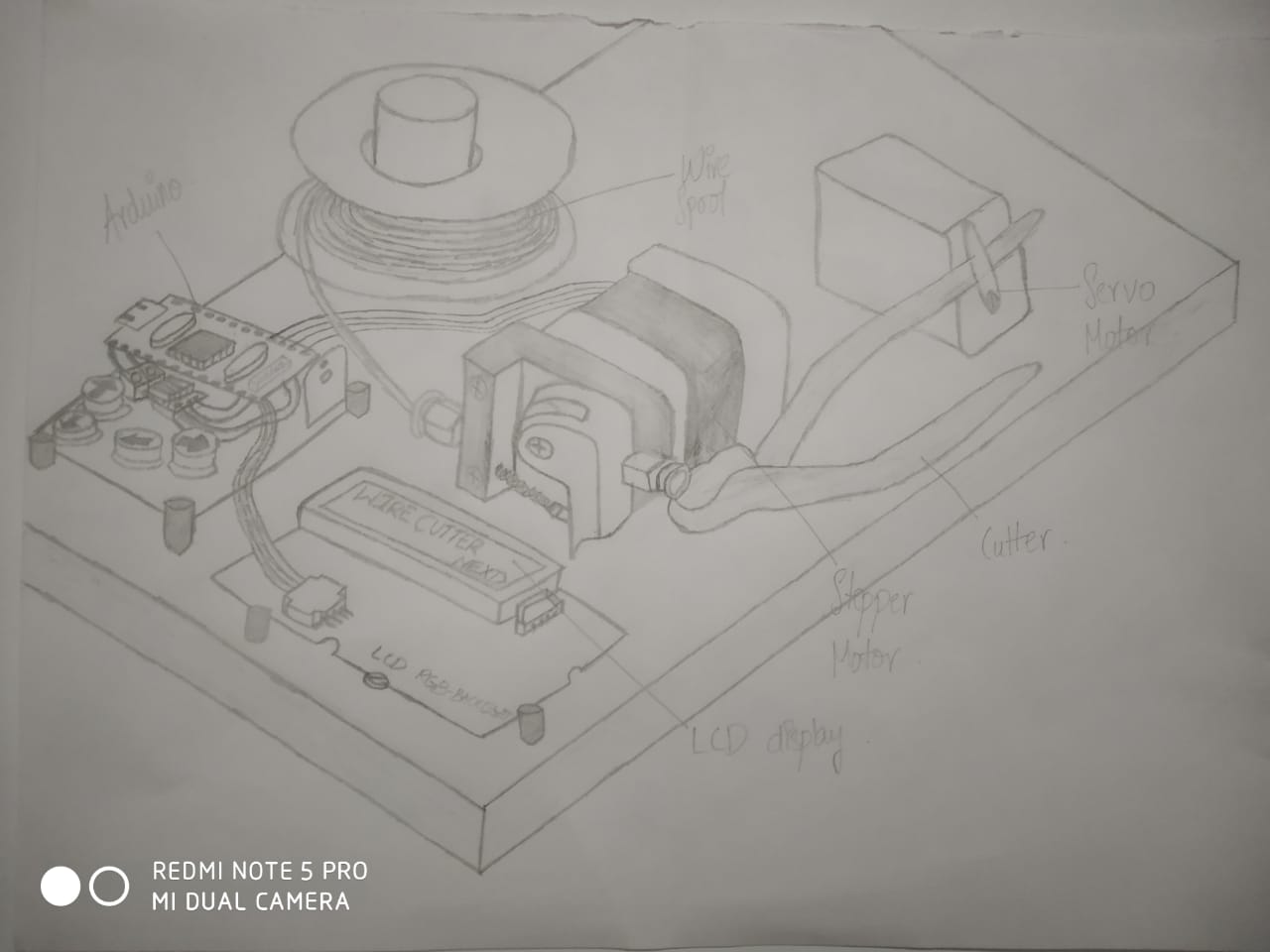

DESIGN 1
DESIGN 2

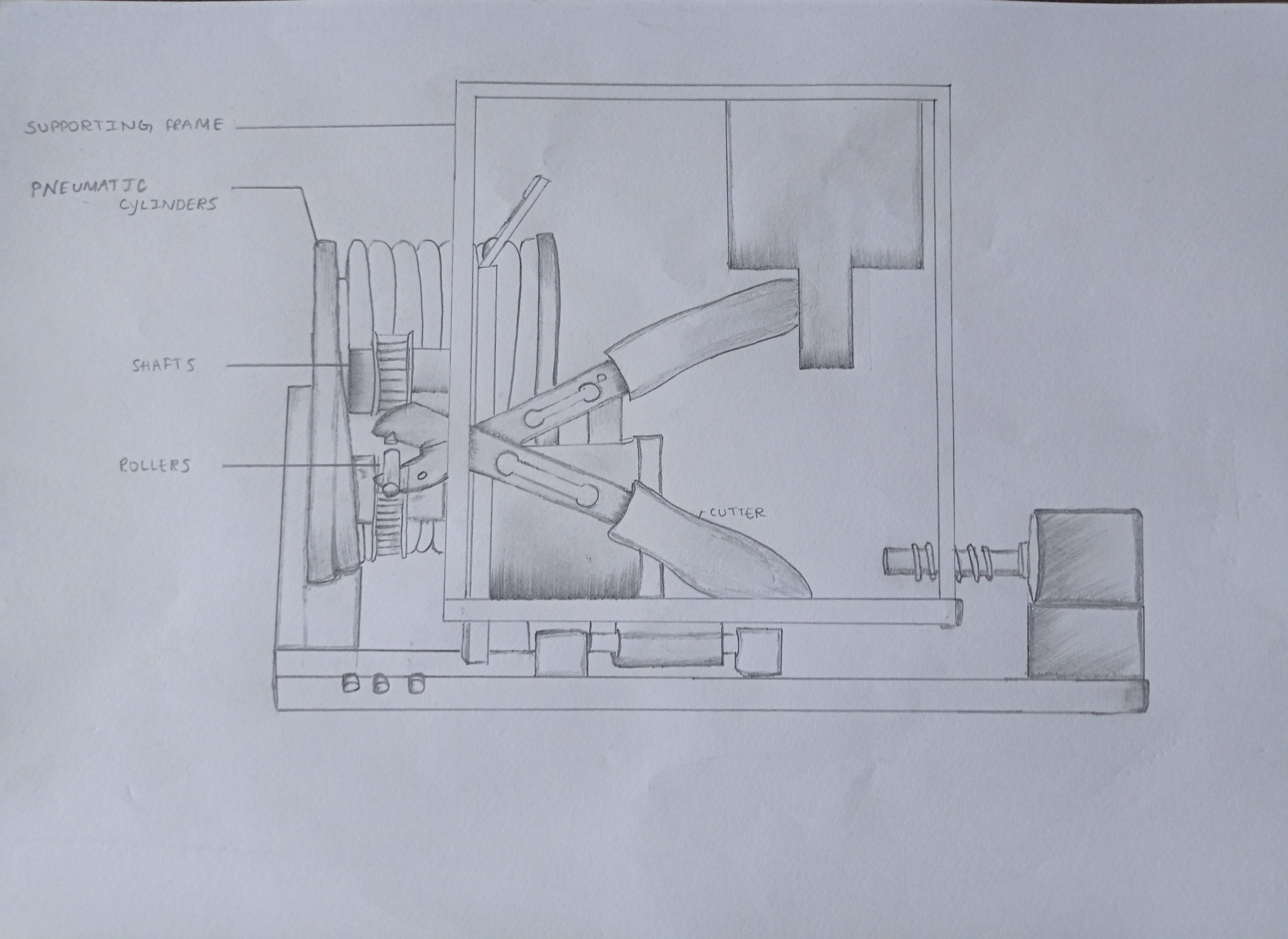

Design 3
DESIGN 4
