4.CONCEPT GENERATION - R-Division-2022-2023-Odd/Repo-01 GitHub Wiki
- 4.1 Establishing Functions
sl.no. | Functions from user perspective | Functions from designer perspective |
---|---|---|
1 | Start | Press the button |
Giving info | ||
2 | Cut the wire | Deploy the wire |
Stop at the specified length | ||
Cut the wire | ||
Dispense the wire | ||
3 | Casing | Safety guard |
- 4.2 Function Tree
- 4.3 Morphological chart
SL NO. | SUB FUNCTIONS | MEANS 1 | MEANS 2 | MEANS 3 | MEANS 4 |
---|---|---|---|---|---|
1 | Cutting | Wire clippers ![]() |
Blade![]() |
Diagonal pliers ![]() |
Cutter ![]() |
2 | Providing input | Through phone ![]() |
Touch screen panel ![]() |

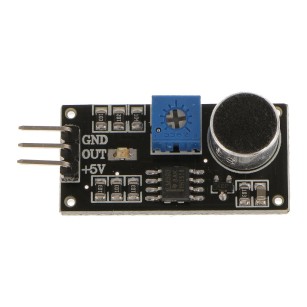

Voice detector ![]() |
Binary input ![]() |
3 | Run the machine by | Electricity ![]() |
Battery![]() |
Petrol ![]() |
Mechanical power![]() |
4 | Sensing wire | Infrared sensor ![]() |
Proximity sensor![]() |
Ultrasonic sensor![]() |
Photoelectric sensor![]() |
5 | To hold the wire | Pulley ![]() |
Mechanical hand![]() |
Box ![]() |
Magnetic link ![]() |
6 | On & off machine indicator | Buzzer ![]() |
LED light![]() |
Coded sound ![]() |
Notify user's phone ![]() |
-
4.4 Generated concepts
- SHREEDEVI F ANGADI
- KEERTI ANGADI
3.REVANTAGOUDA H D
4.CHINMAY SULTANPURI
5.ANAM KHAN
