Here you see the IR receiver connected to the bread board.

The pins on the IR receiver are (from left to right)

  out (data) --> connected to pin GPIO15
  gnd        --> connected to GND
  vcc        --> connected to 3.3v VCC

Configuration

Open the WLED web interface in your browser, the IP address is shown on the display

Configure the IR port (Config -> LED Preferences, and scroll down) to use pin 15.

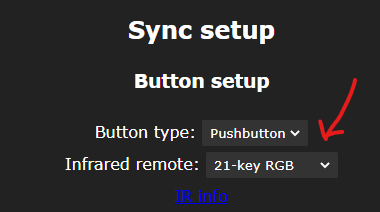

Next configure the Remote (Config -> Sync Interfaces) to use "21-key RGB"
