Engineering Exploration

Musical bot

Need Statement:-

A School in Hubbali wishes to set up a musical instrument room .To build craze among kids ,the school is looking for some robots that can play musical instrument and entertain the kids

Musical Instument- Keyboard.

TASK 1: Results table for Individual work for Aman Raj-:

S.NO	Link address	List the products features, what all it does(DO NOT PASTE. Write in own words)	Mechanical components	Electronic components
1	https://www.youtube.com/watch?v=FhfzZ4qpxZQ	Working: 1.Breadboard: To make electrical connections between components like resistors and capacitors. 2.Arduino : To read inputs and turn it into output(here, it is being used to read mechanical response and turn it into electric result). 3.Piezo Buzzer: To generate sounds in response to applied voltage. 4.Jumper Wire : To interconnect the components of a breadboard. 5.USB cable : Helps in transferring the code and compiling it into machine language. by the help of arduino. 6.Push Buttons : Acts as keys to play the piano.	PUSH BUTTONS	1. Breadboard. 2.Arduino. 3. Piezo buzzer. 4. Jumper cable. 5. USB cable.

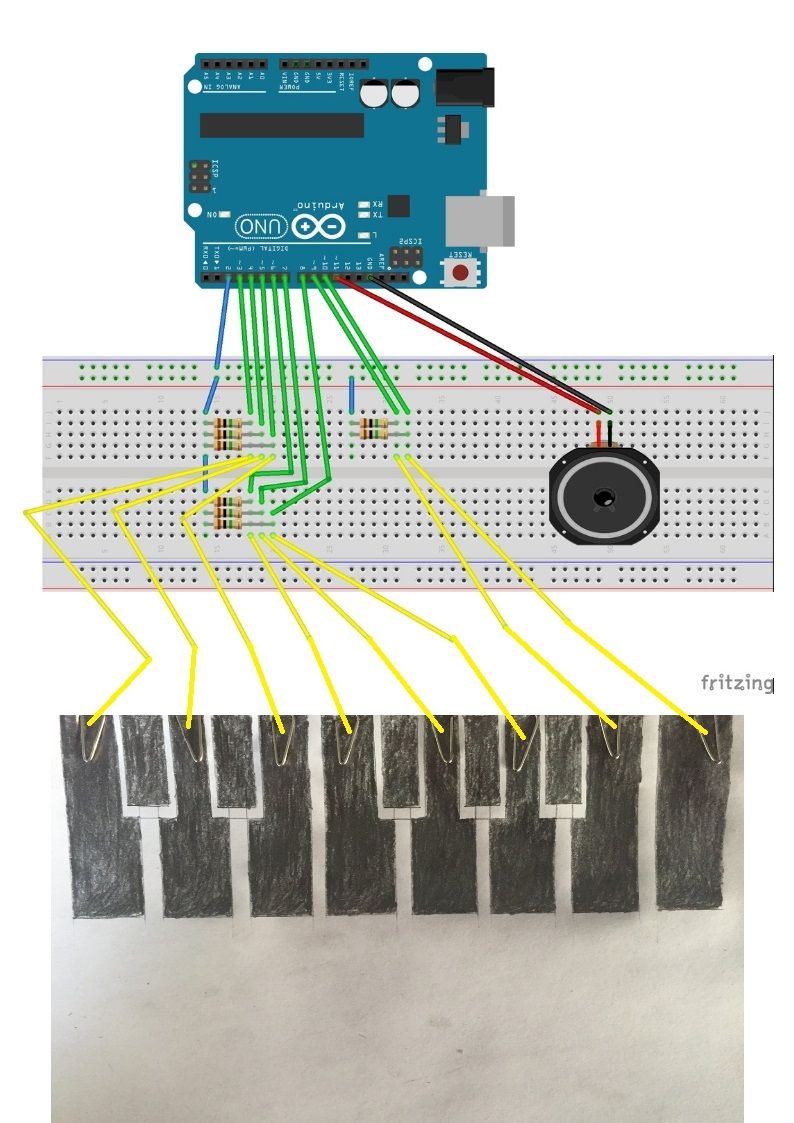

2	https://www.youtube.com/watch?v=LPc7RGaqM6M	Working: 1. Resistor: Adjust signals lines, to divide, voltages, terminate transmission lines among other uses. 2. Arduino : To read inputs and turn it into output(here, it is being used to read mechanical response and turn it into electric result). 3. Breadboard: To make electrical connections between components like resistors and capacitors. 4. Speaker : To produce sound analysing waveform frequency.	1.PAPER CLIP 2. A4 SIZE PAPER	1.Breadboard 2. Arduino 3. Resistor 4. Speaker
