COCEPTUIAL DESIGN - Q-Division-2019-2020-Even/Team-18 GitHub Wiki
Functional tree.
Morphological chart
Fucntion | Mean 1 | Mean 2 | Mean 3 | Mean 4 |
---|---|---|---|---|

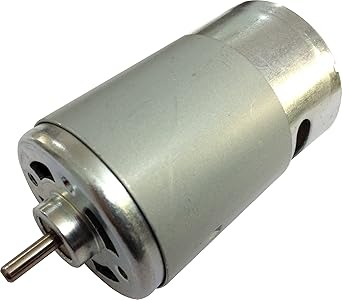

Duck movement | Dc motor ![]() |
Rack and pinnion |
Servo motor ![]() |
Slider crank ![]() |
Provision for holding ducks | Square | Cuboid | Circular | V shape |
Taking shot from user | IR sensor | LED ![]() |
||
Indication for start of game | LED | Sound system | Displaying in screen or visual display | |
Indicatipn of shotted duck | Through the stopping the movement of hitted duck | Red light emmission from hitted duck | Through quack sound from hitted duck | |
Displaying points | LED | Visual display ![]() |
||
Sensing shot from user | IR sensors ![]() |
Inductive sensor ![]() |
Photo diode ![]() |
|
Indication for Completion of game | LED sensor display | LED indicator | Through off of the light | Sound system |
FOUR DESIGNS OF GAMING MACHINE.
Design 1
Rack and pinion
Design 2
Design 3
Design 4
