5.Concept evalution and product architecture - Q-Div-2022-2023-Odd/Repo-16 GitHub Wiki
Pugh Chart
Design Ojectives |
Weights |
Design 1 |
Design 2 |
Design 3 |
Design 4 |
Safety |
8 |
datum |
+ |
+ |
+ |
Attractive |
6 |
datum |
+ |
++ |
- |
Portability |
7 |
datum |
- |
+ |
- |
Ease of Use |
7 |
datum |
+ |
+ |
- |
Cost |
7 |
datum |
+ |
0 |
+ |
Score (+) |
35 |
0 |
28 |
34 |
15 |
score (-) |
0 |
0 |
-7 |
0 |
-20 |
TOTAL |
35 |
0 |
21 |
34 |
-5 |
Selection of means for each concepts
Sub function |
Concept 1 |
Concept 2 |
Concept 3 |
Concept 4 |
Seed supply |
Sprinklers |
Manually |
rotating container |
|
Plant storage |
Plastic cups |
Pipes |
cups |
Tray |
Source of light |
LED |
Grow lights |
CFl |
Arc lamps |
5.1 Justification for scores given
Design no. |
Objectives |
Scores allocated |
Justification for scores |
1. |
Safety |
Datum |
taken as datum |
|
Attractive |
Datum |
taken as datum |
|
portable |
Datum |
taken s datum |
|
Ease of use |
Datum |
taken as datum |
2. |
Safety |
8 |
As it includes drip irrigation and container to store water |
|
Attractive |
6 |
for using of lights,it is little attractive |
|
Portable |
-7 |
not easily portable |
|
Ease of use |
7 |
Yes, we are using electronic devices and as it is automatic |
|
cost |
7 |
using many parts which are cost effective |
3. |
safety |
8 |
As it automatic it is safety to use |
|
Attractive |
12 |
usage of lights,rotating disk,looks much attractive |
|
Portable |
7 |
It is very east to port from one place to another |
|
Ease of use |
7 |
Electronics devices are used,and as it is automatic |
|
Cost |
0 |
Not much expensive |
4. |
Safety |
8 |
As it is automatic it is safety to use |
|
Portable |
-7 |
not portable |
|
Ease of use |
-7 |
it is not much automatic and complicated in using |
|
cost |
7 |
not much expensive |

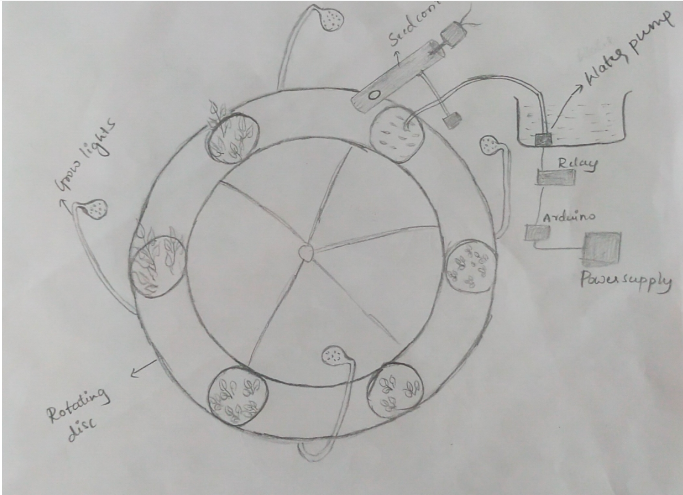

5.2 Selected Design

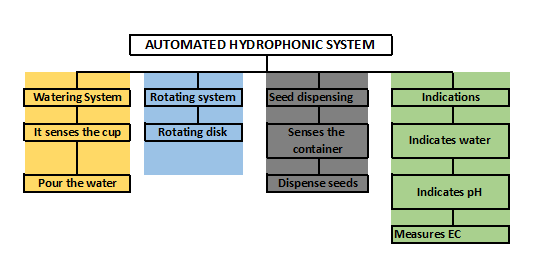

5.3 Function Clustering
