04 CONCEPT GENERATION - Q-Div-2022-2023-Odd/Repo-15 GitHub Wiki
A. ESTABLISHING FUNCTION'S
Tabble 1: list of all identified functions
SI.No | FUNCTIONS |
---|---|
01 | Seeding |
02 | Watering the system |
03 | Mechanism |
04 | Growth |
B.FUNCTION TREE
C. MORPHOLOGICAL CHART
Sl.NO | Sub functions | Means1 | Means2 | Means3 | Means4 |
---|---|---|---|---|---|
01 | Seed storing | Bowl | box | glass tumbler | clamshell container |
02 | Growing medium | hemp mat | vermiculites | coconut coir | biostrate |
03 | Growlights | T5lights | T8lights | LED | sunlight |
04 | Watering | spray | water tub | tap | water tank |
05 | Rotating mechanism | Disc | giant wheel | conveyor belt |
D. GENERATED CONCEPTS
Subfunction | Concept1 | Concept2 | Concept3 | Concept4 |
---|---|---|---|---|
Watering | tap | spray | Watering tub | tanker |
Seed Storing | Bowl | Glass tumbler | box | plastic clamshell container |
Seed dispensing | Robotic | machine | tool | injector |
Growing medium | hemp mat | vermiculites | Biostrate | Coconut coir |
Grow light | T8 LIGHTS | T5 lights | LED | Sunlight |
Rotating mechanism | Disc Rotation | Conveyor belt | joint wheel | joint wheel |
Concept1:
Concept2:
Concept3:

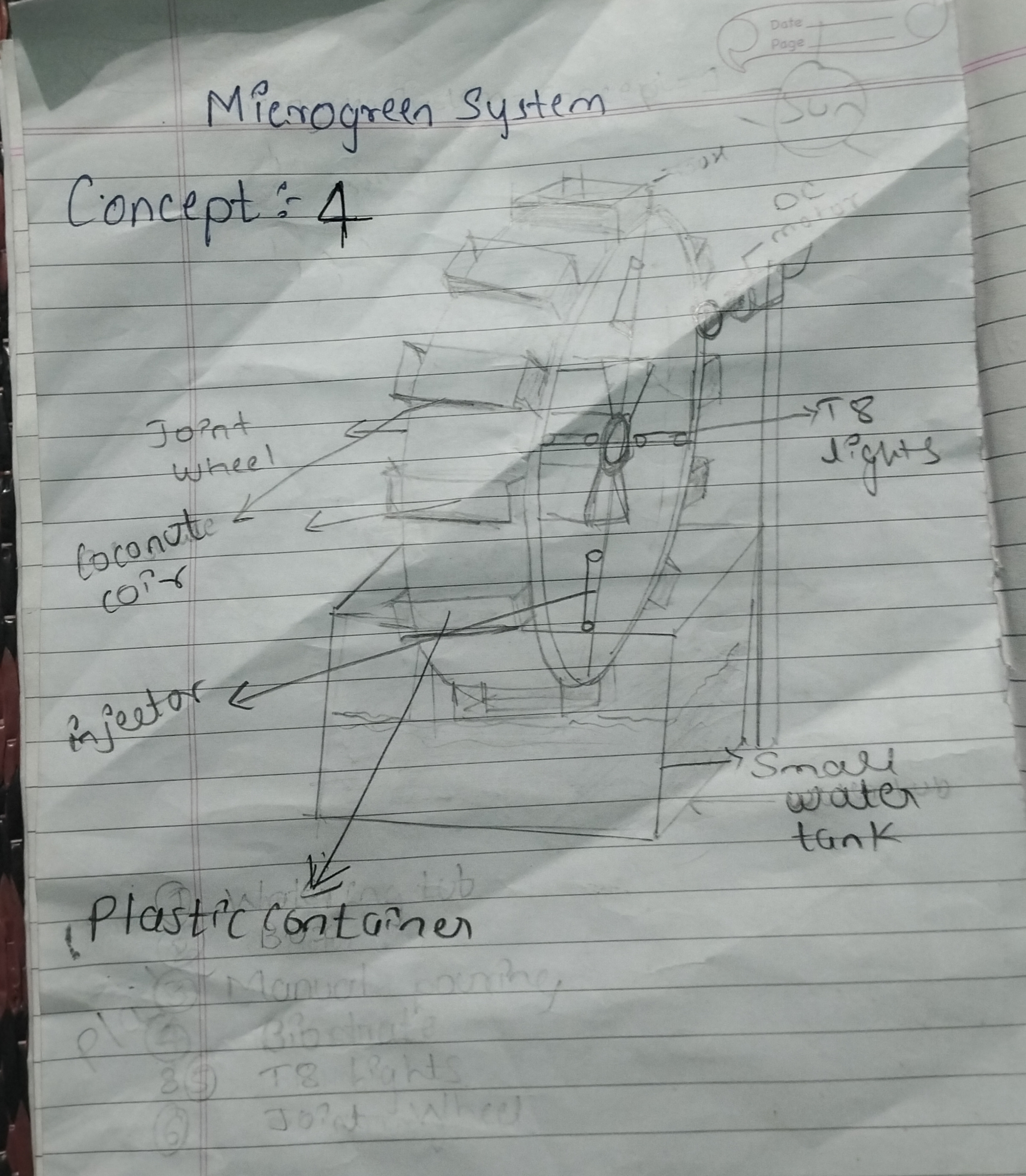

Concept4:
