4. CONCEPT GENERATION - Q-Div-2022-2023-Odd/Repo-13 GitHub Wiki
4.1 ESTABLISHING FUNCTIONS
Teams | Functions from user Perspective | Functions from Designer Perspective |
---|---|---|
1. | Alert the user while seeds | Indicate the user about the min/empty |
container gets empty | quantity of seeds in the dispenser | |
2. | Pouring of seeds on the plate | Dispensing of seeds properly on the plate |
3. | Watering the plants per day | Moistening seeds frequently |
4. | Providing sufficient light to plants | Microgreens are made to grow in growing lights |
5. | should provide the different varieties of | Filling of different varieties of seeds into |
nutritious food daily | the container after the containers gets empty |
4.2 FUNCTION TREE
4.3 MORPHOLOGICAL CHART
sl.no. | Subfunctions | Means 1 | Means 2 | Means 3 | Means 4 |
---|---|---|---|---|---|

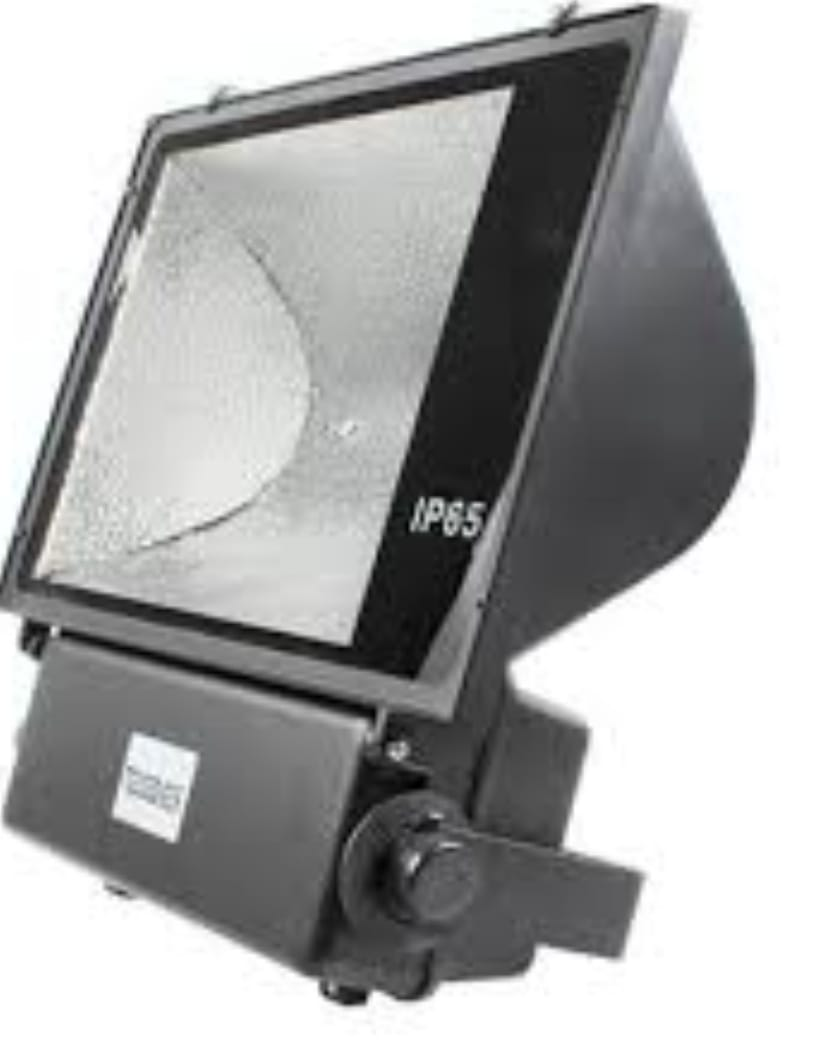

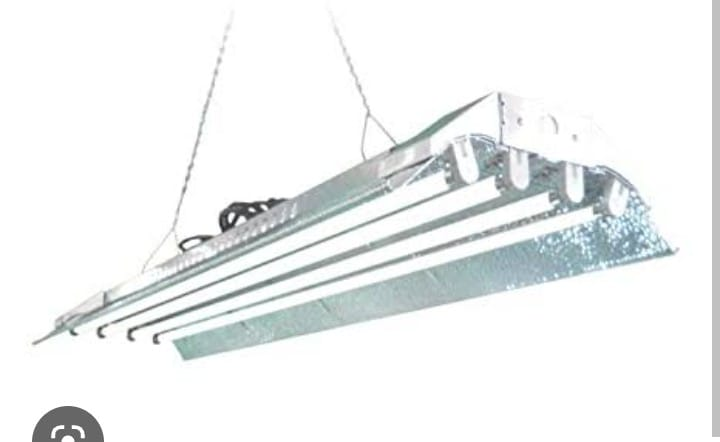

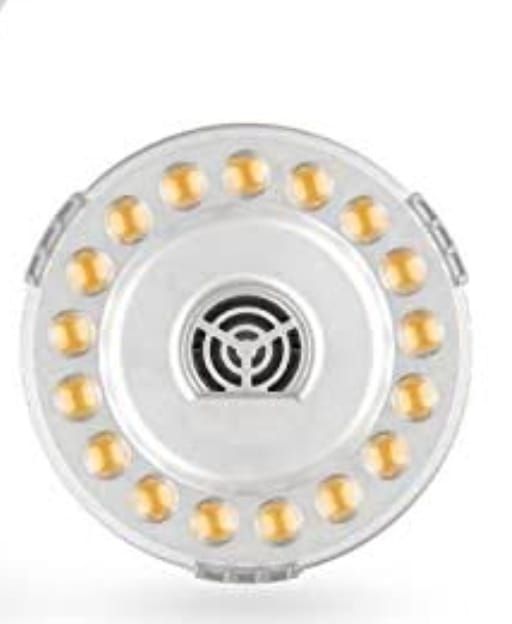

1. | Growing lights | Full spectrum light | Flourscent lights | HPS lights | MH lights |

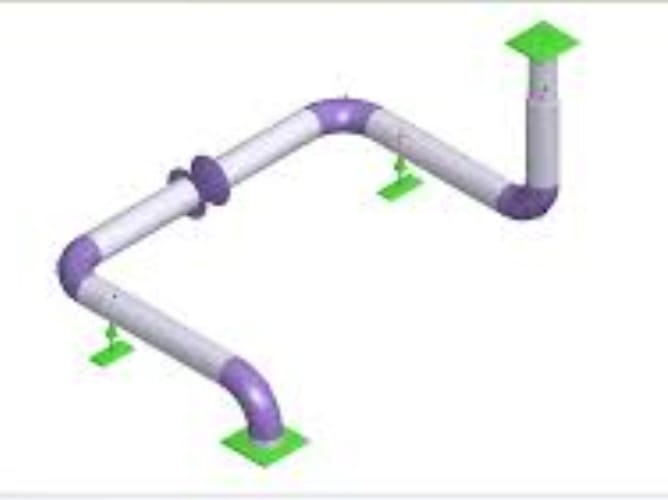

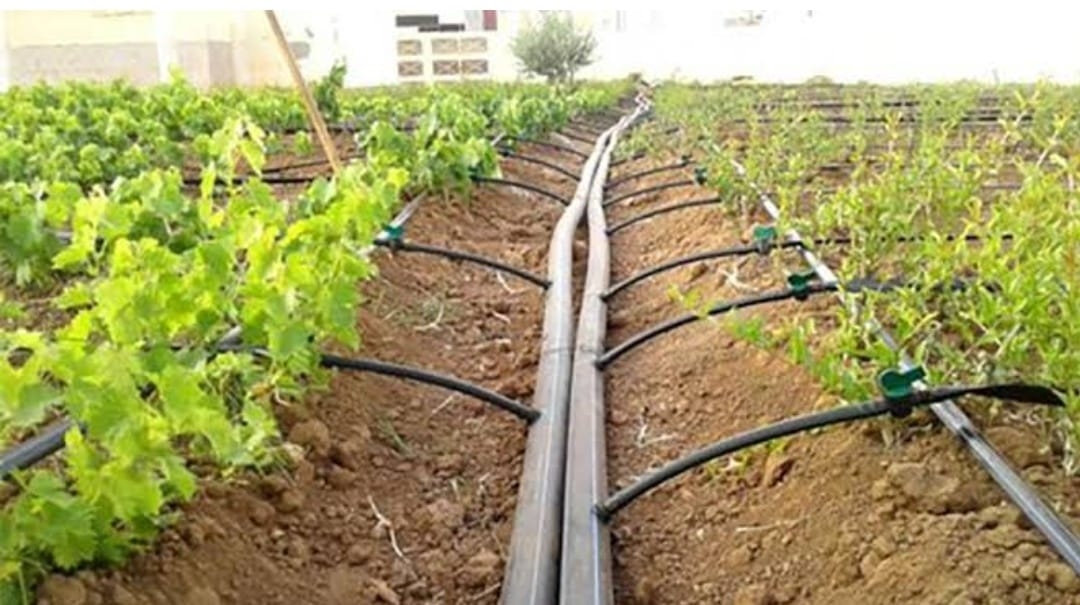

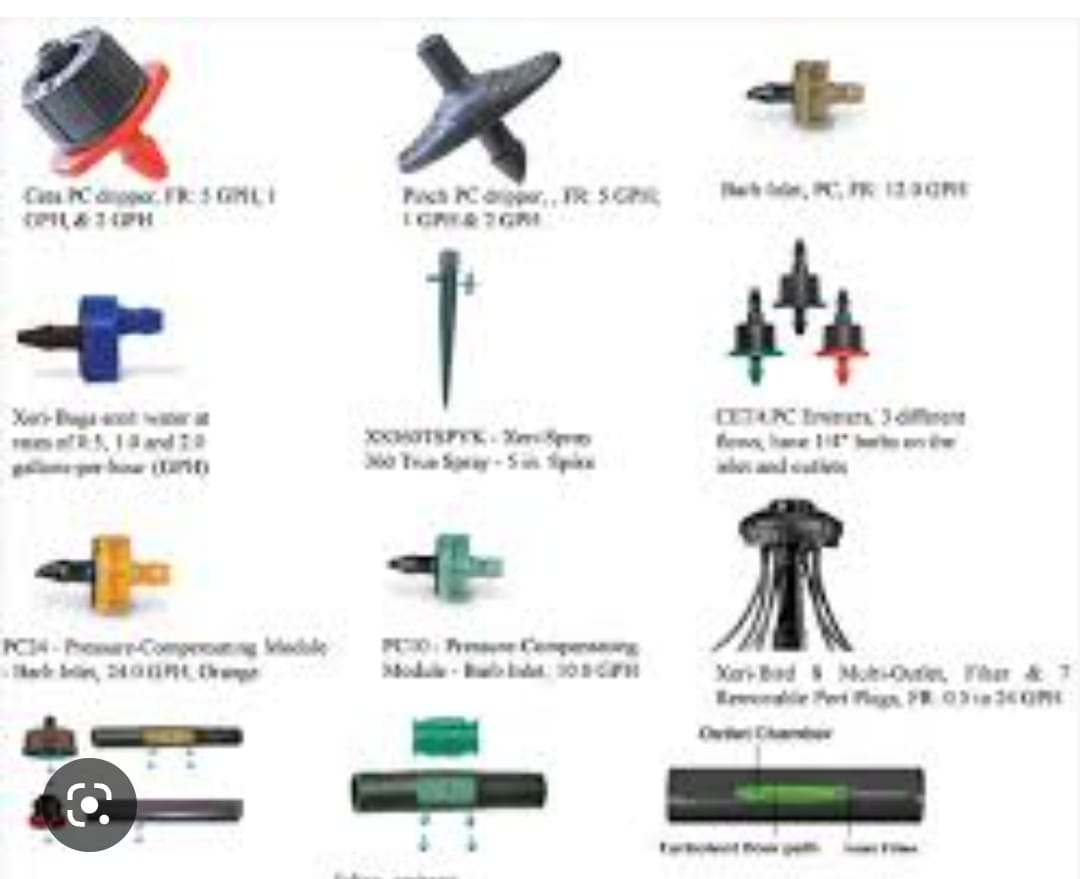

2. | Watering the microgreens | sprinkler | Drip system | pipe system | |

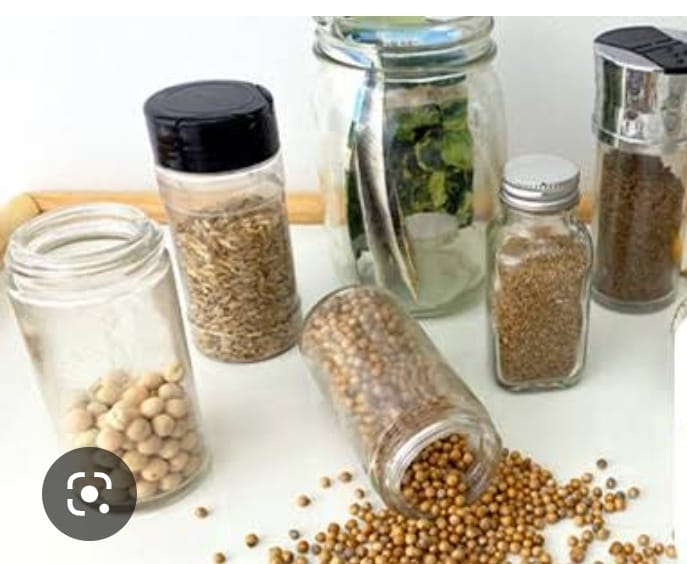

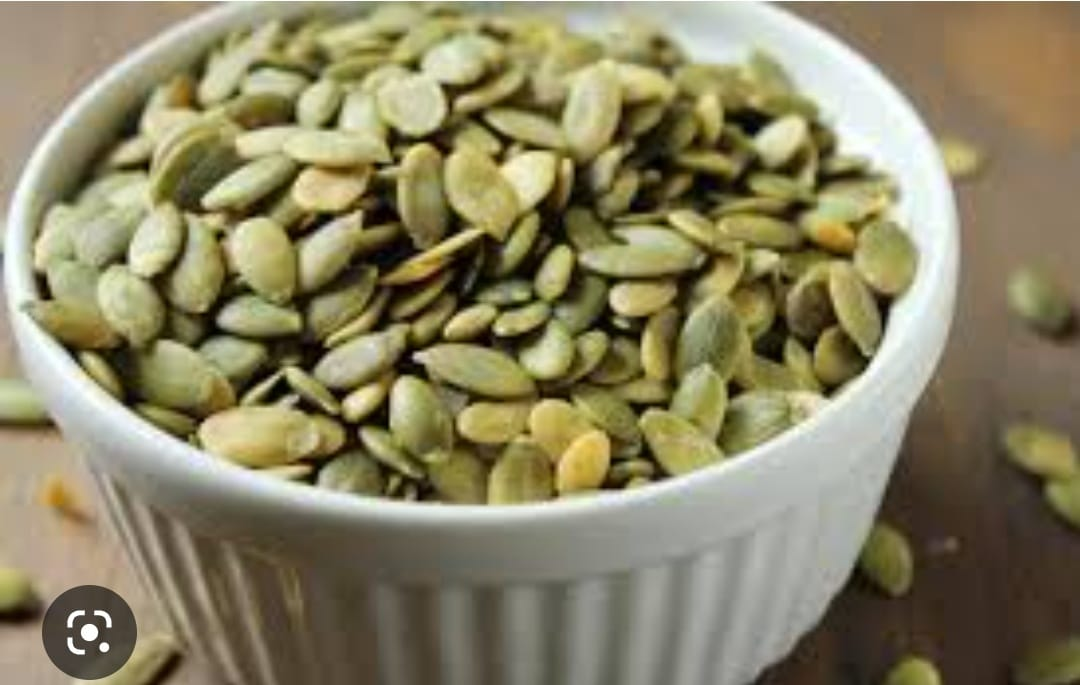

3. | Storing of seeds | bowl | bottles | cups | Box |

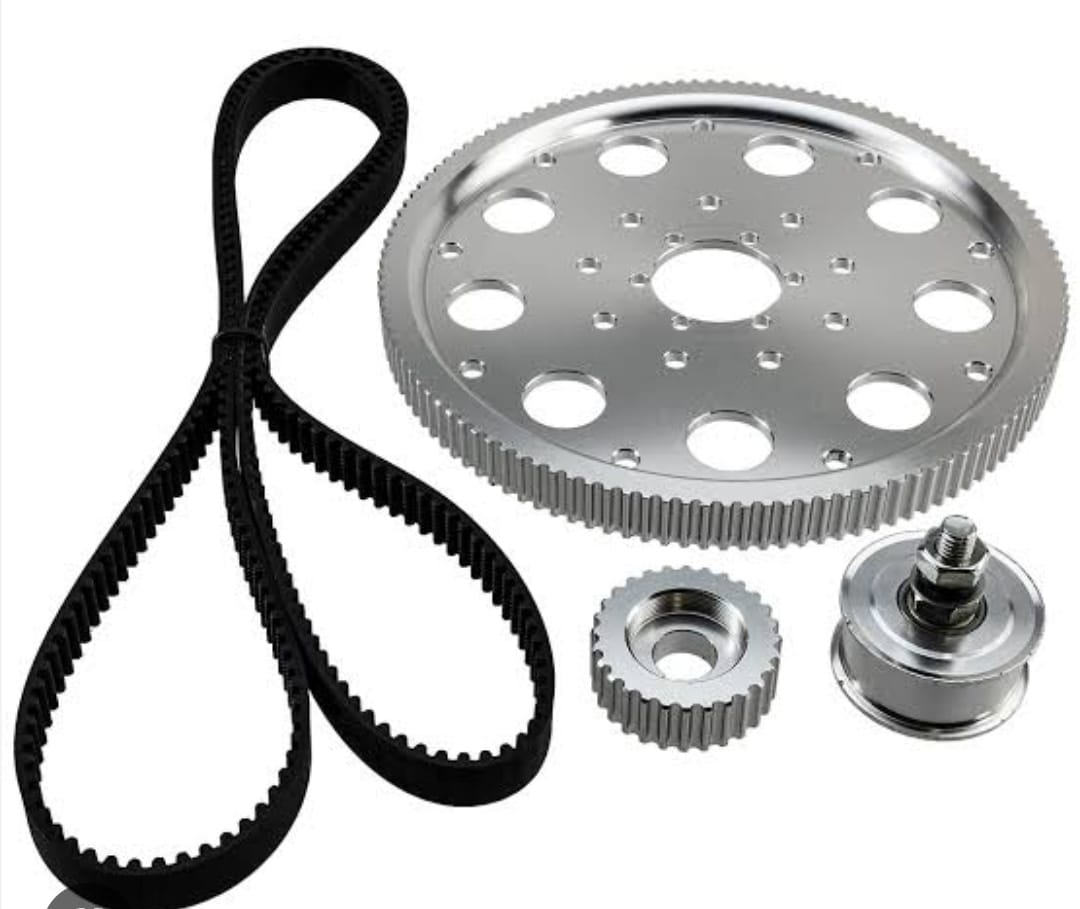

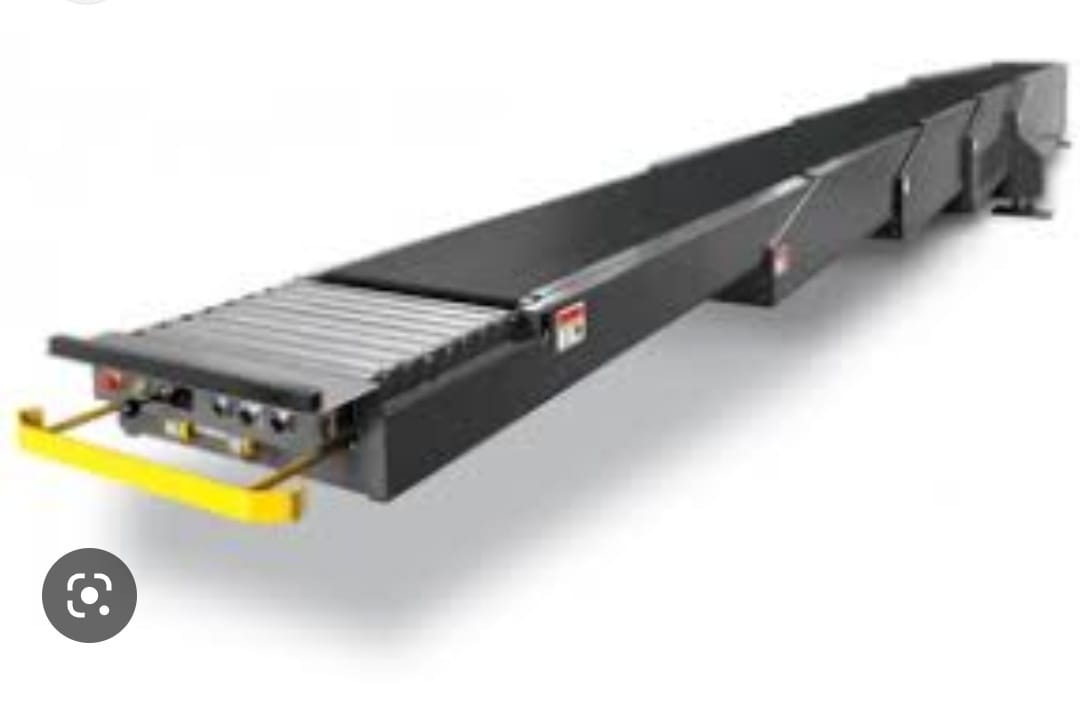

4. | Rotation of disc | Conveyor belt | joint wheel | telescopic belt conveyor | hydraulic conveyor belt |
5. | Growing medium | water | |||

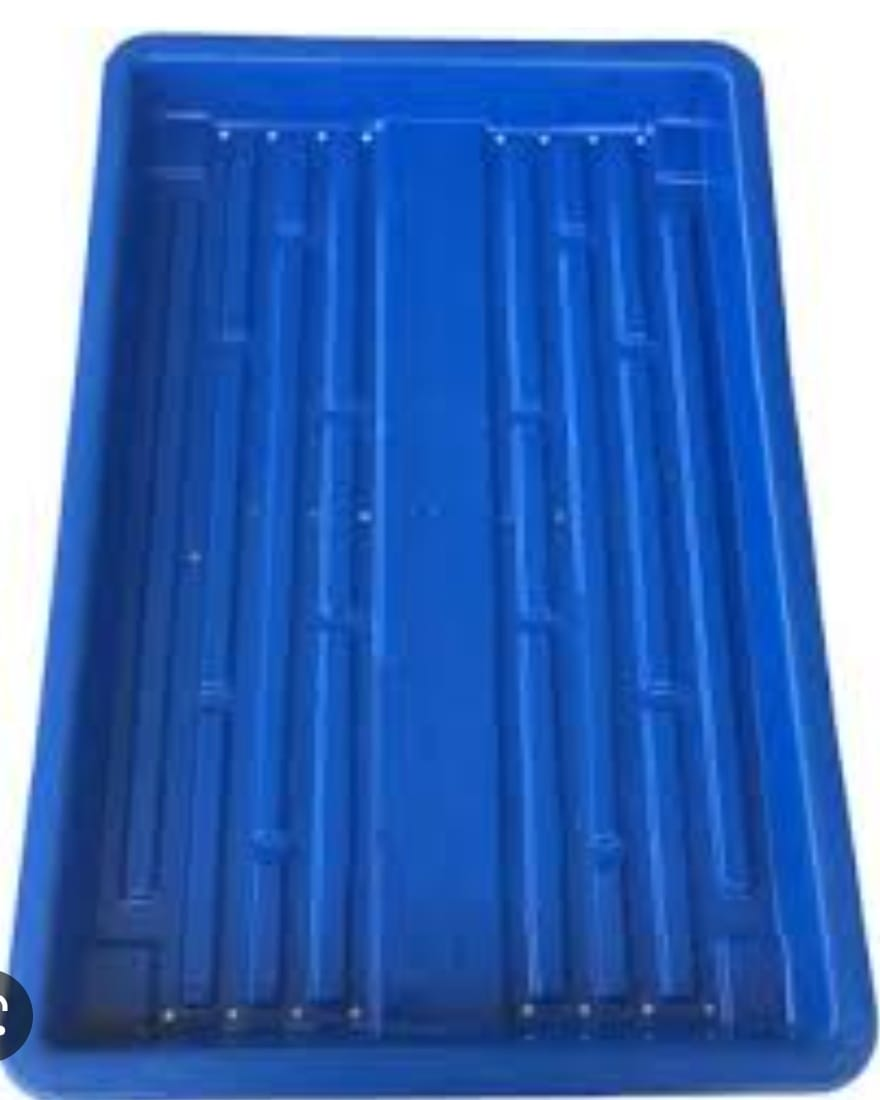

6. | Growing of seeds | plates | bowls | Trays |

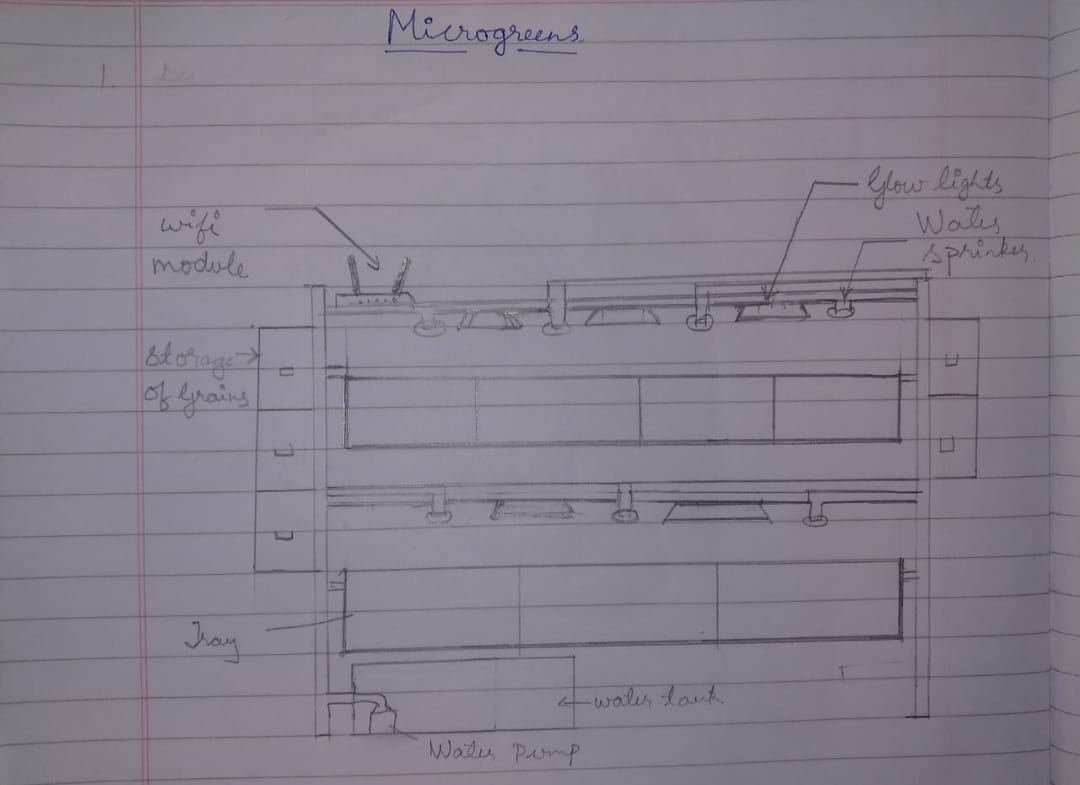

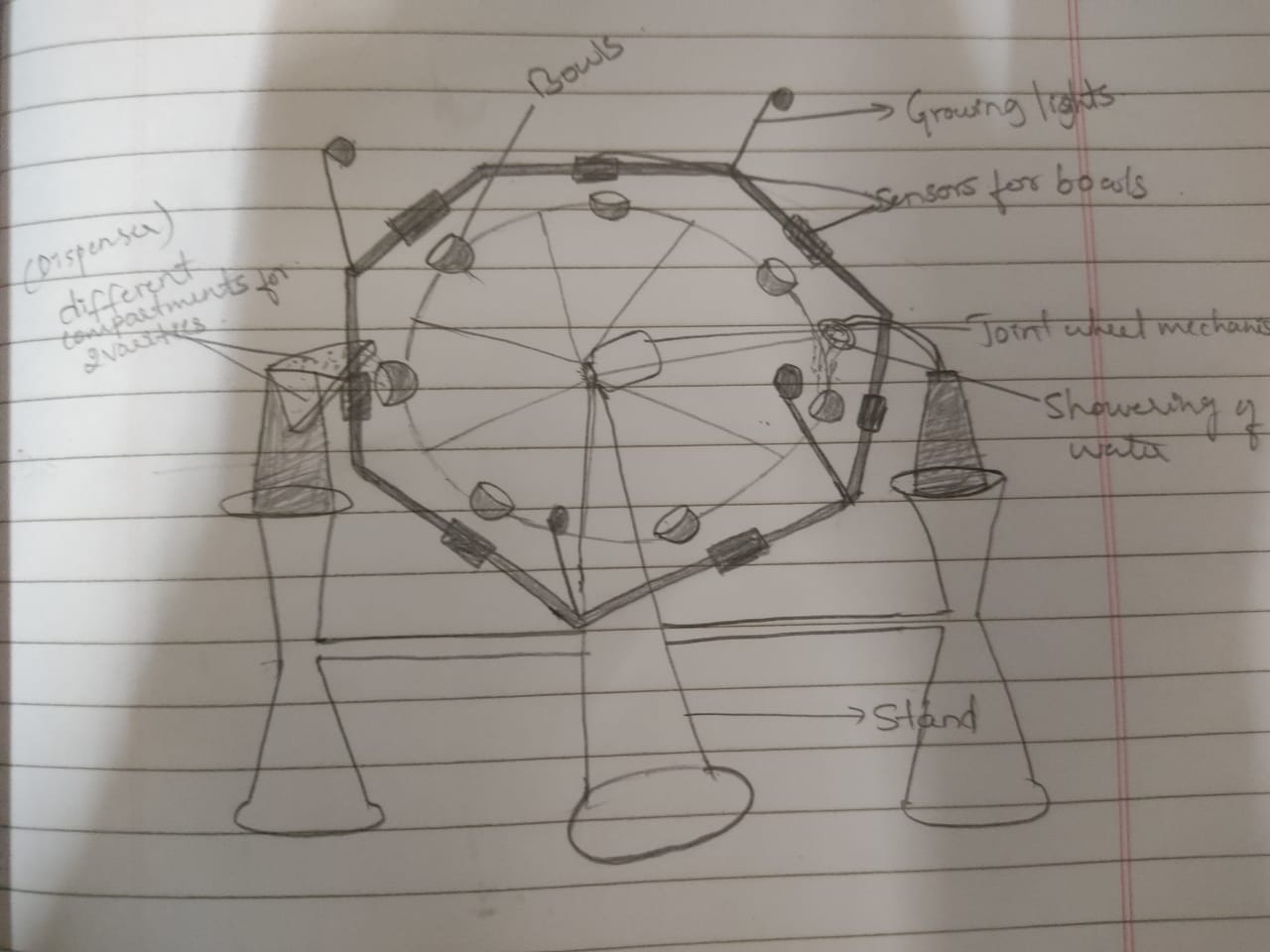

4.4 GENERATED CONCEPTS
Subfunctions | Concept 1 | Concept 2 | Concept 3 | Concept 4 |
---|---|---|---|---|
Growing lights | Full spectrum light | MH lights | HPS lights | fluroscent lights |
Growing medium | water | water | water | water |
Storing of seeds | bottles | bowls | boxes | boxes |
Growing of seeds | trays | plates | bowls | trays |
Rotation of disc | joint wheel | conveyor belt | joint wheel | no |
Watering of microgreens | sprayer | sprinkler | sprayer | pipe system |
