Eigenvalue Problem

• Eigensolver - Jacobi-Rotation method can be efficiently paralelized:
  • CUDA Jacobi Implementation
  • On Jacobi and Jacobi-like algorithms for a parallel computer
  • A parallel algorithm for the eigenvalues and eigenvectors of a general complex matrix

Assembling:

ToDo:

• Check How many interpolations is called in which assemble functions.
  • Notice that most of assembling is done just once per SCF-cycle
• Seems that average_rho() is the most costly function

Ordering of arrays

Splines in interpolate_1d() are organized in such way that interaction and isub determines jxx which is 3d index after atomic types in1,in2 see splineint_2c(1,non2c,imid,jxx,in1,in2) in

subroutine interpolate_1d (interaction, isub, in1, in2, non2c, ioption, xin, yout, dfdx)
    ...
    jxx =  ind2c(interaction,isub)
    ...
    aaa=splineint_2c(1,non2c,imid,jxx,in1,in2)
    bbb=splineint_2c(2,non2c,imid,jxx,in1,in2)
    ccc=splineint_2c(3,non2c,imid,jxx,in1,in2)
    ddd=splineint_2c(4,non2c,imid,jxx,in1,in2)

Inside interpolate_1d_vec() we keep it, see

subroutine interpolate_1d_vec (interaction, isub, in1, in2, nME, ioption, xin, yout, dfdx)
    aaa(:)=splineint_2c(1,:nME,imid,jxx,in1,in2)
    bbb(:)=splineint_2c(2,:nME,imid,jxx,in1,in2)
    ccc(:)=splineint_2c(3,:nME,imid,jxx,in1,in2)
    ddd(:)=splineint_2c(4,:nME,imid,jxx,in1,in2)

In trescentros() we have it different, there are the ifs like

subroutine trescentros_vec (interaction, isorp, maxtype, in1, in2, indna,  x, y, cost, eps, bcnax, nspecies)
    if (interaction .eq. 1) then
        hx    = hx_bcna(isorp,index)
        hy    = hy_bcna(isorp,index)
        nx    = numx3c_bcna(isorp,index)
        ny    = numy3c_bcna(isorp,index)
        xxmax = x3cmax_bcna(isorp,index)
        yymax = y3cmax_bcna(isorp,index)
        do iME = 1, index_max3c(in1,in2)
            call interpolate_2d_vec (x, y, kforce, nx, ny, hx, hy, bcna_vec(:,1,1,iME,isorp,index), Q_L, dQ_Ldx, dQ_Ldy)
            bcnalist(:,iME) = Q_L(:)
        end do
    else if (interaction .eq. 2) then

Questions

1. Is somewhere actually used full 3-ceter in1,in2,in3 ?

• Answer: - this is actually done by common_neighbors(), we loop already over pairs of common neighbors like this:

do ialp = iatomstart, iatomstart - 1 + natomsp
    rna(:) = ratom(:,ialp)
    indna = imass(ialp)
    do ineigh  = 1, neigh_comn(ialp)
        mneigh = neigh_comm(ineigh,ialp)
        iatom  = neigh_comj(1,ineigh,ialp)
        jatom  = neigh_comj(2,ineigh,ialp)
        r1(:) = ratom(:,iatom) + xl(:,ibeta)
        r2(:) = ratom(:,jatom) + xl(:,jbeta)

2. What value have index_max2c(in1,in2), index_max3c(in1,in2), index_maxPP(in1,in2), index_maxS(in1,in2)?
   • used e.g. in doscentros(), doscentrosPP(), doscentrosS() like

  do index = 1, index_max2c(in1,in3)
    call interpolate_1d (interaction, isub, in1, in2, index, iforce, distance, slist(index), dslist(index))
  end do

• used e.g. in trescentros(), trescentrosS(), Dtrescentros(), DtrescentrosS() `

do iME = 1, index_maxS(in1,in2)
  call interpolate_2d (x, y, kforce, nx, ny, hx, hy, den3S_01(1,1,iME,isorp,index), Q_L, dQ_Ldx, dQ_Ldy)
  call interpolate_2d (x, y, kforce, nx, ny, hx, hy, den3S_02(1,1,iME,isorp,index), Q_L, dQ_Ldx, dQ_Ldy)
  call interpolate_2d (x, y, kforce, nx, ny, hx, hy, den3S_03(1,1,iME,isorp,index), Q_L, dQ_Ldx, dQ_Ldy)
  call interpolate_2d (x, y, kforce, nx, ny, hx, hy, den3S_04(1,1,iME,isorp,index), Q_L, dQ_Ldx, dQ_Ldy)
  call interpolate_2d (x, y, kforce, nx, ny, hx, hy, den3S_05(1,1,iME,isorp,index), Q_L, dQ_Ldx, dQ_Ldy)
end do

Answer:

index_max2c
H-H  1
C-H  2
C-C  6

index_max3c
H-H   1
C-H   3
C-C  10

index_maxPP
H-H   1
C-H   2
C-C   6

index_maxS
H-H    1
C-H    2
C-C    4

3. What are the value of

hx    = hx_bcna(isorp,index)
hy    = hy_bcna(isorp,index)
nx    = numx3c_bcna(isorp,index)
ny    = numy3c_bcna(isorp,index)
xxmax = x3cmax_bcna(isorp,index)
yymax = y3cmax_bcna(isorp,index)

used for interpolate_2d () ? Do they differ with different atoms and different interactions ?

Answer: Actually for all combinations of species and interactions are the same

hx    = 0.17009285714285713
hy    = 0.17009285714285713
nx    = 29
ny    = 29
xxmax = 4.7625999999999999
yymax = 4.7625999999999999

Overall structure of assemble_mcweda()

! ============================= FROM    assemble_mcweda ()

if ((itheory .eq. 1 .or. itheory .eq. 2) .and. Kscf .eq. 1) then
   call get_ewald ! (nprocs, my_proc, kforce, icluster, itheory, iordern)
end if

if(itheory_xc .eq. 2 ) then
   call assemble_olsxc_1c   ! no-interpolation
endif

if (Kscf .eq. 1) then
   call assemble_sVNL()     ! doscentrosPP()
   call assemble_2c()       ! doscentros()
   call assemble_2c_PP()    ! no-interpolation
end if

if ( (itheory_xc .eq. 1) .or. (itheory_xc .eq. 2) ) then
   !write (*,*) ' Assemble SN-xc exchange-correlation interactions. '
   if (itheory .eq. 1) then
      call average_ca_rho()  !  doscentros(), doscentrosS()  ... really complicated function
   else
      call average_rho()     !  doscentros(), doscentrosS()  ... really complicated function
   endif
end if

if      (itheory_xc .eq. 1) then
   call assemble_snxc_on ()   ! no-interpolation
   call assemble_snxc_off()   ! no-interpolation
else if (itheory_xc .eq. 2 ) then
   call assemble_olsxc_on()  ! no-interpolation
   call assemble_olsxc_off() ! doscentros()
end if ! if (itheory_xc = 2)

if (itheory .eq. 1) then
   call assemble_ca_2c()  ! doscentros()
endif
if (Kscf .eq. 1) then
   call assemble_3c()     ! trescentros()
   call assemble_3c_PP()  ! no-interpolation
end if
if (itheory .eq. 1) then
   call assemble_ca_3c()  ! trescentros()
   call assemble_lr   ()  ! no-interpolation
else

Put all loop together

All assemble loops looks like this:

do iatom = iatomstart, iatomstart - 1 + natomsp
   do ineigh = 1, neighn(iatom)
      ! do something like:
      A1) call doscentros (interaction, isorp, kforce, in1, in2, in3, y, eps, deps, sx, spx)
      A2) call interpolate_1d (interaction, ideriv, in1, in2, index, iforce, distance, slist(index), dslist(index))
      A3) call doscentrosPP (interaction, isorp, y, eps, deps, iforce, in1, in2, sVNLx, spVNLx)
      A4) call trescentros (interaction, isorp, isorpmax, in1, in2, indna, x, y, cost, eps, bcnax, nspecies)

      B1) s_mat(imu,inu,ineigh,iatom) = sx(imu,inu)
      B2) vnl(imu,inu,kneigh,iatom) = vnl(imu,inu,kneigh,iatom) + PPx(imu,inu)
      B3) PPx(imu,inu) = PPx(imu,inu) + cl(ncc)*sVNL(imu,ncc,ineigh,iatom) *sVNL(inu,ncc,mneigh_self,jatom)
      B4) bcnlx(imu,inu) = bcnlx(imu,inu) +  cl(ncc)*sVNL(imu,ncc,m31,iatom)*sVNL(inu,ncc,m32,jatom)
      B5) vna(imu,inu,mneigh,iatom) = vna(imu,inu,mneigh,iatom) + bcnax(imu,inu)*eq2
      B6) sub_ewald(iatom) = sub_ewald(iatom) + dQ*ewald(iatom,jatom)
      B7) ewaldlr(imu,inu,ineigh,iatom)=ewaldlr(imu,inu,ineigh,iatom)+(sterm-dterm)*sub_ewald(iatom)*eq2+ (sterm+dterm)*sub_ewald(jatom)*eq2
      B8) h_mat(imu,inu,ineigh,iatom)=t_mat(imu,inu,ineigh,iatom)+vna(imu,inu,ineigh,iatom)+vxc(imu,inu,ineigh,iatom)+ vca(imu,inu,ineigh,iatom)
   end do
end do

2-center terms:

Question: what value have index_max2c(in1,in3)

assemble_usr()
  interpolate_1d()

doscentros()
  do index = 1, index_max2c(in1,in3)
    call interpolate_1d (interaction, isub, in1, in2, index, iforce, distance, slist(index), dslist(index))
  end do

doscentrosPP()
  do index = 1, index_maxPP(in1,in2)
    call interpolate_1d (interaction, isub, in1, in2, index, iforce, distance, pplist(index), dpplist(index))
  end do

doscentrosS_()
  do index = 1, index_maxS(in1,in3)
    call interpolate_1d (interaction, isub, in1, in2, index, iforce, distance, slist(index), dslist(index))
  end do

3-center terms:

NOTE 1: we can significantly vectorize 3-center interactions by calling, there is the loop

do iME = 1, index_maxS(in1,in2)
  call interpolate_2d (x, y, kforce, nx, ny, hx, hy, den3S_01(1,1,iME,isorp,index), Q_L, dQ_Ldx, dQ_Ldy)
  call interpolate_2d (x, y, kforce, nx, ny, hx, hy, den3S_02(1,1,iME,isorp,index), Q_L, dQ_Ldx, dQ_Ldy)
  call interpolate_2d (x, y, kforce, nx, ny, hx, hy, den3S_03(1,1,iME,isorp,index), Q_L, dQ_Ldx, dQ_Ldy)
  call interpolate_2d (x, y, kforce, nx, ny, hx, hy, den3S_04(1,1,iME,isorp,index), Q_L, dQ_Ldx, dQ_Ldy)
  call interpolate_2d (x, y, kforce, nx, ny, hx, hy, den3S_05(1,1,iME,isorp,index), Q_L, dQ_Ldx, dQ_Ldy)
end do

NOTE 2: We can merge trescentrosS() and trescentros()

NOTE 3: rotate_fb() and twister() is worth to optimize

• rotate_fb()

        call twister (eps, dmat, pmat)
        do issh = 1, nssh(in1)
         call chooser (l1, dmat, pmat, left)
         do jssh = 1, nssh(in2)
          l2 = lssh(jssh,in2)
          call chooser (l2, dmat, pmat, right)
          do m2 = 1, 2*l2 + 1
           do m1 = 1, 2*l1 + 1
            do k2 = 1, 2*l2 + 1
             do k1 = 1, 2*l1 + 1
              xmatrix(n1+k1,n2+k2) = xmatrix(n1+k1,n2+k2)  + left(k1,m1)*mmatrix(n1+m1,n2+m2)*right(k2,m2)
             end do
            end do
           end do
          end do
         end do
        end do

• twister()

        do imu = 1, 5
         xlambda11 = 0
         xlambda12 = 0
         xlambda13 = 0
         xlambda32 = 0
         xlambda33 = 0
         do jx = 1, 3
          do ix = 1, 3
           if (amat(ix,jx,imu) .ne. 0.0d0) then
            amat_term = amat(ix,jx,imu)
            xlambda11 = xlambda11 + amat_term*eps(jx,1)*eps(ix,1)
            xlambda12 = xlambda12 + amat_term*eps(jx,1)*eps(ix,2)
            xlambda13 = xlambda13 + amat_term*eps(jx,1)*eps(ix,3)
            xlambda32 = xlambda32 + amat_term*eps(jx,3)*eps(ix,2)
            xlambda33 = xlambda33 + amat_term*eps(jx,3)*eps(ix,3)
           end if
          end do
         end do
! Set the D matrices:
         dmat(imu,1) = 2.0d0*xlambda12
         dmat(imu,2) = 2.0d0*xlambda32
         dmat(imu,3) = sqrt(3.0d0)*xlambda33
         dmat(imu,4) = 2.0d0*xlambda13
         dmat(imu,5) = 2.0d0*xlambda11 + xlambda33
        end do

assemble_3c()
  do ialp = iatomstart, iatomstart - 1 + natomsp  ! loop over atoms in central cell
    do ineigh = 1, neigh_comn(ialp)               ! loop over neighbors
      epsilon(R1,R2,spe)                          ! metric tens
      trescentros()                               ! interpolation of integrals
        trescentrosS_vec()                        ! interpolation of integrals
          if(ivec_3c == 1)
            do iME = 1, index_max3c(in1,in2)
              interpolate_2d_vec()
            end do
          if(ivec_3c == 2)
            t_data3c_interpolate_2d()
          else
            do iME = 1, index_max3c(in1,in2)
              interpolate_2d()            [ 5 x 3 ]
            end do

Dtrescentros()
   Dtrescentros_vec
   do iME = 1, index_max3c(in1,in2)
       interpolate_2d()
   end do

DtrescentrosS()
  DtrescentrosS_vec()
    do iME = 1, index_maxS(in1,in2)
      interpolate_2d()
    end do

assemble_3c_PP()

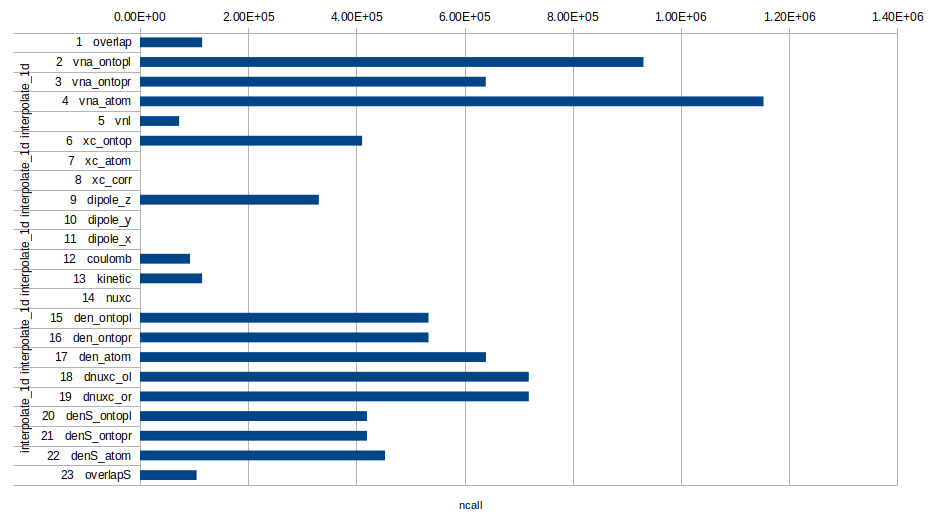

NOTES : Indexes of interactions

From READFILES/read_2c.f90, used in interpolate_1d()

1   overlap
2   vna_ontopl
3   vna_ontopr
4   vna_atom
5   vnl
6   xc_ontop
7   xc_atom
8   xc_corr
9   dipole_z
10  dipole_y
11  dipole_x
12  coulomb
13  kinetic
14  nuxc
15  den_ontopl
16  den_ontopr
17  den_atom
18  dnuxc_ol
19  dnuxc_or
20  denS_ontopl
21  denS_ontopr
22  denS_atom
23  overlapS

From READFILES/read_3c.f90, used in interpolate_2d()

1   bcna_01
2   xc3c_02
3   den3_01
4   den3S_01

Tests

Time spend in function

1	assemble_mcweda	            43.68
2	solveH	                     1.32
3	denmat	                     4.02
4	getenergy_mcweda	     0.06
11	getforces_mcweda	    33.82

1	assemble_mcweda	            43.68
5	assemble_mcweda_neighbors    0.79
7	assemble_mcweda_1c	     0.03
8	assemble_mcweda_2C	    29.32
9	assemble_mcweda_3C	    13.32
6	get_ewald	             0.02

10	buildH	                     0.18

8	assemble_mcweda_2C     29.32
20	assemle_2c(Kscf=1)	2.15
21	average_rho	       21.11
22	assemble_olsxc_on	0.07
23	assemble_olsxc_off	2.68
24	assemble_ca_2c	        3.30

9	assemble_mcweda_3C     13.32
31	assemble_3c	        2.27
32	assemble_3c_PP	        0.23
33	assemble_ca_3c	       10.72
34	assemble_lr	        0.09

11	getforces_mcweda	33.82
50	assemble_F	         0.03
51	Dassemble_2c	         0.89
52	Dassemble_2c_PP	         0.26
53	Dassemble_ca_olsxc_on	 0.19
54	Dassemble_ca_olsxc_2c	 1.69
55	Dassemble_ca_2c	         1.44
56	Dassemble_3c	         5.36
57	Dassemble_3c_PP	         1.54
58	Dassemble_ca_3c	         9.81
59	Dassemble_lr	         1.19
60	Dassemble_ca_olsxc_3c	11.41

Number of function calls

ncall_count

	doscentros	 2 062 488
	doscentrosS	   540 056
	trescentros	 1 998 511
	trescentrosS	   899 564
	Dtrescentros	   826 543
	DtrescentrosS	   313 580
	epsilon	         2 666 784
	deps2cent	   724 368
	interpolate_1d	 8 398 760


	twister	             7 849 772
	twisterd	     2 941 702
	makeDmat	     2 921 174
	rotate_fb	     4 887 542

	assemble_sVNL	     100
	assemble_2c	     100
	assemble_2c_PP	     100
	average_ca_rho	     288
	average_rho	     0
	assemble_snxc_on     0
	assemble_snxc_off    0
	assemble_olsxc_on    288
	assemble_olsxc_off   288
	assemble_ca_2c	     288
	assemble_3c	     100
	assemble_3c_PP	     100
	assemble_ca_3c	     288
	assemble_lr	     288

interpolate_1d	   	          8 398 760
interpolate_1d	1    overlap	    114 944
interpolate_1d	2    vna_ontopl	    930 660
interpolate_1d	3    vna_ontopr	    639 264
interpolate_1d	4    vna_atom	  1 152 564
interpolate_1d	5    vnl	     72 384
interpolate_1d	6    xc_ontop	    410 600
interpolate_1d	7    xc_atom	          0
interpolate_1d	8    xc_corr	          0
interpolate_1d	9    dipole_z	    330 576
interpolate_1d	10   dipole_y	          0
interpolate_1d	11   dipole_x 	          0
interpolate_1d	12   coulomb	     92 576
interpolate_1d	13   kinetic	    114 944
interpolate_1d	14   nuxc	          0
interpolate_1d	15   den_ontopl	    533 320
interpolate_1d	16   den_ontopr	    533 320
interpolate_1d	17   den_atom	    639 608
interpolate_1d	18   dnuxc_ol	    718 772
interpolate_1d	19   dnuxc_or	    718 772
interpolate_1d	20   denS_ontopl    419 480
interpolate_1d	21   denS_ontopr    419 480
interpolate_1d	22   denS_atom	    452 888
interpolate_1d	23   overlapS	    104 608

interpolate_2d	   	         79 468 260
interpolate_2d	1   bcna	 37 280 810
interpolate_2d	2   xc3c	          0
interpolate_2d	3   den3	 27 763 600
interpolate_2d	4   den3S	 14 423 850
