This is a multifunctional user interface library, especially designed and optimized for low-performance computers. You can realize all of your most perverted fantasies using it: from regular buttons, sliders and charts to complex animated interfaces. Extreme performance of the library is achieved by using double buffering and complex color grouping and processing algorithms.

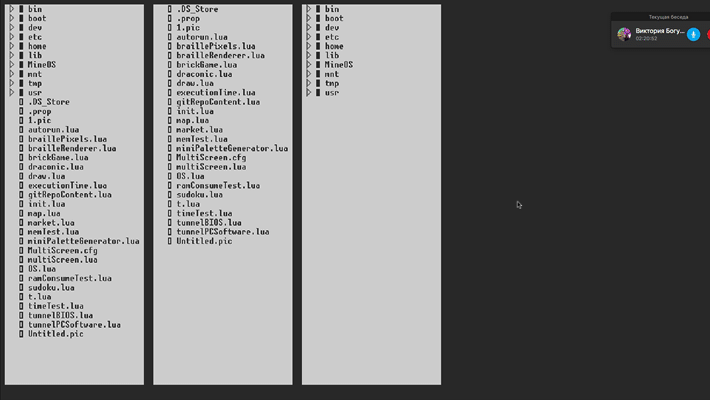

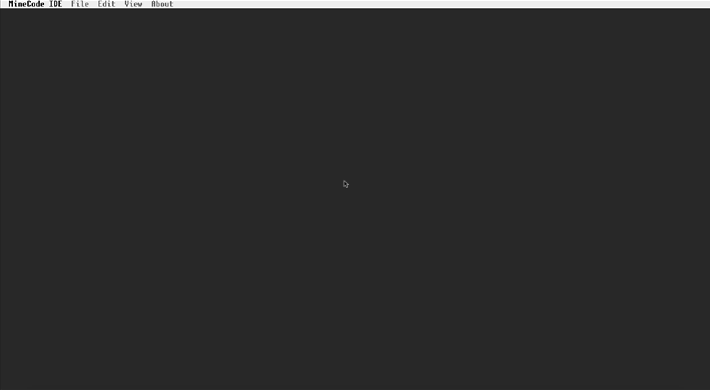

MineOS and every its application is created using this library:

Let the abundance of text below not frighten you: this documentation has many illustrated examples with fully working code.

Contents
Objects
Containers
Workspaces
Animations
Constants
Ready-to-use objects
GUI.panel
GUI.text
GUI.label
GUI.image
GUI.button
GUI.actionButtons
GUI.input
GUI.slider
GUI.switch
GUI.switchAndLabel
GUI.colorSelector
GUI.list
GUI.menu
GUI.comboBox
GUI.resizer
GUI.progressBar
GUI.filesystemTree
GUI.filesystemChooser
GUI.codeView
GUI.chart
GUI.brailleCanvas
GUI.scrollBar
GUI.textBox
GUI.progressIndicator
Ready-to-use containers
GUI.layout
GUI.window
GUI.filledWindow
GUI.titledWindow
GUI.tabbedWindow
GUI.palette
Standalone methods
GUI.alert
GUI.addContextMenu
GUI.addFilesystemDialog
GUI.addBackgroundContainer
GUI.highlightString
GUI.getAlignmentCoordinates
GUI.getMarginCoordinates
Practical example # 1: Creating an animated widget

Objects

The library is divided into three main concepts: workspaces, containers and widgets. Workspaces are designed for launching your cool interfaces and handling computer events when user touches the screen, presses some keys, etc. Containers are designed for grouping widgets and processing their positions. Widgets are designed for displaying different stuff: they can represent buttons, scrollbars, sliders, etc.

First let's talk about objects. Every GUI.object is a rectangular entity with it's own width and height, it's used as a template for any other stuff like containers and workspaces. You can easily create object via this method:

GUI.object(x, y, width, height)

Type	Parameter	Description
int	x	Object coordinate by x-axis
int	y	Object coordinate by y-axis
int	width	Object width
int	height	Object height

Every created object and it's extended classes have several universal properties:

Type	Property	Description
int	.x	Current screen rendering coordinate of object by x-axis
int	.y	Current screen rendering coordinate of object by y-axis
int	.width	Object width
int	.height	Object height
boolean	.hidden	Whether the object is hidden. If the object is hidden, then its rendering and analysis of system events are ignored
boolean	.disabled	Whether the object is disabled. If the object is disabled, then it can be rendered, but all system events are ignored
boolean	.passScreenEvents	Optional variable that allows screen events to pass througs objects withount being processed
function	:draw()	Main method that is called to render this object to the screen buffer. It can be defined by the user in any convenient way

Here is example of implementation of simple rectangle object. Don't worry if you don't understand what "workspace" or "container" means, it's just an template for copy-pasting, just read two sections below and everything will be OK:

-- Import this library
local GUI = require("GUI")
-- We will also need downloaded double buffering library to render rectangles
local screen = require("Screen")

--------------------------------------------------------------------------------

-- Create new workspace
local workspace = GUI.workspace()

-- Create and add template object to workspace
local object = workspace:addChild(GUI.object(3, 2, 50, 10))
-- Create own :draw() method and make it render green rectangle
object.draw = function(object)
	screen.drawRectangle(object.x, object.y, object.width, object.height, 0x33FF80, 0x0, " ")
end

--------------------------------------------------------------------------------

-- Draw workspace content once on screen when program starts
workspace:draw()
-- Start processing events for workspace
workspace:start()

As a result, we will get a nice green rectangle:

Containers

Now let's talk about containers. Container is a object that can store some other objects inside itself, its behavior is very similar to a folder that contains a some nested files and other folders. You can easily create empty container via this method:

GUI.container(x, y, width, height) extends GUI.object

Type	Parameter	Description
int	x	Container's coordinate by x-axis
int	y	Container's coordinate by y-axis
int	width	Container's width
int	height	Container's height

All container child objects are stored in container.children table. To add an object to the container, use the following method:

container:addChild(<Object>)

After adding any object to container using :addChild() method, the object will acquire additional properties:

Type	Property	Description
table	.parent	A pointer to the parent container of the object
table	.firstParent	A pointer to the first created container in children hierarchy. For exmaple, if there are many nested containers on screen, this field corresponds to the first of them (most of the time it's an GUI.workspace)
int	.localX	Local position on the x-axis in the parent container
int	.localY	Local position on the y-axis in the parent container
function	:indexOf()	Get the index of this object in the parent container (iterative method)
function	:moveForward()	Move the object "back" in the container children hierarchy
function	:moveBackward()	Move the object "forward" in the container children hierarchy
function	:moveToFront()	Move the object to the end of the container children hierarchy
function	:moveToBack()	Move the object to the beginning of the container children hierarchy
function	:remove()	Remove this object from the parent container. Roughly speaking, this is a convenient way of self-destruction
function	:addAnimation(function frameHandler, function onFinish): table animation	Add an animation to this object, see below
[callback-function	.eventHandler(container workspace, object object, ... varargs eventData) ]	An optional method for handling system events, called by the parent container handler. If it exists in the object under consideration, it will be called with the appropriate arguments

Let's pay attention on object.localX and object.localY properties. They're represents local position of child object inside parent container. There's a difference from object.x and object.y: they're represents current position of object on screen and are being calculated automatically for performing drawing operations. But most of the time the developer will work with local position. The hierarchy and positioning of container's children is well presented in the following image:

Containers also have an important feature: any child that extends beyond the bounds of the container will be rendered only within the size of this container:

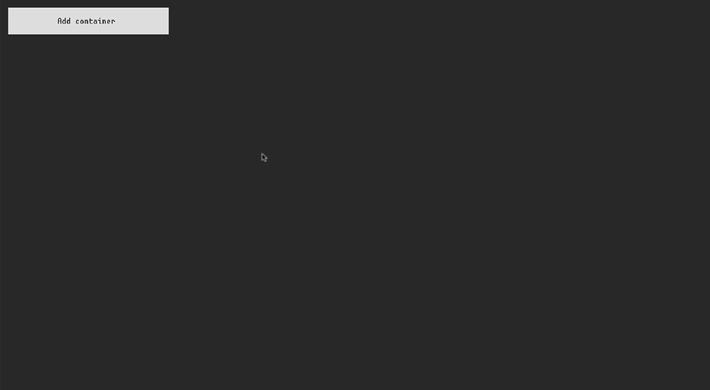

Of course, you can add to container another container, add a new ones to the added ones, creating complex hierarchy and grouping the child objects at your will.

Every container has following properties:

Type	Property	Description
table	.children	Table that contains all child objects of this container
function	:addChild(table child[, int atIndex]): table child	Add specified object to the container as a child. When you do this, the object's global coordinates will become local. If the optional parameter atIndex is specified, then the element will be added to the corresponding position in container.children table
function	:removeChildren([int fromIndex, int toIndex])	Remove all child elements of the container. If the optional parameters of the element indices are specified, the deletion will be performed in the appropriate range

Workspaces

Finally, let's talk about workspaces. Every workspace is full screen container that can automatically handle computer events. For example, it allows buttons to be pressed when user interacts with screen and it allows text fields receive data from the keyboard.

GUI.workspace([x, y, width, height]) extends GUI.container

Type	Parameter	Description
[int	x]	Optional coordinate by x-axis
[int	y]	Optional coordinate by y-axis
[int	width]	Optional width
[int	height]	Optional height

Every workspace can be launched and start processing events. To do this, use the following:

workspace:start([delay])

If event handling should be terminated, use the following:

workspace:stop()

Once the workspace receives the event, it recursively analyzes itself and all child objects for the .eventHandler function. If the child object has this function, then it runs with following parameters:

object.eventHandler = function(workspace, object, ...eventData)
    ...
end

The first parameter is a pointer to the workspace, the second is a pointer to the child object event handler belongs to, and the rest is the set of event parameters just like computer.pullSignal() do. For example, the "touch" event will call .eventHandler with 8 arguments:

Argument	Description
table	Pointer to workspace object
table	Pointer to event handler object
"touch"	Event type
"7842f8..."	Screen address
13	Screen x
21	Screen y
0	Mouse button
"ECS"	Username

The important detail of the event handlers is that if the event belongs to screen (touch, drag, drop, scroll), then the child object event handler will be called, and event processing for the remaining unprocessed child objects will be finished.

If you want to skip some event during event processing, call :consumeEvent() method. This will prevent all unprocessed child objects to handle current event data.

There is also an option to make any object transparent for screen events: just set .passScreenEvents = true variable for desired object. With this option it's event hanlder will be called as always, but event processing will continue for rest objects in container. This feature works with containers too.

And if the event does not belong to the screen, or the object does not have event handler method, the processing of the remaining child elements will continue as always. You can see the logic and the order of event processing in the following image:

Every workspace has following properties:

Type	Property	Description
function	:start([float delay])	Run the event processing for this container and analyse events for all it's child objects. The delay parameter is similar to computer.pullSignal one
function	:stop()	Stop processing events for this container
function	:consumeEvent()	Consume currently processing event and skip it's handling for rest unprocessed child objects
function	:draw(boolean force)	This method behaviour is similar to any object.draw, but after drawing workspace widgets it will also render changed pixels from buffer to computer screen. Most of the time you should use it to draw any changed visual data of your workspace

Below is a classic example of the implementation of the workspace:

-- Import the library
local GUI = require("GUI")

--------------------------------------------------------------------------------

-- Create new workspace
local workspace = GUI.workspace()

-- Create simple event handler for it
workspace.eventHandler = function(workspace, object, ...)
    GUI.alert("It works! The event data was: ", ...)
end

--------------------------------------------------------------------------------

-- Start processing events for workspace
workspace:start()

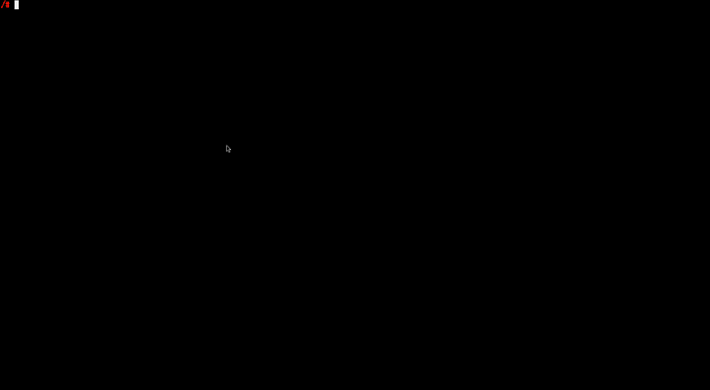

As a result, you will get an amusing output of event data to the terminal:

Animations

The next feature of an objects is animations: every object can be animated. For more information about creating animations, see practical examples in end of this documentation. By the way, here is field of animated GUI.switch objects:

As described above, to add an animation to object, call :addAnimation(...) function. It will return an animation object which has the following properties:

Type	Property	Description
table	.object	A pointer to the widget which contains this animation
float	.position	Current animation playback position. It is always in [0.0; 1.0] range, where 0.0 is animation starting and 1.0 is animation ending
function	:start()	Start animation playback. Interesting detail: during animation playing an workspace which has some animated objects will temporary handle events with maximum available speed (i.e. like computer.pullSignal(0)). After finishing all animations, event handling delay will be the same it was in beginning
function	:stop()	Stop animation playback
function	:remove()	Remove animation from it's widget
callback-function	.frameHandler(table animation)	An animation frame handler. It is called every frame before drawing stuff to screen buffer. A single parameter is a pointer to animation object
callback-function	.onFinish()	This function is called after finishing animation playback. Important: calling :stop() will not call this function

Constants

This is a rather boring section of the documentation, but it is still necessary for learning. The library has several universal constants, with which some objects are oftenly working. For example, if you want to centerize the text on the screen, you will need alignment constants. If you want to change object's direction - use direction constants, and so on.

Type	Constant	Description
enum	GUI.ALIGNMENT_HORIZONTAL_LEFT	Align something to left side horizontally
enum	GUI.ALIGNMENT_HORIZONTAL_CENTER	Align something to center side horizontally
enum	GUI.ALIGNMENT_HORIZONTAL_RIGHT	Align something to right side horizontally
enum	GUI.ALIGNMENT_VERTICAL_TOP	Align something to top side vertically
enum	GUI.ALIGNMENT_VERTICAL_CENTER	Align something to center vertically
enum	GUI.ALIGNMENT_VERTICAL_BOTTOM	Align something to bottom side vertically
enum	GUI.DIRECTION_HORIZONTAL	Horizontal direction of something
enum	GUI.DIRECTION_VERTICAL	Vertical direction of something
enum	GUI.SIZE_POLICY_ABSOLUTE	Calculate sizes of something as absolute values
enum	GUI.SIZE_POLICY_RELATIVE	Calculate sizes of something as relative (percentage) values
enum	GUI.IO_MODE_FILE	Mode for working with files
enum	GUI.IO_MODE_DIRECTORY	Mode for working with directories
enum	GUI.IO_MODE_BOTH	Mode for working with bothly files and directories
enum	GUI.IO_MODE_OPEN	Mode for opening data
enum	GUI.IO_MODE_SAVE	Mode for saving data

Still not tired? Now think how I fucked up writing them during the library development. Shitty constants...

Type	Constant	Value	Description
float	GUI.BUTTON_PRESS_DURATION	0.2	Button pressing duration with disabled animation
float	GUI.BUTTON_ANIMATION_DURATION	0.2	Button pressing animation duration
float	GUI.SWITCH_ANIMATION_DURATION	0.3	Switch state changing animation duration
float	GUI.FILESYSTEM_DIALOG_ANIMATION_DURATION	0.5	Filesystem dialog showing animation duration
int	GUI.CONTEXT_MENU_SEPARATOR_COLOR	0x878787	Context menu separator color
int	GUI.CONTEXT_MENU_DEFAULT_TEXT_COLOR	0x2D2D2D	Context menu default item text color
int	GUI.CONTEXT_MENU_DEFAULT_BACKGROUND_COLOR	0xFFFFFF	Context menu default item background color
int	GUI.CONTEXT_MENU_PRESSED_BACKGROUND_COLOR	0x3366CC	Context menu default item background color
int	GUI.CONTEXT_MENU_PRESSED_TEXT_COLOR	0xFFFFFF	Context menu default item text color
int	GUI.CONTEXT_MENU_DISABLED_COLOR	0x878787	Context menu disabled item text color
float	GUI.CONTEXT_MENU_BACKGROUND_TRANSPARENCY	0.24	Context menu background transparency
float	GUI.CONTEXT_MENU_SHADOW_TRANSPARENCY	0.4	Context menu shadow transparency
int	GUI.BACKGROUND_CONTAINER_PANEL_COLOR	0x0	Background container panel color
int	GUI.BACKGROUND_CONTAINER_TITLE_COLOR	0xE1E1E1	Background container title color
float	GUI.BACKGROUND_CONTAINER_PANEL_TRANSPARENCY	0.3	Background container panel transparency
int	GUI.WINDOW_BACKGROUND_PANEL_COLOR	0xF0F0F0	Window background panel color
float	GUI.WINDOW_SHADOW_TRANSPARENCY	0.6	Window shadow transparency
int	GUI.WINDOW_TITLE_BACKGROUND_COLOR	0xE1E1E1	Window title background color
int	GUI.WINDOW_TITLE_TEXT_COLOR	0x2D2D2D	Window title text color
int	GUI.WINDOW_TAB_BAR_DEFAULT_BACKGROUND_COLOR	0x2D2D2D	Window tab bar default background color
int	GUI.WINDOW_TAB_BAR_DEFAULT_TEXT_COLOR	0xF0F0F0	Window tab bar default text color
int	GUI.WINDOW_TAB_BAR_SELECTED_BACKGROUND_COLOR	0xF0F0F0	Window tab bar selected background color
int	GUI.WINDOW_TAB_BAR_SELECTED_TEXT_COLOR	0x2D2D2D	Window tab bar selected text color
string	GUI.PALETTE_CONFIG_PATH	"/lib/.palette.cfg"	Path where GUI.palette favourites colors are being saved
table	GUI.LUA_SYNTAX_PATTERNS	{...}	Required patterns for Lua syntax highlighting by GUI.highlightString(...) method
table	GUI.LUA_SYNTAX_COLORS	{...}	Default color scheme for Lua syntax highlighting by GUI.highlightString(...) method

Ready-to-use objects

The objects are listed below comes with the library and are written on the instructions of this documentation. If you want, you can make absolutely similar or much more technically advanced widgets without any difficulties.

GUI.panel(x, y, width, height, color[, transparency]) extends GUI.object

Type	Parameter	Description
int	x	Object coordinate by x-axis
int	y	Object coordinate by y-axis
int	width	Object width
int	height	Object height
int	color	Object color
[int	transparency]	Optional transparency of the object

The simplest object is a colored decorative panel. However, paradoxically, it is used quite often to create beautiful interface elements.

Example of panel implementation:

local GUI = require("GUI")

--------------------------------------------------------------------------------

-- Create new workspace
local workspace = GUI.workspace()

-- Add panel that fits workspace
workspace:addChild(GUI.panel(1, 1, workspace.width, workspace.height, 0x262626))
-- Add smaller red panel
workspace:addChild(GUI.panel(10, 10, workspace.width - 20, workspace.height - 20, 0x880000))

--------------------------------------------------------------------------------

workspace:draw()
workspace:start()

Result:

GUI.text(x, y, textColor, text) extends GUI.object

Type	Parameter	Description
int	x	Object coordinate by x-axis
int	y	Object coordinate by y-axis
int	width	Object width
int	height	Object height
int	textColor	Object text color
string	text	Object text

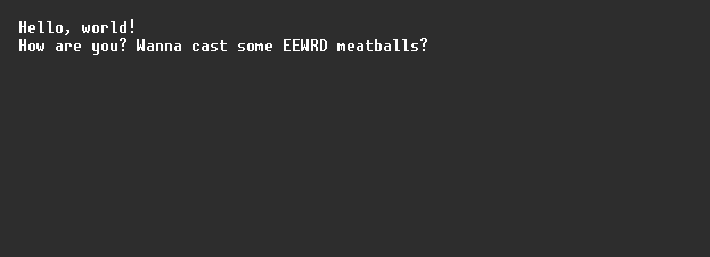

Another simpliest object is text. If you need to quickly display something in text form, then this widget is created for you. When you change the text, its width is automatically calculated to the desired value.

Example of implementation:

local GUI = require("GUI")

--------------------------------------------------------------------------------

local workspace = GUI.workspace()
workspace:addChild(GUI.panel(1, 1, workspace.width, workspace.height, 0x2D2D2D))

workspace:addChild(GUI.text(3, 2, 0xFFFFFF, "Hello, world!"))
workspace:addChild(GUI.text(3, 3, 0xFFFFFF, "How are you? Wanna cast some EEWRD meatballs?"))

--------------------------------------------------------------------------------

workspace:draw()
workspace:start()

Result:

GUI.label(x, y, width, height, textColor, text) extends GUI.object

Type	Parameter	Description
int	x	Object coordinate by x-axis
int	y	Object coordinate by y-axis
int	width	Object width
int	height	Object height
int	textColor	Object text color
string	text	Object text

A text label is an advanced version of the GUI.text that supports various alignment options.

Type	Property	Description
function	:setAlignment(enum horizontalAlignment, enum verticalAlignment): table label	Choose a text display option for label boundaries

Example of implementation:

local GUI = require("GUI")

--------------------------------------------------------------------------------

local workspace = GUI.workspace()
workspace:addChild(GUI.panel(1, 1, workspace.width, workspace.height, 0x2D2D2D))

-- Add 10 labels with different alignment states
workspace:addChild(GUI.label(1, 1, workspace.width, workspace.height, 0xFFFFFF, "Label with [left, top] alighment")):setAlignment(GUI.ALIGNMENT_HORIZONTAL_LEFT, GUI.ALIGNMENT_VERTICAL_TOP)
workspace:addChild(GUI.label(1, 1, workspace.width, workspace.height, 0xFFFFFF, "Label with [center, top] alighment")):setAlignment(GUI.ALIGNMENT_HORIZONTAL_CENTER, GUI.ALIGNMENT_VERTICAL_TOP)
workspace:addChild(GUI.label(1, 1, workspace.width, workspace.height, 0xFFFFFF, "Label with [right, top] alighment")):setAlignment(GUI.ALIGNMENT_HORIZONTAL_RIGHT, GUI.ALIGNMENT_VERTICAL_TOP)
workspace:addChild(GUI.label(1, 1, workspace.width, workspace.height, 0xFFFFFF, "Label with [left, center] alighment")):setAlignment(GUI.ALIGNMENT_HORIZONTAL_LEFT, GUI.ALIGNMENT_VERTICAL_CENTER)
workspace:addChild(GUI.label(1, 1, workspace.width, workspace.height, 0xFFFFFF, "Label with [center, center] alighment")):setAlignment(GUI.ALIGNMENT_HORIZONTAL_CENTER, GUI.ALIGNMENT_VERTICAL_CENTER)
workspace:addChild(GUI.label(1, 1, workspace.width, workspace.height, 0xFFFFFF, "Label with [right, center] alighment")):setAlignment(GUI.ALIGNMENT_HORIZONTAL_RIGHT, GUI.ALIGNMENT_VERTICAL_CENTER)
workspace:addChild(GUI.label(1, 1, workspace.width, workspace.height, 0xFFFFFF, "Label with [left, bottom] alighment")):setAlignment(GUI.ALIGNMENT_HORIZONTAL_LEFT, GUI.ALIGNMENT_VERTICAL_BOTTOM)
workspace:addChild(GUI.label(1, 1, workspace.width, workspace.height, 0xFFFFFF, "Label with [center, bottom] alighment")):setAlignment(GUI.ALIGNMENT_HORIZONTAL_CENTER, GUI.ALIGNMENT_VERTICAL_BOTTOM)
workspace:addChild(GUI.label(1, 1, workspace.width, workspace.height, 0xFFFFFF, "Label with [right, bottom] alighment")):setAlignment(GUI.ALIGNMENT_HORIZONTAL_RIGHT, GUI.ALIGNMENT_VERTICAL_BOTTOM)

--------------------------------------------------------------------------------

workspace:draw()
workspace:start()

Result:

GUI.image( x, y, loadedImage ) extends GUI.object

Type	Parameter	Description
int	x	Object coordinate by x-axis
int	y	Object coordinate by y-axis
table	loadedImage	The image that was loaded by image.load() method

To display beautiful things on the screen, plain text is not enough. GUI.image exists for this purpose.

This object has following properties:

Type	Property	Description
table	.image	Table with pixel data of loaded image

Example of implementation:

local image = require("Image")
local GUI = require("GUI")

--------------------------------------------------------------------------------

local workspace = GUI.workspace()
workspace:addChild(GUI.panel(1, 1, workspace.width, workspace.height, 0x2D2D2D))

-- Load image, create widget from it and add it to workspace
workspace:addChild(GUI.image(2, 2, image.load("/Furnance.pic")))

--------------------------------------------------------------------------------

workspace:draw()
workspace:start()

Result:

GUI.button(x, y, width, height, buttonColor, textColor, buttonPressedColor, textPressedColor, text) extends GUI.object

Type	Parameter	Description
int	x	Object coordinate by x-axis
int	y	Object coordinate by y-axis
int	width	Object width
int	height	Object height
int	buttonColor	Object default background color
int	textColor	Object default text color
int	buttonPressedColor	Object pressed background color
int	textPressedColor	Object pressed text color
string	text	Object text

What can be more familiar and convenient than a beautiful animated button? Click on it and enjoy. If you want to assign an action to a button after clicking, create a .onTouch method for it.

In addition to the standard design, there are also alternative buttons:

GUI.framedButton(...) has a frame around the edges

GUI.roundedButton(...) has a nice rounded corners

For convenience, there is an adaptive version called GUI.adaptiveButton(...). It differs in that instead of width and height, it uses indentation in pixels from all sides of the text. This method is convenient for automatically calculating the size of a button on it's creation. Of course, GUI.adaptiveFramedButton(...) and GUI.adaptiveRoundedButton(...) are alse supported.

This object has following properties:

Type	Property	Description
boolean	.pressed	This property allows the user to understand whether the button is pressed or not
boolean	.switchMode	This property is responsible for the mode at which the button behaves like a switch: when pressed, it will change its state to the opposite. The default value is false
boolean	.animated	This property is responsible for button's color transition animation when it is clicked. The default value is true
float	.animationDuration	Duration of the animation of the button when the animation is enabled. The default value is 0.2
callback-function	.onTouch()	If this method exists, it is called after clicking on the button

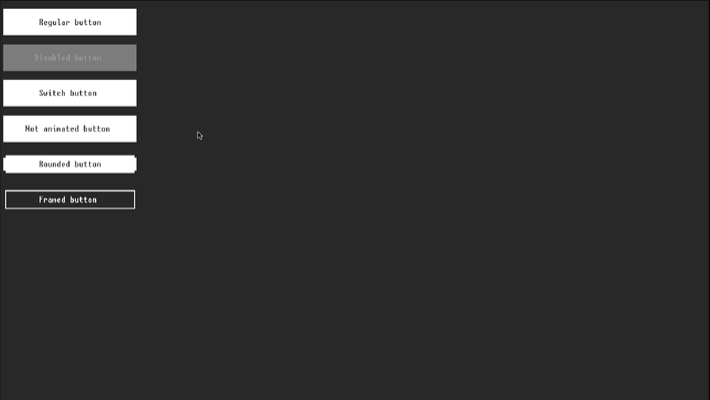

Example of implementation:

local GUI = require("GUI")

--------------------------------------------------------------------------------

local workspace = GUI.workspace()
workspace:addChild(GUI.panel(1, 1, workspace.width, workspace.height, 0x2D2D2D))

-- Add a regular button
local regularButton = workspace:addChild(GUI.button(2, 2, 30, 3, 0xFFFFFF, 0x555555, 0x880000, 0xFFFFFF, "Regular button"))
regularButton.onTouch = function()
	GUI.alert("Regular button was pressed")
end

-- Add a regular button with disabled state
local disabledButton = workspace:addChild(GUI.button(2, 6, 30, 3, 0xFFFFFF, 0x555555, 0x880000, 0xFFFFFF, "Disabled button"))
disabledButton.disabled = true

-- Add a regular button with switchMode state
local switchButton = workspace:addChild(GUI.button(2, 10, 30, 3, 0xFFFFFF, 0x555555, 0x880000, 0xFFFFFF, "Switch button"))
switchButton.switchMode = true
switchButton.onTouch = function()
	GUI.alert("Switch button was pressed")
end

-- Add a regular button with disabled animation
local notAnimatedButton = workspace:addChild(GUI.button(2, 14, 30, 3, 0xFFFFFF, 0x555555, 0x880000, 0xFFFFFF, "Not animated button"))
notAnimatedButton.animated = false
notAnimatedButton.onTouch = function()
	GUI.alert("Not animated button was pressed")
end

-- Add a rounded button
workspace:addChild(GUI.roundedButton(2, 18, 30, 3, 0xFFFFFF, 0x555555, 0x880000, 0xFFFFFF, "Rounded button")).onTouch = function()
	GUI.alert("Rounded button was pressed")
end

-- Add a framed button
workspace:addChild(GUI.framedButton(2, 22, 30, 3, 0xFFFFFF, 0xFFFFFF, 0x880000, 0x880000, "Framed button")).onTouch = function()
	GUI.alert("Framed button was pressed")
end

--------------------------------------------------------------------------------

workspace:draw()
workspace:start()

Result:

GUI.actionButtons(x, y[, fat]) extends GUI.object

Type	Parameter	Description
int	x	Object coordinate by x-axis
int	y	Object coordinate by y-axis
[boolean	fat]	The option of drawing buttons with a large size

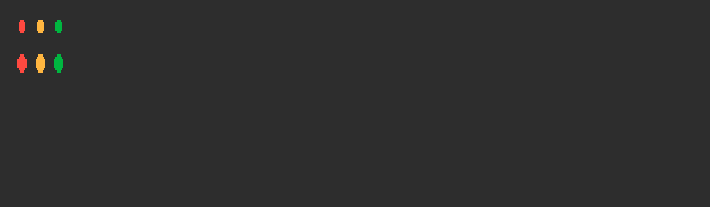

This object is a container containing three round buttons. Basically, it is used to control the state of windows: to close, minimize, and so on.

This object has following properties:

Type	Property	Description
table	.close	Pointer to an red button object
table	.minimize	Pointer to an yellow button object
table	.maximize	Pointer to an green button object

Example of implementation:

local GUI = require("GUI")

--------------------------------------------------------------------------------

local workspace = GUI.workspace()
workspace:addChild(GUI.panel(1, 1, workspace.width, workspace.height, 0x2D2D2D))

local actionButtonsRegular = workspace:addChild(GUI.actionButtons(3, 2, false))
local actionButtonsFat = workspace:addChild(GUI.actionButtons(3, 4, true))

actionButtonsRegular.close.onTouch = function()
	-- Do something when "close" button was touched
end

--------------------------------------------------------------------------------

workspace:draw()
workspace:start()

Result:

GUI.input(x, y, width, height, backgroundColor, textColor, placeholderTextColor, backgroundFocusedColor, textFocusedColor, text[, placeholderText, eraseTextOnFocus, textMask]) extends GUI.object

Type	Parameter	Description
int	x	Object coordinate by x-axis
int	y	Object coordinate by y-axis
int	width	Object width
int	height	Object height
int	backgroundColor	Object default background color
int	textColor	Object default text color
int	placeholderTextColor	Object placeholder color
int	backgroundFocusedColor	Object focused background color
int	textFocusedColor	Object focused text color
string	text	Object text value
[string	placeholderText]	Text to be displayed, provided that the entered text is empty
[boolean	eraseTextOnFocus]	Erase text when the input is focused
[char	textMask]	A mask character for the text to be entered. Convenient for creating a password entry field

The input object is intended for input and analysis of text data from the keyboard. Pasting data from real clipboard is also supported. You can move the cursor with clicks or left and right arrows. Clicking on the object starts the process of entering text, and pressing Enter or clicking on an empty zone on the screen will finish it.

This object has following properties:

Type	Property	Description
string	.text	A variable that contains current displayed text of an object
boolean	.historyEnabled	Optional property that allows widget to remember text that user inputs and to navigate through it's history via arrows buttons. Set to false by default
function	:startInput()	Method for activation of text inputting
callback-function	.validator(string text)	The function that is called after the text is entered in the input field. If it returns true, the text in the text field will be changed to the entered text, otherwise the entered data will be ignored
callback-function	.onInputFinished()	The function that is called after entering data in the input field: it's a handy thing if you want to do something after entering text. If the object has .validator function, and if the text does not pass the check through it, then .onInputFinished will not be called

Example of implementation:

local GUI = require("GUI")

--------------------------------------------------------------------------------

local workspace = GUI.workspace()
workspace:addChild(GUI.panel(1, 1, workspace.width, workspace.height, 0x2D2D2D))

workspace:addChild(GUI.input(2, 2, 30, 3, 0xEEEEEE, 0x555555, 0x999999, 0xFFFFFF, 0x2D2D2D, "Hello world", "Placeholder text")).onInputFinished = function()
	GUI.alert("Input finished!")
end

--------------------------------------------------------------------------------

workspace:draw()
workspace:start()

Result:

GUI.slider(x, y, width, primaryColor, secondaryColor, pipeColor, valueColor, minimumValue, maximumValue, value[, showCornerValues, currentValuePrefix, currentValuePostfix]) extends GUI.object

Type	Parameter	Description
int	x	Object coordinate by x-axis
int	y	Object coordinate by y-axis
int	width	Object width
int	primaryColor	Object primary color
int	secondaryColor	Object secondary color
int	pipeColor	Object "pipe" color
int	valueColor	Object text value color
float	minimumValue	Object minimum value
float	maximumValue	Object maximum value
float	value	Object current value
[bool	showCornerValues]	Do min/max values are needed to be shown at slider's corners
[string	currentValuePrefix]	Prefix for value displaying
[string	currentValuePostfix]	Postfix for value displaying

Standard slider is used to select a numerical value from the specified range. The value of the slider is always float.

This object has following properties:

Type	Property	Description
float	.value	Current slider value variable
boolean	.roundValues	This property will visually round silder values
callback-function	.onValueChanged()	This function will be called after slider value changing

Example of implementation:

local GUI = require("GUI")

--------------------------------------------------------------------------------

local workspace = GUI.workspace()
workspace:addChild(GUI.panel(1, 1, workspace.width, workspace.height, 0x2D2D2D))

local slider = workspace:addChild(GUI.slider(4, 2, 30, 0x66DB80, 0x0, 0xFFFFFF, 0xAAAAAA, 0, 100, 50, true, "Prefix: ", " postfix"))
slider.roundValues = true
slider.onValueChanged = function()
	-- Do something when slider's value changed
end

--------------------------------------------------------------------------------

workspace:draw()
workspace:start()

Result:

GUI.switch(x, y, width, primaryColor, secondaryColor, pipeColor, state) extends GUI.object

Type	Parameter	Description
int	x	Object coordinate by x-axis
int	y	Object coordinate by y-axis
int	width	Object width
int	primaryColor	Object primary color
int	secondaryColor	Object secondary color
int	pipeColor	Object "pipe" color
boolean	state	Object state

This is one of my favorite widgets. An animated switch is designed to change the state of anything from true to false and vice versa.

This object has following properties:

Type	Property	Description
boolean	.state	Current switch state variable
function	:setState(boolean state)	Change switch state to specified one
callback-function	.onStateChanged()	This function will be called when switch state is changed

Example of implementation:

local GUI = require("GUI")

--------------------------------------------------------------------------------

local workspace = GUI.workspace()
workspace:addChild(GUI.panel(1, 1, workspace.width, workspace.height, 0x2D2D2D))

local switch1 = workspace:addChild(GUI.switch(3, 2, 8, 0x66DB80, 0x1D1D1D, 0xEEEEEE, true))
local switch2 = workspace:addChild(GUI.switch(3, 4, 8, 0x66DB80, 0x1D1D1D, 0xEEEEEE, false))
switch2.onStateChanged = function(state)
	GUI.alert("Switch state changed!")
end

--------------------------------------------------------------------------------

workspace:draw()
workspace:start()

Result:

GUI.switchAndLabel(x, y, width, switchWidth, primaryColor, secondaryColor, pipeColor, textColor, text, switchState) extends GUI.container

Type	Parameter	Description
int	x	Object coordinate by x-axis
int	y	Object coordinate by y-axis
int	width	Total width
int	switchWidth	Switch width
int	primaryColor	Switch primary color
int	secondaryColor	Switch secondary color
int	textColor	Label text color
string	text	Label text
boolean	state	Switch state

This object is a container containing a label and switch, and is a quick way to visualize the boolean parameters for your programs.

This object has following properties:

Type	Property	Description
table	.switch	Pointer to switch child object
table	.label	Pointer to label child object

Example of implementation:

local GUI = require("GUI")

--------------------------------------------------------------------------------

local workspace = GUI.workspace()
workspace:addChild(GUI.panel(1, 1, workspace.width, workspace.height, 0x2D2D2D))

workspace:addChild(GUI.switchAndLabel(2, 2, 25, 8, 0x66DB80, 0x1D1D1D, 0xEEEEEE, 0x999999, "Sample text 1:", true))
workspace:addChild(GUI.switchAndLabel(2, 4, 25, 8, 0x66DB80, 0x1D1D1D, 0xEEEEEE, 0x999999, "Sample text 2:", false))

--------------------------------------------------------------------------------

workspace:draw()
workspace:start()

Result:

GUI.colorSelector(x, y, width, height, color, text) extends GUI.object

Type	Parameter	Description
int	x	Object coordinate by x-axis
int	y	Object coordinate by y-axis
int	width	Object width
int	height	Object height
int	color	Current selected color
string	text	Object text

The choice of colors is almost the most difficult task on such inconvenient devices as computers from OpenComputers. ColorSelector will do everything for you: just click and choose the desired color from a palette.

This object has following properties:

Type	Property	Description
callback-function	.onColorSelected()	This function will be called after choosing color from palette

Example of implementation:

local GUI = require("GUI")

--------------------------------------------------------------------------------

local workspace = GUI.workspace()
workspace:addChild(GUI.panel(1, 1, workspace.width, workspace.height, 0x2D2D2D))

workspace:addChild(GUI.colorSelector(2, 2, 30, 3, 0xFF55FF, "Choose color")).onColorSelected = function()
	-- Do something after choosing color
end

--------------------------------------------------------------------------------

workspace:draw()
workspace:start()

Result:

GUI.list(x, y, width, height, itemSize, spacing, backgroundColor, textColor, alternateBackgroundColor, alternateTextColor, backgroundSelectedColor, textSelectedColor[, offsetMode]) extends GUI.layout

Type	Parameter	Description
int	x	Object coordinate by x-axis
int	y	Object coordinate by y-axis
int	width	Object width
int	height	Object height
int	itemSize	Item size by selected direction
int	spacing	Space between items
int	backgroundColor	Object background color
int	textColor	Object text color
int	alternateBackgroundColor	Object alternate background color
int	alternateTextColor	Object alternate text color
int	backgroundSelectedColor	Object selection background color
int	textSelectedColor	Object selection text color
[boolean	offsetMode]	Optional mode, in which the items size are created based on the pixel offset from their texts

This object is used to select items from the list. It resembles a single-column Excel table with the ability to change the orientation. List is universal object and is used as a inherited source for many other widgets.

This object has following properties:

Type	Property	Description
int	.selectedItem	Index of currently selected item
function	:addItem(string text): table item	Add new item to object. You can specify .onTouch() function to if desired
function	:getItem(int index): table item	Get item by it's index
function	:setAlignment(enum horizontalAlignment, enum verticalAlignment): table list	Set list items alignment. By default it's set to GUI.ALIGNMENT_HORIZONTAL_LEFT and GUI.ALIGNMENT_VERTICAL_TOP
function	:setDirection(enum direction): table list	Choose an items display option for List boundaries. The default alignment is left and top
function	:setSpacing(int spacing): table list	Set spacing between List items
function	:setMargin(int horizontalMargin, int verticalMargin): table list	Set margin in pixels depending on the current alignment of List
function	:getMargin(): int row, int horizontalMargin, int verticalMargin	Get current margins in pixels of List

Example of implementation:

local GUI = require("GUI")

--------------------------------------------------------------------------------

local workspace = GUI.workspace()
workspace:addChild(GUI.panel(1, 1, workspace.width, workspace.height, 0x2D2D2D))

-- Create vertically oriented list
local verticalList = workspace:addChild(GUI.list(3, 2, 25, 30, 3, 0, 0xE1E1E1, 0x4B4B4B, 0xD2D2D2, 0x4B4B4B, 0x3366CC, 0xFFFFFF, false))
verticalList:addItem("Hello world")
verticalList:addItem("This is test").onTouch = function()
	GUI.alert("Selected item: " .. verticalList.selectedItem)
end
verticalList:addItem("Beautiful")
verticalList:addItem("Like a shit")

-- Create horizontally oriented list
local horizontalList = workspace:addChild(GUI.list(34, 2, 100, 3, 2, 0, 0xE1E1E1, 0x4B4B4B, 0xE1E1E1, 0x4B4B4B, 0x696969, 0xFFFFFF, true))
horizontalList:setDirection(GUI.DIRECTION_HORIZONTAL)
horizontalList:setAlignment(GUI.ALIGNMENT_HORIZONTAL_CENTER, GUI.ALIGNMENT_VERTICAL_TOP)
horizontalList:addItem("Applications")
horizontalList:addItem("Libraries")
horizontalList:addItem("Scripts")
horizontalList:addItem("Wallpapers")

--------------------------------------------------------------------------------

workspace:draw()
workspace:start()

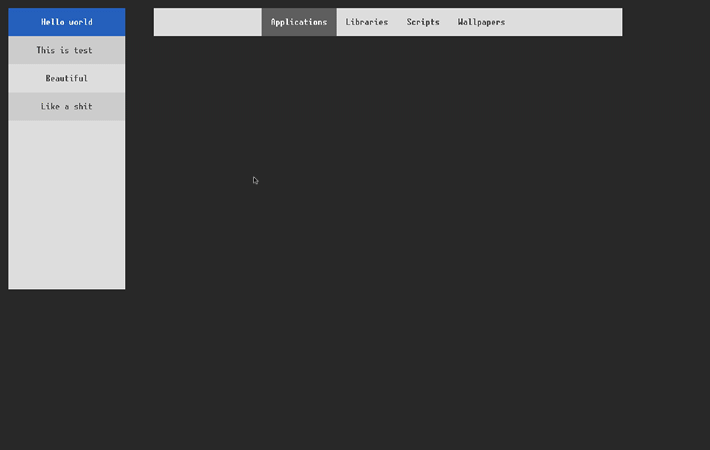

Result:

GUI.menu(x, y, width, backgroundColor, textColor, backgroundPressedColor, textPressedColor[, backgroundTransparency]) extends GUI.layout

Type	Parameter	Description
int	x	Object coordinate by x-axis
int	y	Object coordinate by y-axis
int	width	Object width
int	backgroundColor	Object background color
int	textColor	Object text color
int	backgroundPressedColor	Object background pressed color
int	textPressedColor	Object text pressed color
[int	backgroundTransparency]	Optional background transparency

The menu object allows you to select items from the set of listed options. For the most part it is used in structures like "File - Edit - View - Help", etc.

This object has following properties:

Type	Property	Description
function	:addItem(string text[, int color]): table item	Add a new item to Menu. You can specify .onTouch() function to item if desired
function	:addContextMenu(string text[, int color]): table contextMenu	Add a context menu to this menu. The behavior of returned object is the same as GUI.addContextMenu(...): table contextMenu

Example of implementation:

local GUI = require("GUI")

--------------------------------------------------------------------------------

local workspace = GUI.workspace()
workspace:addChild(GUI.panel(1, 1, workspace.width, workspace.height, 0x2D2D2D))

-- Add menu object to workspace
local menu = workspace:addChild(GUI.menu(1, 1, workspace.width, 0xEEEEEE, 0x666666, 0x3366CC, 0xFFFFFF))
-- Add first item with black color. Attack a callback-function to it
menu:addItem("MineCode IDE", 0x0).onTouch = function()
	GUI.alert("Hello world!")
end
-- Add context menu and few items to it
local contextMenu = menu:addContextMenu("File")
contextMenu:addItem("New")
contextMenu:addItem("Open").onTouch = function()
	GUI.alert("Open item was pressed")
end
contextMenu:addSeparator()
contextMenu:addItem("Save")
contextMenu:addItem("Save as")
-- Add whatever you want
menu:addItem("Edit")
menu:addItem("View")
menu:addItem("About")

--------------------------------------------------------------------------------

workspace:draw()
workspace:start()

Result:

GUI.comboBox(x, y, width, elementHeight, backgroundColor, textColor, arrowBackgroundColor, arrowTextColor) extends GUI.object

Type	Parameter	Description
int	x	Object coordinate by x-axis
int	y	Object coordinate by y-axis
int	width	Object width
int	elementHeight	Object item height
int	backgroundColor	Object background color
int	textColor	Object text color
int	arrowBackgroundColor	Object arrow background color
int	arrowTextColor	Object arrow text color

The combo box is designed to select one of the big set of items from the compact drop-down menu.

This object has following properties:

Type	Property	Description
int	.selectedItem	Index of selected element
function	:addItem(string text, boolean disabled, string shortcut, int color): table item	Add a new item to ComboBox. If disabled parameter is specified, this item will not react to mouse clicking. You can specify .onTouch() function to item if desired
function	:addSeparator()	Add a new visual separator
function	:removeItem( int index)	Remove item by it's index
function	:getItem( int/string index/name ): table item	Get item by it's index or name
function	:clear()	Remove all items
function	:count(): int count	Get items count

Example of implementation:

local GUI = require("GUI")

--------------------------------------------------------------------------------

local workspace = GUI.workspace()
workspace:addChild(GUI.panel(1, 1, workspace.width, workspace.height, 0x2D2D2D))

local comboBox = workspace:addChild(GUI.comboBox(3, 2, 30, 3, 0xEEEEEE, 0x2D2D2D, 0xCCCCCC, 0x888888))
comboBox:addItem(".PNG")
comboBox:addItem(".JPG").onTouch = function()
	-- Do something when .JPG was selected
end
comboBox:addItem(".GIF")
comboBox:addItem(".PIC")

--------------------------------------------------------------------------------

workspace:draw()
workspace:start()

Result:

GUI.resizer(x, y, width, height, resizerColor, arrowColor) extends GUI.object

Type	Parameter	Description
int	x	Object coordinate by x-axis
int	y	Object coordinate by y-axis
int	width	Object width
int	height	Object height
int	resizerColor	Resizer bar color
int	arrowColor	Arrow color, it will be shown on touch/drag/drop events

This object is designed to automate the resizing of any objects. When you move the mouse pointer with the left button pressed, the resizer will call the corresponding callback methods.

This object has following properties:

Type	Property	Description
callback-function	.onResize(int dragWidth, int dragHeight)	This function is called while moving the mouse pointer with the left button pressed on the resizer. Two parameters are the distance traveled by the mouse pointer
callback-function	.onResizeFinished()	This function is called after you stop moving the mouse pointer over the resizer

Example of implementation:

local GUI = require("GUI")

--------------------------------------------------------------------------------

local workspace = GUI.workspace()
workspace:addChild(GUI.panel(1, 1, workspace.width, workspace.height, 0x2D2D2D))

-- Add a panel that symbolizes the system window, the size of which we will change
local panel = workspace:addChild(GUI.panel(3, 2, 30, 10, 0xE1E1E1))
-- Add a resizer, by default located in the right part of the window. Make the width of the resizer at least 3 to handle the drag/drop events in both directions
local resizer = workspace:addChild(GUI.resizer(panel.localX + panel.width - 2, panel.localY + math.floor(panel.height / 2 - 2), 3, 4, 0xAAAAAA, 0x0))

-- This function will be called during the "drag" event, when the user moves over the resizer
resizer.onResize = function(dragWidth, dragHeight)
	panel.width = panel.width + dragWidth
	resizer.localX = resizer.localX + dragWidth

	workspace:draw()
end

-- This function will be called on "drop" event
resizer.onResizeFinished = function()
	GUI.alert("Resize finished!")
end

--------------------------------------------------------------------------------

workspace:draw()
workspace:start()

Result:

GUI.progressBar(x, y, width, primaryColor, secondaryColor, valueColor, value[, thin, showValue, valuePrefix, valuePostfix]) extends GUI.object

Type	Parameter	Description
int	x	Object coordinate by x-axis
int	y	Object coordinate by y-axis
int	width	Object width
int	primaryColor	Object primary color
int	secondaryColor	Object secondary color
int	valueColor	Object value text color
int [0; 100]	value	Object value
[bool	thin]	Thin drawing mode
[bool	showValue]	Show value mode
[string	valuePrefix]	Object value prefix
[string	valuePostfix]	Object value postfix

This object is very often used when downloading files, scanning areas, blah blah blah. To whom do I tell this? You're a smart guy (girl?), aren't you?

This object has following properties:

Type	Property	Description
int	.value	Current progressbar value

Example of implementation:

local GUI = require("GUI")

--------------------------------------------------------------------------------

local workspace = GUI.workspace()
workspace:addChild(GUI.panel(1, 1, workspace.width, workspace.height, 0x2D2D2D))

workspace:addChild(GUI.progressBar(2, 2, 80, 0x3366CC, 0xEEEEEE, 0xEEEEEE, 80, true, true, "Value prefix: ", " value postfix"))

--------------------------------------------------------------------------------

workspace:draw()
workspace:start()

Result:

GUI.filesystemTree(x, y, width, height, backgroundColor, directoryColor, fileColor, arrowColor, backgroundSelectionColor, textSelectionColor, arrowSelectionColor, disabledColor, scrollBarBackground, scrollBarForeground, showMode, selectionMode) extends GUI.object

Type	Parameter	Description
int	x	Object coordinate by x-axis
int	y	Object coordinate by y-axis
int	width	Object width
int	height	Object height
int or nil	backgroundColor	Object default background color
int	directoryColor	Object directories text color
int	fileColor	Object files color
int	arrowColor	Object default directories arrow color
int	backgroundSelectionColor	Object selection background color
int	textSelectionColor	Object selection text color
int	arrowSelectionColor	Object selection directories arrow color
int	disabledColor	Object extension mismatch color
int	scrollBarBackground	Object scrollBar primary color
int	scrollBarForeground	Object scrollBar secondary colo
enum	filesystemShowMode	Directory content show mode. Can be GUI.IO_MODE_FILE, GUI.IO_MODE_DIRECTORY or GUI.IO_MODE_BOTH
enum	filesystemSelectionMode	Directory content selection mode. Can be the same values as above

This object is intended for navigation on the filesystem via hierarchical tree. When you click on the directory, its contents will be shown, and while scrolling with the mouse wheel, the content will move in the specified direction.

This object has following properties:

Type	Property	Description
string	.workPath	Current root directory
string	.selectedItem	Current selected item path
function	:updateFileList()	Update tree file list
function	:expandPath(string path)	Recursuvely expands specified path and shows it's content
function	:addExtensionFilter( string extension )	Add a filter to the specified file extension. After that, only files witch specified extension well be able to be selected
callback-function	.onItemSelected(string path)	This function is called when some item was selected
callback-function	.onItemExpanded(string path)	This function is called when some directory was expanded

Example of implementation:

local GUI = require("GUI")

--------------------------------------------------------------------------------

local workspace = GUI.workspace()
workspace:addChild(GUI.panel(1, 1, workspace.width, workspace.height, 0x262626))

local tree1 = workspace:addChild(GUI.filesystemTree(3, 2, 30, 41, 0xCCCCCC, 0x3C3C3C, 0x3C3C3C, 0x999999, 0x3C3C3C, 0xE1E1E1, 0xBBBBBB, 0xAAAAAA, 0xBBBBBB, 0x444444, GUI.IO_MODE_BOTH, GUI.IO_MODE_FILE))
tree1:updateFileList()
tree1.onItemSelected = function(path)
	GUI.alert("Something was selected, the path is: \"" .. path .. "\"")
end

local tree2 = workspace:addChild(GUI.filesystemTree(34, 2, 30, 41, 0xCCCCCC, 0x3C3C3C, 0x3C3C3C, 0x999999, 0x3C3C3C, 0xE1E1E1, 0xBBBBBB, 0xAAAAAA, 0xBBBBBB, 0x444444, GUI.IO_MODE_FILE, GUI.IO_MODE_FILE))
tree2:updateFileList()
tree2.onItemSelected = function(path)
	GUI.alert("File was selected, the path is: \"" .. path .. "\"")
end

local tree3 = workspace:addChild(GUI.filesystemTree(66, 2, 30, 41, 0xCCCCCC, 0x3C3C3C, 0x3C3C3C, 0x999999, 0x3C3C3C, 0xE1E1E1, 0xBBBBBB, 0xAAAAAA, 0xBBBBBB, 0x444444, GUI.IO_MODE_DIRECTORY, GUI.IO_MODE_DIRECTORY))
tree3:updateFileList()
tree3.onItemSelected = function(path)
	GUI.alert("Directory was selected, the path is: \"" .. path .. "\"")
end

--------------------------------------------------------------------------------

workspace:draw()
workspace:start()

Result:

GUI.filesystemChooser(x, y, width, height, backgroundColor, textColor, tipBackgroundColor, tipTextColor, initialText, sumbitButtonText, cancelButtonText, placeholderText, filesystemDialogMode, filesystemDialogPath) extends GUI.object

Type	Parameter	Description
int	x	Object coordinate by x-axis
int	y	Object coordinate by y-axis
int	width	Object width
int	height	Object height
int	backgroundColor	Object background color
int	textColor	Object text color
int	tipBackgroundColor	Object "pipe" background color
int	tipTextColor	Object "pipe" text color
string	path	Initial path of and object. Can be also nil value, it it doesn't needed
string	sumbitButtonText	Object submit button text
string	cancelButtonText	Object cancel button text
string	placeholderText	Text that is shown when no path was typed manually
enum	filesystemDialogMode	Directory content show mode. Can be GUI.IO_MODE_FILE, GUI.IO_MODE_DIRECTORY or GUI.IO_MODE_BOTH
string	filesystemDialogPath	Initial directory of dialog window

This object is intended for convenient selection of a file or directory. When you click on the object, a dialog window pops up with filesystemTree already familiar to us, allowing you to select the desired item by navigating the file system.

This object has following properties:

Type	Property	Description
callback-function	.onSubmit( string path )	This function is called after choosing file or directory and pressing submit button in dialog window. One single parameter is an absolute path to selected item
callback-function	.onCancel( )	This function is called after pressing cancel button in dialog window
function	:setMode( enum IOMode, enum showMode )	This is method for setting window mode. First parameter is needed to tell window what to do: to open or to save items. It can be GUI.IO_MODE_OPEN, GUI.IO_MODE_SAVE or GUI.IO_MODE_BOTH. The second one is needed to setting showing mode. It can be GUI.IO_MODE_FILE, GUI.IO_MODE_DIRECTORY or GUI.IO_MODE_BOTH
function	:addExtensionFilter( string extension )	Add a filter to the specified file extension. After that, only files witch specified extension well be able to be selected

Example of implementation:

local GUI = require("GUI")

--------------------------------------------------------------------------------

local workspace = GUI.workspace()
workspace:addChild(GUI.panel(1, 1, workspace.width, workspace.height, 0x262626))

local filesystemChooser = workspace:addChild(GUI.filesystemChooser(2, 2, 30, 3, 0xE1E1E1, 0x888888, 0x3C3C3C, 0x888888, nil, "Open", "Cancel", "Choose", "/"))
filesystemChooser:setMode(GUI.IO_MODE_OPEN, GUI.IO_MODE_FILE)
filesystemChooser.onSubmit = function(path)
	GUI.alert("File \"" .. path .. "\" was selected")
end

--------------------------------------------------------------------------------

workspace:draw()
workspace:start()

Result:

GUI.codeView(x, y, width, height, fromSymbol, fromLine, maximumLineLength, selections, highlights, syntaxPatterns, syntaxColorScheme, syntaxHighlight, lines) extends GUI.object

Type	Parameter	Description
int	x	Object coordinate by x-axis
int	y	Object coordinate by y-axis
int	width	Object width
int	height	Object height
int	fromSymbol	From what symbol is drawing will start
int	fromLine	From what lines is drawing will start
int	maximumLineLength	Length of the biggest line form lines table
table	selections	Table with structure {{from = {line = int line, symbol = int symbol}, to = {line = int line, symbol = int symbol}}, ...}, that allows to specify selection data just like in any text editor
table	highlights	Table with structure {[int lineIndex] = int color, ...} that allows to highlight specified lines with specified
table	syntaxPatterns	Patterns for syntax highlighting
table	syntaxColorScheme	Color scheme for syntax highlighting
boolean	syntaxHighlight	Does code syntax highlighting need to be enabled
table	lines	Table with strings that will be displayed

This object is intended for visual display of the code with line numbers, indentations, selections, scroll bars and optional syntax highlighting.

This object has following properties:

Type	Property	Description
table	.lines	Table with strings displayed by widget
int	.fromLine	Line to display from
int	.fromSymbol	Symbol to display from
table	.selections	Table with selections
table	.highlights	Table with highlights
boolean	.syntaxHighlight	Variable to set syntax highlighting

Example of implementation:

local GUI = require("GUI")

--------------------------------------------------------------------------------

local workspace = GUI.workspace()
workspace:addChild(GUI.panel(1, 1, workspace.width, workspace.height, 0x0))

-- Add codeView object to workspace
local codeView = workspace:addChild(GUI.codeView(2, 2, 72, 22, 1, 1, 1, {}, {}, GUI.LUA_SYNTAX_PATTERNS, GUI.LUA_SYNTAX_COLOR_SCHEME, true, {}))

-- Open file and read it's lines
local counter = 1
for line in io.lines("/lib/advancedLua.lua") do
	-- Replace tab symbols to 2 whitespaces and Windows line endings to UNIX line endings
	line = line:gsub("\t", "  "):gsub("\r\n", "\n")
	codeView.maximumLineLength = math.max(codeView.maximumLineLength, unicode.len(line))
	table.insert(codeView.lines, line)

	counter = counter + 1
	if counter > codeView.height then
		break
	end
end

--------------------------------------------------------------------------------

workspace:draw()
workspace:start()

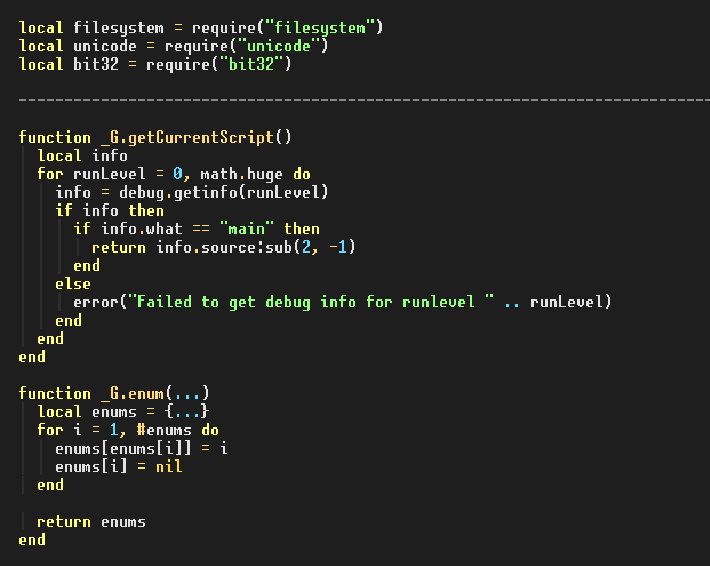

Result:

GUI.chart(x, y, width, height, axisColor, axisValueColor, axisHelpersColor, chartColor, xAxisValueInterval, yAxisValueInterval, xAxisPostfix, yAxisPostfix, fillChartArea, values) extends GUI.object

Type	Parameter	Description
int	x	Object coordinate by x-axis
int	y	Object coordinate by y-axis
int	width	Object width
int	height	Object height
int	axisColor	Object axis color
int	axisValueColor	Object axis values color
int	axisHelpersColor	Object axis helpers color
int	chartColor	Object chart color
float [0.0; 1.0]	xAxisValueInterval	X-axis values interval
float [0.0; 1.0]	yAxisValueInterval	Y-axis values interval
string	xAxisPostfix	X-axis values postfix
string	yAxisPostfix	Y-axis values postfix
boolean	fillChartArea	Does filling chart area is needed
table	values	Table with structure {{float x, float y}, ...} with chart values

This object is intended for the sorted display of data in the form of a two-dimensional graph with the signed coordinate axis. Both positive and negative values are supported, but the axes are always located on the left and the bottom edges of the object.

Example of implementation:

local GUI = require("GUI")

--------------------------------------------------------------------------------

local workspace = GUI.workspace()
workspace:addChild(GUI.panel(1, 1, workspace.width, workspace.height, 0x2D2D2D))

local chart = workspace:addChild(GUI.chart(2, 2, 100, 30, 0xEEEEEE, 0xAAAAAA, 0x888888, 0xFFDB40, 0.25, 0.25, "s", "t", true, {}))
for i = 1, 100 do
	table.insert(chart.values, {i, math.random(0, 80)})
end

--------------------------------------------------------------------------------

workspace:draw()
workspace:start()

Result:

GUI.brailleCanvas(x, y, width, height) extends GUI.object

Type	Parameter	Description
int	x	Object coordinate by x-axis
int	y	Object coordinate by y-axis
int	width	Object width
int	height	Object height

This object is inherently similar to a pixel canvas. Its distinctive feature is the use of Braille symbols, which creates an increased resolution in comparison with the standard resolution: each real pixel can hold up to 2x4 "mini-pixels." It's very useful for detailed rendering of small details, with which the mod can't handle. For example, if a BrailleCanvas with a size of 10x10 real pixels is created, it will contain 20x40 braille pixels.

This object has following properties:

Type	Property	Description
function	:set( int x, int y, boolean state[, int color] )	Set the corresponding pixel value to the local coordinates of the BrailleCanvas. If there is already an existing pixel in this position, the value of its color will be replaced by a new one. If the color argument is not specified, then the pixel color will remain the same
function	:get( int x, int y ): boolean state, int color, char symbol	Get the state, color, and the symbol of the current braille pixel
function	:fill( int x, int y, int width, int height, boolean state, int color )	Works similarly to the :set() method, however it allows editing entire canvas
function	:clear()	Clear canvas content

Example of implementation:

local GUI = dofile("/lib/GUI.lua")

--------------------------------------------------------------------------------

local workspace = GUI.workspace()
workspace:addChild(GUI.panel(1, 1, workspace.width, workspace.height, 0x262626))

-- Add a text label for size comparison
workspace:addChild(GUI.label(3, 2, 30, 1, 0xFFFFFF, "Text for size comparison"))
-- Add BrailleCanvas with 30x15 screen pixels
local brailleCanvas = workspace:addChild(GUI.brailleCanvas(3, 4, 30, 15))

-- Let's draw! First we will create "border" around object with two vertical lines
local canvasWidthInBraillePixels = brailleCanvas.width * 2
for i = 1, brailleCanvas.height * 4 do
	brailleCanvas:set(1, i, true, 0xFFFFFF)
	brailleCanvas:set(canvasWidthInBraillePixels, i, true, 0xFFFFFF)
end

-- After that let's add two horizontal lines
local canvasHeightInBraillePixels = brailleCanvas.height * 4
for i = 1, brailleCanvas.width * 2 do
	brailleCanvas:set(i, 1, true, 0xFFFFFF)
	brailleCanvas:set(i, canvasHeightInBraillePixels, true, 0xFFFFFF)
end

-- Now we're drawing one red diagonal
for i = 1, 60 do
	brailleCanvas:set(i, i, true, 0xFF4940)
end

-- Drawing yellow rectangle
brailleCanvas:fill(20, 20, 20, 20, true, 0xFFDB40)
-- Drawing smaller rectangle, but with pixels state = false
brailleCanvas:fill(25, 25, 10, 10, false)

--------------------------------------------------------------------------------

workspace:draw()
workspace:start()

Result:

GUI.scrollBar(x, y, width, height, backgroundColor, foregroundColor, minimumValue, maximumValue, value, shownValueCount, onScrollValueIncrement, thinMode) extends GUI.object

Type	Parameter	Description
int	x	Object coordinate by x-axis
int	y	Object coordinate by y-axis
int	width	Object width
int	height	Object height
int	backgroundColor	Object background color
int	foregroundColor	Object text color
int	minimumValue	Object minimum value
int	maximumValue	Object maximum value
int	value	Object current value
int	shownValueCount	Object shown value count (per "page")
int	onScrollValueIncrement	Value increment on scroll event
boolean	thinMode	Thin drawing mode

This object is intended for visual demonstration of the number of displayed objects on the screen. Itself is practically not used, useful in combination with other widgets.

This object has following properties:

Type	Property	Description
float	.value	Current object value variable
callback-function	.onTouch( )	This function is called after touching scrollBar. It's .value will be calculated automatically
callback-function	.onScroll( )	This function is called on scrolling via mouse. Object .value will be changed by .onScrollValueIncrement

Example of implementation:

local GUI = require("GUI")

--------------------------------------------------------------------------------

local workspace = GUI.workspace()
workspace:addChild(GUI.panel(1, 1, workspace.width, workspace.height, 0x2D2D2D))

-- Add vertical scrollBar to workspace
local verticalScrollBar = workspace:addChild(GUI.scrollBar(2, 3, 1, 15, 0x444444, 0x888888, 1, 100, 1, 10, 1, true))
verticalScrollBar.onTouch = function()
	GUI.alert("Vertical scrollbar was touched")
end

-- Add horizontal too
local horizontalScrollBar = workspace:addChild(GUI.scrollBar(3, 2, 60, 1, 0x444444, 0x888888, 1, 100, 1, 10, 1, true))
horizontalScrollBar.onTouch = function()
	-- Do something on scrollBar touch
end

--------------------------------------------------------------------------------

workspace:draw()
workspace:start()

Result:

GUI.textBox(x, y, width, height, backgroundColor, textColor, lines, currentLine, horizontalOffset, verticalOffset[, autoWrap, autoHeight]) extends GUI.object

Type	Parameter	Description
int	x	Object coordinate by x-axis
int	y	Object coordinate by y-axis
int	width	Object width
int	height	Object height
int or nil	backgroundColor	Object background color. Can be nil to be ignored
int	textColor	Object text color
table	lines	Table with textBox strings. There is also alternative option to set line color: line must be a table with structure: {text = string, color = int}
int	currentLine	Current line to draw with
int	horizontalOffset	Horizontal offset from left and right borders
int	verticalOffset	Vertical offset from top and bottom borders
[boolean	autoWrap]	Optional automatic text wrapping by textBoxWidth
[boolean	autoHeight]	Optional automatic object height calculation to fit lines table

This object is designed to display a large amount of text data in a small container with scroll bars. When using the mouse wheel and activating the scroll event, the contents of the textbox will automatically "scroll" in the desired direction. There's also feature of setting desired alignment.

This object has following properties:

Type	Property	Description
table	.lines	Pointer to table with object strings
int	.currentLine	Current line to draw with
boolean	.autoWrap	Automatic text wrapping mode
boolean	.autoHeight	Automatic height calculation mode
boolean	.scrollBarEnabled	Scrollbar showing state
function	:scrollUp([int count]): table textBox	Scroll textBox up to specified about of lines (1 by default)
function	:scrollDown([int count]): table textBox	Scroll textBox down to specified about of lines (1 by default)
function	:scrollToStart(): table textBox	Scroll textBox to start
function	:scrollToEnd(): table textBox	Scroll textBox to end
function	:setAlignment(enum horizontalAlignment, enum verticalAlignment): table textBox	Choose a text display option for textBox boundaries

Example of implementation:

local GUI = require("GUI")

--------------------------------------------------------------------------------

local workspace = GUI.workspace()
workspace:addChild(GUI.panel(1, 1, workspace.width, workspace.height, 0x2D2D2D))

local textBox = workspace:addChild(GUI.textBox(2, 2, 32, 16, 0xEEEEEE, 0x2D2D2D, {}, 1, 1, 0))
table.insert(textBox.lines, {text = "Sample colored line ", color = 0x880000})
for i = 1, 100 do
	table.insert(textBox.lines, "Sample line " .. i)
end

--------------------------------------------------------------------------------

workspace:draw()
workspace:start()

Result:

GUI.progressIndicator(x, y, passiveColor, primaryColor, secondaryColor) extends GUI.object

Type	Parameter	Description
int	x	Indicator coordinate by x-axis
int	y	Indicator coordinate by y-axis
int	passiveColor	Initial indicator color in passive state
int	primaryColor	Primary indicator color in active state
int	secondaryColor	Secondary indicator color in active state

Progress indicator is a simple widget for giving users information when something is happening. It just nicely rolls around it's circle shape.

This object has following properties:

Type	Property	Description
boolean	.active	Enables or disables progress indicator active state
function	:roll()	Performs a roll operation when indicator circle will be turned to a next iteration. It's visible only in active state

Example of implementation:

local GUI = require("GUI")
local internet = require("Internet")

------------------------------------------------------------------------------------------

local workspace = GUI.workspace()
workspace:addChild(GUI.panel(1, 1, workspace.width, workspace.height, 0x1E1E1E))

-- Adding progress indicator to display data downloading
local progressIndicator = workspace:addChild(GUI.progressIndicator(3, 2, 0x3C3C3C, 0x00B640, 0x99FF80))

-- Adding button that performs internet-request to download *something*
workspace:addChild(GUI.adaptiveButton(3, 6, 2, 1, 0x2D2D2D, 0xD2D2D2, 0x5A5A5A, 0xE1E1E1, "Download")).onTouch = function()
	-- Switching indicator to active state
	progressIndicator.active = true
	workspace:draw()

	-- Sending a GET-request to download data as string
	local downloadedData = ""
	local result, reason = internet.rawRequest(
		-- Url (will return server IP-address)
		"http://httpbin.org/ip",
		-- POST data
		nil,
		-- Headers
		nil,
		-- Downloaded chunk hanlder
		function(chunk)
			downloadedData = downloadedData .. chunk

			-- Rolling indicator to a next state
			progressIndicator:roll()
			workspace:draw()
		end,
		-- Count of bytes to download per chunk (2 will simulate slow download)
		2
	)

	-- Switching indicator to passive state when download is finished
	progressIndicator.active = false
	workspace:draw()

	-- Displaying result on screen if request was successfull
	if result then
		GUI.alert("Download complete: " .. downloadedData)
	end
end


------------------------------------------------------------------------------------------

workspace:draw()
workspace:start()

Result:

Ready-to-use containers

There are various containers listed below that support all features of GUI.container, however they have a special functional and methods

GUI.layout(x, y, width, height, columnCount, rowCount) extends GUI.container

Type	Parameter	Description
int	x	Layout coordinate by x-axis
int	y	Layout coordinate by y-axis
int	width	Layout width
int	height	Layout height
int	columnCount	Layout grid column count
int	rowCount	Layout grid row count

This is one of the most frequently used and technically advanced widgets. Layout is an inheritor of the GUI.container with similar behavior that can automatically calculate position of child objects within itself. For example, if you want to beautifully display a lot of objects without wasting time on manual calculation of coordinates, then layout is made for you. Picture below shows in detail the layout structure of 3x2:

As you can see, there are 6 cells in this example: each of them can have its own direction, spacing between objects, alignment, margin and automatic fitting. Cells boundaries are illusive, so child objects can exist beyond them, if cell alignment allows it.

You can assign individual size for each column and row in pixels or as relative (percentage) value, you can change layout grid size and add/remove/resize rows and columns in realtime, you can toggle grid rendering for your comfort, you can even add layouts in each other to group widgets as you want, so working with it is fantastically convenient.

This object has following properties:

Type	Property	Description
int	.defaultColumn	Column of grid cell to which new child objects will be added. Default value is 1
int	.defaultRow	Row of grid cell to which new child objects will be added. Default value is 1
table	.cells	Three-dismensional table with rows/columns indices. Each .cells[row][column] table contains data with cell alignment/direction/spacing/fitting/calculated width and height
boolean	.showGrid	Toggle grid borders rendering. The default value is false
function	:setPosition(int column, int row, object child): object child	Assign the specified grid cell to the layout child object. One cell can contain as many objects as you want
function	:setGridSize(int columnCount, int columnCount): table layout	Set size of the layout grid. All objects located outside the range of new size must be assigned to required cells again via :setPosition(...)
function	:setColumnWidth(int column, enum sizePolicy, float size): table layout	Set width of the specified column. The value can be one of two types: GUI.SIZE_POLICY_ABSOLUTE or GUI.SIZE_POLICY_RELATIVE. In the first case, the width exists as pixels, and does not change when layout size is changed. The second one exists as the percentage width of the column: if you specify a relative value, and there are other columns to the right of the selected column, their relative width will be automatically recalculated to the desired percentage values. Relative width must be a number in [0.0; 1.0] range
function	:setRowHeight(int row, enum sizePolicy, float size): table layout	Set height of the specified row. The behavior of the function is similar to :setColumnWidth(...)
function	:addColumn(enum sizePolicy, float size): table layout	Add an empty column to layout grid with specified size
function	:addRow(enum sizePolicy, float size): table layout	Add an empty row to layout grid with specified size
function	:removeColumn(int column): table layout	Remove specified column from layout grid
function	:removeRow(int row): table layout	Remove specified row from layout grid
function	:setDirection(int column, int row, enum direction): table layout	Set grid cell orientation (direction) of the child objects positioning. You can use GUI.DIRECTION_HORIZONTAL or GUI.DIRECTION_VERTICAL
function	:setAlignment(int column, int row, enum horizontalAlignment, enum verticalAlignment): table layout	Assign the method for aligning child objects to the grid cell borders. Following values and any combination of them can be used: GUI.ALIGNMENT_HORIZONTAL_LEFT, GUI.ALIGNMENT_HORIZONTAL_CENTER, GUI.ALIGNMENT_HORIZONTAL_RIGHT, GUI.ALIGNMENT_VERTICAL_TOP, GUI.ALIGNMENT_VERTICAL_CENTER or GUI.ALIGNMENT_VERTICAL_BOTTOM
function	:setSpacing(int column, int row, int spacing): table layout	Assign the specified grid cell distance in pixels between child objects. The default value is 1
function	:setMargin(int column, int row, int horizontalMargin, int verticalMargin): table layout	Assign the specified grid cell indents (margins) in pixels, depending on the current alignment of this cell
function	:getMargin(int column, int row): int row, int horizontalMargin, int verticalMargin	Get current margins in pixels of specified cell
function	:setFitting(int column, int row, int horizontalFitting, int verticalFitting[, int horizontalOffset, int verticalOffset] ): table layout	Assign the specified grid cell automatic resizing of child objects by horizonal, vertical or both directions. By default new child sizes will be equal the cell size. If optional parameters are specified, then it is possible to set an size reducing, i.e. the size of objects will be equal to Cell size - Offset value
function	:update(): table layout	Forcibly recalculate child objects position. By default this function is being called automatically, but in some cases it can be helful

Example of implementation:

local image = require("Image")
local GUI = require("GUI")

------------------------------------------------------------------------------------------

local workspace = GUI.workspace()
workspace:addChild(GUI.panel(1, 1, workspace.width, workspace.height, 0x2D2D2D))

-- Add an layout with 5x1 grid size to workspace
local layout = workspace:addChild(GUI.layout(1, 1, workspace.width, workspace.height, 5, 1))

-- Add 9 buttons to layout and assign specified grid position to them
-- As you can see, button object is being created first - after that it's being added as child object to layout
-- Finally, a specified grid position is being assigned to added child object
layout:setPosition(1, 1, layout:addChild(GUI.button(1, 1, 26, 3, 0xEEEEEE, 0x000000, 0xAAAAAA, 0x0, "Button 1")))
layout:setPosition(2, 1, layout:addChild(GUI.button(1, 1, 26, 3, 0xEEEEEE, 0x000000, 0xAAAAAA, 0x0, "Button 2")))
layout:setPosition(2, 1, layout:addChild(GUI.button(1, 1, 26, 3, 0xEEEEEE, 0x000000, 0xAAAAAA, 0x0, "Button 3")))
layout:setPosition(3, 1, layout:addChild(GUI.button(1, 1, 26, 3, 0xEEEEEE, 0x000000, 0xAAAAAA, 0x0, "Button 4")))
layout:setPosition(3, 1, layout:addChild(GUI.button(1, 1, 26, 3, 0xEEEEEE, 0x000000, 0xAAAAAA, 0x0, "Button 5")))
layout:setPosition(3, 1, layout:addChild(GUI.button(1, 1, 26, 3, 0xEEEEEE, 0x000000, 0xAAAAAA, 0x0, "Button 6")))
layout:setPosition(4, 1, layout:addChild(GUI.button(1, 1, 26, 3, 0xEEEEEE, 0x000000, 0xAAAAAA, 0x0, "Button 7")))
layout:setPosition(4, 1, layout:addChild(GUI.button(1, 1, 26, 3, 0xEEEEEE, 0x000000, 0xAAAAAA, 0x0, "Button 8")))
layout:setPosition(5, 1, layout:addChild(GUI.button(1, 1, 26, 3, 0xEEEEEE, 0x000000, 0xAAAAAA, 0x0, "Button 9")))

-- Assign an callback function to the first added button
layout.children[1].onTouch = function()
	-- Enable layout grid rendering
	layout.showGrid = true
	-- Change layout grid size
	layout:setGridSize(3, 1)
	-- Change cell spacing for each column
	for column = 1, 3 do
		layout:setSpacing(column, 1, 4)
	end
	-- Change position of last 3 buttons to make them belong to last column
	for child = 7, 9 do
		layout:setPosition(3, 1, layout.children[child])
	end
	-- Enable automatic children width calculation for last column with offset of 4 pixels (2 on each side)
	layout:setFitting(3, 1, true, false, 4, 0)
	-- Draw changes on screen
	workspace:draw()
end

------------------------------------------------------------------------------------------

workspace:draw()
workspace:start()

Result:

GUI.window(x, y, width, height) extends GUI.container

Type	Parameter	Description
int	x	Window coordinate by x-axis
int	y	Window coordinate by y-axis
int	width	Window width
int	height	Window height

Windows are a wonderful thing, allowing the user to move them with a couple of mouse clicks. They already have a built-in .eventHandler, so you do not have to bother with anything.

This object has following properties:

Type	Property	Description
function	:resize(int newWidth, int newHeight)	Sets a new window size and calls .onResize(...) callback-function if it exists
function	:close()	Closes window and performs an self :remove() on it
function	:minimize()	Toggles window hidden state. Call this function again to revert changes
function	:maximize()	Toggles window size to full-screen (to fit parent container) or default size. Call this function again to set previous used size. This will call :resize(...) function and, of course, .onResize(...) callback-function if it exists
callback-function	:onResize(int newWidth, int newHeight)	This function is called after window size hes been changed via :resize(...) function. Two parameters are new window size

In addition to the empty window template, there are also several prepared window designs:

GUI.filledWindow(x, y, width, height, fillColor) extends GUI.window

Type	Parameter	Description
...	...	...
int	fillColor	Window background panel color

Creates a window with background panel and action buttons inside it:

This object has following properties:

Type	Property	Description
table	.backgroundPanel	Pointer to GUI.panel object
table	.actionButtons	Pointer to GUI.actionButtons object

GUI.titledWindow(x, y, width, height, title, addTitlePanel) extends GUI.window

Type	Parameter	Description
...	...	...
string	title	Window title text
[boolean	addTitlePanel]	Optional adding of title background panel

Creates a window with background panel, action buttons, label with specified title and title background panel if desired:

This object has following properties:

Type	Property	Description
table	.backgroundPanel	Pointer to GUI.panel object
table	.actionButtons	Pointer to GUI.actionButtons object
table	.titleLabel	Pointer to title GUI.label object
table	.titlePanel	Pointer to title GUI.panel object. Has a nil value if not specified

GUI.tabbedWindow(x, y, width, height) extends GUI.window

Creates a window with background panel, action buttons and tab bar objects

This object has following properties:

Type	Property	Description
table	.backgroundPanel	Pointer to GUI.panel object
table	.actionButtons	Pointer to GUI.actionButtons object
table	.tabBar	Pointer to title GUI.tabBar object

Example of windows implementation:

local image = require("Image")
local GUI = require("GUI")

------------------------------------------------------------------------------------------

local workspace = GUI.workspace()
workspace:addChild(GUI.panel(1, 1, workspace.width, workspace.height, 0x1E1E1E))

-- First, add an empty window to workspace
local window1 = workspace:addChild(GUI.window(90, 6, 60, 20))
-- Add a background panel and text widget to it
window1:addChild(GUI.panel(1, 1, window1.width, window1.height, 0xF0F0F0))
window1:addChild(GUI.text(3, 2, 0x2D2D2D, "Regular window example"))

-- Next add tabbed window
local window2 = workspace:addChild(GUI.tabbedWindow(4, 3, 60, 20))
-- Use pointer to GUI.tabBar object to add some tabs
window2.tabBar:addItem("Apps")
window2.tabBar:addItem("Libs")
window2.tabBar:addItem("Pictures")
window2.tabBar:addItem("Updates")
-- Add and .onTouch() method to close button to make window be able to close
window2.actionButtons.close.onTouch = function()
	window2:remove()
	workspace:draw()
end
-- Do the same with maximize button
window2.actionButtons.maximize.onTouch = function()
	window2:maximize()
	workspace:draw()
end
-- Add callback method which is called on window resize. Use passed parameters to set sizes of window child objects
window2.onResize = function(newWidth, newHeight)
	window2.tabBar.width = newWidth
	window2.backgroundPanel.width = newWidth
	window2.backgroundPanel.height = newHeight - window2.tabBar.height
	workspace:draw()
end

-- Finally add titled window
local window3 = workspace:addChild(GUI.titledWindow(50, 22, 60, 20, "Titled window example", true))
-- Attach an single cell layout to it
local layout = window3:addChild(GUI.layout(1, 2, window3.width, window3.height - 1, 1, 1))
-- Add some stuff to layout
layout:addChild(GUI.button(1, 1, 36, 3, 0xB4B4B4, 0xFFFFFF, 0x969696, 0xB4B4B4, "Press me"))
layout:addChild(GUI.button(1, 1, 36, 3, 0xB4B4B4, 0xFFFFFF, 0x969696, 0xB4B4B4, "And me"))

------------------------------------------------------------------------------------------

workspace:draw()
workspace:start()

Result:

GUI.palette(x, y, initialColor) extends GUI.window

Type	Parameter	Description
int	x	Palette coordinate by x-axis
int	y	Palette coordinate by y-axis
int	initialColor	Initial color for palette

The palette is the inherited object of GUI.window, allowing you to choose the desired color by clicking or entering the desired values into text input fields.

This object has following properties:

Type	Property	Description
table	.color	A table with currently selected color value with different color spaces. For example, if you need integer (hexadecimal) color value, use palette.color.integer. Otherwise there's also palette.color.hsb.hue, palette.color.hsb.saturation, palette.color.hsb.brightness and palette.color.rgb.red, palette.color.rgb.green, palette.color.rgb.blue values
table	.submitButton	A pointer to submit GUI.button object
table	.cancelButton	A pointer to cancel GUI.button object

Example of implementation:

local GUI = require("GUI")

------------------------------------------------------------------------------------------

local workspace = GUI.workspace()
workspace:addChild(GUI.panel(1, 1, workspace.width, workspace.height, 0x1E1E1E))

-- Add a palette window to workspace
local palette = workspace:addChild(GUI.palette(3, 2, 0x9900FF))
-- Specify an .onTouch() callback-function to submit button
palette.submitButton.onTouch = function()
	GUI.alert("You've been selected a color: " .. string.format("0x%X", palette.color.integer))
end

------------------------------------------------------------------------------------------

workspace:draw()
workspace:start()

Result:

Standalone methods

The library has several methods that can simplify the development of programs. For example, a context menu, an information window or a palette window.

GUI.alert(...varargs)

Type	Parameter	Description
varargs	...	A lot of parameters having any type that need to be displayed in a window

This method displays a debug window with text information. The line that is too long will be automatically wrapped. If parameter is a table, then it will be automatically serialized. To close the window, you must hit the Return key or click on the "OK" button

Example of implementation:

local screen = require("Screen")
local GUI = require("GUI")

--------------------------------------------------------------------------------

screen.clear(0x2D2D2D)
GUI.alert("Something went wrong here, my friend")

Result:

GUI.addContextMenu(parentContainer, x, y[, backgroundColor, textColor, backgroundPressedColor, textPressedColor, disabledColor, separatorColor, backgroundTransparency, shadowTransparency])

Type	Parameter	Description
table	parentContainer	Container to which context menu will be added
int	x	Local coordinate by x-axis in parent container
int	y	Local coordinate by y-axis in parent container
[int	backgroundColor]	Optional default background color
[int	textColor]	Optional default text color
[int	backgroundPressedColor]	Optional pressed item background color
[int	textPressedColor]	Optional pressed item text color
[int	disabledColor]	Optional disabled item text color
[int	separatorColor]	Optional separator text color
[float [0.0; 1.0]	backgroundTransparency]	Optional background transparency
[float [0.0; 1.0]	shadowTransparency]	Optional shadow transparency

This is one of the most commonly used methods. It adds a context menu to the specified container and allows to work with it fantastically easy. All optional parameters of the method exist only for customization, and if they are not specified, pre-stored library constants will be used.

If the context menu contains too many items, scrolling buttons will appear and mouse wheel support will be enabled to navigate menu content. Also if you select an item and it's have callback function .onTouch(), it will be called

This object has following properties:

Type	Property	Description
function	:addItem(string text[, boolean disabled, string shortcut, int color]): table item	Add new item to context menu. If disabled parameter is specified, item will be shown but not available for clicking You can also specify .onTouch() function to added item to do some stuff if desired
function	:addSeparator()	Add an separator to context menu
function	:removeItem(int index): table item	Remove item from context menu by it's index
function	:addSubMenuItem(string text[, boolean disabled]): table contextMenu	Add another context menu to this context menu. The returned menu object is independent and supports all the methods described above
callback-function	.onMenuClosed(int selectedIndex)	This function is called after user selects a menu item or closes it. If an element has been selected, this function will have and selected item index as a parameter

Example of implementation:

local GUI = require("GUI")

--------------------------------------------------------------------------------

local workspace = GUI.workspace()

-- Add an background panel and attack event handler to it
workspace:addChild(GUI.panel(1, 1, workspace.width, workspace.height, 0x2D2D2D)).eventHandler = function(workspace, object, e1, e2, e3, e4)
	if e1 == "touch" then
		-- Add context menu object to workspace and some items to it
		local contextMenu = GUI.addContextMenu(workspace, e3, e4)
		contextMenu:addItem("New")
		contextMenu:addItem("Open").onTouch = function()
			-- Do something to open file or whatever
		end

		-- Add a sub menu and some items to it
		local subMenu = contextMenu:addSubMenuItem("Open with")
		subMenu:addItem("Explorer.app")
		subMenu:addItem("Viewer.app")
		subMenu:addItem("Finder.app")
		subMenu:addSeparator()
		subMenu:addItem("Browse...")

		contextMenu:addSeparator()
		contextMenu:addItem("Save", true)
		contextMenu:addItem("Save as")
		contextMenu:addSeparator()

		-- Of course, you can use loops to do the same
		for i = 1, 25 do
			contextMenu:addItem("Do something " .. i)
		end

		workspace:draw()
	end
end

--------------------------------------------------------------------------------

workspace:draw()
workspace:start()

Result:

GUI.addFilesystemDialog(parentContainer, addPanel, ...)

Type	Parameter	Description
table	parentContainer	Container to which palette will be added
boolean	addPanel	Necessity to add a semi-transparent dark background panel
varargs	...	Multiple parameters that comes to GUI.filesystemDialog starting from width

This method creates a filesystem dialor in specified container with a nice drop-down animation and allows you to work with it in the same way as with a conventional JUI. It is useful for manual work with the file system, if there is no desire to work with GUI.filesystemChooser

This object has following properties:

Type	Property	Description
table	.filesystemDialog	Pointer to internal filesystemDialog object
function	:show()	This method will update internal file list and start drop-down animation. After that dialog will be available for user interactions

Example of implementation:

local GUI = require("GUI")

--------------------------------------------------------------------------------

local workspace = GUI.workspace()
workspace:addChild(GUI.panel(1, 1, workspace.width, workspace.height, 0x2D2D2D))

local filesystemDialog = GUI.addFilesystemDialog(workspace, false, 50, math.floor(workspace.height * 0.8), "Open", "Cancel", "File name", "/")
filesystemDialog:setMode(GUI.IO_MODE_OPEN, GUI.IO_MODE_FILE)
filesystemDialog:addExtensionFilter(".pic")
filesystemDialog.onSubmit = function(path)
	GUI.alert("This path was selected: " .. path)
end

filesystemDialog:show()

--------------------------------------------------------------------------------

workspace:draw()
workspace:start()

Result:

GUI.addBackgroundContainer(parentContainer, addPanel, addLayout[, title])

Type	Parameter	Description
table	parentContainer	Container to which palette will be added
boolean	addPanel	Necessity to add a semi-transparent dark background panel
boolean	addLayout	Necessity to add a 3-columned background layout
[string	title]	If specified, adds a label to layout as child

This method creates a new container and adds it as a child to the specified container. If background panel is added, it will already have an event listener: so if you click on panel, this container will be removed automatically. Personally, I use this object everywhere to quickly create a simple menus with easy closing feature and automated layout calculations.

This object has following properties:

Type	Property	Description
table	.panel	Pointer to background panel object. Doesn't exists if addPanel parameter is set to false
table	.layout	Pointer to background layout object. Doesn't exists if addLayout parameter is set to false
table	.label	Pointer to title label object. Doesn't exists if title parameter is nil

Example of implementation:

local GUI = require("GUI")

--------------------------------------------------------------------------------

local workspace = GUI.workspace()
workspace:addChild(GUI.panel(1, 1, workspace.width, workspace.height, 0x2D2D2D))

-- Add a button to workspace and .onTouch() method
workspace:addChild(GUI.button(3, 2, 36, 3, 0xE1E1E1, 0x4B4B4B, 0xA5A5A5, 0x0, "Add container")).onTouch = function()
	-- Add a background container to workspace with background panel and layout
	local container = GUI.addBackgroundContainer(workspace, true, true, "Hello world")
	-- Add a switch and label to it's layout
	container.layout:addChild(GUI.switchAndLabel(1, 1, 36, 8, 0x66DB80, 0x2D2D2D, 0xE1E1E1, 0x878787, "I like to suck big dicks:", true))
end

--------------------------------------------------------------------------------

workspace:draw()
workspace:start()

Result:

GUI.highlightString(x, y, fromSymbol, indentationWidth, syntaxPatterns, syntaxColorScheme, data)

Type	Parameter	Description
int	x	Coordinate by x-axis to draw from
int	y	Coordinate by y-axis to draw from
int	fromSymbol	Symbol index to draw from
int	indentationWidth	Width of indentation that will be added instead on whitespace symbols in string starting
table	syntaxPatterns	Patterns for syntax highlighting
table	syntaxColorScheme	Color scheme for syntax highlighting
string	data	String to highlight

This method allows you to highlight specified string and draw the result to screen buffer using specified syntax patterns and specified color scheme. This library already comes with a set of patterns and color scheme for Lua syntax (see Constants), however you can easily write your own for any other programming language if you wish.

Example of implementation:

local GUI = require("GUI")
local screen = require("Screen")

--------------------------------------------------------------------------------

screen.clear(0x1E1E1E)

-- Open file and read it's lines
local y = 1
for line in io.lines("/lib/advancedLua.lua") do
	-- Replace tab symbols to 2 whitespaces and Windows line endings to UNIX line endings
	line = line:gsub("\t", "  "):gsub("\r\n", "")
	-- Highlight result
	GUI.highlightString(3, y, 1, 2, GUI.LUA_SYNTAX_PATTERNS, GUI.LUA_SYNTAX_COLOR_SCHEME, line)

	y = y + 1
	if y > screen.getHeight() then
		break
	end
end

screen.drawChanges(true)

Result:

GUI.getAlignmentCoordinates(firstObjectX, firstObjectY, firstObjectWidth, firstObjectHeight, firstObjectHorizontalAlignment, firstObjectVerticalAlignment, secondObjectWidth, secondObjectHeight): int x, int y

Type	Parameter	Description
int	firstObjectX	Coordinate by x-axis of first object
int	firstObjectY	Coordinate by y-axis of first object
int	firstObjectWidth	Width of first object
int	firstObjectHeight	Height of first object
enum	firstObjectHorizontalAlignment	Horizontal alignment of first object
enum	firstObjectVerticalAlignment	Vertical alignment of first object
int	secondObjectWidth	Width of second object
int	secondObjectHeight	Height of second object

This method calculates global (screen) coordinates of the second object inside the first, based on coordinates and sizes of both objects. For example, it's used by GUI.layout, GUI.label and GUI.textBox

GUI.getMarginCoordinates(x, y, horizontalAlignment, verticalAlignment, horizontalMargin, verticalMargin): int x, int y

Type	Parameter	Description
int	x	Object coordinate by x-axis
int	y	Object coordinate by y-axis
enum	horizontalAlignment	Object horizontal alignment
enum	verticalAlignment	Object vertical alignment
int	horizontalMargin	Object horizontal margin in pixels
int	verticalMargin	Object vertical margin in pixels

This method calculates the global (screen) coordinates inside the object, based on its alignment and pixel margin. For example, it's used by GUI.layout

Practical example # 1: Creating an animated widget

To demonstrate how to work with animations, here is the source code with detailed comments, allowing you to create the switch widget and add a motion animation to it. Of course, to understand all this shit, it is highly recommended to read information about GUI.object and methods of Double buffering library.

local color = require("Color")
local screen = require("Screen")
local GUI = require("GUI")

--------------------------------------------------------------------------------

-- Create a function that will draw your switch to screen buffer
-- It's recommended to use local function because it will exists in memory as single copy for each switch
local function switchDraw(switch)
	local bodyX = switch.x + switch.width - switch.bodyWidth
	-- Draw a switch text
	screen.drawText(switch.x, switch.y, switch.colors.text, switch.text)
	-- Draw a background with passive color
	screen.drawRectangle(bodyX, switch.y, switch.bodyWidth, 1, switch.colors.passive, 0x0, " ")
	screen.drawText(bodyX + switch.bodyWidth, switch.y, switch.colors.passive, "⠆")
	-- Draw a background with active color
	screen.drawText(bodyX - 1, switch.y, switch.colors.active, "⠰")
	screen.drawRectangle(bodyX, switch.y, switch.pipePosition - 1, 1, switch.colors.active, 0x0, " ")
	-- Draw a switch "pipe"
	screen.drawText(bodyX + switch.pipePosition - 2, switch.y, switch.colors.pipe, "⠰")
	screen.drawRectangle(bodyX + switch.pipePosition - 1, switch.y, 2, 1, switch.colors.pipe, 0x0, " ")
	screen.drawText(bodyX + switch.pipePosition + 1, switch.y, switch.colors.pipe, "⠆")
end

-- Create a switch event handler that is called after clicking on it.
-- Again, use local functions for stuff like this
local function switchEventHandler(workspace, switch, event)
	if event == "touch" then
		-- Change switch state to opposite
		switch.state = not switch.state
		-- Add an animation to switch that fill move "pipe" to correct side
		local animation = switch:addAnimation(
			-- As an animation frame handler you need a function that will set "pipe" position dependent of current animation position
			-- Remember that animation.position is always in [0.0; 1.0] range
			-- If switch state has a false value, you need to invert animation position to play it reversed visually
			function(workspace, animation)
				if switch.state then
					switch.pipePosition = math.round(1 + animation.position * (switch.bodyWidth - 2))
				else
					switch.pipePosition = math.round(1 + (1 - animation.position) * (switch.bodyWidth - 2))
				end
			end,
			-- Specify a function that is called after animation finishing
			function(workspace, animation)
				-- Remove animation object from switch
				animation:remove()
				-- You can also create callback-functions support like this
				if switch.onStateChanged then
					switch.onStateChanged()
				end
			end
		)
		-- Start playing your animation
		animation:start(switch.animationDuration)
	end
end

-- This function will create a new switch object and fill it with required properties
local function newSwitch(x, y, totalWidth, bodyWidth, activeColor, passiveColor, pipeColor, textColor, text, switchState)
	-- Create object that inherits GUI.object
	local switch = GUI.object(x, y, totalWidth, 1)

	-- Specify some variables for you purpose
	switch.colors = {
		active = activeColor,
		passive = passiveColor,
		pipe = pipeColor,
		text = textColor
	}
	switch.bodyWidth = bodyWidth
	switch.text = text
	switch.state = switchState
	-- You can set any animation duration, even a few hours if you want to
	switch.animationDuration = 0.3
	-- Position of "pipe" will be in range [1; bodyWidth - 1] cause it have 2 pixels width
	switch.pipePosition = switch.state and switch.bodyWidth - 1 or 1

	switch.draw = switchDraw
	switch.eventHandler = switchEventHandler

	return switch
end

--------------------------------------------------------------------------------

-- Now let's create workspace and fill it with our cool widget
local workspace = GUI.workspace()
workspace:addChild(GUI.panel(1, 1, workspace.width, workspace.height, 0x2D2D2D))

-- First, specify required switch count
-- Next, create some variables dependent of it: HUE from HSB color space, coordinates and animation duration
-- So in fact every next switch will have different color and longer animation duration
local count = 168
local hue = 0
local hueStep = 360 / count
local x, y = 3, 2
local animationDurationMin = 0.3
local animationDurationMax = 1.5
local animationDuration = animationDurationMin
local animationDurationStep = (animationDurationMax - animationDurationMin) / count

-- Add specified count of swithes to workspace
for i = 1, count do
	local switchColor = color.HSBToInteger(hue, 1, 1)
	local switch = workspace:addChild(
		newSwitch(x, y, 19, 7,
			switchColor,
			0x1D1D1D,
			0xEEEEEE,
			switchColor,
			"Switch " .. i .. ":",
			math.random(2) == 2
		)
	)

	switch.animationDuration = animationDuration

	y = y + switch.height + 1
	hue = hue + hueStep
	animationDuration = animationDuration + animationDurationStep

	if y >= workspace.height then
		x, y = x + switch.width + 3, 2
	end
end

--------------------------------------------------------------------------------

workspace:draw()
workspace:start()

Result:

Imgur

GUI API - ProfessorCrown/WIKI-RUSSIA GitHub Wiki

Objects

GUI.object(x, y, width, height)

Containers

GUI.container(x, y, width, height) extends GUI.object

Workspaces

GUI.workspace([x, y, width, height]) extends GUI.container

Animations

Constants

Ready-to-use objects

GUI.panel(x, y, width, height, color[, transparency]) extends GUI.object

GUI.text(x, y, textColor, text) extends GUI.object

GUI.label(x, y, width, height, textColor, text) extends GUI.object

GUI.image( x, y, loadedImage ) extends GUI.object

GUI.button(x, y, width, height, buttonColor, textColor, buttonPressedColor, textPressedColor, text) extends GUI.object

GUI.actionButtons(x, y[, fat]) extends GUI.object

GUI.input(x, y, width, height, backgroundColor, textColor, placeholderTextColor, backgroundFocusedColor, textFocusedColor, text[, placeholderText, eraseTextOnFocus, textMask]) extends GUI.object

GUI.slider(x, y, width, primaryColor, secondaryColor, pipeColor, valueColor, minimumValue, maximumValue, value[, showCornerValues, currentValuePrefix, currentValuePostfix]) extends GUI.object

GUI.switch(x, y, width, primaryColor, secondaryColor, pipeColor, state) extends GUI.object

GUI.switchAndLabel(x, y, width, switchWidth, primaryColor, secondaryColor, pipeColor, textColor, text, switchState) extends GUI.container

GUI.colorSelector(x, y, width, height, color, text) extends GUI.object

GUI.list(x, y, width, height, itemSize, spacing, backgroundColor, textColor, alternateBackgroundColor, alternateTextColor, backgroundSelectedColor, textSelectedColor[, offsetMode]) extends GUI.layout

GUI.menu(x, y, width, backgroundColor, textColor, backgroundPressedColor, textPressedColor[, backgroundTransparency]) extends GUI.layout

GUI.comboBox(x, y, width, elementHeight, backgroundColor, textColor, arrowBackgroundColor, arrowTextColor) extends GUI.object

GUI.resizer(x, y, width, height, resizerColor, arrowColor) extends GUI.object

GUI.progressBar(x, y, width, primaryColor, secondaryColor, valueColor, value[, thin, showValue, valuePrefix, valuePostfix]) extends GUI.object

GUI.filesystemTree(x, y, width, height, backgroundColor, directoryColor, fileColor, arrowColor, backgroundSelectionColor, textSelectionColor, arrowSelectionColor, disabledColor, scrollBarBackground, scrollBarForeground, showMode, selectionMode) extends GUI.object

GUI.filesystemChooser(x, y, width, height, backgroundColor, textColor, tipBackgroundColor, tipTextColor, initialText, sumbitButtonText, cancelButtonText, placeholderText, filesystemDialogMode, filesystemDialogPath) extends GUI.object

GUI.codeView(x, y, width, height, fromSymbol, fromLine, maximumLineLength, selections, highlights, syntaxPatterns, syntaxColorScheme, syntaxHighlight, lines) extends GUI.object

GUI.chart(x, y, width, height, axisColor, axisValueColor, axisHelpersColor, chartColor, xAxisValueInterval, yAxisValueInterval, xAxisPostfix, yAxisPostfix, fillChartArea, values) extends GUI.object

GUI.brailleCanvas(x, y, width, height) extends GUI.object

GUI.scrollBar(x, y, width, height, backgroundColor, foregroundColor, minimumValue, maximumValue, value, shownValueCount, onScrollValueIncrement, thinMode) extends GUI.object

GUI.textBox(x, y, width, height, backgroundColor, textColor, lines, currentLine, horizontalOffset, verticalOffset[, autoWrap, autoHeight]) extends GUI.object

GUI.progressIndicator(x, y, passiveColor, primaryColor, secondaryColor) extends GUI.object

Ready-to-use containers

GUI.layout(x, y, width, height, columnCount, rowCount) extends GUI.container

GUI.window(x, y, width, height) extends GUI.container

GUI.filledWindow(x, y, width, height, fillColor) extends GUI.window

GUI.titledWindow(x, y, width, height, title, addTitlePanel) extends GUI.window

GUI.tabbedWindow(x, y, width, height) extends GUI.window

GUI.palette(x, y, initialColor) extends GUI.window

Standalone methods

GUI.alert(...varargs)

GUI.addContextMenu(parentContainer, x, y[, backgroundColor, textColor, backgroundPressedColor, textPressedColor, disabledColor, separatorColor, backgroundTransparency, shadowTransparency])

GUI.addFilesystemDialog(parentContainer, addPanel, ...)

GUI.addBackgroundContainer(parentContainer, addPanel, addLayout[, title])

GUI.highlightString(x, y, fromSymbol, indentationWidth, syntaxPatterns, syntaxColorScheme, data)

GUI.getAlignmentCoordinates(firstObjectX, firstObjectY, firstObjectWidth, firstObjectHeight, firstObjectHorizontalAlignment, firstObjectVerticalAlignment, secondObjectWidth, secondObjectHeight): int x, int y

GUI.getMarginCoordinates(x, y, horizontalAlignment, verticalAlignment, horizontalMargin, verticalMargin): int x, int y

Practical example # 1: Creating an animated widget

⚠️ **GitHub.com Fallback** ⚠️

⚠️ GitHub.com Fallback ⚠️
