Pioneer — life of the ship

Pioneer is Arkline's 72 x 38 x 18 m industrial starter cutter. It has two mining turrets and two docked interior decks. The v05 interior review remains its visual design reference; earlier drawings are kept below as design history.

As of 15 October 2026, merged source includes the authored Blender/GLB hull, walkable decks, flight, mining, drones, cargo and scalar power systems. The unmerged development branch uses the Study05 hull, connected airlock equipment, powered exterior fixtures and native editor tools. Study05 refines the bow, glazing and service areas; overall v05 fidelity and exterior/interior alignment remain unfinished.

Design direction · 3D model history · Dimensions and frames · Current runtime · Editor and asset work · Editable vessel · Evidence · Gaps · Milestones · Concept history

Versioned page source · Fleet archive · Project 14

Design direction

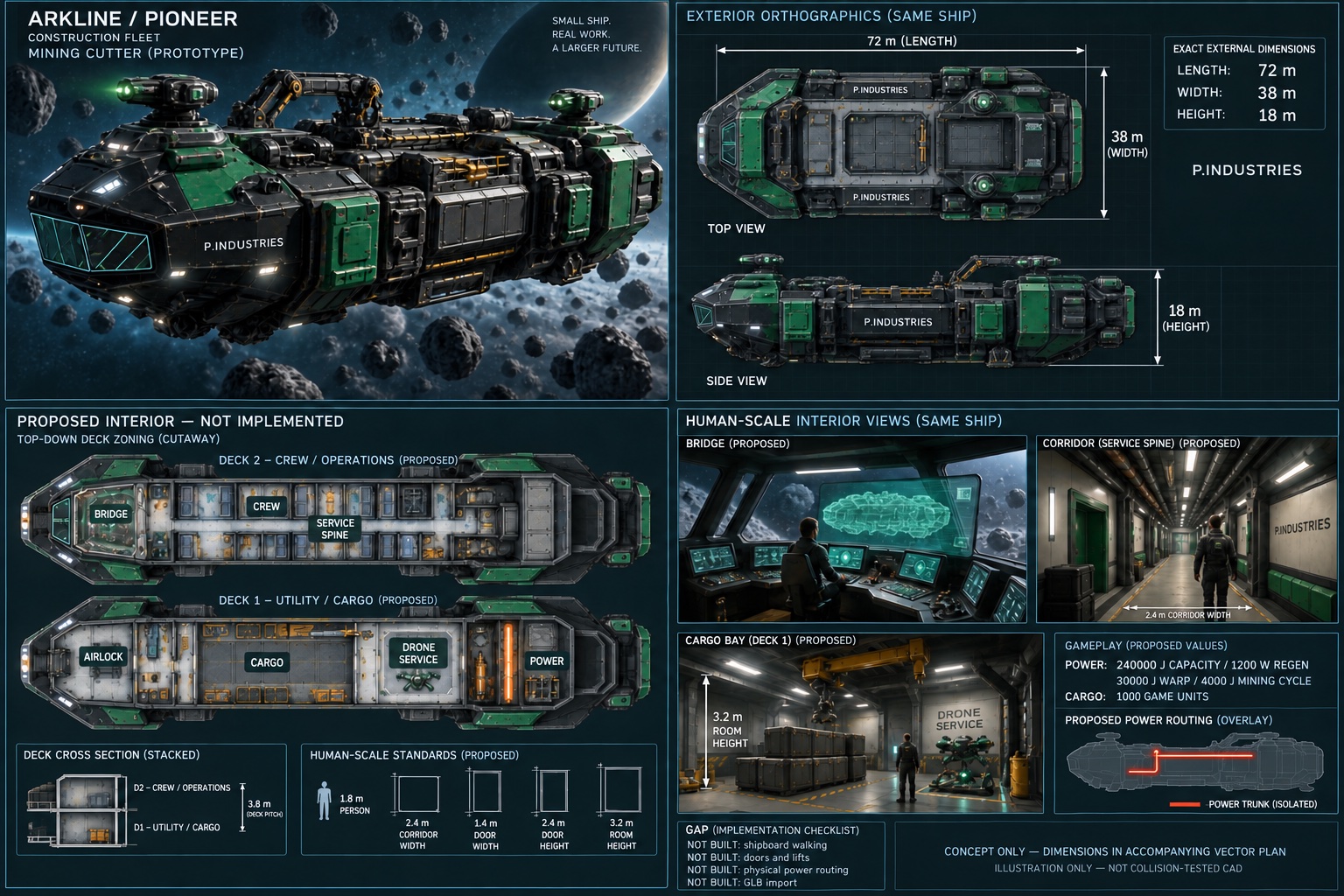

v05 calls for a broad, enclosed black/emerald cutter: faceted bow, integrated shoulders, heavy collars, a stepped underside and articulated laser mining turrets. The separated outriggers in v03 and earlier drill-like equipment are historical. Generated labels, checkboxes and painted proportions are not acceptance evidence.

The merged authored model is the first exterior foundation: 32,284 runtime triangles in seven material batches, with separate engine-controlled turrets. Draft #44 adds an industrial detail pass and changes the GLB to 65,866 triangles in nine batches while retaining the body envelope and gameplay hardpoints. Neither version is a finished reconstruction of v05.

The earlier industrial baseline had a narrow center, projecting square nose and long side blocks. Studies 01–04 broadened and enclosed the hull, moved glazing forward and integrated the shoulders. Study05 now corrects the bow/glazing, roof architecture and actual drive openings in the engine. Broader side/collar, underside and overall proportion/detail matching remain deliberate v05 work. See the modeling plan, Study05 development record and open checklist below.

Study05 · inhabited and manufactured scale · 2026-10-15

The two-area pass follows the published v05 architecture: a more compact bow/bridge, and purposeful service/work architecture, including the existing drive exits. Thick separated armor panels, connected braces, continuous gaskets, actual pane recesses, fixed service covers/handles and human-scale rails provide construction cues. The roof now has distinct access, exchanger and folded handling areas. The arm, hatches and service detail remain static inferred authoring choices; no operating equipment or fitted crew interior is claimed.

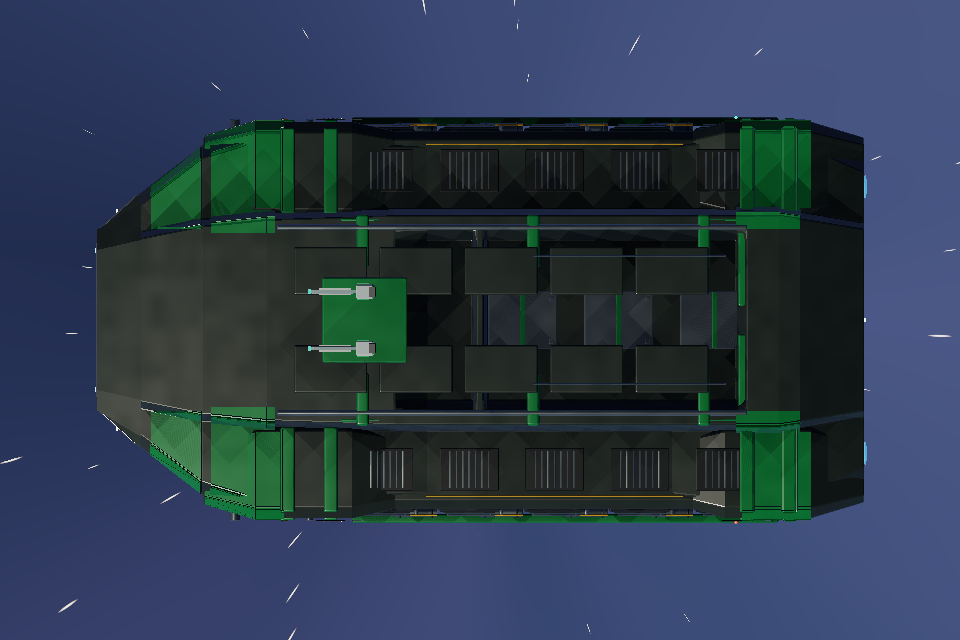

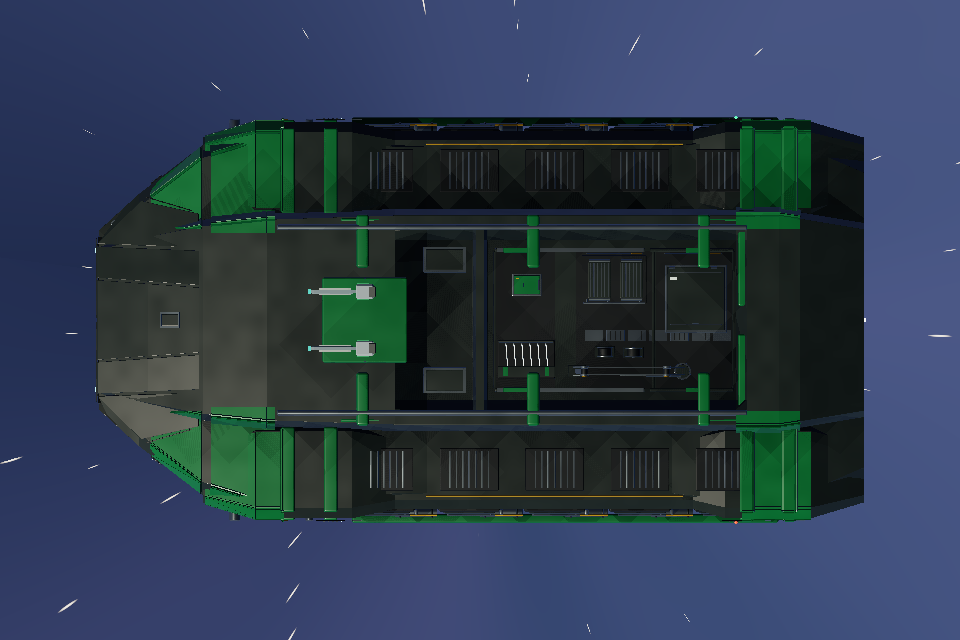

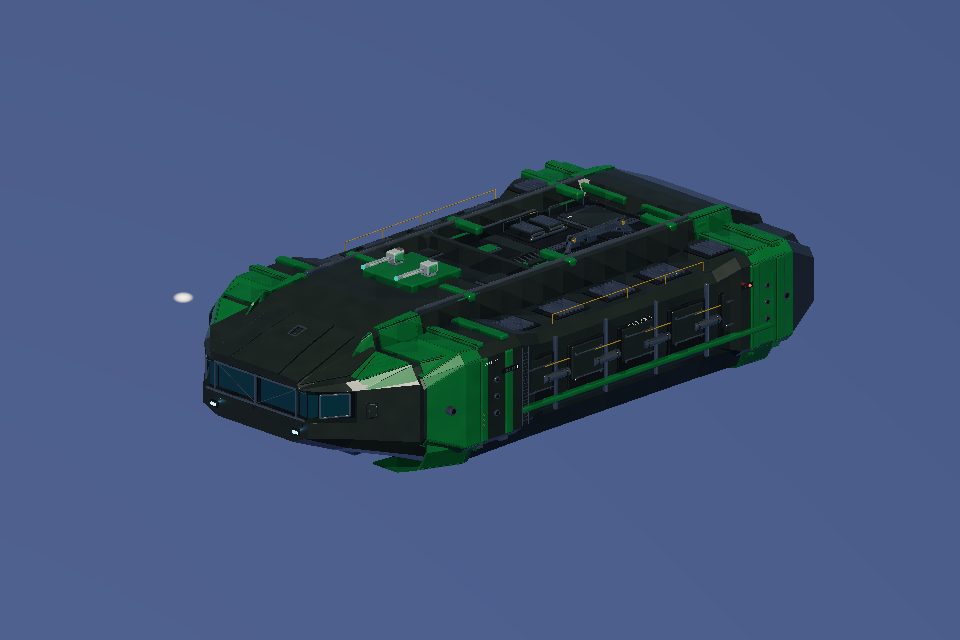

Study04 before · actual7036	Study05 refined · actual7040

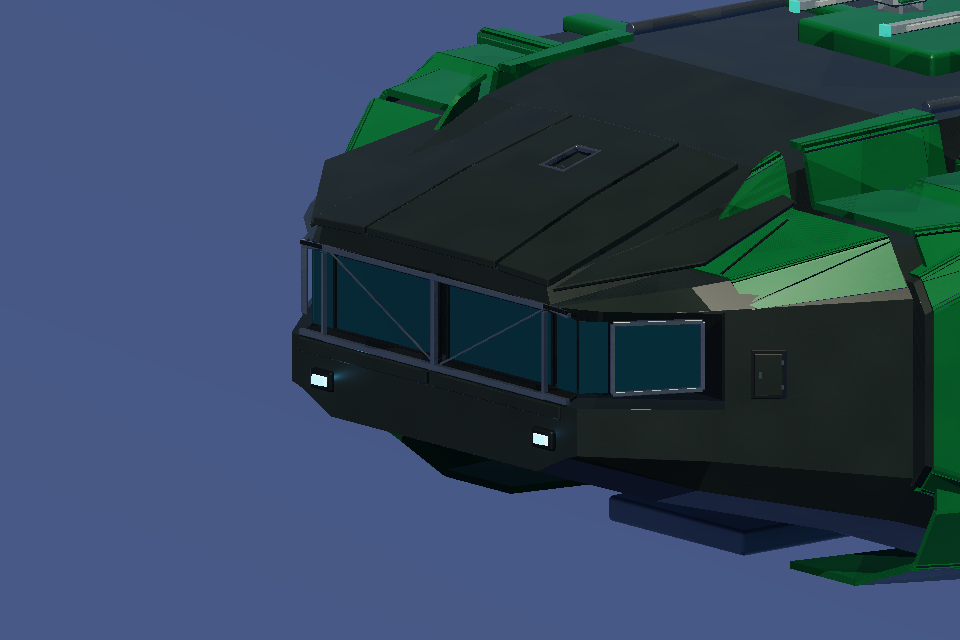

Bridge before	Bridge refined

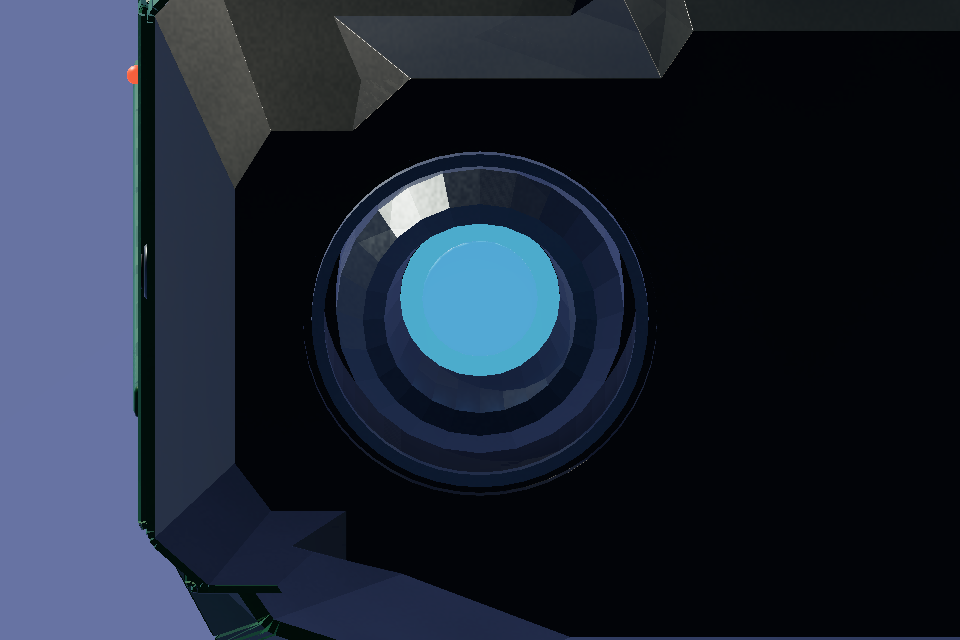

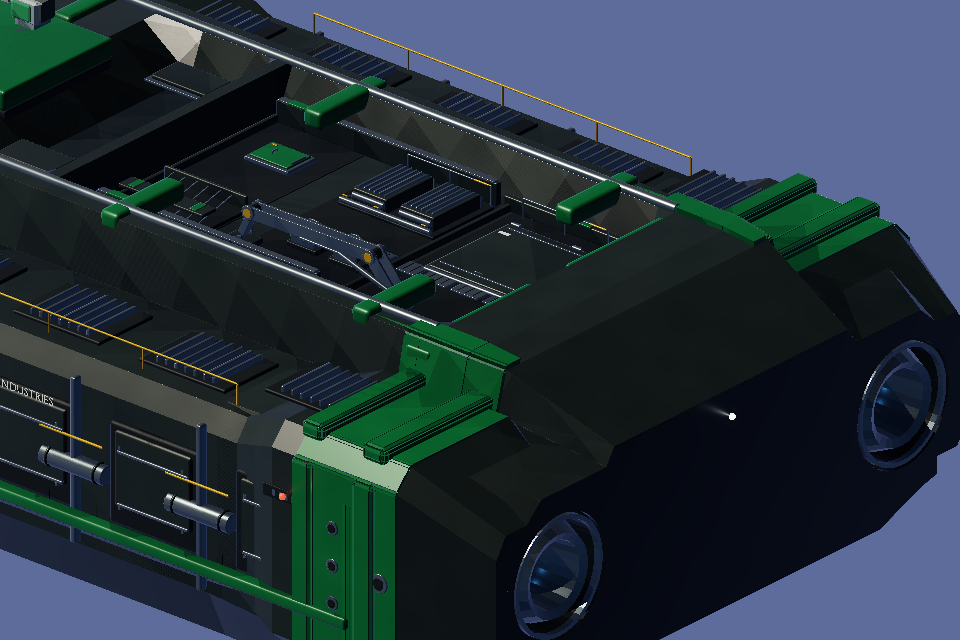

Recessed work area	Existing drive in a real opening

View the model comparisons.

Technical record.

Dimensions and frames

JSON/source values · Dimensioned SVG · Design reference

Current gameplay definitions in the target revision's protocol govern behavior. The dossier JSON pins an older source snapshot and separates implemented values from proposed reservations; it is not a live query. SVGs visualize those numbers. Concept-image pixels are not measurements.

Reference	Meaning
Body envelope	72 m length × 38 m width × 18 m hull height. Articulated turrets extend above the hull; this is not an 18 m overall-height claim.
Runtime model	Metres, centered hull-envelope origin; +X bow, +Y up, +Z starboard. XYZ extents are 72 × 18 × 38 m. The loader does not resize the GLB.
Dossier plan	X forward from the aft bounding-box face, Y up, Z from the port face; bounds_xzy_lwh_m arrays use X,Z,Y ordering. This differs from model XYZ and its centered origin.
Interior instance	Two 32 × 14 m local plans; each deck has floor Y=0, X=plan U, Z=plan V. A tested body-to-deck registration remains missing.
Human reference	1.8 m avatar, 2.4 m corridor and 1.4 m doorway width. Proposed clear door/room heights are 2.4/3.2 m, with 3.8 m deck pitch.
Gameplay quantities	1,000 cargo units; 240,000 J charge capacity; 1,200 W regeneration; 30,000 J warp admission; 4,000 J turret mining cycle. These are game tuning, not reactor or structural ratings.

Cargo units have no implemented kilogram or cubic-metre conversion. Mass, material density, pressure rating, structural strength and engineering adequacy must remain unknown until supported by declared inputs and validation. Matching bounds alone proves neither interior fit nor safe clearances.

Current runtime

Merged on main: #29 implements two private, docked Pioneer decks with twelve rooms, authoritative walking/collision, first/third-person cameras, an access-core lift transition and return through the airlock to boarding. The lift changes to a validated fixed landing; it is not a moving lift. #34 adds compatible-client recovery. Ship operation is gated while on foot. See interior behavior and rollback limits.

#39 replaces the procedural hull with the embedded GLB and editable Blender source. Its actual cached triangles serve the main view, hangar, camera feeds, shadows and selection. The bounded loader supports static indexed geometry and opaque, untextured scalar PBR materials; textures, skins, animation and morph targets are rejected. See model runtime.

Existing cockpit flight, finite-ore mining, drones, cargo/storage, resource jobs and scalar reactor/capacitor behavior are engine systems. Decorative pipes, radiator shapes, hatch geometry and lamps do not create a conserved electrical, atmosphere, water, heat or structural model. The interior still occupies its own scene; the exterior glazing does not establish the bridge room or pilot-eye location.

Unmerged stack: #42 adds physical personal-fleet berths and boarding; #44, based on #42, connects the D1-P1 airlock controller. That room has typed breaker/light/vent/door operations, actual versus commanded outputs, an emergency reserve, pressure interlocks and a door obstacle shared with authoritative collision. Its loads reduce the existing reactor recharge budget. Pressure is a bounded single-room scalar model against a fixed corridor reference, not conserved whole-vessel atmosphere. Room controls and the equipment catalog describe this development slice, not merged main behavior.

Room fixture plans · Systems SVG · Systems JSON · Proposed vessel engineering contract

Remaining gaps

Overall v05 shape/material completion, moving doors and broader component behavior remain unfinished.

1. Finish native acceptance for material recovery, cockpit/import workflows, lifecycle/restart/reconnect and changed-room walking. Broader multiplayer interiors, physical cargo handling, operable exterior doors, fault/repair and conserved power/fluids/heat remain open design and implementation work.
2. Rework the large hull forms against v05, then verify front/top/side and three-quarter engine captures with metric bounds and the dynamic turrets present. Detailed textures/glass/LOD support and measured performance need their own evidence.
3. Register exterior, bridge/cockpit camera, deck plans, openings, collision and mounts in one tested frame. No fitted bridge, continuous external hatch traversal, pressure hull, flight interior or full-ship CAD fit is claimed.
4. Preserve durable part/assembly IDs and explicit parent/source-to-render transforms before editable pieces join the engine. Exporting all 686 current source meshes individually would exceed the current 128-primitive/mesh decoder ceiling.
5. The authored airlock-section proposal is deferred next feature work: identified fixtures, constrained placement, one installed lamp-feed connection, accepted authority revision and save/reopen. It must reuse the existing equipment IDs/interlocks and distinguish installed state from draft topology. No implementation has started under that proposal.

Tracking: model/asset pipeline #10, interiors #23, vessel engineering #32, hangar #40, visual quality #41, connected equipment #43, editor #45, room authoring #50, shared development sessions #51. These issues cover broader work than the current slices; this record does not close them.

Dated 3D model history

Each row preserves the actual editable Blender master and its GLB, rather than a generated illustration. Download links pin full Git commits; later replacements at the stable study paths retain every earlier version in Git history. All listed hulls use the same centered 72 × 18 × 38 m XYZ envelope. Moving gameplay turrets are separate and omitted from the static Blender study images; they appear in the later actual-engine captures. None of these rows establishes a fitted interior or a released build.

Date (UTC) / revision	Source and downloads	Change and evidence status
2026-10-12 · First authored hull	Merged #39, 78fdc5d; editable .blend (227,320 B), GLB (1,689,712 B).	32,284 triangles / seven batches; first embedded GLB foundation. Installed in merged source; release not asserted.
2026-10-12–15 · Industrial baseline	Draft #44, combined #47, 3e41520; editable .blend (353,015 B), GLB (6,736,012 B).	65,866 triangles / nine batches. Actual packaged .5 game hull at this checkpoint; draft stack remains unmerged.
2026-10-15 · Study 01	e4a80b2 → draft #47; editable .blend (342,348 B), GLB (6,531,236 B); hashes/checks.	Widened connected pressure hull and frontal glazing; shoulder overlay intersections remain. Superseded study; no engine adoption.
2026-10-15 · Study 02	f099e43 → draft #47; editable .blend (405,669 B), GLB (6,917,496 B); hashes/checks.	Closed armor volumes and recessed service deck; old gray covers hide much of the collars. Superseded study; native .5 decoder/staging passed, no game adoption.
2026-10-15 · Study 03	ebf6fa2 → draft #47; editable .blend (511,253 B), GLB (7,756,576 B); hashes/checks.	Exterior green pod collars, connected corner glass and restored upper RCS surface; crossing corner fan rejected. Superseded after actual visual review; no engine adoption.
2026-10-15 · Study 04	30bd538 → draft #47; editable .blend (497,325 B), GLB (7,664,728 B); hashes/checks.	Clean closed brow facets replace the crossing fan; green collars and recessed deck retained. Reviewed development candidate; cloud 7102 decoder/staging passed, no game adoption.
2026-10-15 · Cloud saved-master export and engine adoption	7747079; editable .blend (497,325 B), GLB (6,582,300 B); export receipt, adoption record.	Unchanged Study 04 source 772bf76a…; fresh normal-preserving ed5e29cd… export, 78,244 triangles / nine batches. Installed in cloud native7031 and actual engine7032 with powered exterior and existing turrets. Intermediate fidelity; unmerged.
2026-10-15 · Study05 first engine preview	a3928f2; editable .blend, GLB; actual 7038 views.	Source 9cc3ac5d… / runtime df8490f4…, 670 parts, 98,858 triangles. Recessed bridge/workdeck and real aft openings; actual review found floating braces, weak arm silhouette and coplanar rim overlap. Superseded by the refinement below; preserved.
2026-10-15 · Study05 refined	Editable .blend (592,067 B), GLB (8,700,948 B); source-authoring record, export receipt, actual 7040 views.	Source 61eb70e1… / runtime 8125644f…, 686 parts, 103,466 triangles, nine primitives. Thick separated brow plates, connected gaskets/braces, raised paired handling links and seated nozzle rims. Selected bow/service scope visually reviewed in actual engine; overall v05 unfinished.

The original baseline source/export SHA-256 values are 8ec754fc7afe6b67dcab6cbd6694bb04bdc03cc12e91ee96e0bca9e08bb24f6f / f8f8cc65772c678a46606c27abe205d62c4e6ab37c350f79a0f3a4cdc0c6f402. Study receipts record each later master/export hash and its checks. The frozen Study 04 export has 543 named source meshes before derived batching and 78,246 runtime-format triangles in nine batches. The historical Study04 cloud export from that same master has 78,244 retained triangles after the explicit engine float32 degeneracy policy; the frozen file is preserved. Its independent static checks preserve both turret supports and all six RCS intersections, with upper hit approximately Y8.3 m. Native staging uses the real importer; static checks and Blender renders remain separate from GPU acceptance.

Matched view gallery

The baseline and Study01–04 rows are source renders with the same cameras, lighting, orthographic scale and resolution. The cloud-engine rows uses the separately recorded body-relative cameras and actual sunlight; it is not the same render setup. The supplied concept has a different perspective and provides visual direction, not measured CAD. Select each linked view for its full image.

Revision	Matched views

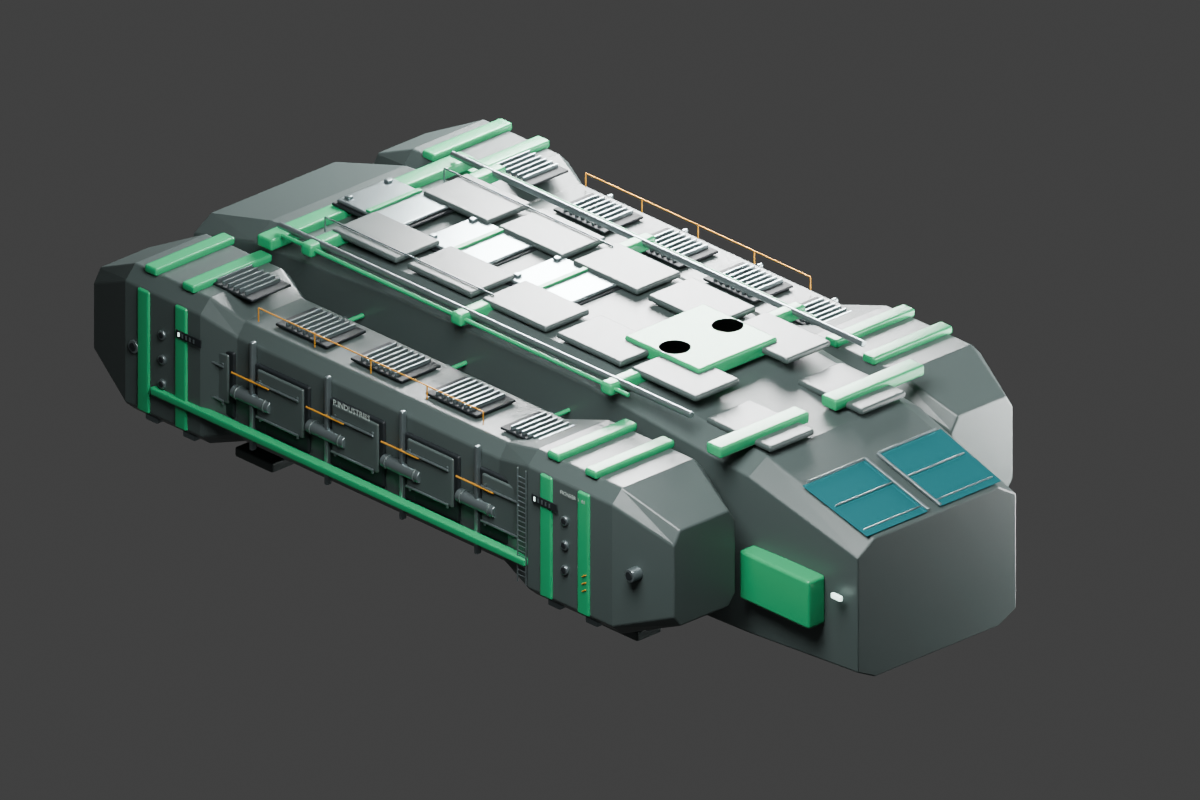

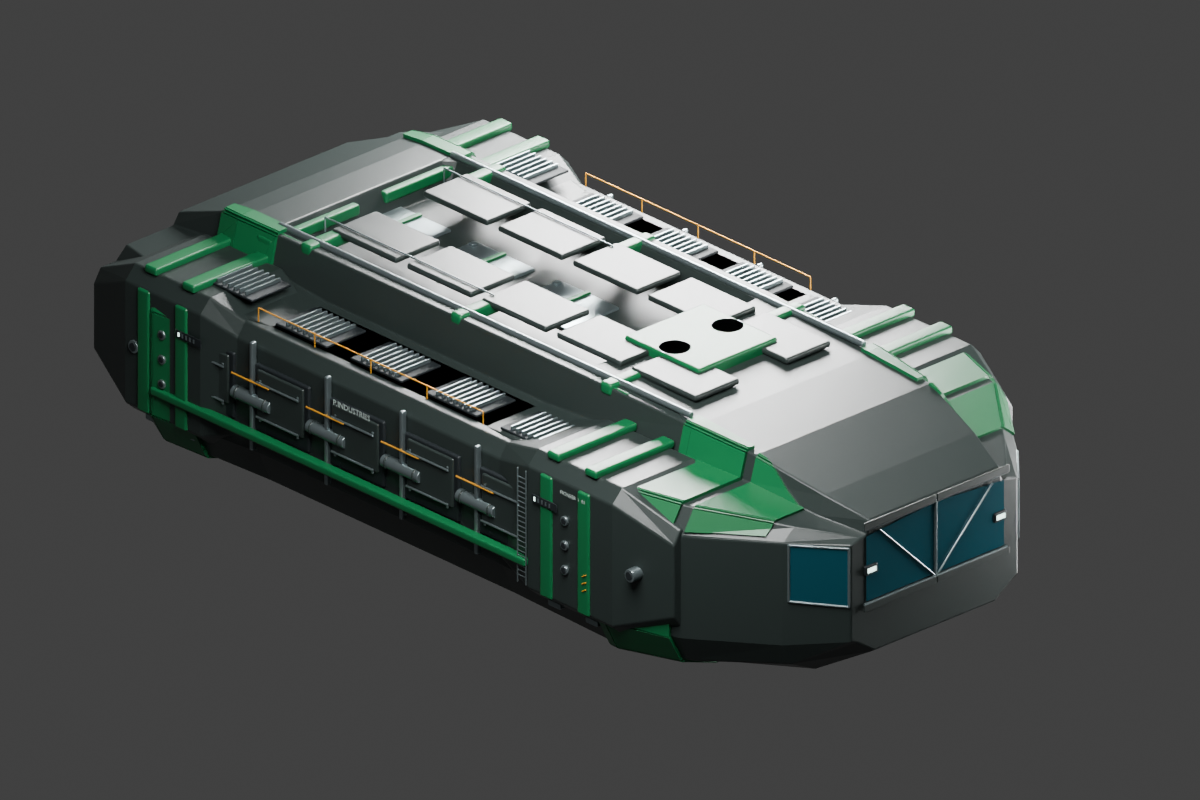

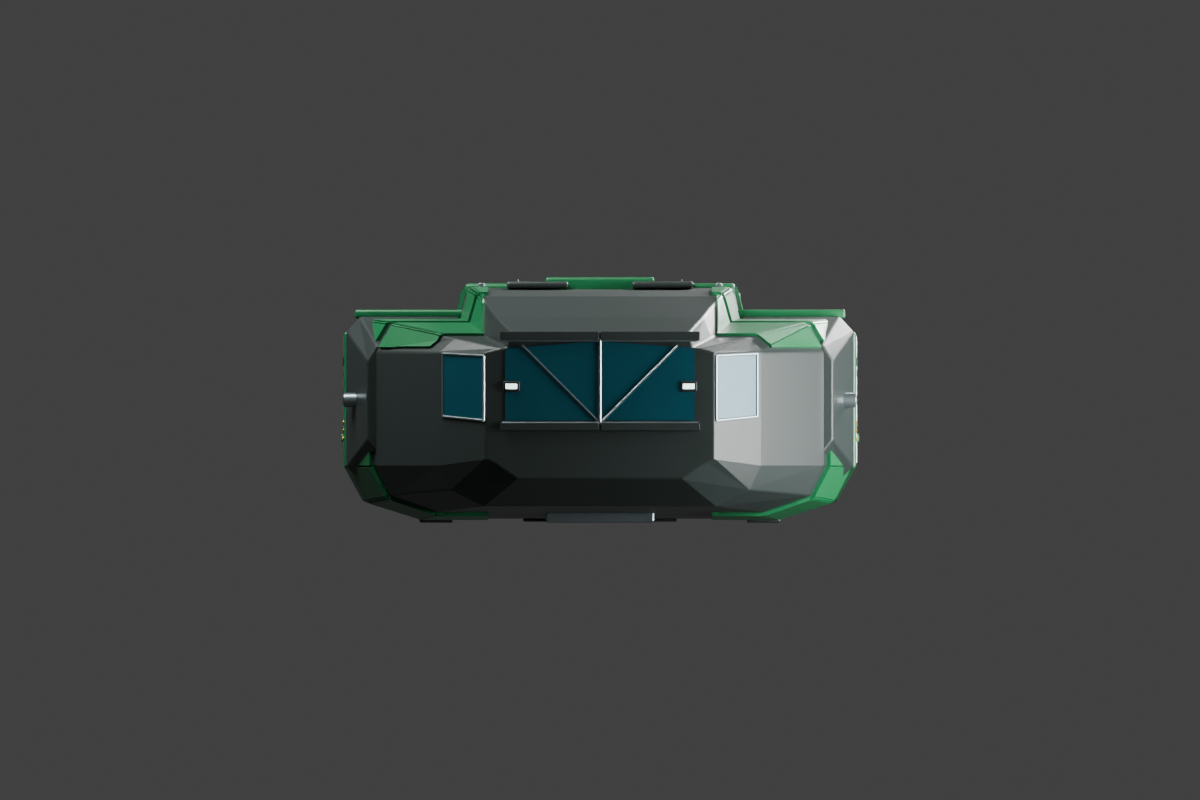

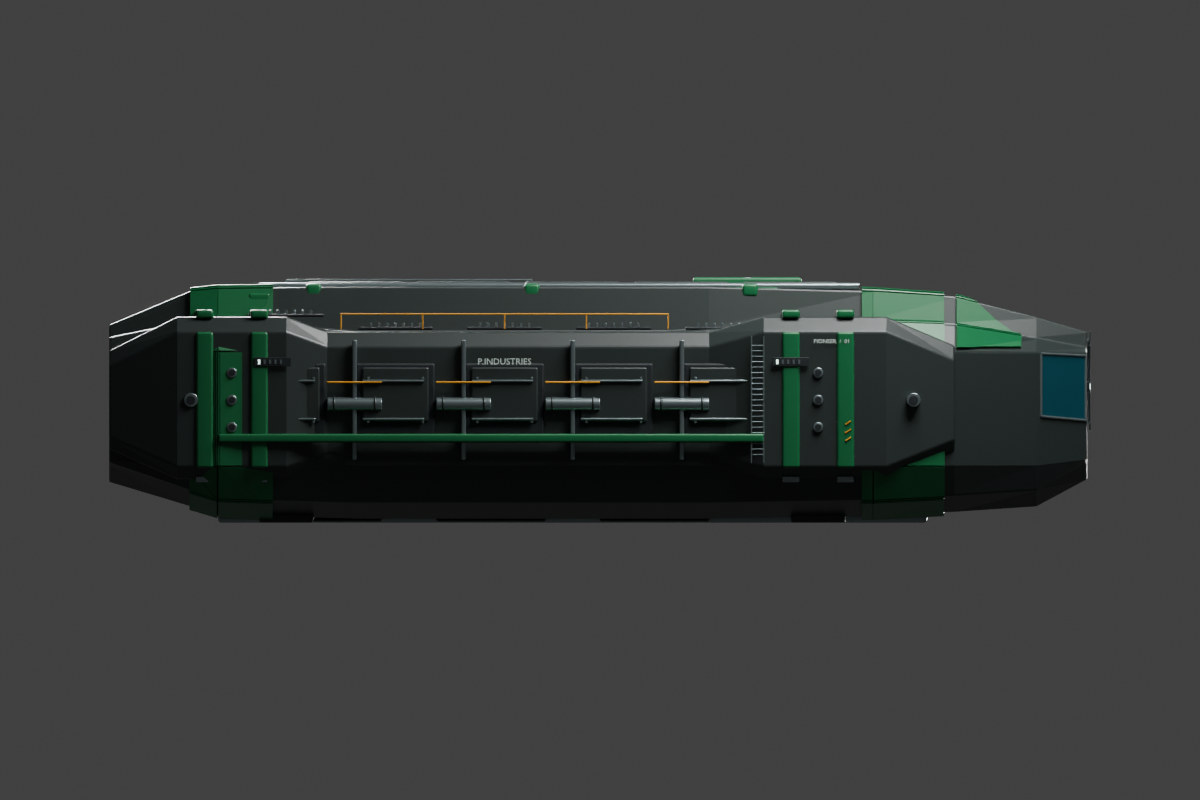

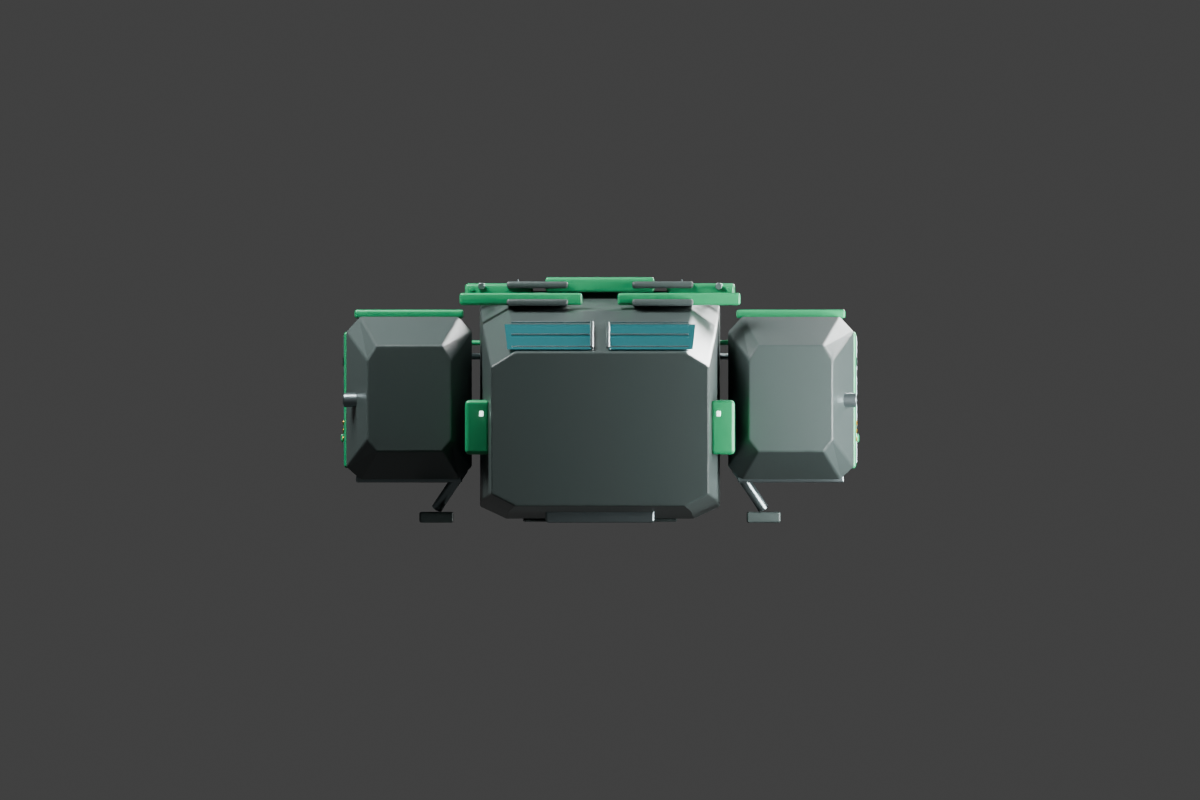

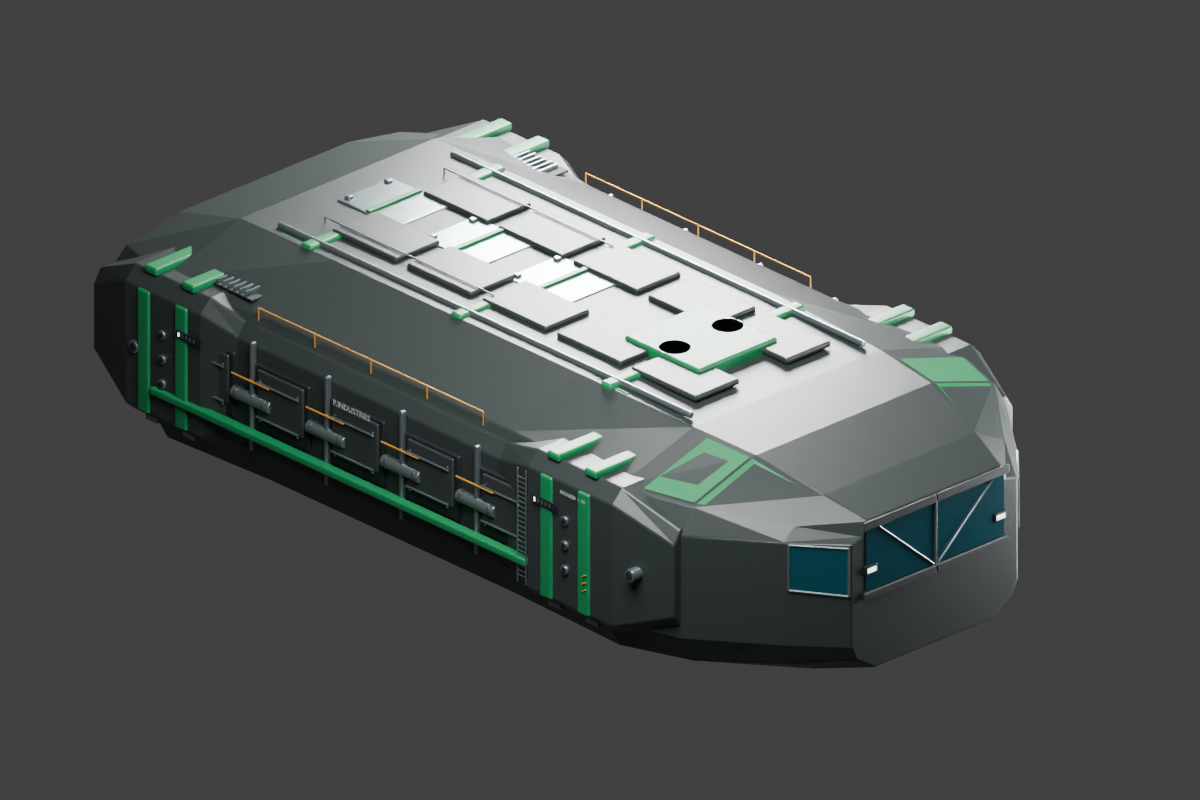

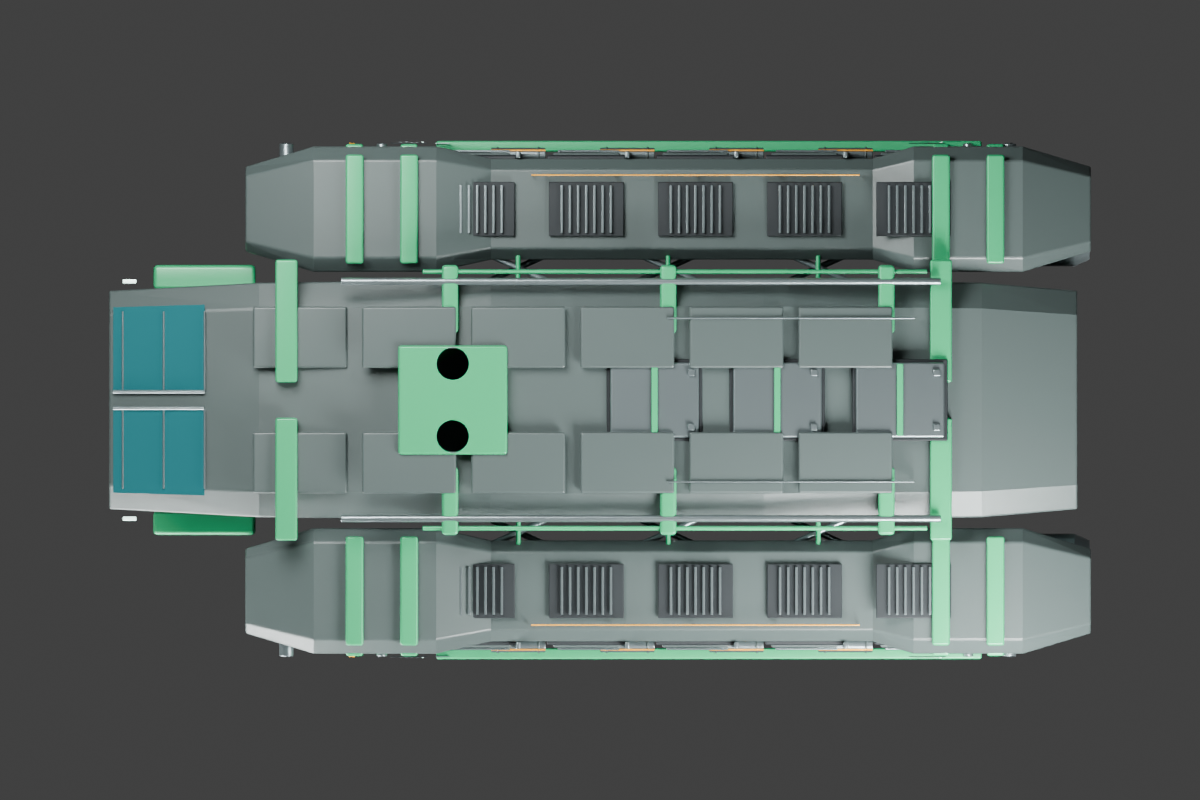

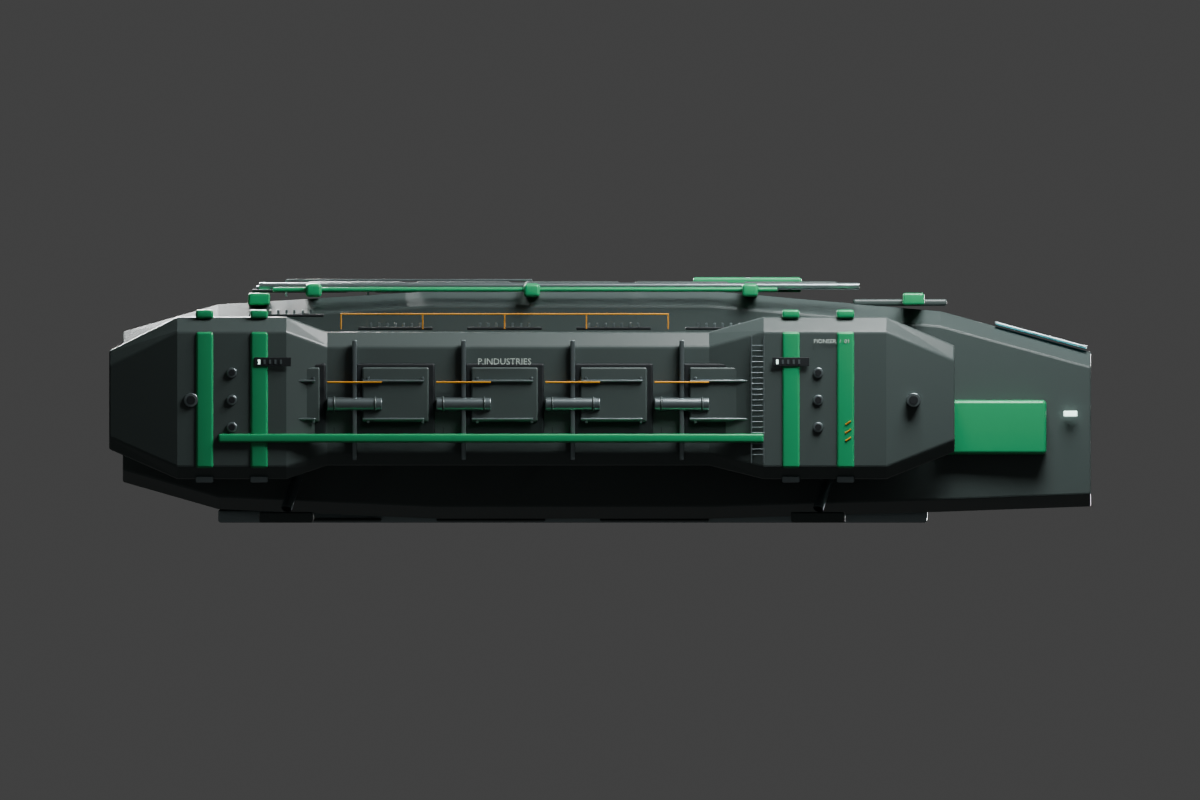

Before remodel	front · side · top · quarter

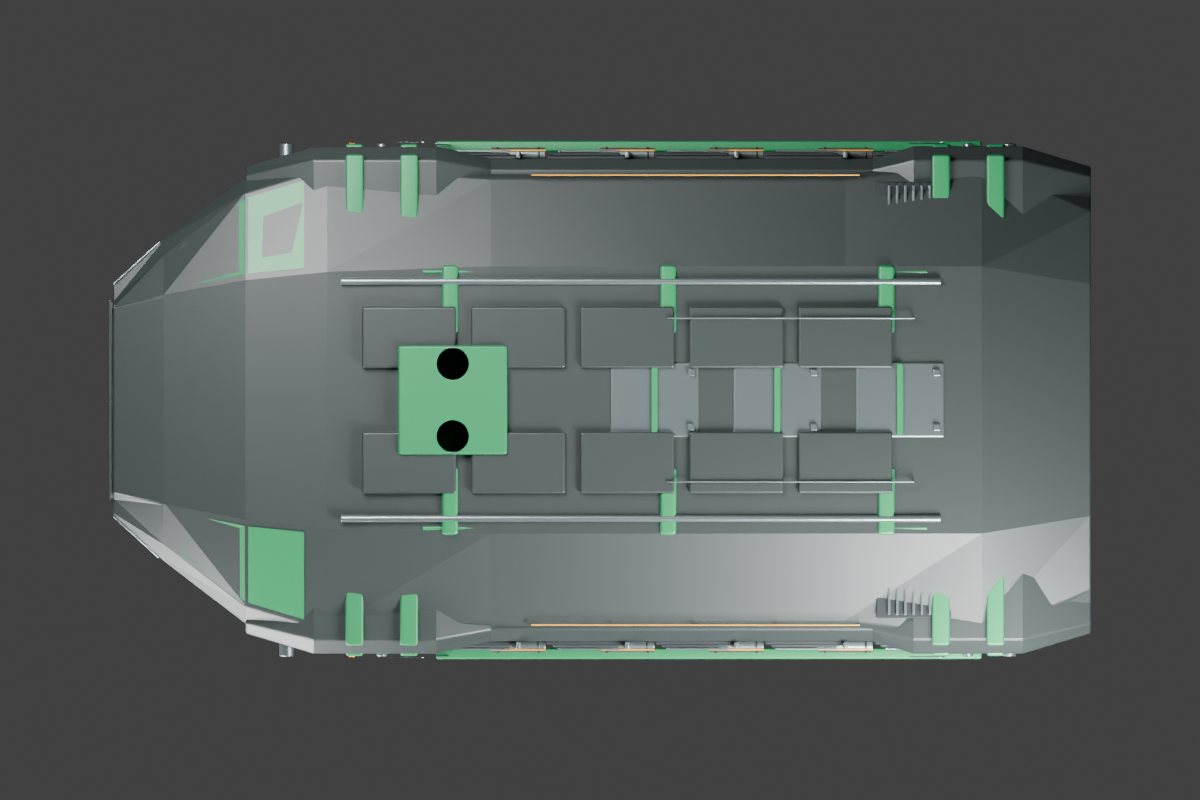

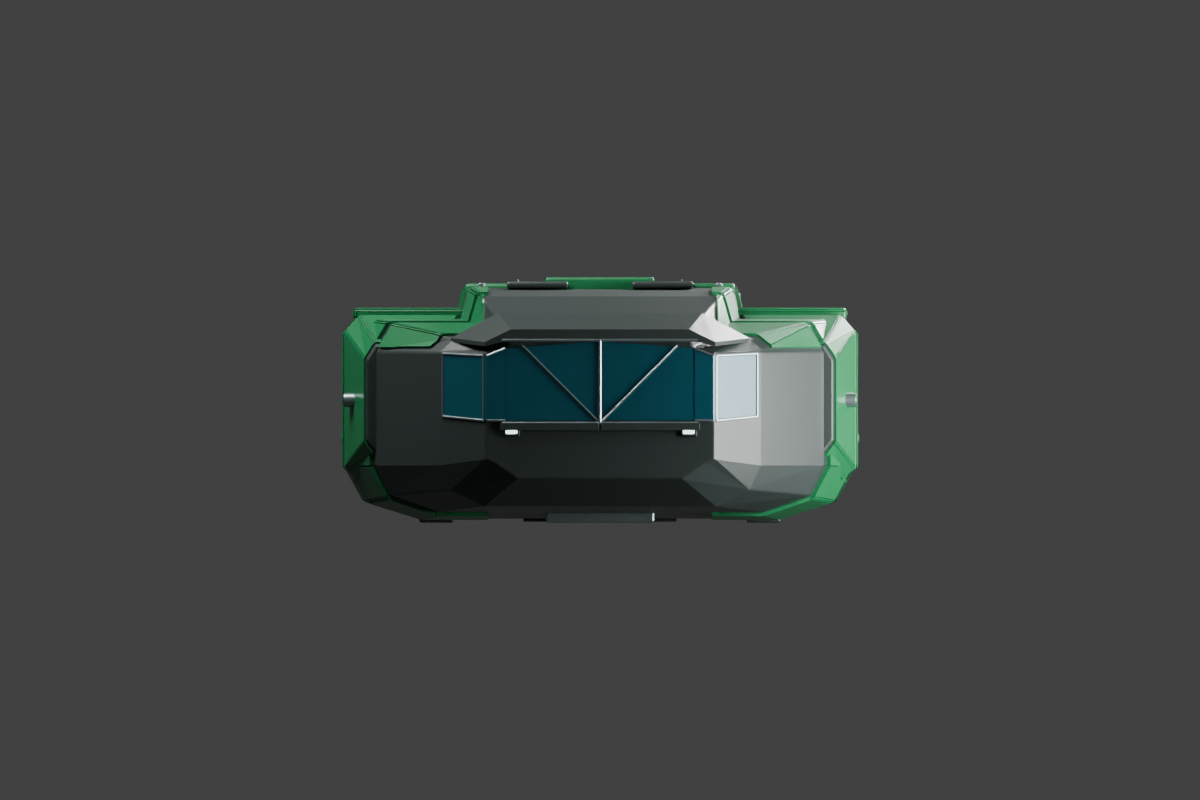

Study 01	front · side · top · quarter
Study 02	front · side · top · quarter
Study 03	front · side · top · quarter

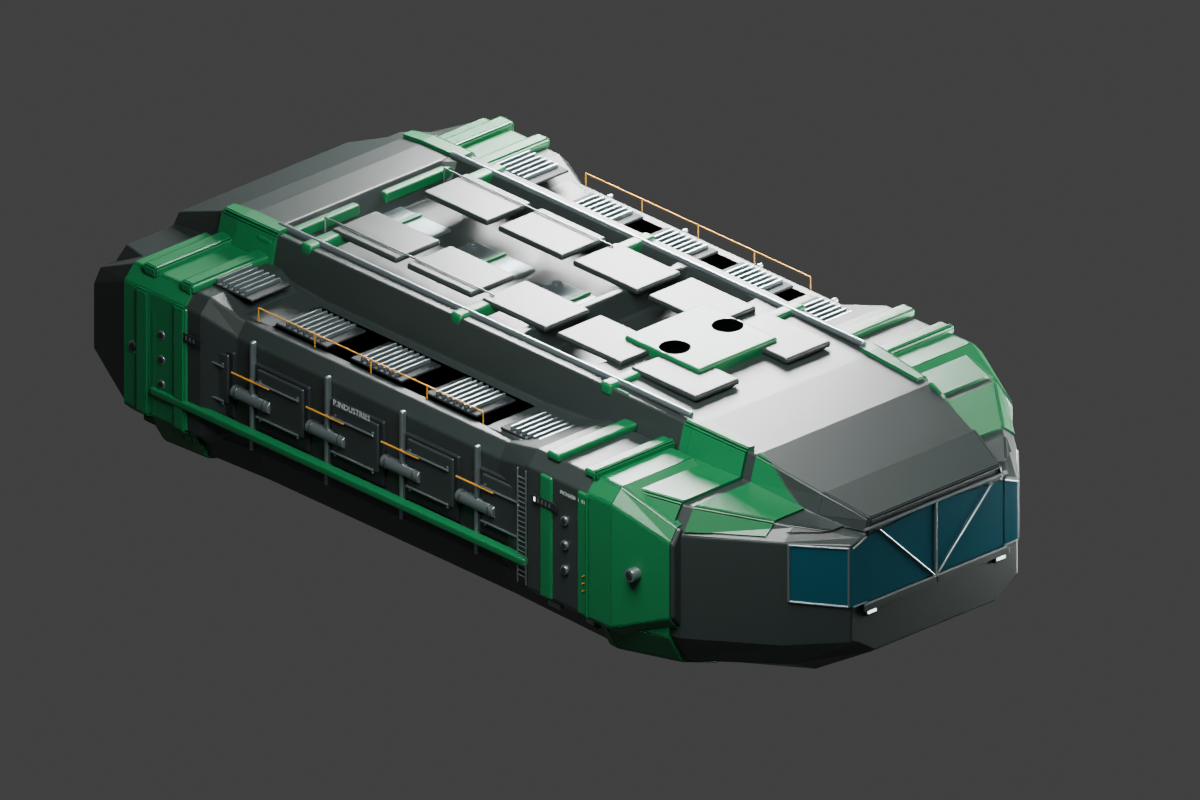

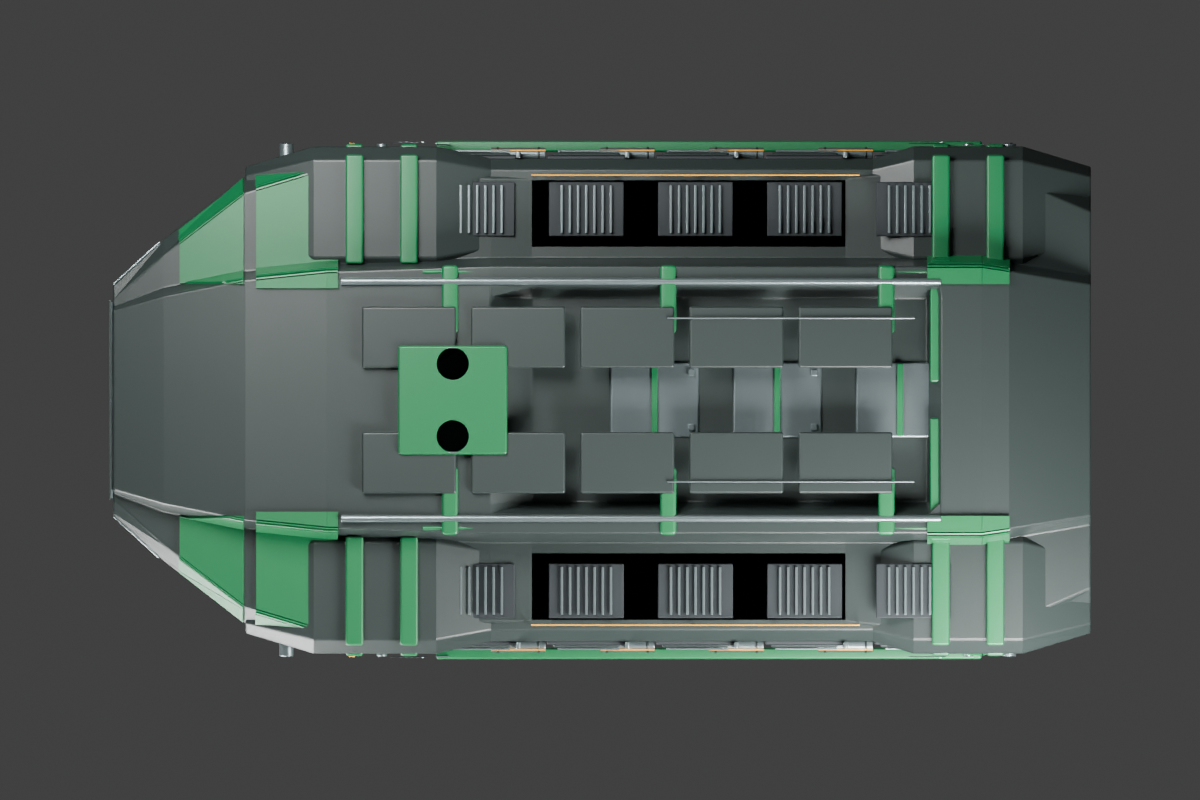

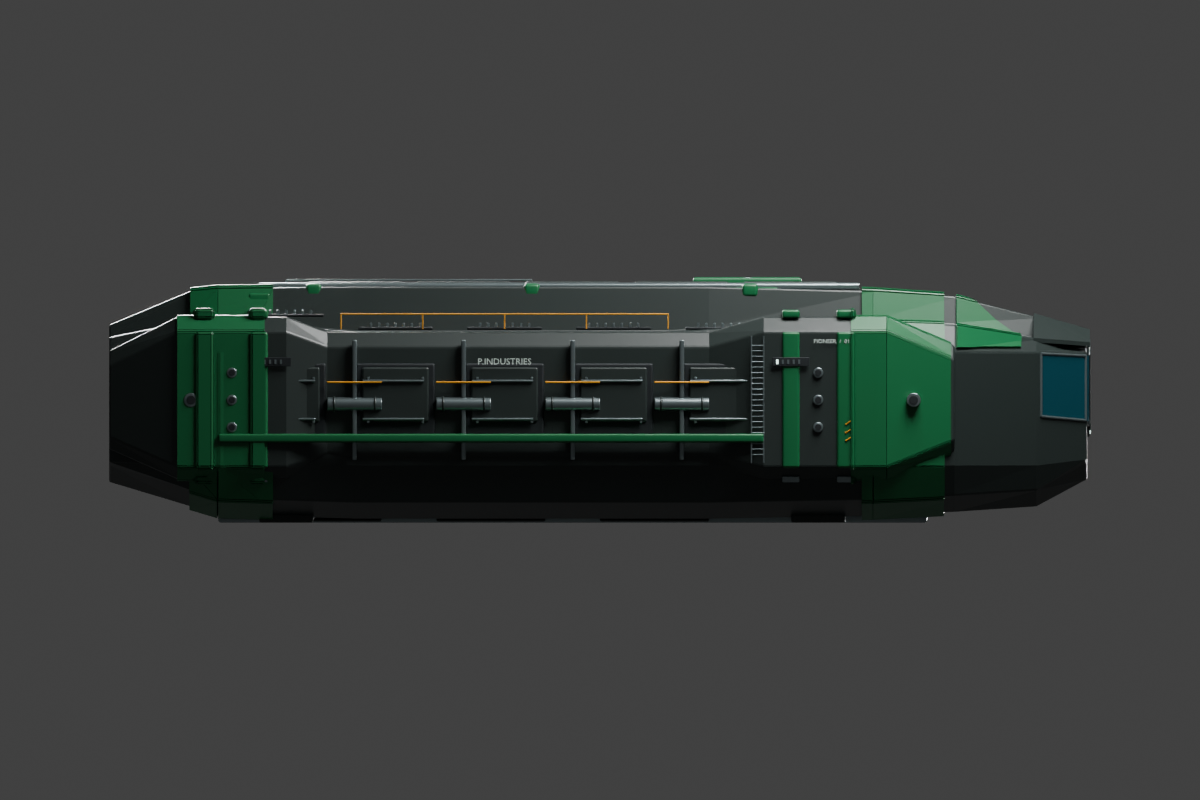

Study 04	front · side · top · quarter
Cloud installed · engine7032	front · side · top · quarter · rear · bottom

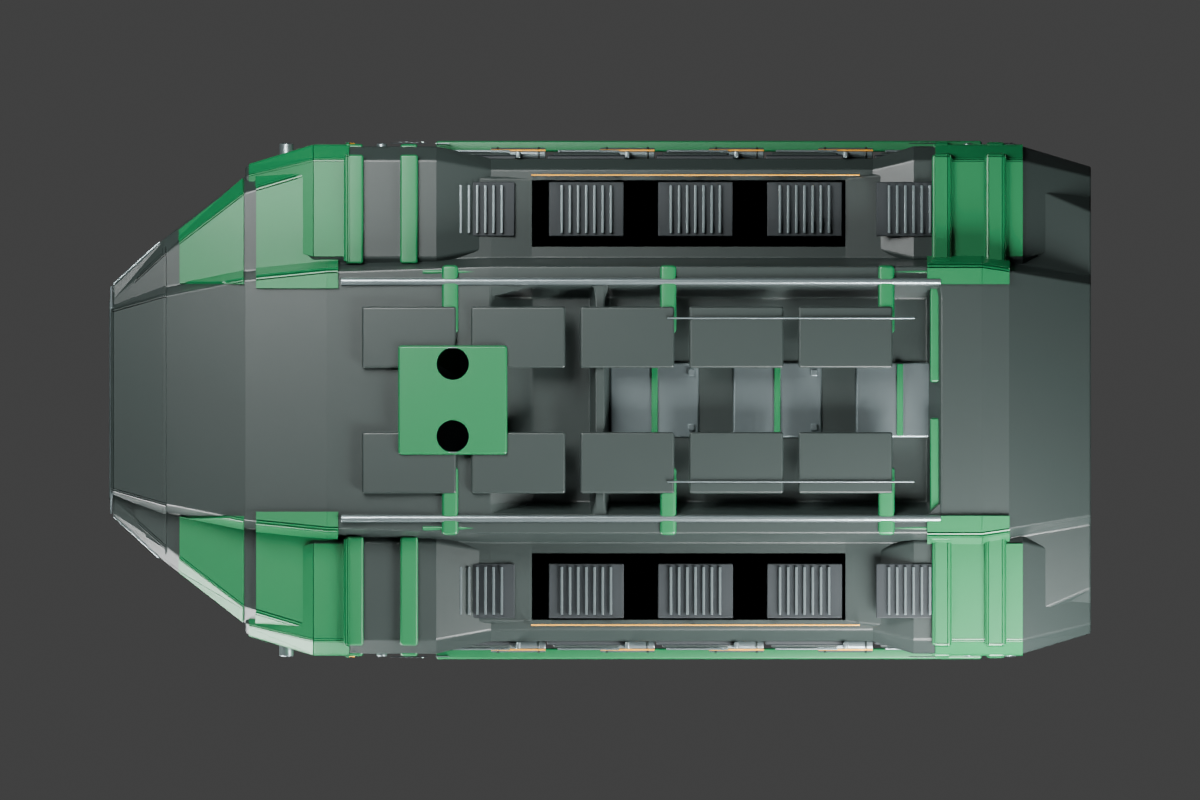

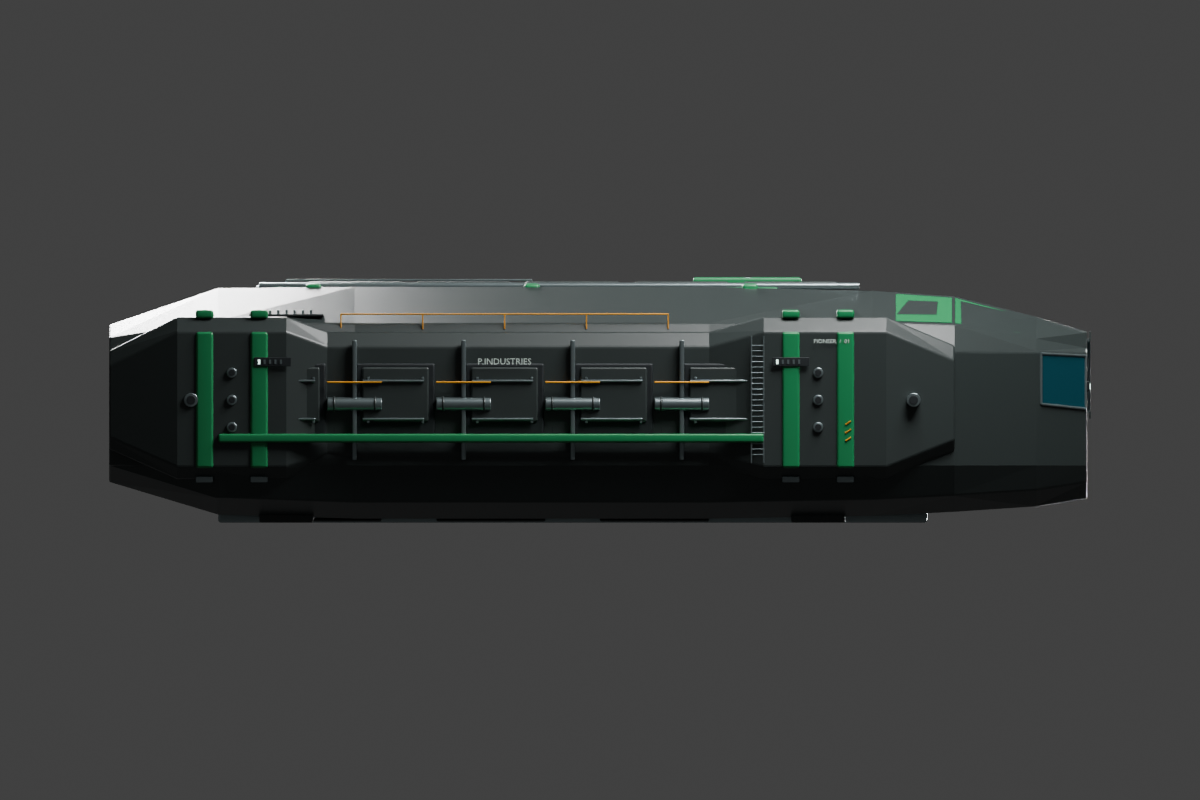

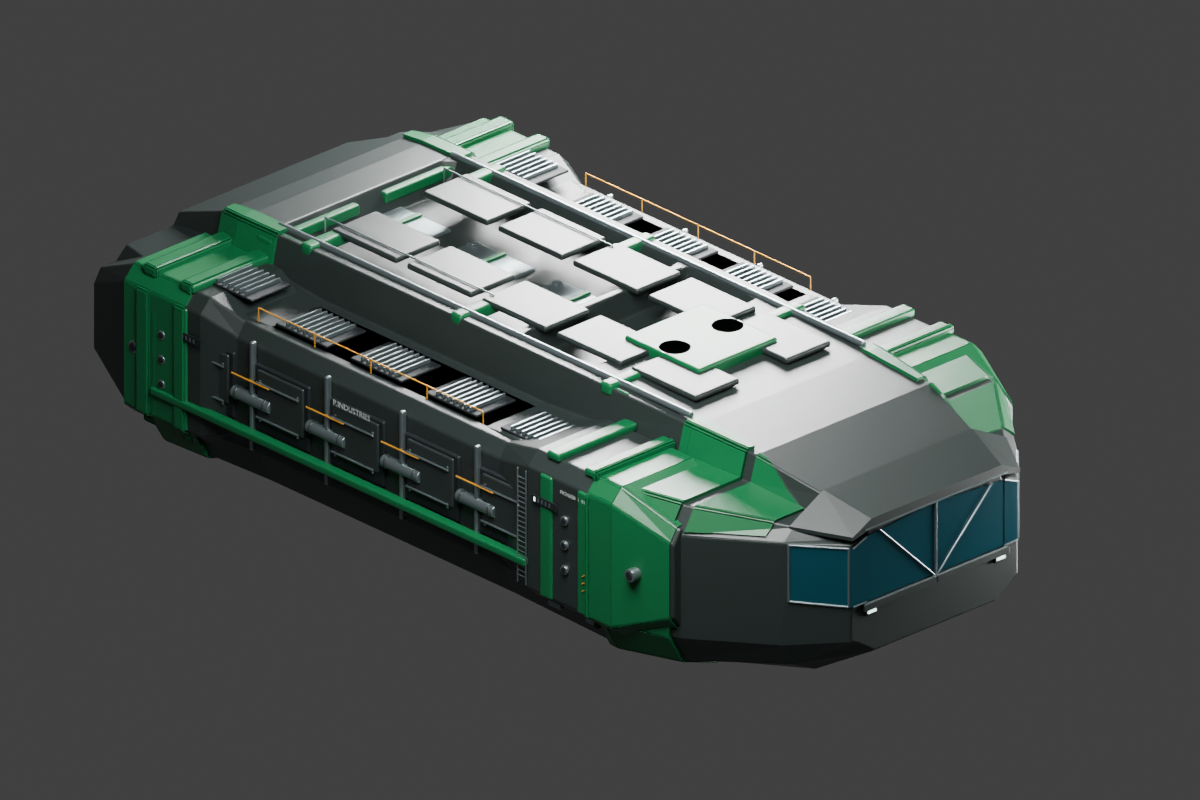

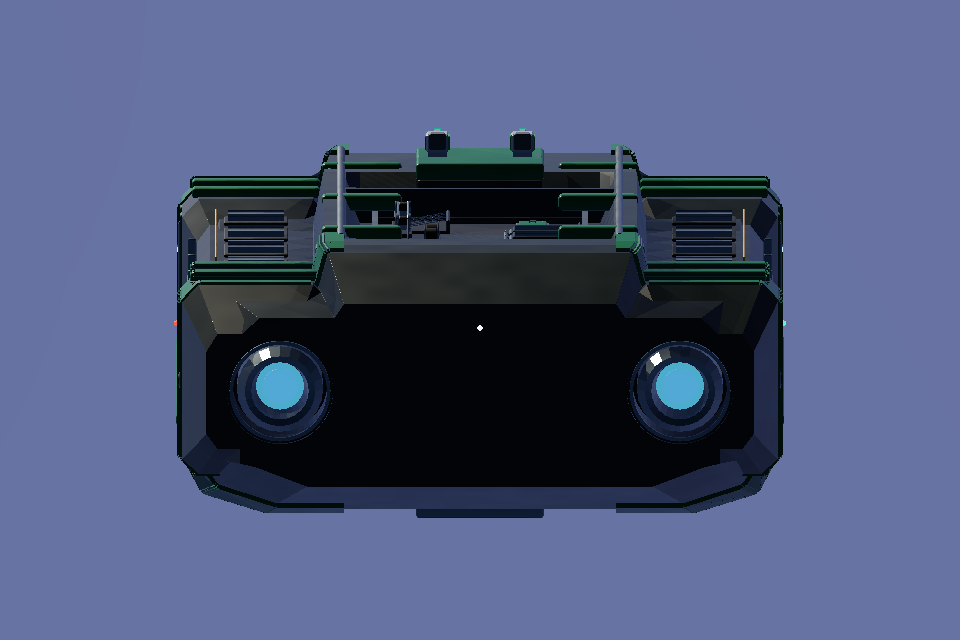

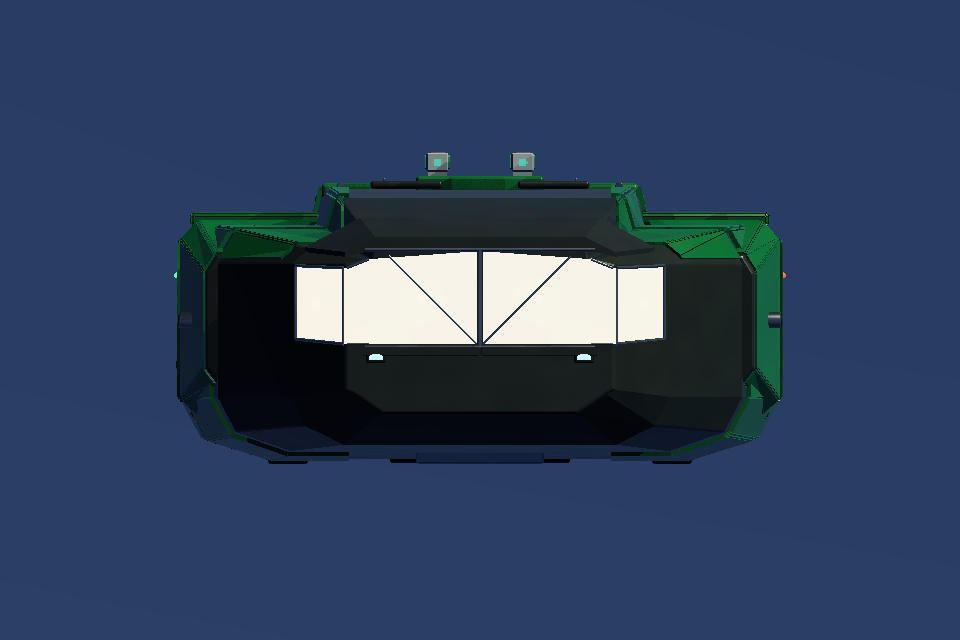

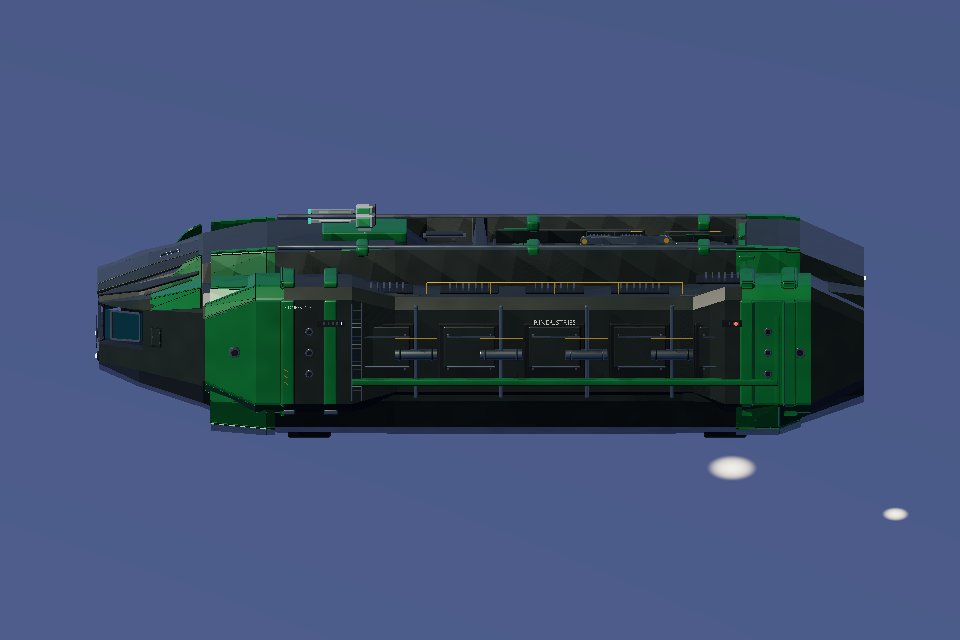

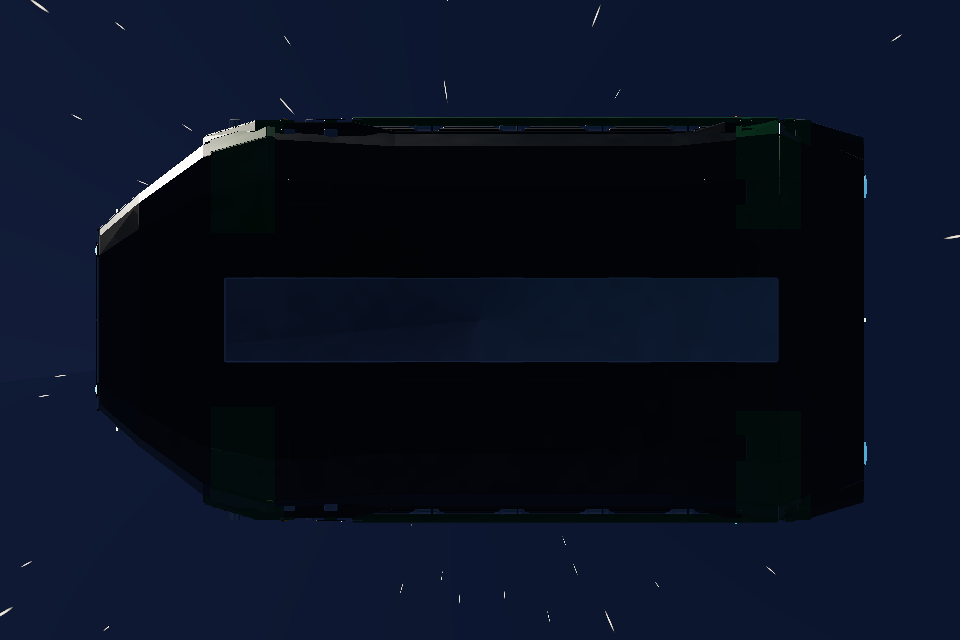

Study05 refined · engine7040	front · side · top · quarter · rear · bridge close · roof close · nozzle close

Before remodel	Latest reviewed study 04

Superseded study 01	Superseded study 02

Download supplied full-resolution reference · Baseline capture provenance. The seven earlier concept/runtime images remain below. This page supplies rendered views and actual model downloads; no embedded interactive 3D viewer is supplied.

Study04 remains preserved as a historical intermediate. Study05 changes the actual source geometry and the declared Window presentation parameters, while retaining the existing systems/hardpoints. Prior-hash graph and accepted-world mismatch protections remain active; no automatic migration is supplied.

The visual acceptance checklist remains open. Study05 resolves its bounded bow/service architecture corrections; remaining whole-ship work is tracked separately:

Area	Remaining visible gap

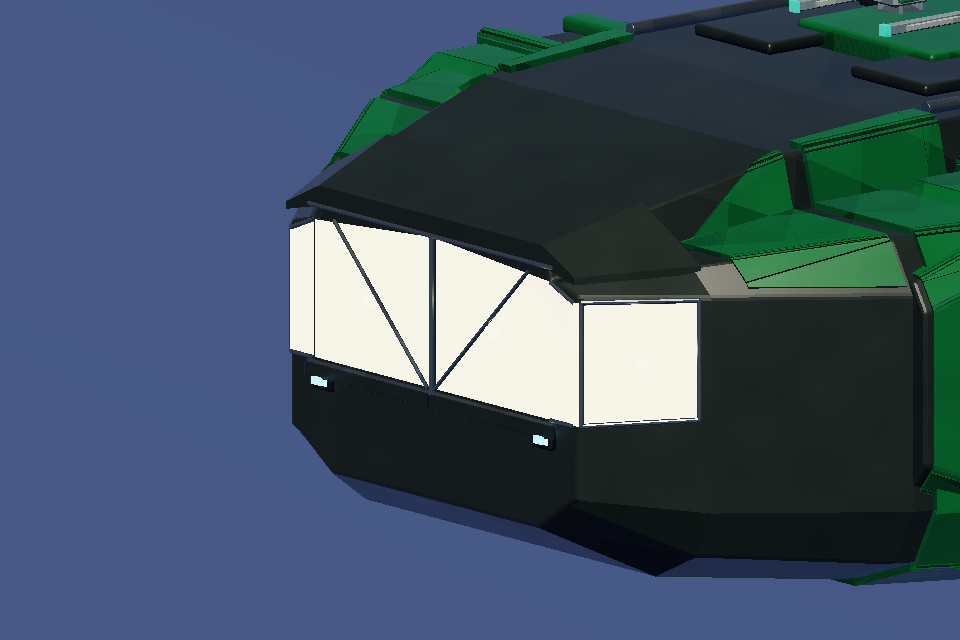

Bow / bridge	Study05 has a shallower chin, three thick faceted brow plates, actual recesses/gaskets and connected frames. Opaque scalar-PBR glazing remains an approximation; no fitted bridge is shown.
Roof / work area	Study05 exposes recessed access/exchanger/handling areas with a fixed folded arm and reels. The arm is less prominent than the raised reference crane, and no operation is implemented.
Underside	A mostly continuous lower beam; stepped armor, supports and service volumes need actual bottom/side review.
Side bays / collars	Equal repeated panels and broad green slabs; the concept has more varied depths, layered structure and fittings.
Aft drives	Study05 opens the actual caps and seats flanges in counterbores around existing bells/throats. Deeper coincident graphite floors remain behind the flanges; no overlap-free CAD or propulsion claim.

Existing dynamic mining turrets belong to the engine and appear in the new engine comparison; the static study images do not justify adding duplicate turrets to the hull. Fixture colors, wattages and pulse timing remain gameplay assumptions. Model adoption is an intermediate implementation checkpoint, not completion of this checklist.

Earlier combined Study04 checkpoint · 2026-10-15

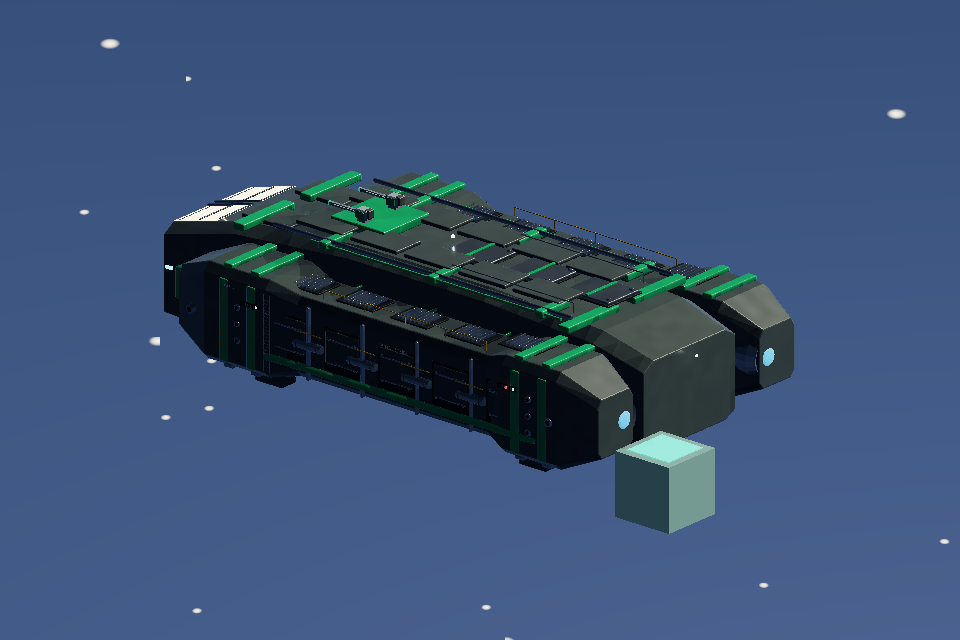

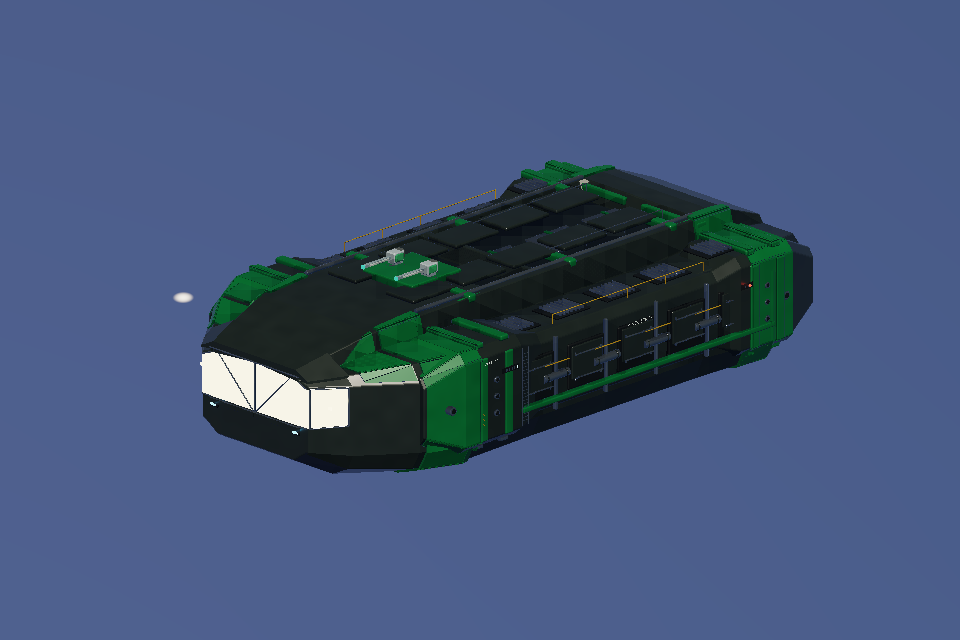

Exterior circuit OFF · drive IDLE	Exterior ON · drive IDLE

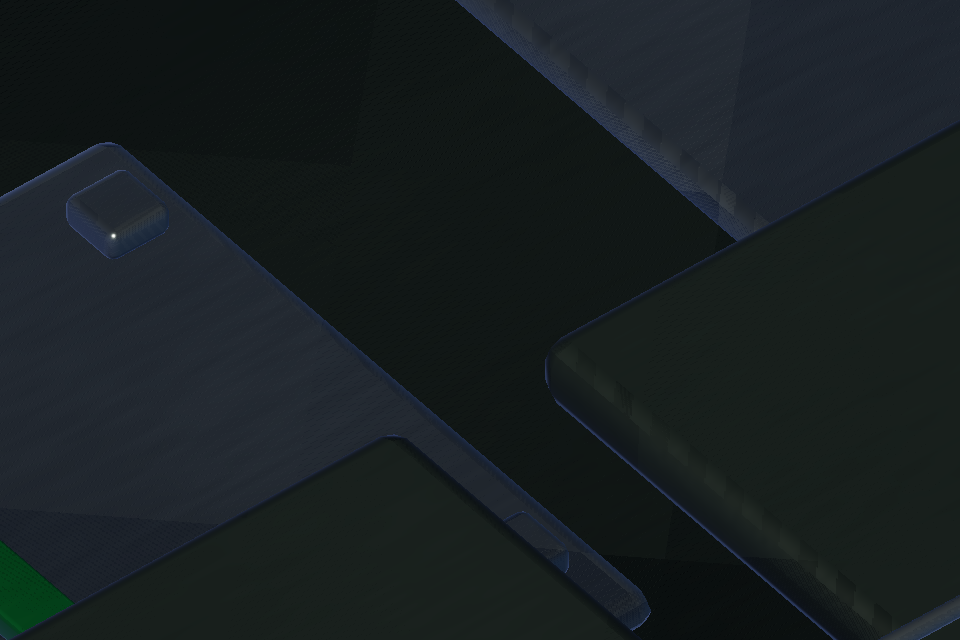

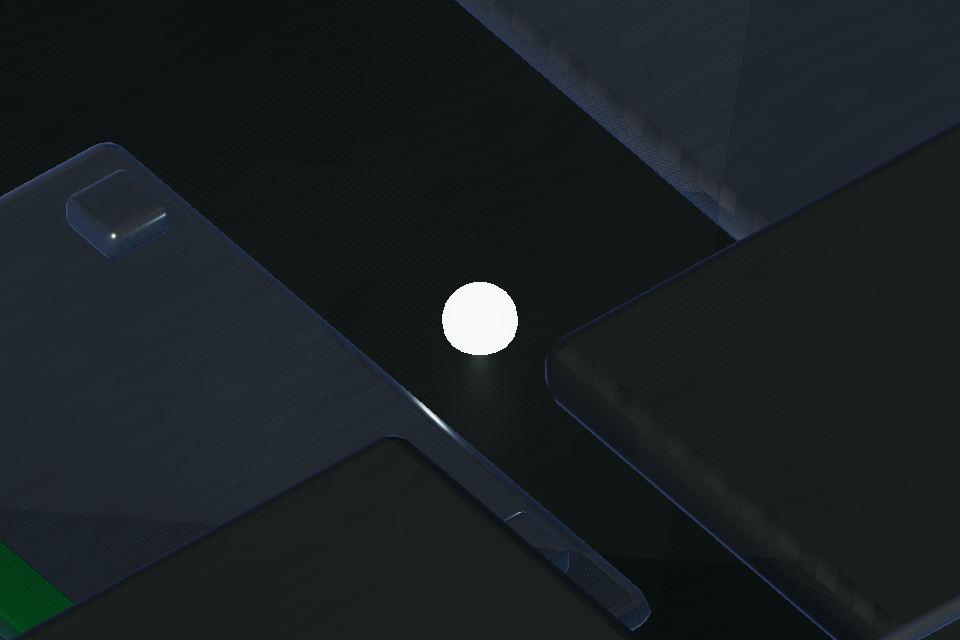

Dorsal strobe ON	After real +50 ms · still ON	After real +100 ms · OFF

Technical record.

Earlier powered exterior checkpoint · industrial baseline · 2026-10-15

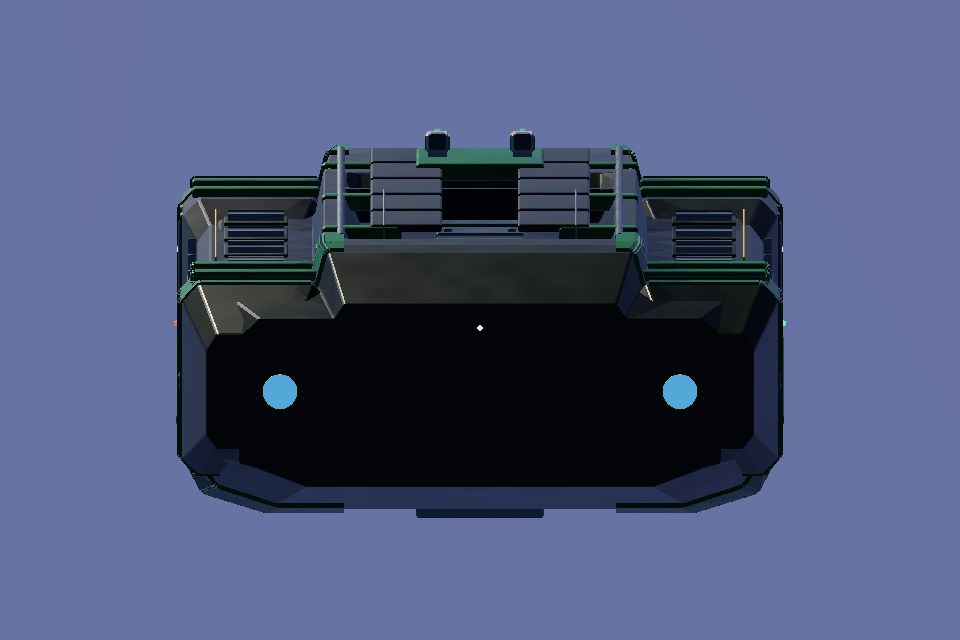

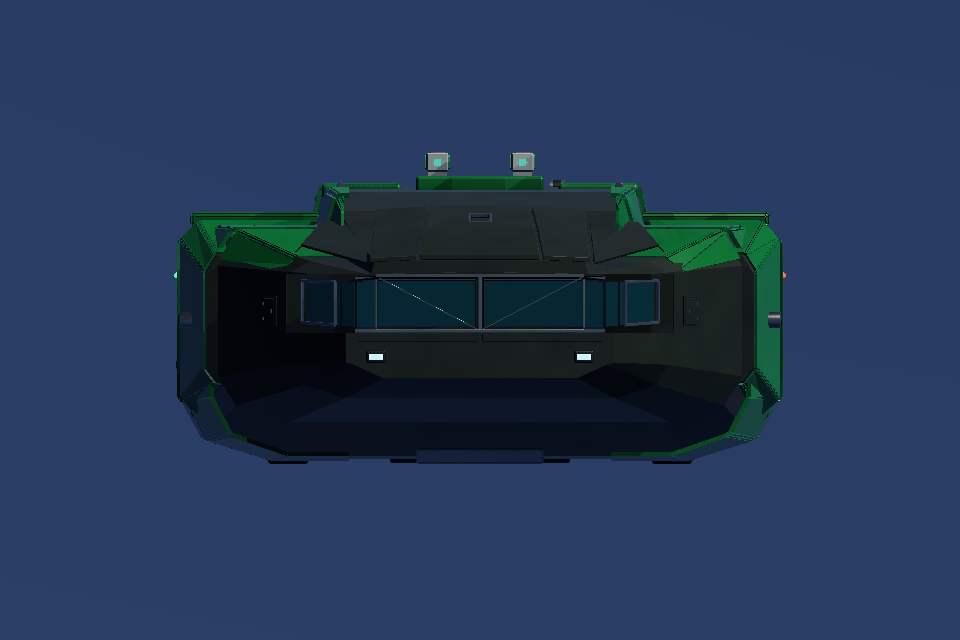

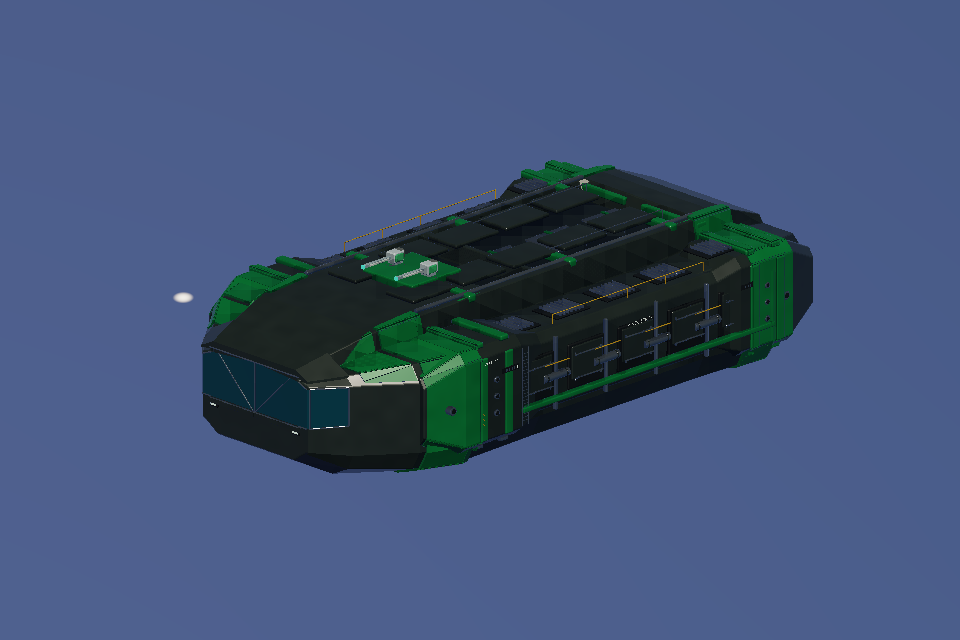

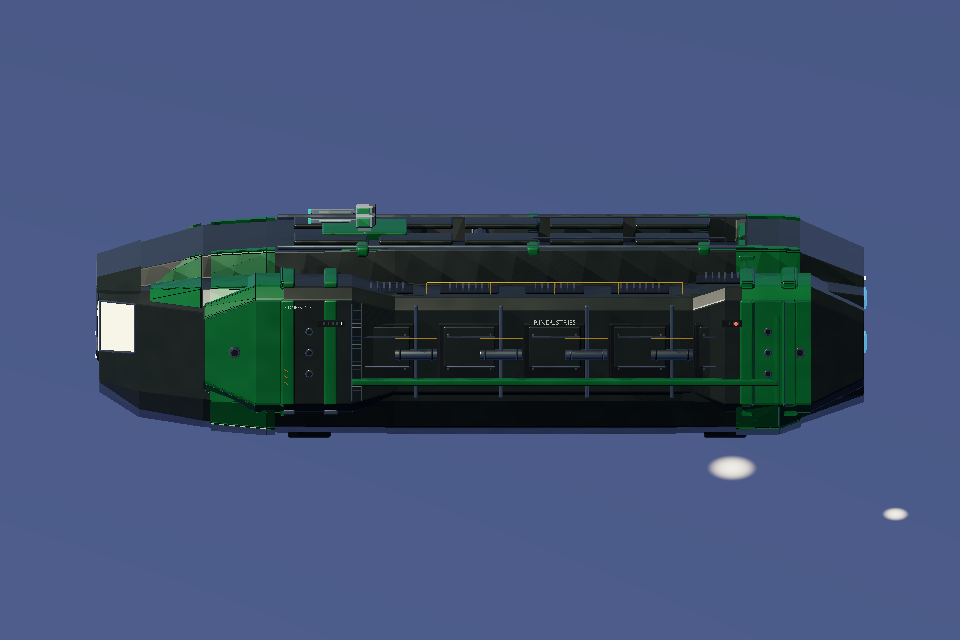

Exterior OFF / drive OFF	Exterior ON / drive IDLE	Exterior ON / drive ACTIVE

Technical record.

Concept history

Superseded images are retained for review. Early drafts include rejected pale hulls, drill-like equipment, invented brand marks, misleading checkboxes or inconsistent dimensions. Their annotations are not authoritative. The accepted direction is black/emerald industrial construction styling with articulated laser mining turrets.

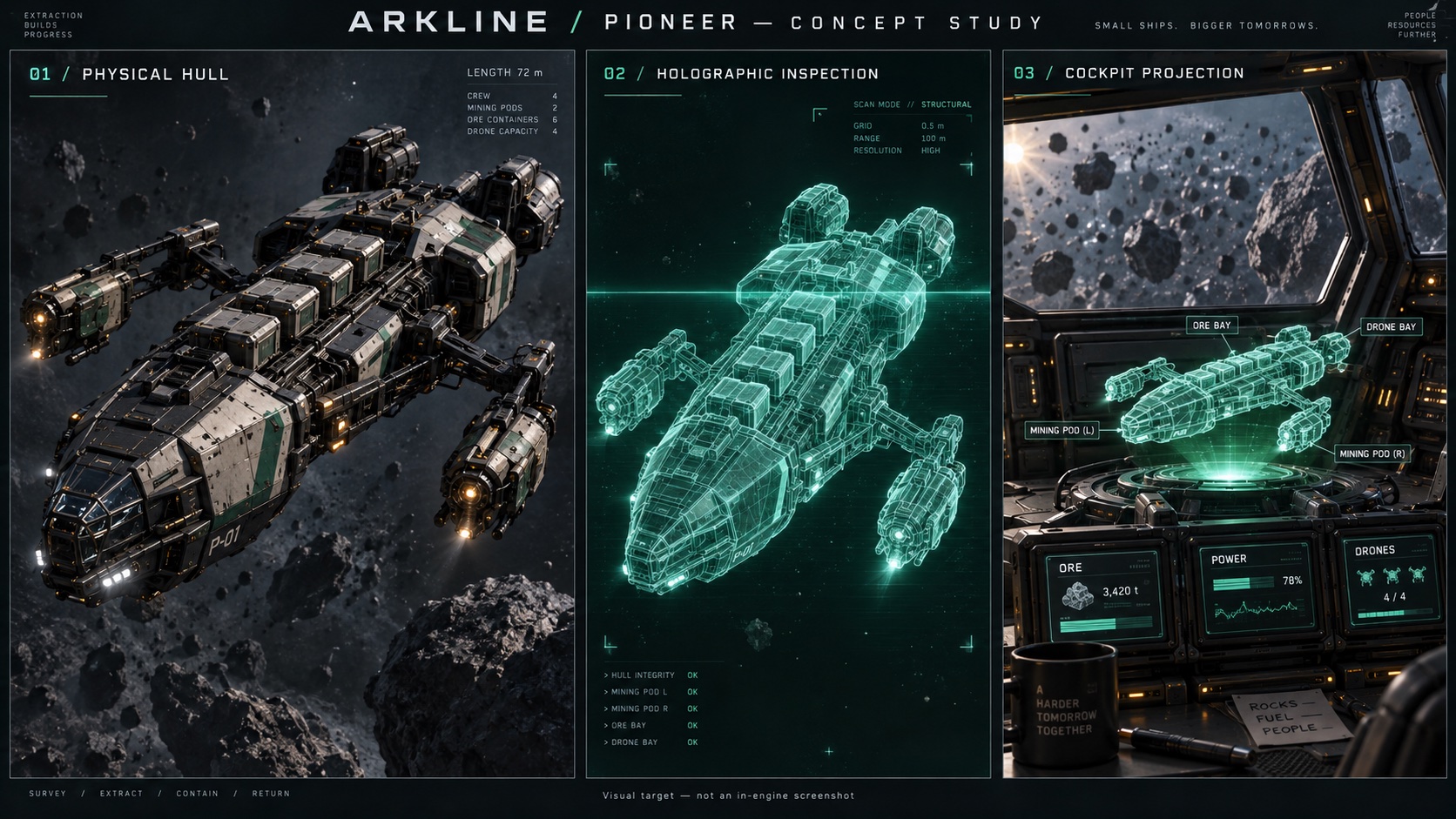

v00-initial-study

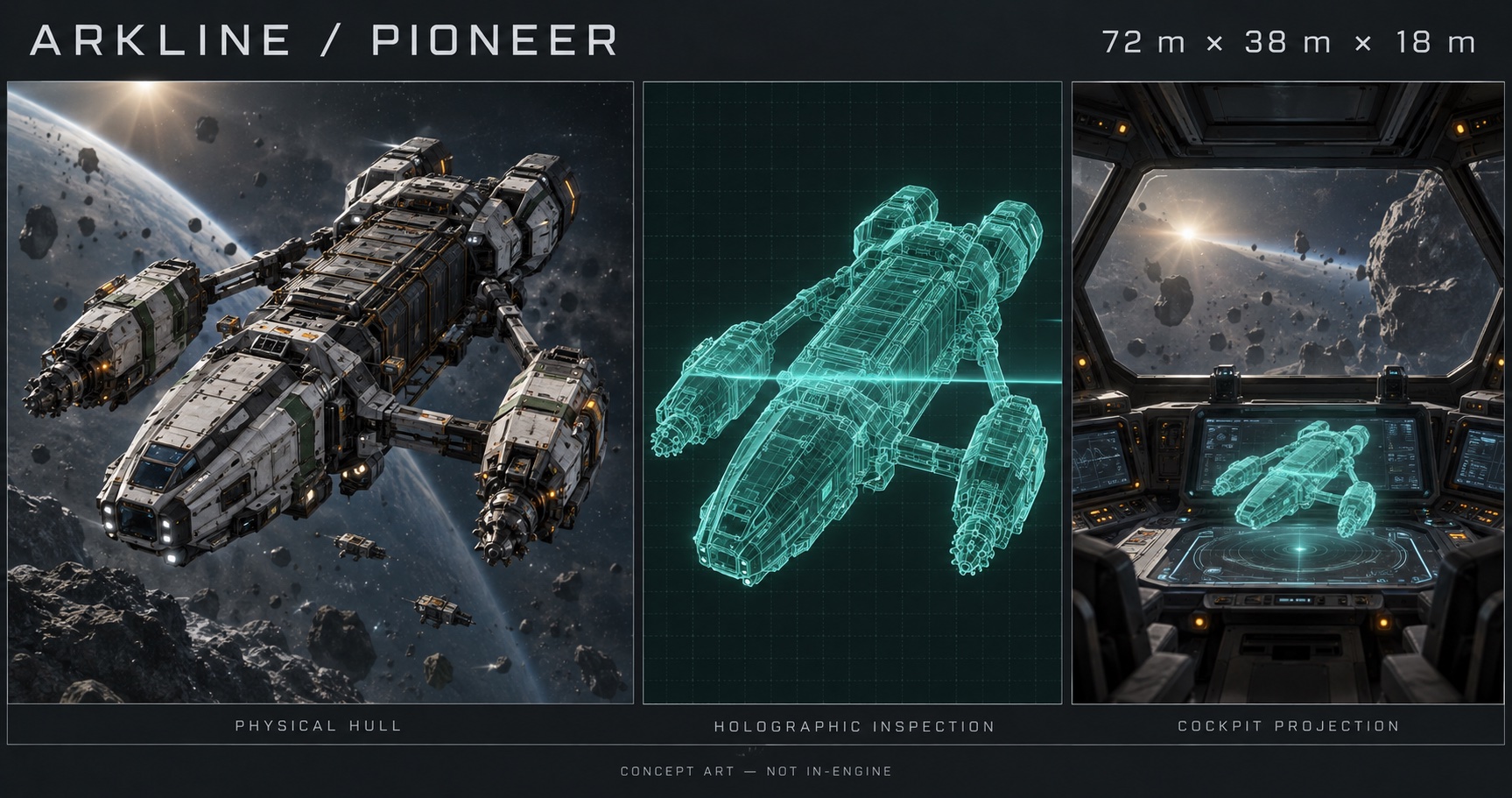

v01-drill-draft-superseded

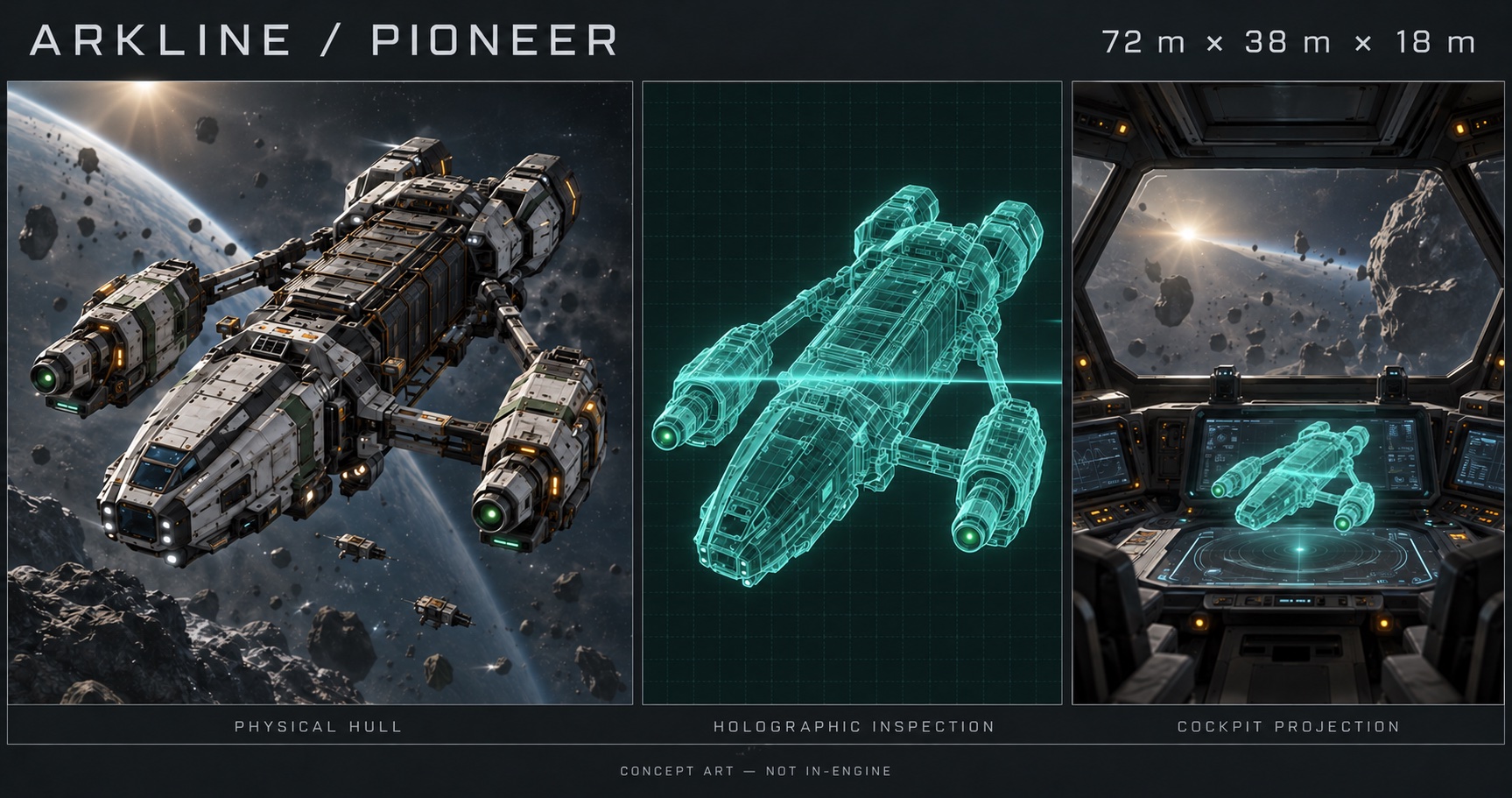

v02-laser-correction

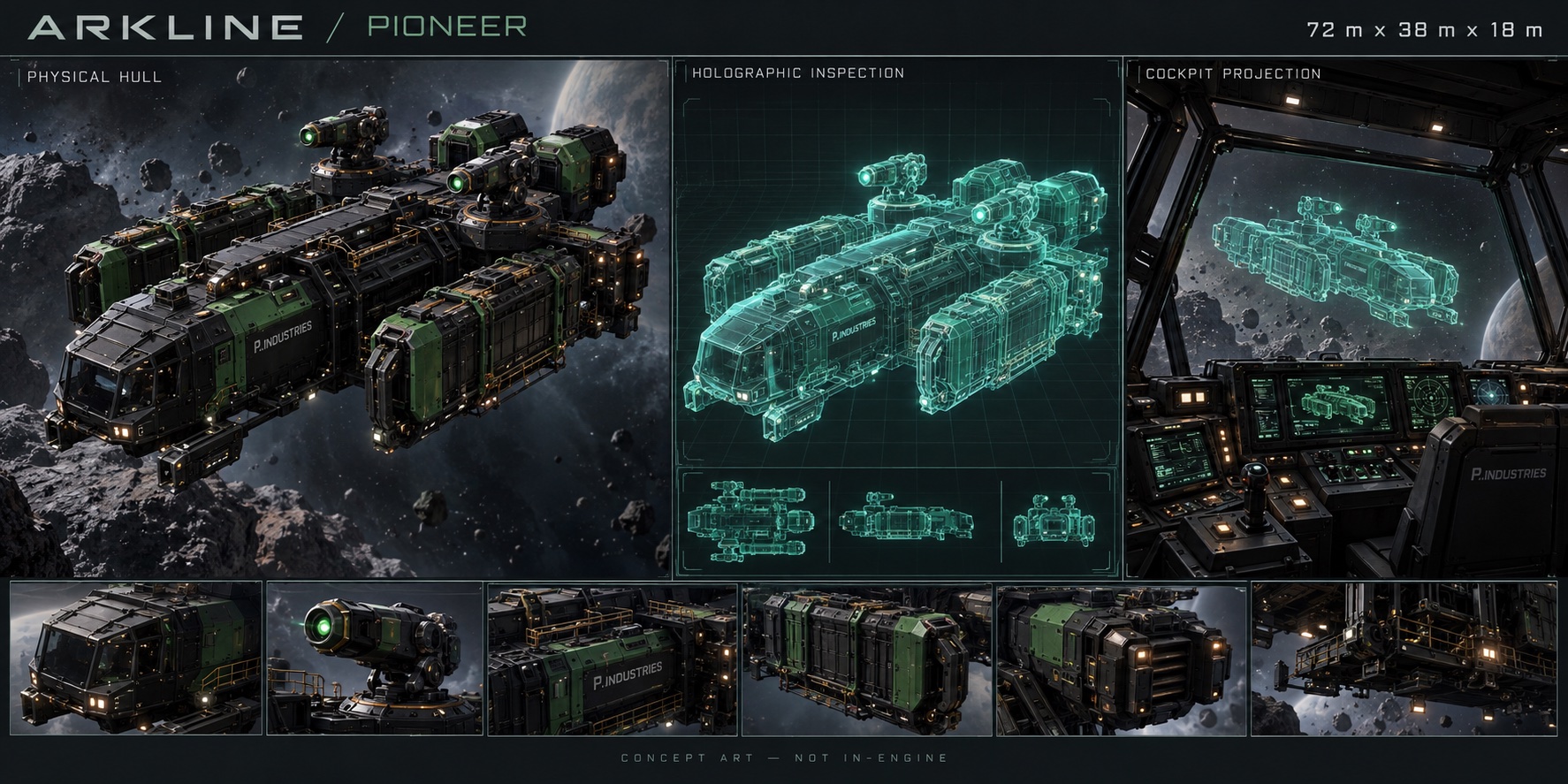

v03-black-green-construction

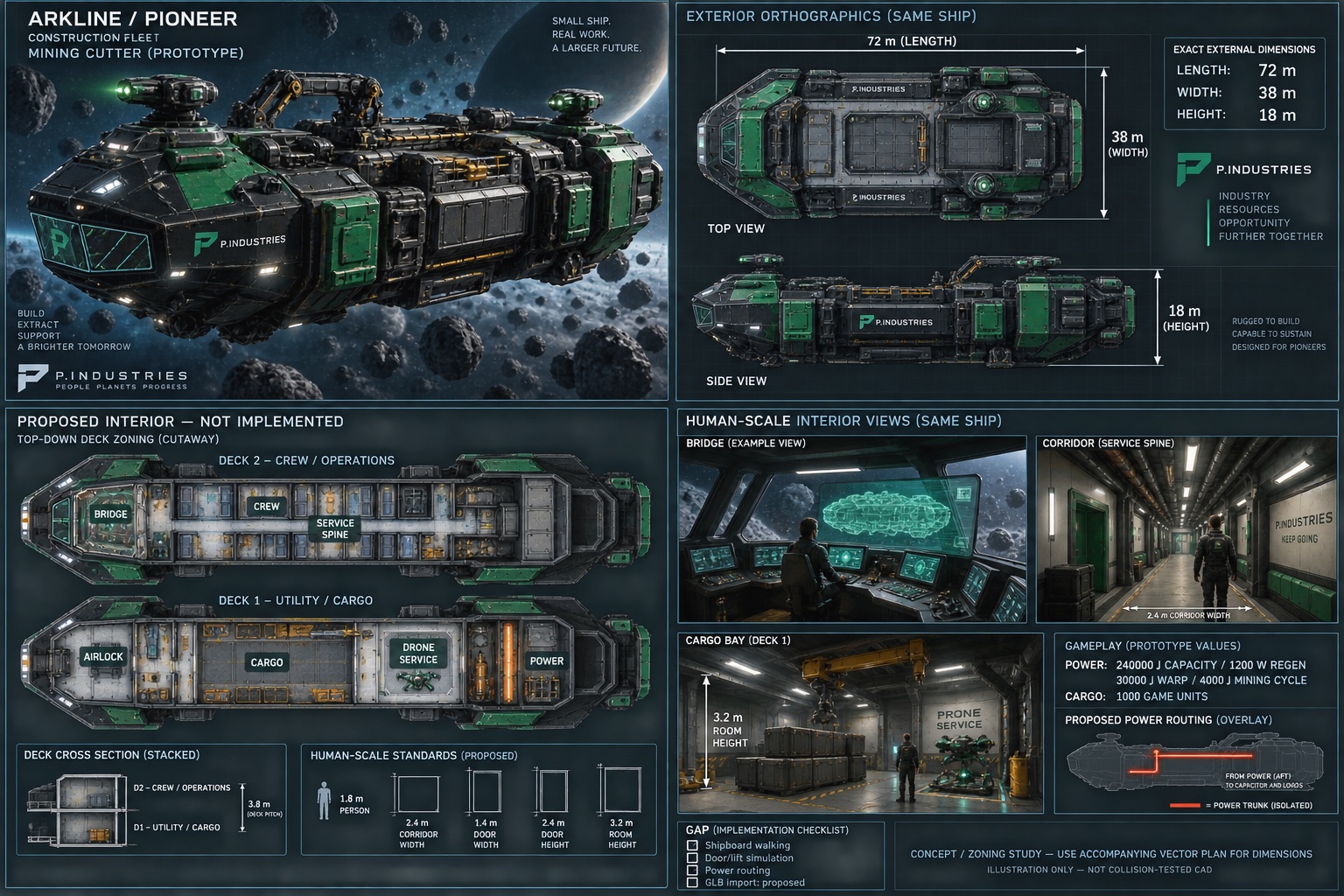

v04-interior-draft

Historical exterior capture

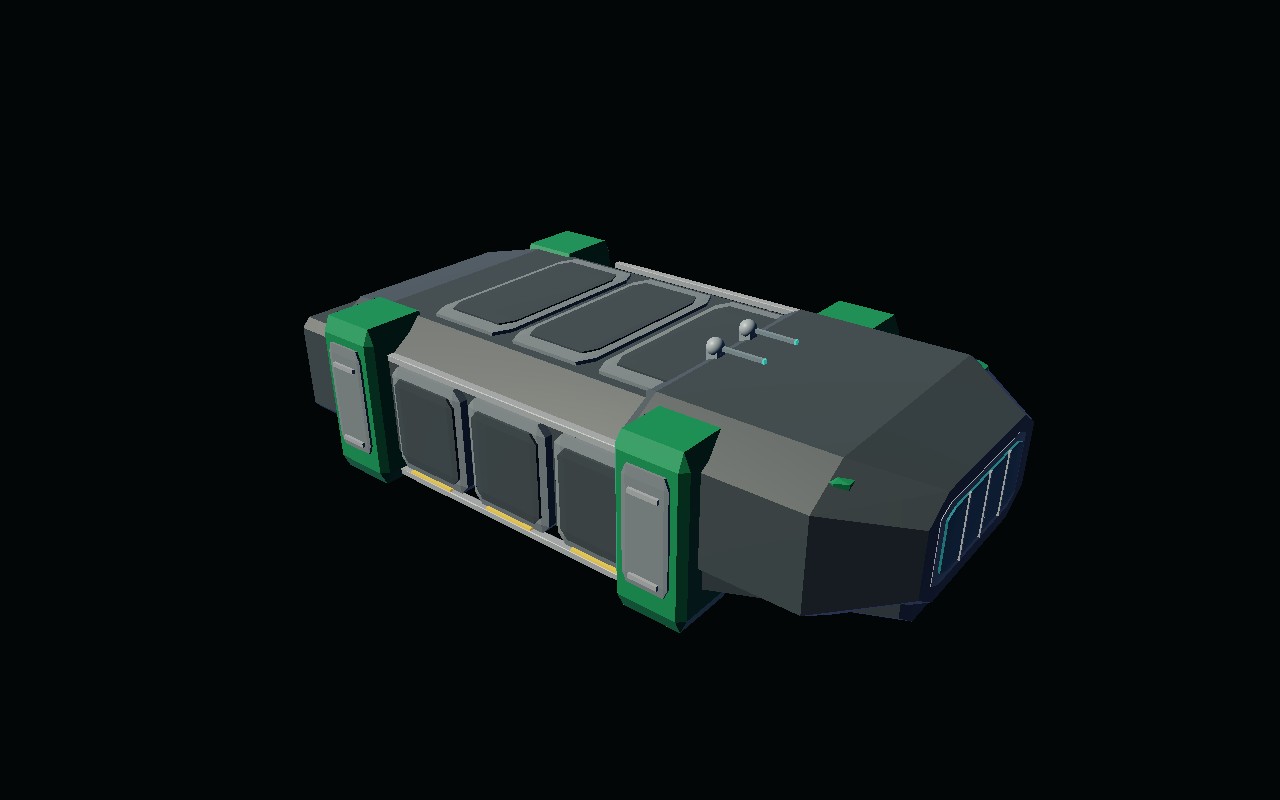

This actual renderer capture from #33 preserves the procedural cutter step before the authored GLB. It is historical evidence, not the current hull or concept art.

Technical references

Source-to-model and live-system checklist

Technical record.

Editor and asset work

Technical record.

Editable vessel, animations and lights

Technical record.

What exists and what must change

Technical record.

Dependency order

Technical record.

First moving-door and light acceptance

Technical record.

Evidence and acceptance

Technical record.

Milestone log

Technical record.

Provenance and upkeep

The concept JPEGs are compressed documentation previews; original PNG hashes and preview hashes are recorded in the image manifest. The original concept archive supplies no executable game assets. The Blender/GLB assets were added separately by #39 and refined in the unmerged #44 stack.

Keep this as Pioneer's lifecycle index. Append dated decisions and evidence, retain superseded designs, and update each work item's implementation/review/native/release state explicitly. The repository Markdown workflow keeps the versioned source reviewable, then synchronizes reviewed content to this wiki; avoid a second independent narrative.
