5.Modelling Sub systems Deliverables - P-division-2020-2021-even/Repo-11 GitHub Wiki
5.1 Subsystem wise 3D Modelling
a)Pen adjusting unit:
1.pen Holder
2.Microservo

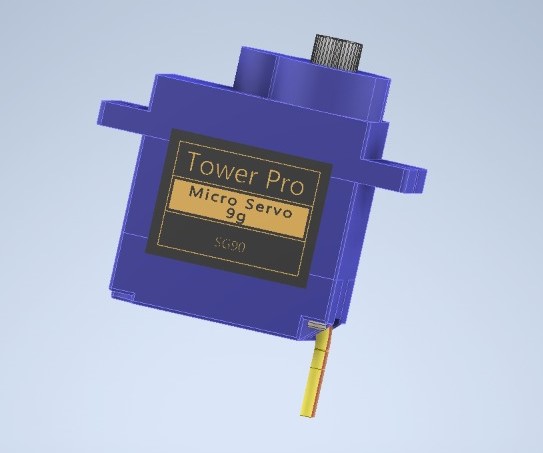

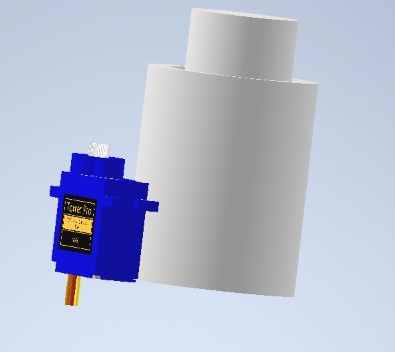

3D Model of pen adjustind Unit:
b)Portability Unit:

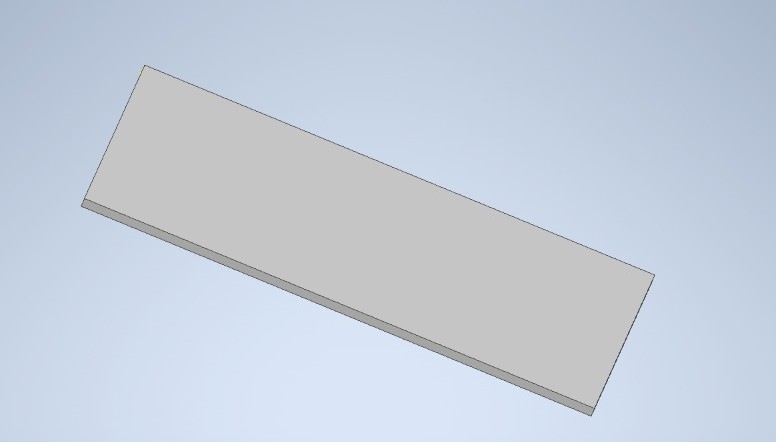

1.base
2.Wheels
3.DC Motor

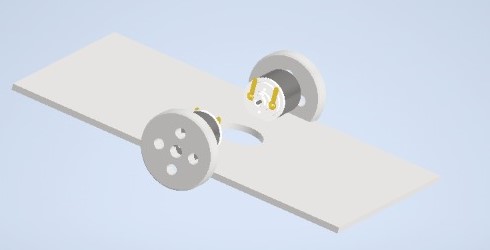

3D Modelling of Portability Unit:
c)Drawing unit:
1.Aurdino Uno

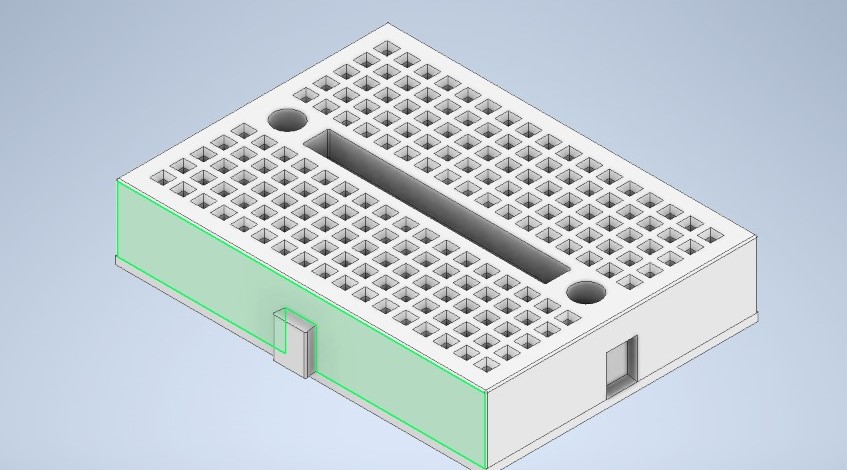

2.Bread board

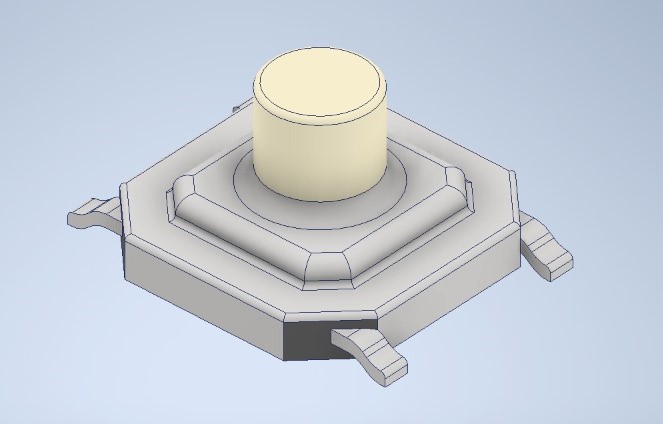

- Switch

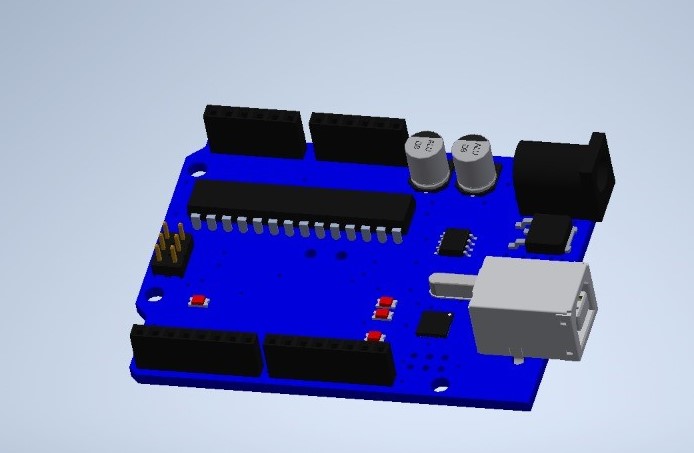

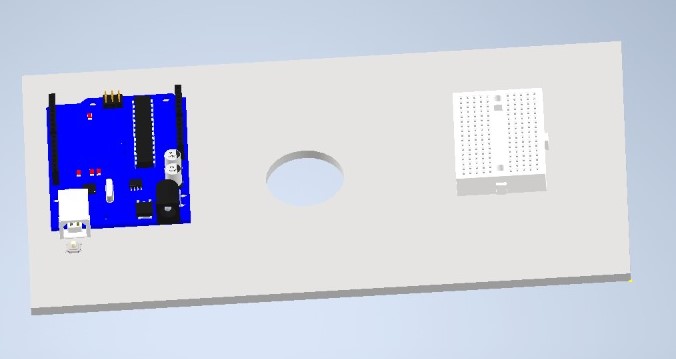

3D Modelling of Drawing Unit:
5.2 subsystem wise Ciruit Diagram:
a) Pen Adjusting circuit:

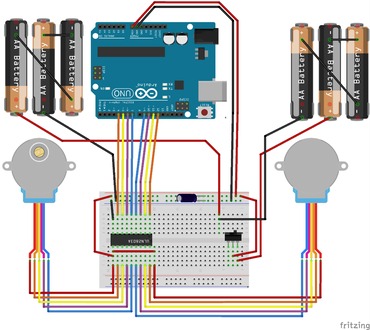

b)Portability cirucuit:

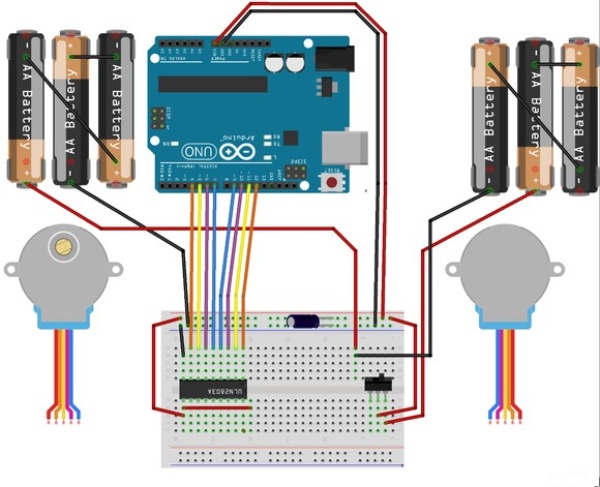

c) Drawing Circuit:
5.3 Subsystem wise Flowchart:

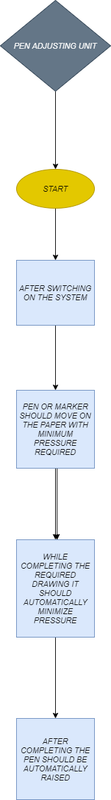

a) Pen adjusting Unit:

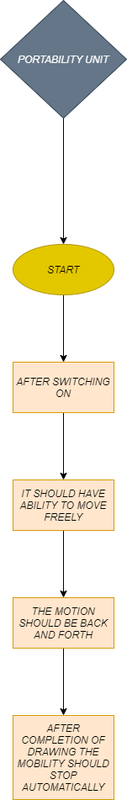

b)Portability Unit:

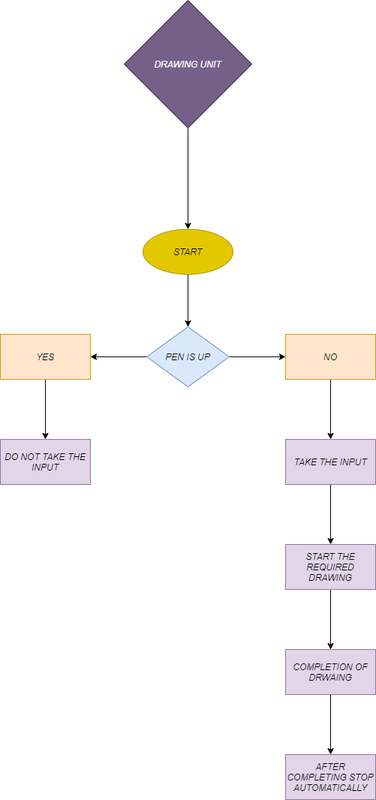

c) Drawing unit:
5.4 SubSuystem wise BOM :
Pen Adjusting Unit:
Sl.No | components | quantity | Dimensions | Price |
---|---|---|---|---|
1 | Micro servo | 1 | 23×12.2×29 mm | 190 |
2 | Male pin header | 1 | 7.8×0.4×0.1 inches | 5 |
3 | M3x6mm falt head screw | 4 | 10×2×10 | 16 |
4 | M3x8mm pan head screw | 10 | 15×15×3 cm | 140 |
5 | M3 Nut | 12 | 6.8×6.7×1.6 cm | 5 |
6 | Hot glue gun | 1 | 5 sticks and 7mm | 100 |
7 | Ball bearing caster | 1 | 3cm thick,2cm diameter | 160 |
Portability Unit:
Sl.No | components | quantity | Dimensions | Price |
---|---|---|---|---|
1 | 2 x AA Holder | 1 | 7×4 cm(width and height) | 170 |
2 | 3 x AA Holder | 1 | 15cm | 99 |
3 | Male-male jumpers | 12 | 10×10 cm | 30 |
4 | Geared 5V Stepper | 2 | 9.23 cm long and 9gms weight | 368 |
5 | wheels | 4 | 30mmradius | 400 |
6 | 1/4" thread forming 4-20 screws | 2 | 31×8.3×3.1 cm | 400 |
7 | Phillips screw driver | 1 | 12 inches | 100 |
8 | DC Motor | 1 | 50 x 50 x 110 Millimeters | 290 |
Drawing Unit:
Sl.No | components | quantity | Dimensions | Price |
---|---|---|---|---|
1 | Aurdino Uno | 1 | 7×5×5 cm | 540 |
2 | Half-size breadboard | 1 | 3.3×0.3 inches | 117 |
3 | capacitor | 1 | 470 uF 25V | 180 |
4 | SPDT slide switch | 1 | 2.1×1.5×2.5 cm | 96 |
5 | USB microcable | 1 | 10.7×7.5v3.3 cm | 130 |
6 | AA Batteries | 5 | 11.6×5.1×1.4 | 90 |
7 | ULN2803 Darlington Driver | 1 | 10.5×7.5×1.2 cm | 80 |
