3.Concept Design - P-division-2020-2021-even/Repo-11 GitHub Wiki
3.1 Establishing the functions
List of all identified functions:
| Sl.N | Functions |
|---|---|
| 1 | It should be able to use the pens by holding them tightly. |
| 2 | It should automatically raise and lower the pen. |
| 3 | machine should draw the drawing. |
| 4 | machine should be able to rotate and move easily. |
| 5 | turning on/off should be done by a switch. |

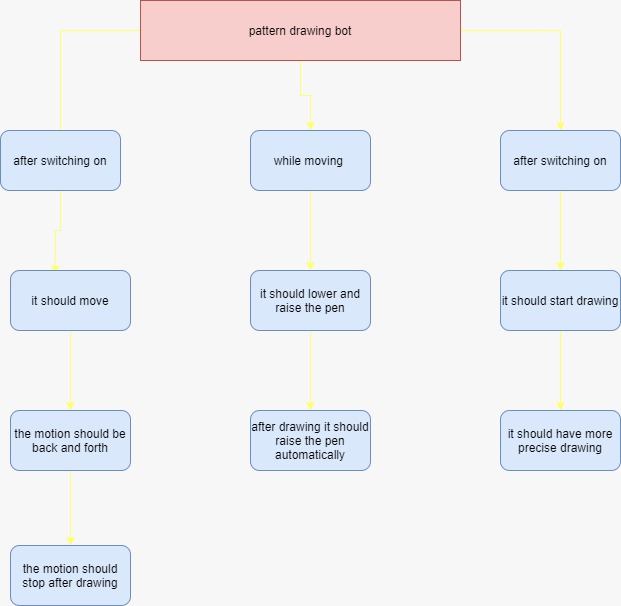

3.2 Function tree

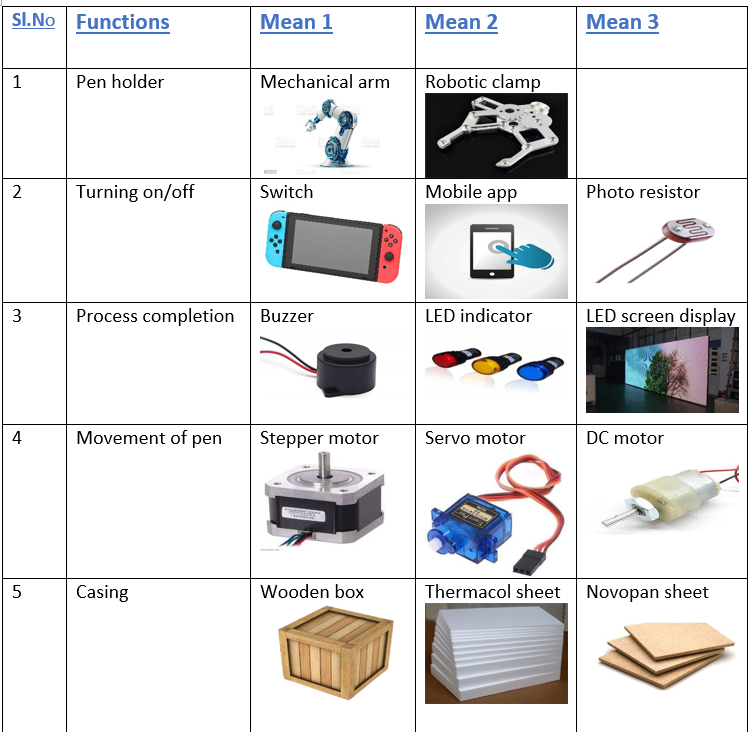

3.3 Morphological chart
3.4 Generated concepts

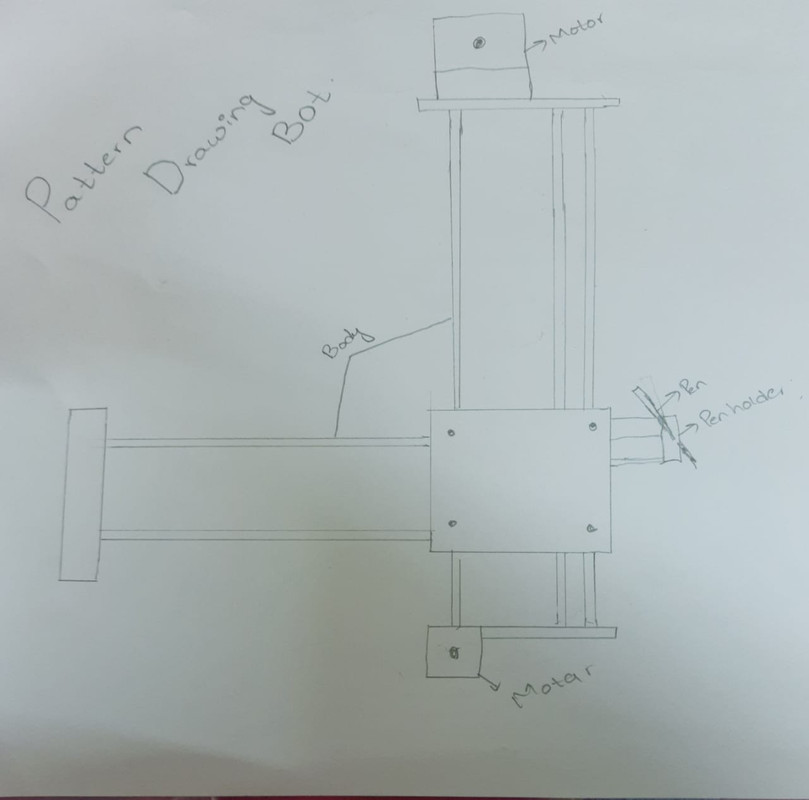

design 1 :-

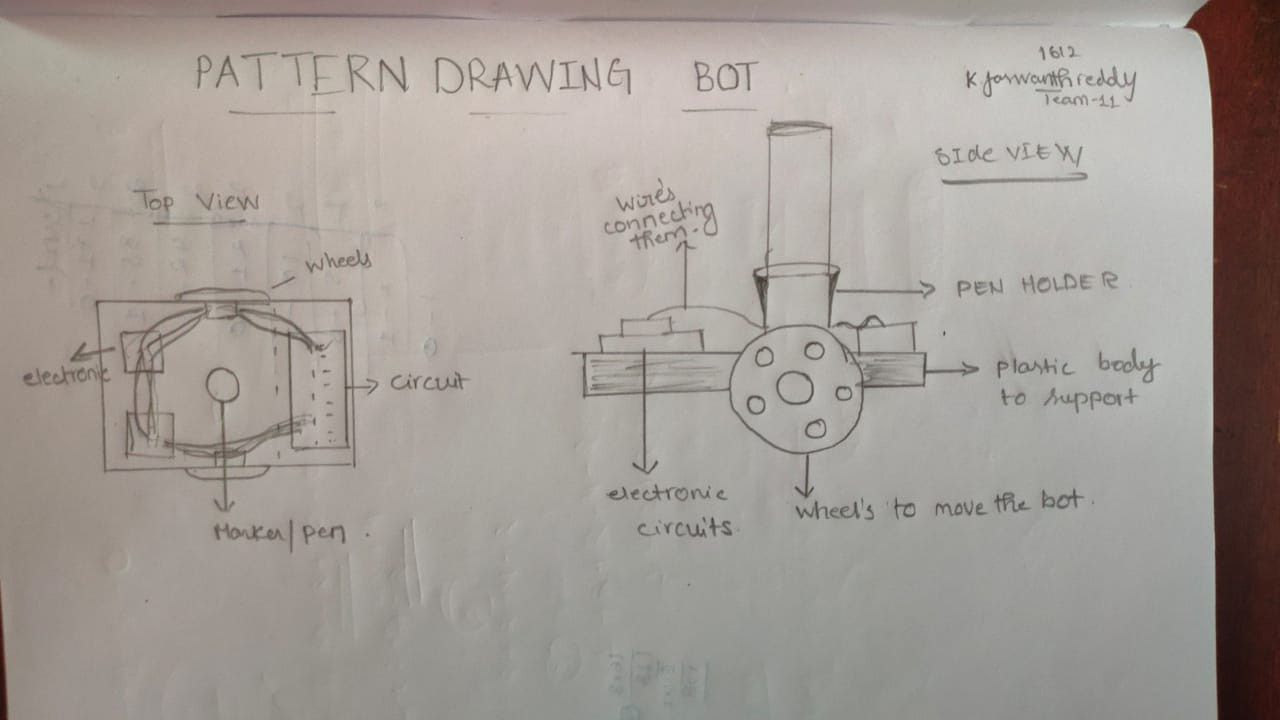

design 2 :-

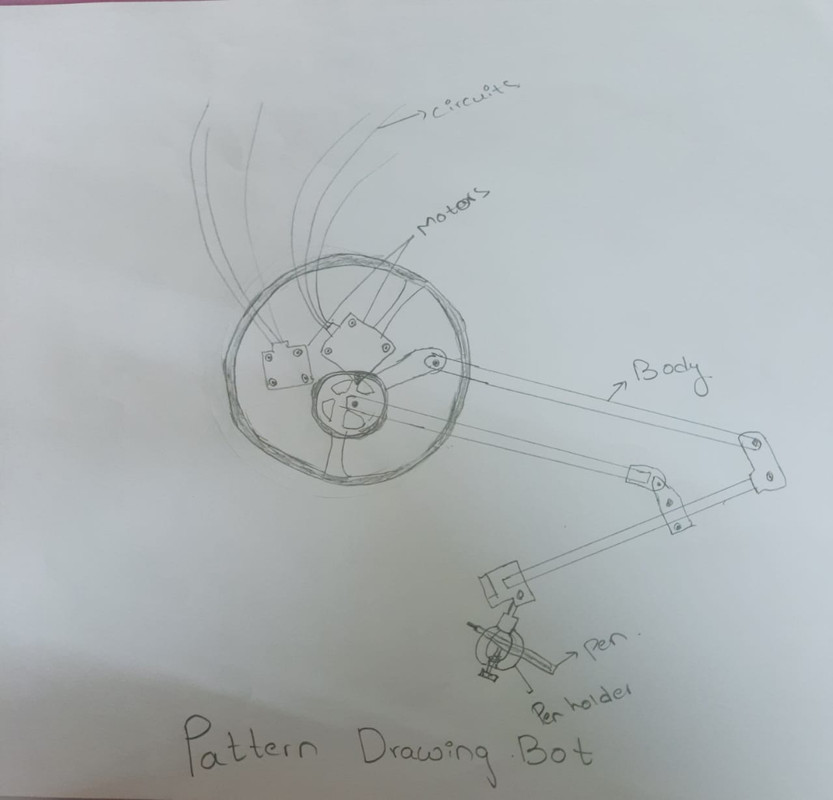

design 3 :-

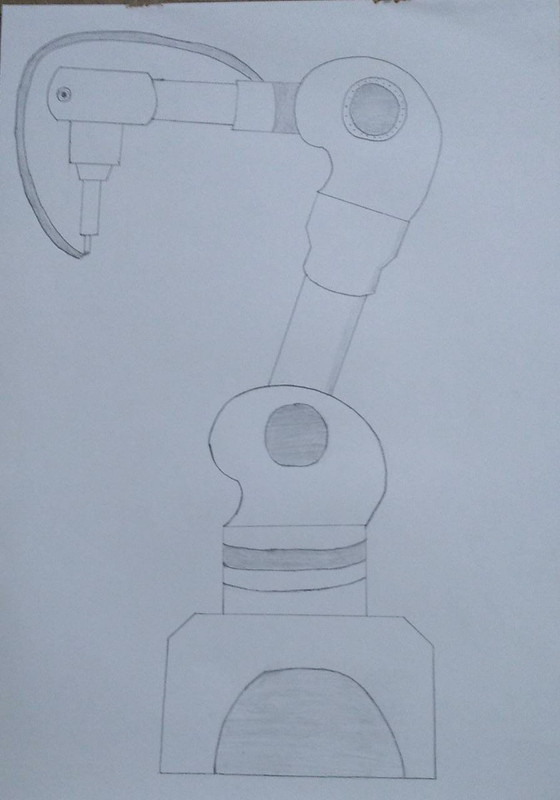

design 4:-
