4.1 ASSIGN WEIGHTS TO THE OBJECTIVE

SL.NO	OBJECTIVE	WEIGHTS
1	Reliability	9
2	Portability	7
3	User Friendly	7
4	Automatic	6

4.2 PUGH CHART

SL.NO	DESIGN OBJECTIVE	WEIGHTS	DESIGN 1	DESIGN 2	DESIGN 3	DESIGN4
1	Reliability	9	++	Datum	-	--
2	Portability	7	+	Datum	+	0
3	User Friendly	7	++	Datum	0	+
4	Automatic	6	0	Datum	+	0
	Score (+)		39		13	7
	Score (-)		0		9	18
	Total Score		39	0	4	-11

4.3 Justification for marks given to the Concepts/designs

Design Number	Objective	Score Allocated	Justification for score allocated
1	Reliability	18	Design 1 is more secure than datum as all its electronic circuits are hidden inside the locker and so it can't be manipulated and it also has loud alarm .
	Portability	7	The design 1 is more portable as its components are tightly intact inside locker which makes it easy to carry and also it is operated on battery
	User-Friendly	14	The design 1 is much more easy to use and configure than datum due to its simple numeric keypad,which everyone can understand and everyone can easily setup
	Automatic	0	Both the designs have same level of automation in them

Design Number	Objective	Score Allocated	Justification for score allocated
2	Reliability	0	Datum
	Portability	0	Datum
	User-Friendly	0	Datum
	Automatic	0	Datum

Design Number	Objective	Score Allocated	Justification for score allocated
3	Reliability	-9	Design 3 is less secure than datum as all its electronic circuits are not hidden inside the locker and so it can be manipulated
	Portability	7	This operates on battery unlike Datum and design 4 which makes it more portable and carriable anywhere
	User-Friendly	0	Design 3 and datum both has same level of user friendly
	Automatic	6	It has almost all the processes automated unlike datum,example automatic lighting after opening door and switching off of light after door closed

Design Number	Objective	Score Allocated	Justification for score allocated
4	Reliability	-18	Design 4 is very less secure than datum as all its electronic circuits including batteries are not hidden inside the locker and so it can be manipulated
	Portability	0	Same level of portability as Datum
	User-Friendly	7	More user friendly as it can be unlocked using just a touch of fingerprint
	Automatic	0	Design 4 and Datum both has same level of automation

4.4 Selected Design

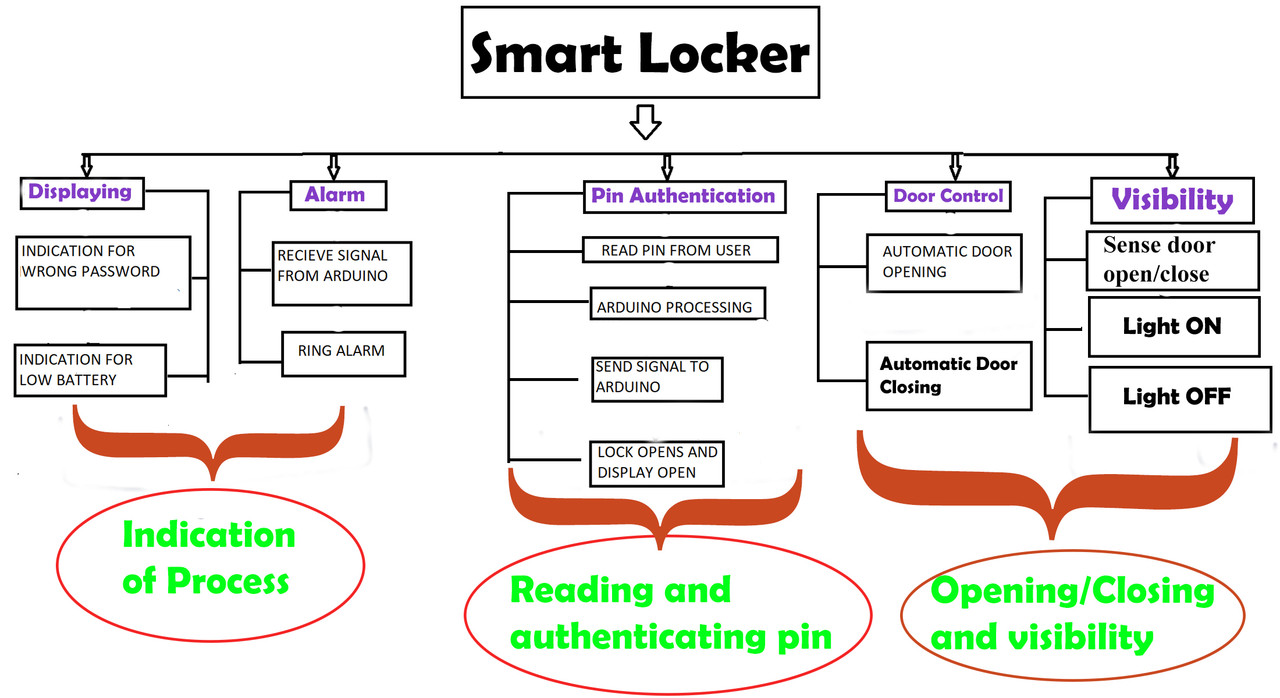

4.5 Function Clustering

4.6 Subsystem List

SI No.	Sub Systen
1	Indication of Process(section)
2	Reading and authenticating pin(section)
3	Opening/Closing and visibility of Locker(section)

4.7 Interaction b/w sub-functions

Indication of Process(section)	Pin Authentication(section)	Opening/closing and visibility(section)
Energy Interaction(Electrical Energy)	✔️	✔️
Material Interaction	❌	❌
Data Interaction	✔️	✔️
Spatial Interaction	✔️	✔️

Pin Authentication(section)	Indication of Process(section)	Opening/closing and visibility(section)
Energy Interaction(Electrical Energy)	✔️	✔️
Material Interaction	❌	❌
Data Interaction	✔️	✔️
Spatial Interaction	✔️	✔️

Opening/closing and visibility(section)	Indication of Process(section)	Pin authentication(Section)
Energy Interaction(Electrical Energy)	✔️	✔️
Material Interaction	❌	❌
Data Interaction	❌	✔️
Spatial Interaction	✔️	✔️
