3.MORPHOLOGICAL CHART AND CONCEPT GENERATION - P-Odd-2022/Repo-05 GitHub Wiki
ESTABLISHING FUNCTIONS
| Sl No | Functions from user perspective | Functions from designer perspective |
|---|---|---|
| 1. | Accept response from user | Accept the response |
| Recognize the response | ||
| Display the response | ||
| Start the model | ||
| 2. | Indications | Indication through LED |
| Reminder after each pattern | ||
| Turn off the device | ||
| 3. | Draw pattern | Select the pattern |
| Display the pattern | ||
| Choose a colour | ||
| Draw the selected pattern | ||
| 4. | Ease of working | Sense the paper |
| Handle the paper smoothly | ||
| Hold the pen firmly | ||
| Drawing the pattern with less friction | ||
| Easily movable along different directions |
FUNCTION TREE
MORPHOLOGICAL CHART
| SL.NO | FUNCTIONS | MEANS-1 | MEANS-2 | MEANS-3 | MEANS-4 |
|---|---|---|---|---|---|
| 1. | Power Source |  lithium-ion Battery |
 Electric mains |
 Battery |
Solar source |
| 2. | System Control | Touch Screen |
 Switch |
 Mobile Application |
Voice Control |
| 3. | Alerts | LED Lights |
Speakers |

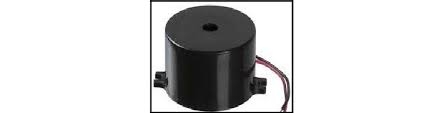

Buzzers |
Screen display |
| 4. | Materials Used for support | 3-D printed Parts |

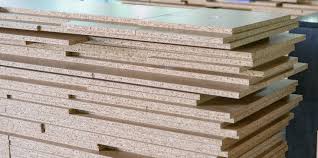

Plywood |
Acrylic Sheet |
Foam Board |
| 5. | Pattern drawing |  |
 |
 |
 |
GENERATED CONCEPTS
CONCEPT NO 1
CONCEPT NO 2
CONCEPT NO 3
CONCEPT NO 4
