7 .VIRTUAL IMPLEMENTATION - P-Division-2022-2023-Odd/Repo05 GitHub Wiki
FLOW CHART
RAIN SENSOR

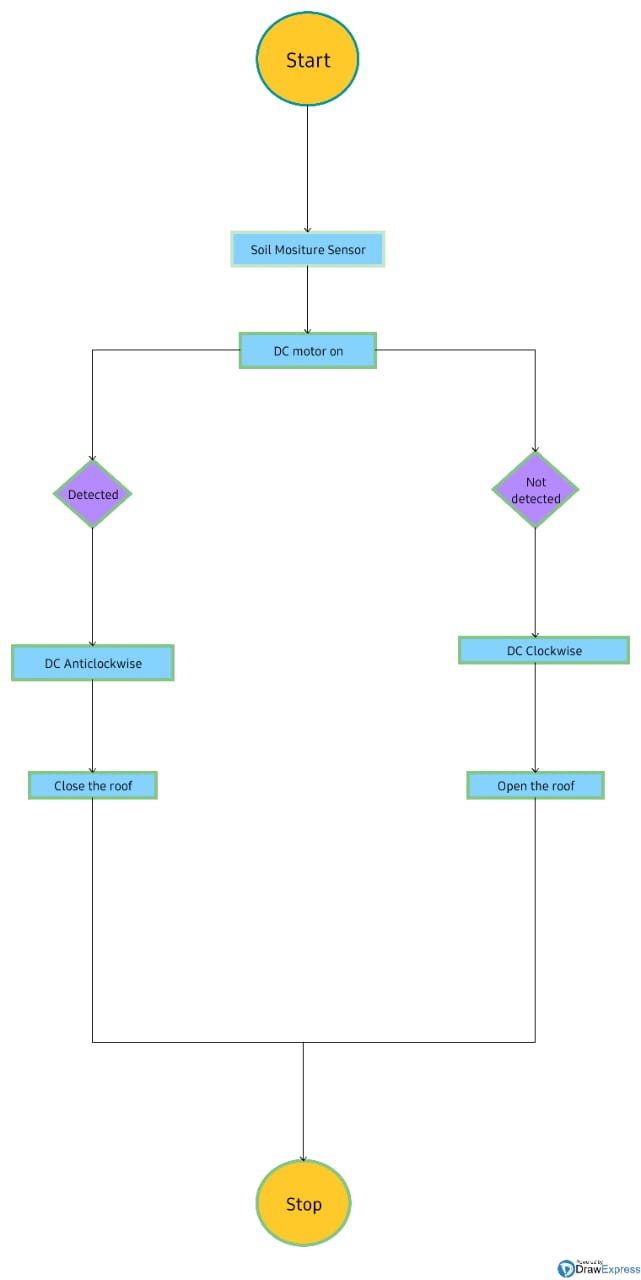

SOIL MOISTURE
BUZZER
3_FINAL FLOW CHART_
CIRCUIT DIAGRAM
1ST DC MOTOR
2 DC MOTORS
1_RAIN SENSOR_
2_INDICATION_
3_FINAL CIRCUIT DIAGRAM_
3D MODELS
PARTS
1_GREEN HOUSE MODEL_
2_ROOF_

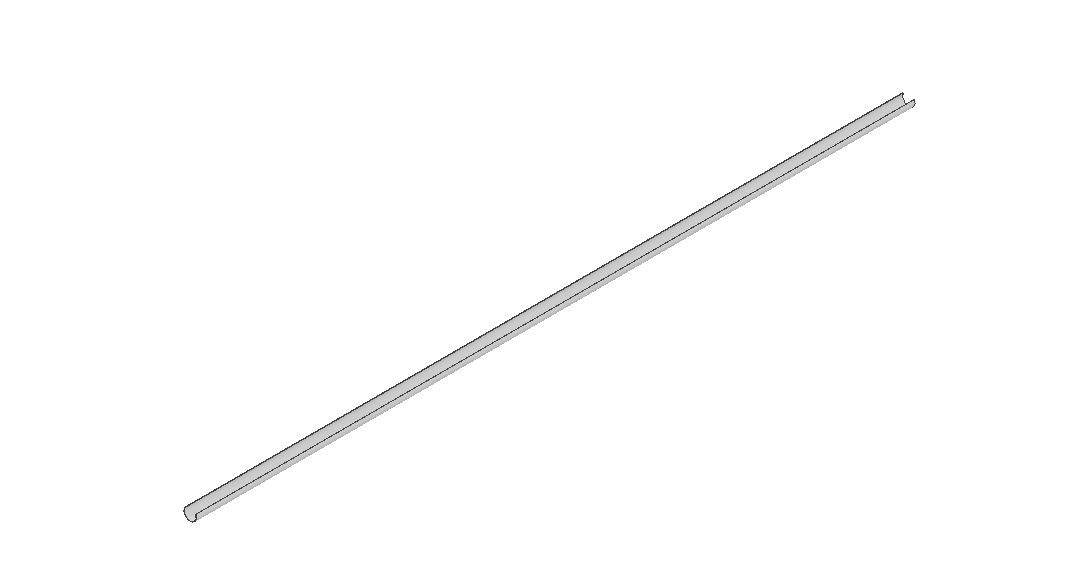

3_PIPE_
4_TANK_
RAIN SENSOR
HUMIDITY SENSOR(SOIL MOISTURE SENSOR)
ARDUINO BOARD

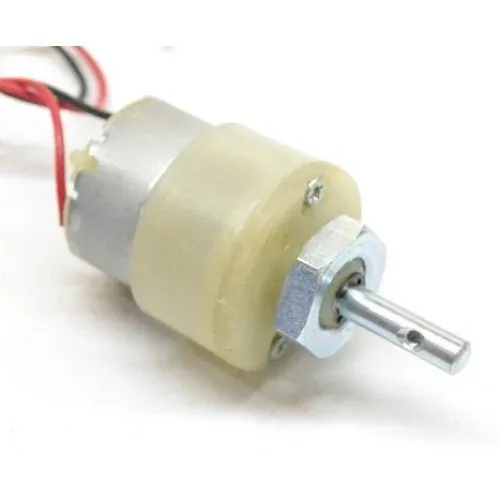

DC MOTOR
Roof Hinge
NUTS AND BOLTS
FINAL INTEGRATION
BILL OF MATERIALS
| Part Name | Material Used | Description | Quantity |
|---|---|---|---|
| Green house model | Foam | 2ft2ft2ft | 1 |
| Roof | acrylic sheet | 30cm *20cm *0.3cm | 2 |
| DC motor | - | 10 rpm | 2 |
| Rain sensor | - | 1 | |
| Soil moisture sensor | - | 1 | |
| Micro controller | Arduino Mega | AT2560 | 1 |
| Buzzer | 1 | ||
| Pipe for collection of rain water | Plastic/PVC | 3 cm diameter | 1 |
| Tanks to store rain water | PLastic | 8 cm diameter | 2 |
| Hinges | Metal | 4 |
