6.Virtual Implementation - P-Division-2022-2023-Odd/Repo01 GitHub Wiki
3d Modelling
Storage
Base
Mechanism
DC motor
Crushed can box

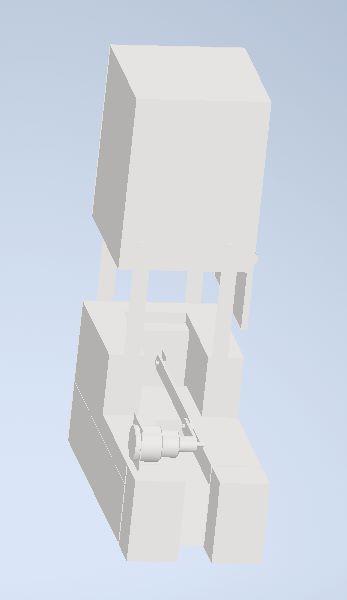

#Assembly
Side View
Front view
Top view
Circuit diagram
Subsystem 1
Subsystem 2
Subsystem 3
Full circuit diagram

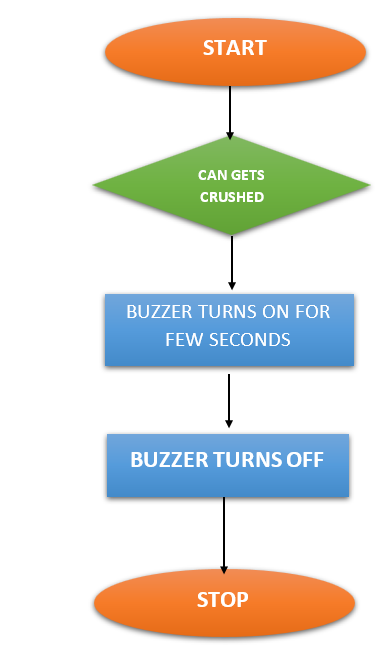

Flow chart
Subsystem 1
Subsystem 2
Subsystem 3
Full flow chart
Bill of Materials(BOM)
| SL No | Part Name | Description about part | Quantity required | Fabrication process if needed |
|---|---|---|---|---|
| 1 | Legs | Acrylic sheet 3mm(10x1.7)mm | 5 | Laser cutting |
| 2 | Foam Sheet 10mm | (65x150x200)mm | 4 | Joining |
| 3 | Nut | 5mm | 5 | |
| 4 | Bolt | 5mm | 5 | |
| 5 | Bush | Nylon rod | 1 | Cutting |
| 6 | Washers | 5mm | 2 | |
| 7 | Hinge | 2 inch | 1 | |
| 8 | DC Motor | 60 RPM | 1 | |
| 9 | IR sensor | 1 | ||
| 10 | Buzzer | 1 | ||
| 11 | DC Motor Relay | 2 channel | 1 | |
| 12 | Adapter | 12 V | 1 | |
| 13 | Servo Motor | 1 | ||
| 14 | Crank | Acrylic sheet 3mm (1.7x7) | 1 | Laser Cutting |
| 15 | Link | Acrylic sheet 3mm(1.7x20) | 1 | Laser Cutting |
| 16 | Base | Foam sheet 24mm(35x15) | 1 | Joining |
| 17 | Crusher | Foam sheet 48mm(7x7) | 1 | Joining |
| 18 | Arduino Mega | Arduino Mega 2560 | 1 |
