Gathering pertinent Information

Introduction

As we are living in 21st century humans are mostly depended on technology. Technological is a major development in a society which has made our lifestyle simpler. For example, mobiles have made our life simpler by making communication among people living in far distances and vehicle is one more development which has made travelling simpler. Even after such huge developments people are lazy to do their day today activities for which people were waiting for still huge development to overcome their laziness so here came the most important development which can replace humans and give huge competition for humans in every field of living i.e. ROBOTS.

A robot is a machine especially one programmable by a computer capable of carrying out a complex series of actions automatically Robots can be guided by an external control device or the control may be embedded within. Robots may be constructed on the lines of human form, but most robots are machines designed to perform a task with no regard to their aesthetics.

Here is small robot which can throw disc called disc throwing machine, which will help people in overcoming their laziness and to maintain their fitness. disc throwing machine is bacilli a machine which throws discs at a varying angle, speed and direction

---

Pertinent Information

Discs can be thrown in many ways but the common requirement among all is force, angle, and direction. Therefore, there are various ways in which we can launch discs. But in most of the machines are designed in such a way where the discs r lifted and then acceleration is created by which the disc is launched

---

Some Similar Robots

There are some similar robots which can perform same work like disc throwing machine.

1. frisbee launcher : https://www.youtube.com/channel/UC_vu805zZyKQl2ljNG07XHw after watching this video we can understand that Frisbee can be launched by the principle of faster the spinning of frisbee the longer the distance traveled by it.
2. Frisbee launching bot: https://www.youtube.com/watch?v=KLrsyy4Pnf4 in this video frisbee is launched by using a single tire which is made to rotate at a speed which can be set by user and can also be launched by varying angles.

---

Different Model

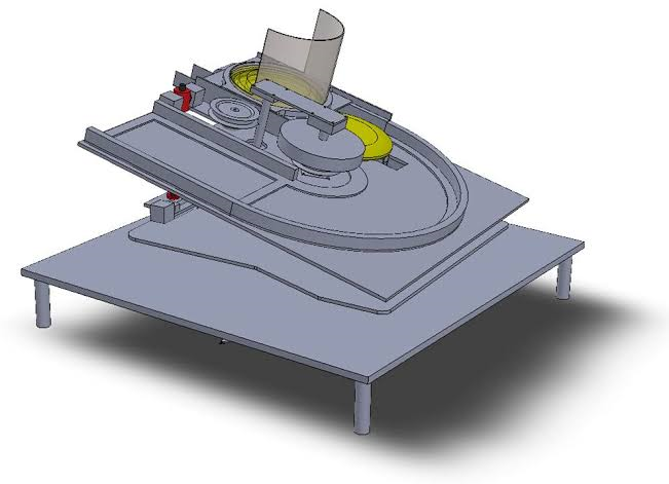

Fig 1: Prototype

---

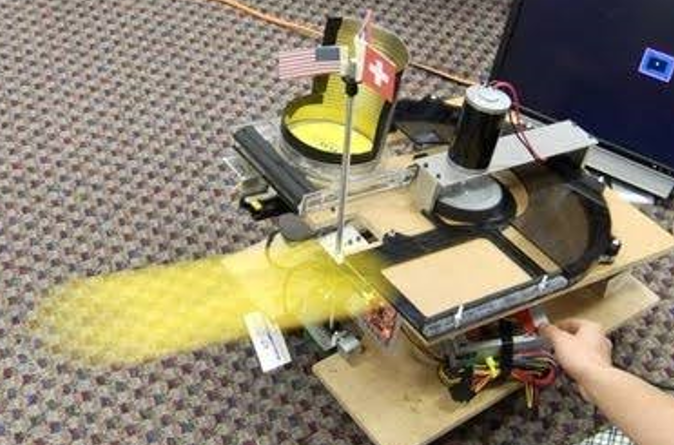

Fig 2: Model 1

---

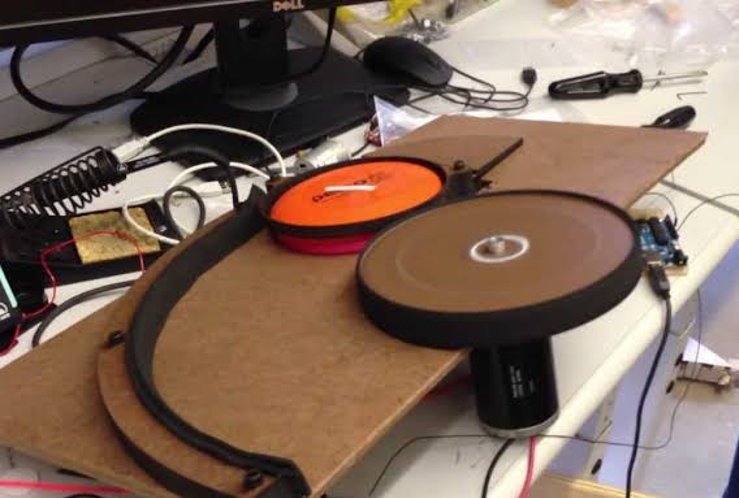

Fig 3: Model 2

---

Fig 4: Model 3

---

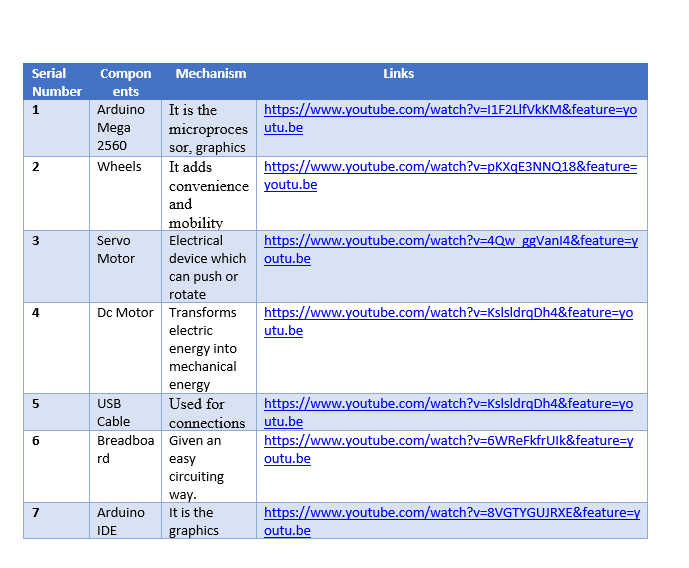

List of Some Basic Components Needed

References

1.Design and manufacturing of frisbee launching robot. Retrieved from https://www.researchgate.net/publication/317889479_Design_and_Manufacturing_of_Frisbee_Launching_Robot

2.Mechanics of frisbee throwing. Retrieved from http://www.cs.cmu.edu/afs/cs/academic/class/16741-s07/www/sample_projects/spurushw_report.pdf

3.Making a frisbee launcher. Retrieved from https://www.youtube.com/watch?v=0rFILFGE1TU

4.Frisbee thrower. Retrieved from https://www.youtube.com/watch?v=3-TDqY5qfkw

5.Frisbee launching machine. Retrieved from https://www.youtube.com/watch?v=KLrsyy4Pnf4

6.Team Friz-G Frisbee Throwing Robot. Retrieved from https://www.youtube.com/watch?v=d4uiqFGwdAU

7.`DIY frisbee launcher. Retrieved from https://www.youtube.com/watch?v=qI-g4QXSUcI

8.Disc throwing machine presentation. Retrieved from https://www.youtube.com/watch?v=vw0qsGpJOEc

9.`Ultimate Frisbee Throwing Machine. Retrieved from https://www.youtube.com/watch?v=QZpep_umsRA
