Tutorial: Creating a new store

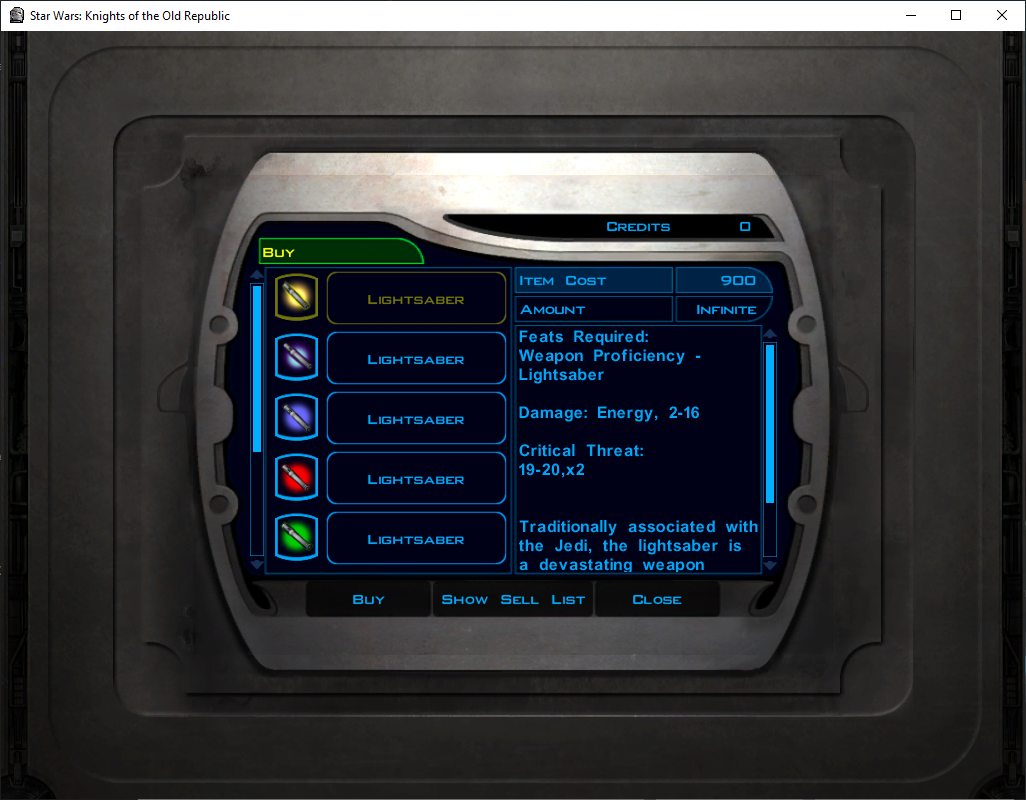

This tutorial adds a new store the player can buy from or sell to by creating a merchant (UTM), an NPC with dialog, a dialog file (DLG), and a script that opens the store. The NPC is placed on the Ebon Hawk.

Step 1: Create the merchant file (UTM)

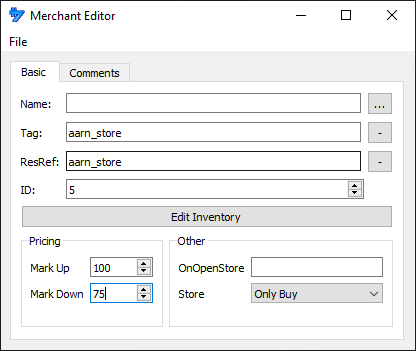

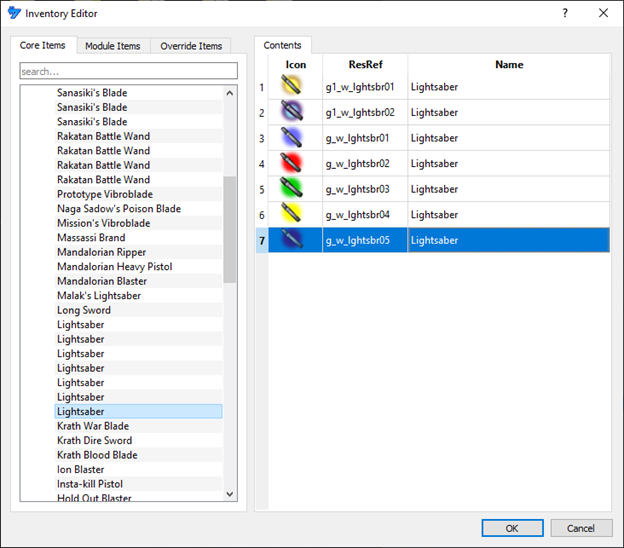

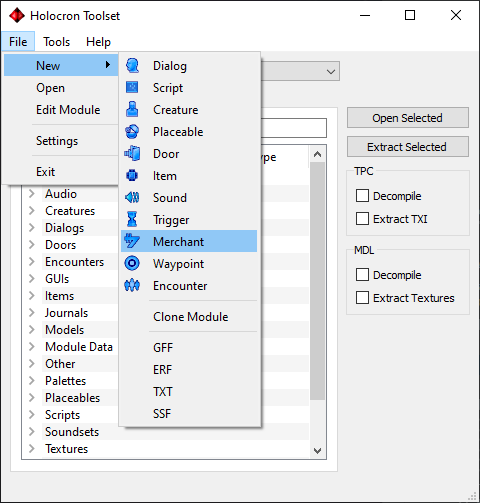

Create a new merchant. Set Tag and ResRef to match the filename (e.g. aarn_store). Mark Up / Mark Down control pricing (e.g. Mark Down 50 = player sells at half base price). Use Edit Inventory to add items and right-click to toggle infinite stock. Save; filename must match ResRef/Tag.

Merchant Inventory Edit inventory

Step 2: Create the NPC (UTC)

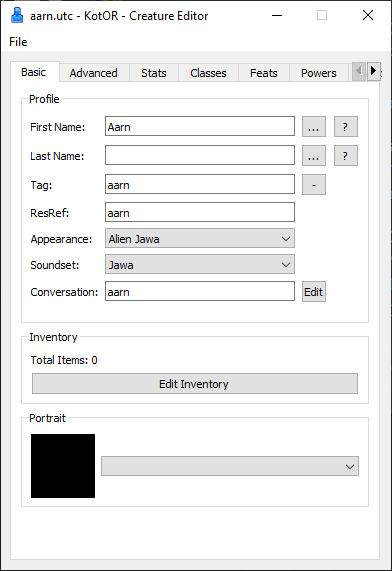

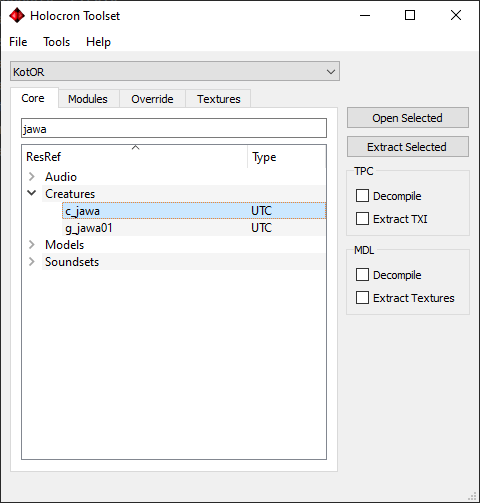

Base the NPC on c_jawa (Core tab). Set Tag and ResRef to match the filename (e.g. aarn). Set the Conversation field to aarn (same as the DLG we will create). Give a name via the ellipsis -> None -> type aarn. Save.

NPC from template Conversation link

Step 3: Create the dialog (DLG)

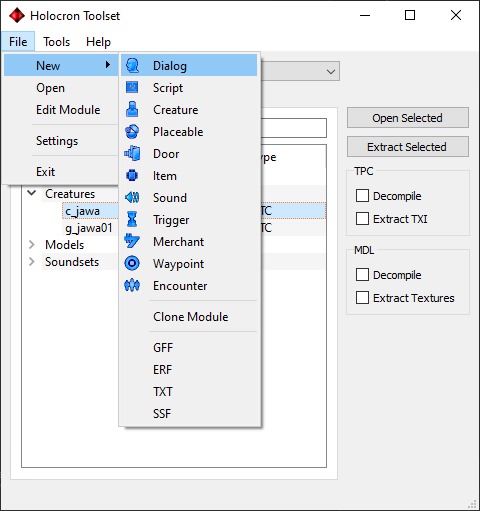

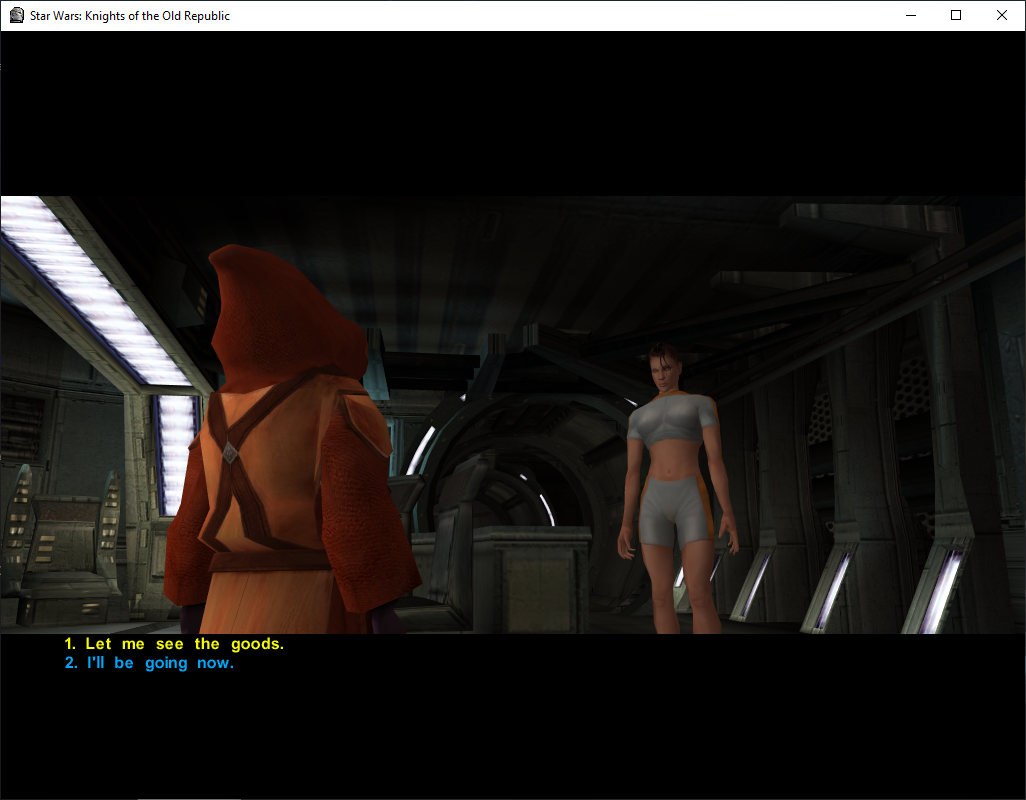

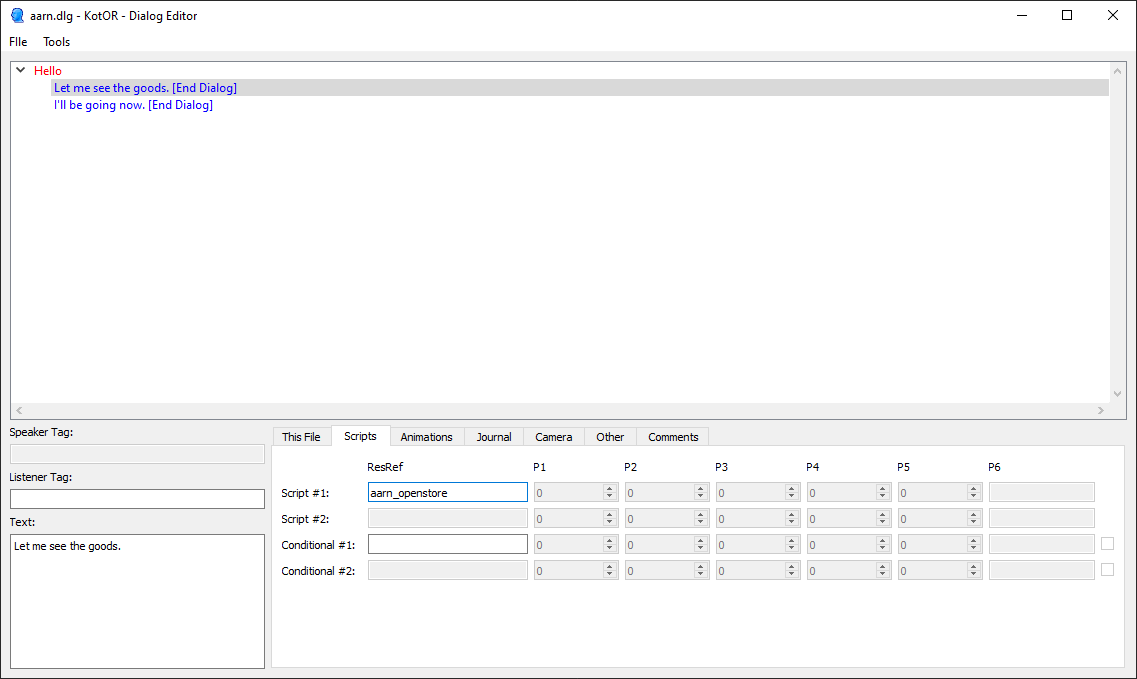

Create a simple dialog: NPC says hello; options "Browse Aarn's wares" and "Leave". For the option that opens the store, set Script #1 ResRef to aarn_openstore. Save as aarn.

Dialog Script link

Step 4: Create the Open-Store Script (NSS)

Create script aarn_openstore with:

void main()
{
    object oStore = GetObjectByTag("aarn_store");
    object oSpeaker = GetPCSpeaker();

    if (GetIsObjectValid(oStore))
    {
        DelayCommand(0.5, OpenStore(oStore, oSpeaker));
    }
}

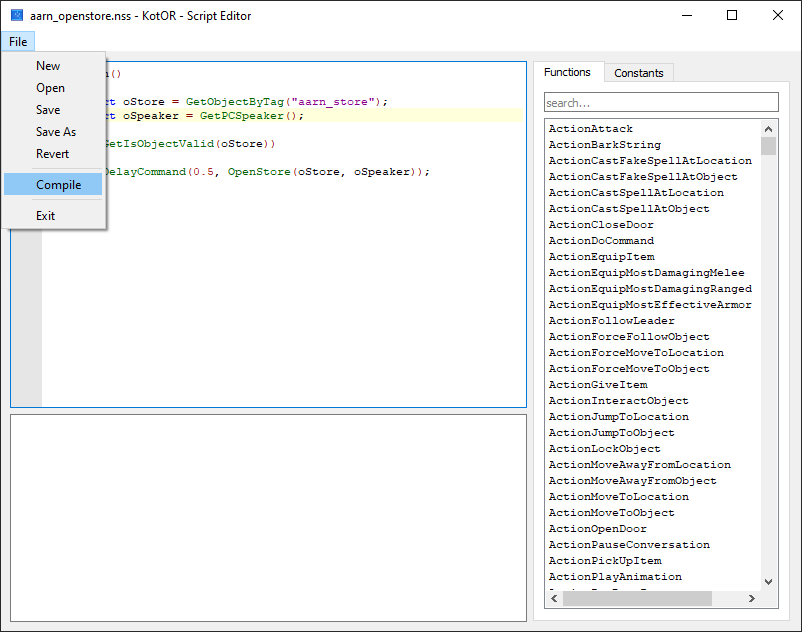

The tag in GetObjectByTag() must match the UTM Tag. Save and File -> Compile.

Compile

Step 5: Place the NPC and store on the Ebon Hawk

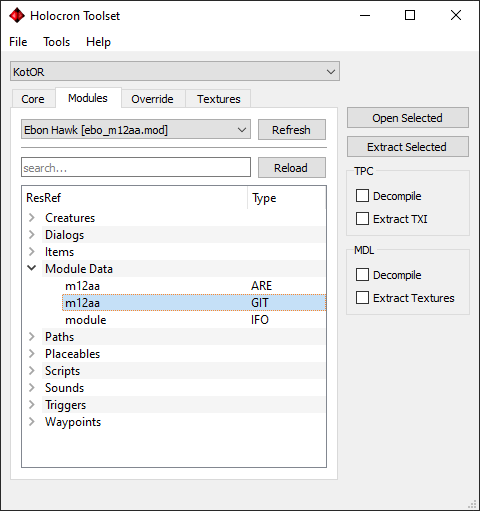

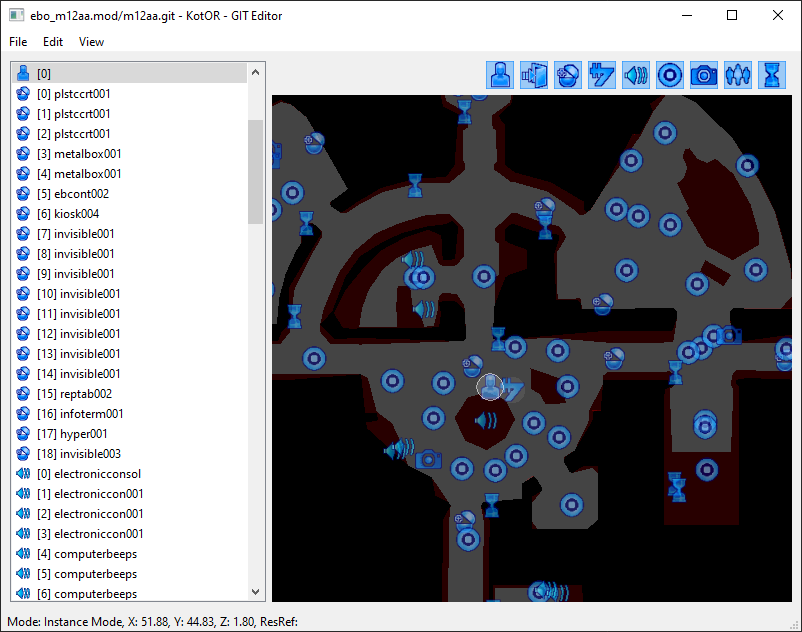

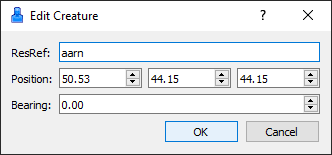

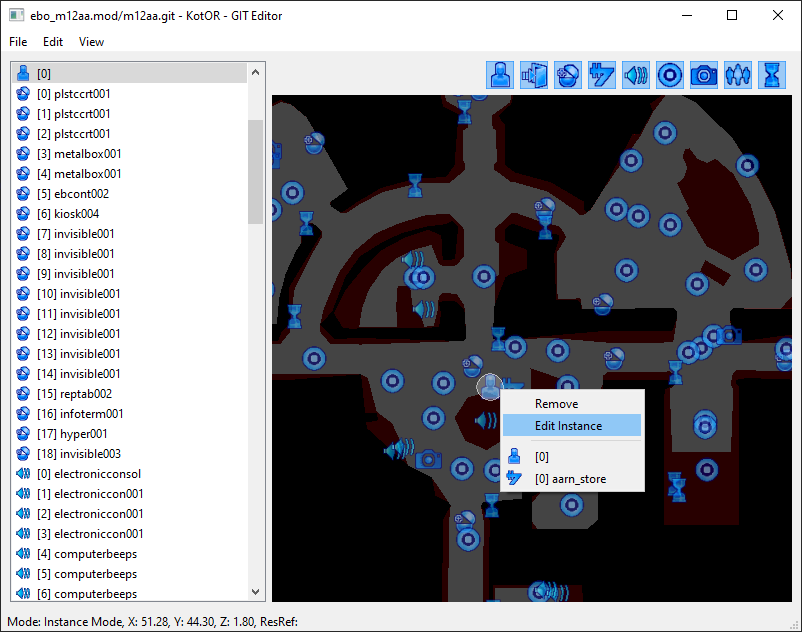

In the Modules tab select Ebon Hawk [ebo_m12aa.rim] (or the .mod if you use K1CP). Open the GIT m12aa under Module Data. Add a Creature and a Store in the central room; Edit Instance on each and set their resrefs to aarn and aarn_store. Save the GIT (it writes into the module).

Select module Place creature and store Edit instance Link files
