In this lab, we used a starter Packet tracer file to setup Open Shortest Path First (OSPF) routing.

Notes

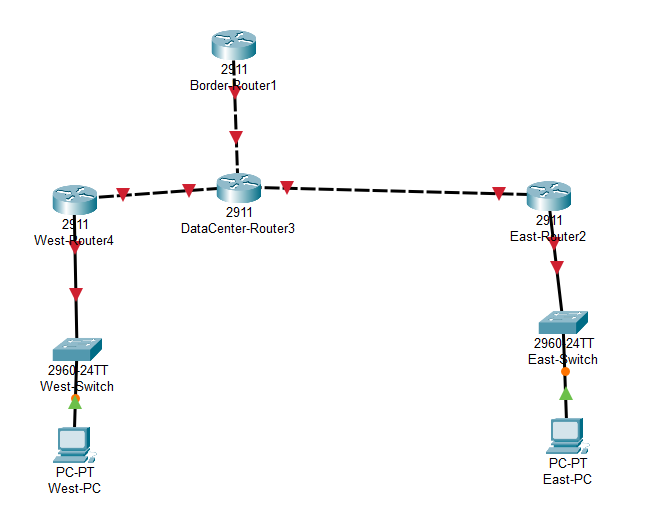

First I downloaded the example packet tracer, which looked like the following:

I also edited the network assignments to fit the needed description:

With this I went to each PC (East and West) and set the following:

• IP = 10.12.xx.2
• • xx = 20(east) or 40(west)
• Subnet = 255.255.255.0
• Default gateway = 10.12.xx.1
• • xx = 20(east) or 40(west)

Then I went to each of the routers and used the following commands (general description of commands below all):

---

Border router: 1 networks

enable
conf t
hostname Oliver-BorderRouter
interface GigabitEthernet 0/0
no shutdown
ip address 10.12.1.1 255.255.255.248
router ospf 1
network 10.12.1.0 0.0.0.7 area 0

---

Datacenter router: 3 networks

enable
conf t
hostname Oliver-DatacenterRouter
interface GigabitEthernet 0/2
no shutdown
ip address 10.12.1.2 255.255.255.248
interface GigabitEthernet 0/0
no shutdown
ip address 10.12.1.22 255.255.255.252
interface GigabitEthernet 0/1
no shutdown
ip address 10.12.1.33 255.255.255.252
router ospf 1
network 10.12.1.32 0.0.0.3 area 0
network 10.12.1.20 0.0.0.3 area 0
network 10.12.1.0 0.0.0.7 area 0

---

West router: 2 networks

enable
conf t
hostname Oliver-WestRouter
interface GigabitEthernet 0/0
no shutdown
ip address 10.12.1.34 255.255.255.252
interface GigabitEthernet 0/1
no shutdown
ip address 10.12.40.1 255.255.255.0
router ospf 1
network 10.12.40.0 0.0.0.255 area 0
network 10.12.1.32 0.0.0.3 area 0

---

East router: 2 networks

enable
conf t
hostname Oliver-EastRouter
interface GigabitEthernet 0/0
no shutdown
ip address 10.12.1.21 255.255.255.252
interface GigabitEthernet 0/1
no shutdown
ip address 10.12.20.1 255.255.255.0
router ospf 1
network 10.12.20.0 0.0.0.255 area 0
network 10.12.1.20 0.0.0.3 area 0

---

Command Descriptions:

Everything in {} should be replace by what it is asking for.

• enable and conf t = Getting into configuration mode
• hostname {HOSTNAME} = Setting hostname
• interface {INTERFACE_NAME (usually gig or fast)} {NUMBER/NUMBER (usually 0/something)} = get into the mode to configure the interface
• no shutdown = Turn the interface on
• ip address {IP_ADDRESS} {SUBNET_MASK} = Setting the IP of that interface
• router ospf {INSTANCE_NUMBER (usually 1)} = Get into the OSPF config on the router
• network {CONNECTED_NETWORK} {WILDCARD_SUBNET_MASK_OF_CONNECTED_NETWORK (Sub 255 from subnet mask)} area {AREA_NUMBER (often 0 in a flat network)} = Advertise what networks are directly connected to the router being configured, in a certain area.

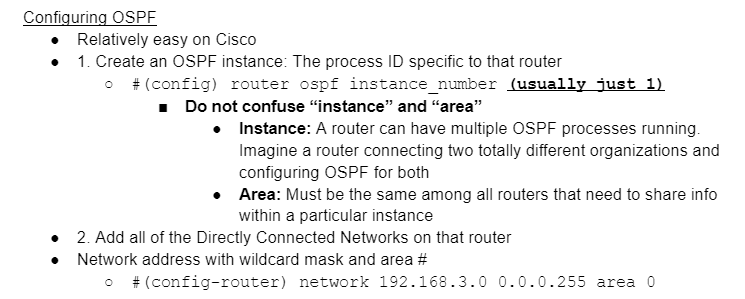

Good note from notes:

Sources

• https://networklessons.com/ospf/basic-ospf-configuration

• https://www.cisco.com/c/en/us/td/docs/routers/access/800M/software/800MSCG/routconf.html

Bonus

How to do MD5 authentication in OSPF, specific commands for the packet tracer used in this lab.
