4.CONCEPT GENERATION AND PRODUCT ARCHITECTURE - O-Division-2020-2021-Even/Repo-16 GitHub Wiki

List of functions:

SL. No Functions from designer perspective
1 Open the box
2 Close the box
3 Hold the bracelet
4 Open the lock
5 Close the lock
6 Store in the compartments
7 Glow the light after opening
8 Casing

FUNCTION TREE:

ESTABLISHING MEANS:

Morphological chart:

Sl.no Subfunctions Means1 Means2 Means3 Means4
—- ———— —— —— —— ——
1 accept the user credentials Mobile App Finger Print Sensor RFID card Using password
2 open lock\ close lock Push button mechanism Cam follower mechanism push latch mechanism Hook mechanism
3 open box\ close box Rack and pinion mechanism linkage mechanism slider crank mechanism Hydraulic open/close mechanism

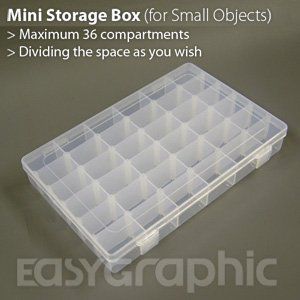

4 segregate the compartments drawers linkage mechanism New German mechanism Making slots

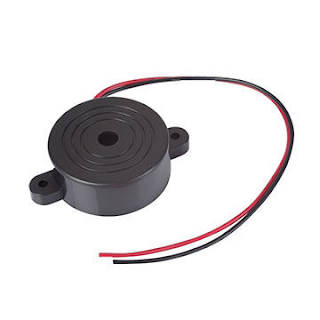

5 Alert the user message music buzzer glowing light

Generated concepts:

Design 1

Design 2

Design 3

Design 4
