6. VIRTUAL IMPLEMENTATION - N-division-2021-2022-even/Repo-16 GitHub Wiki

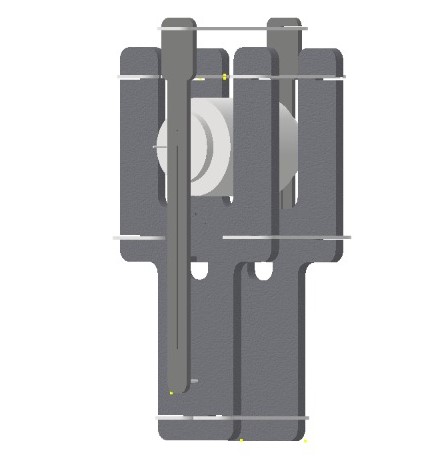

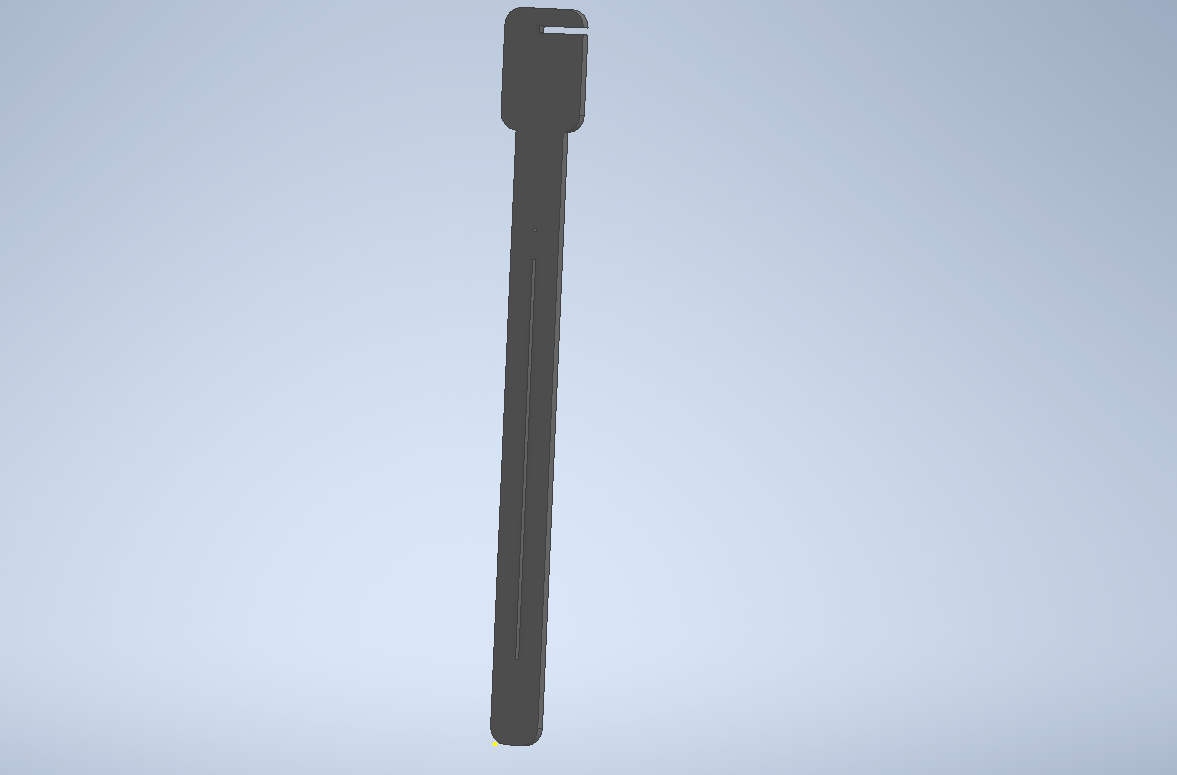

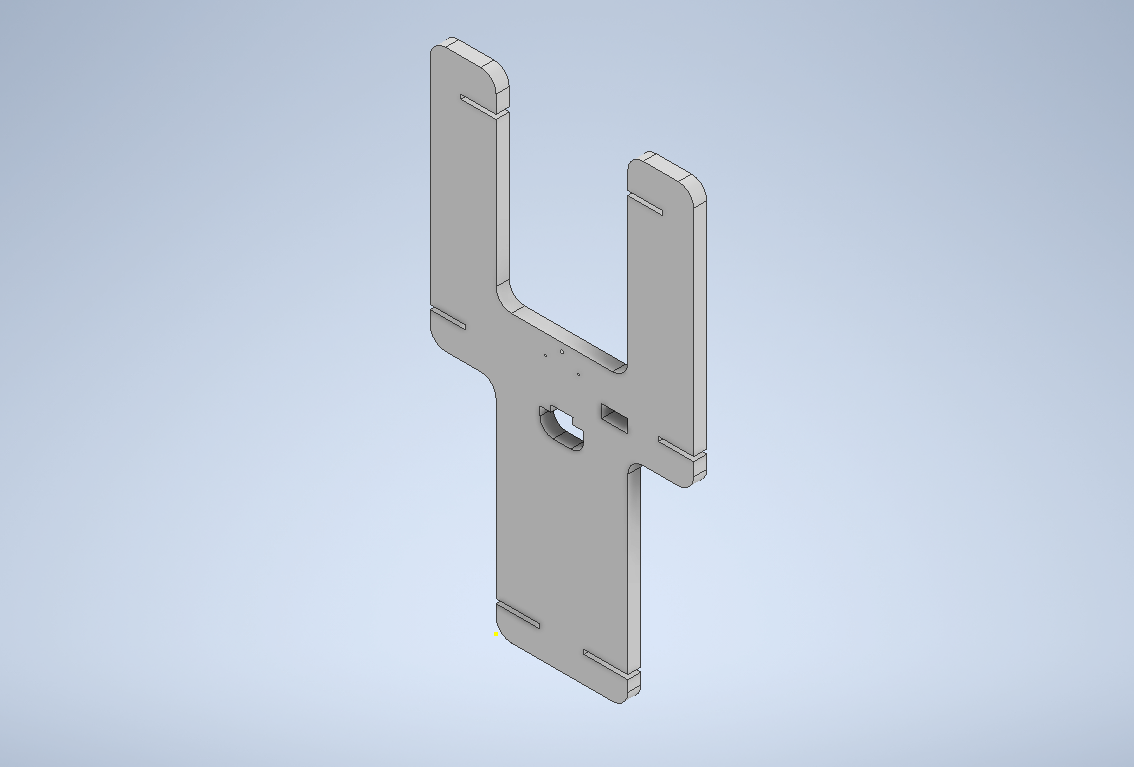

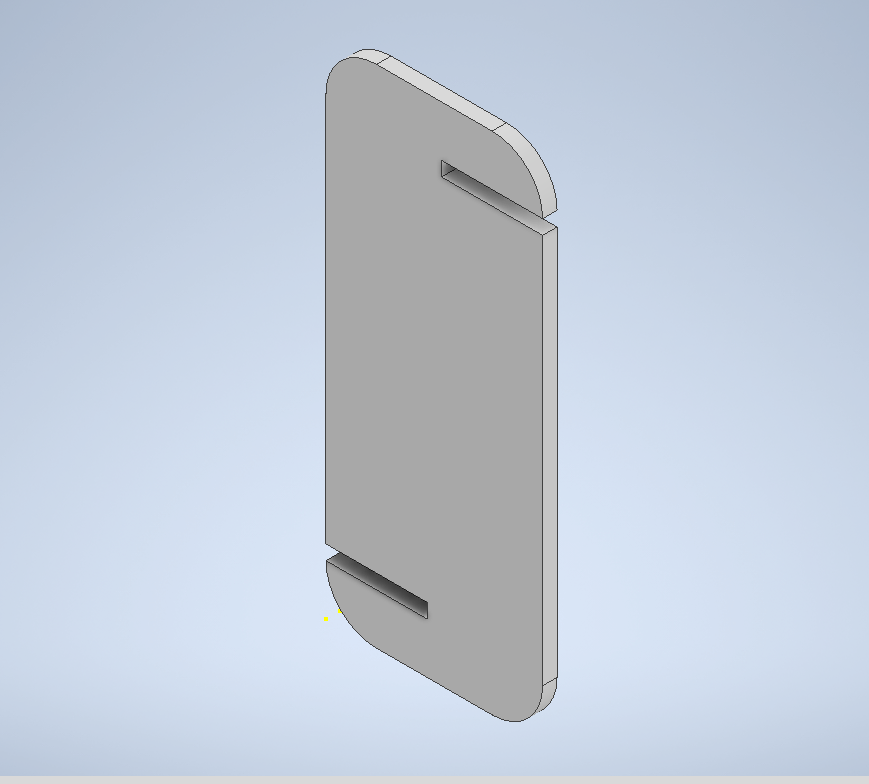

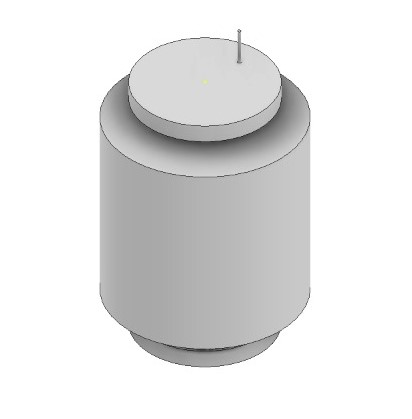

6.1 3D MODELING
6.2 CIRCUIT DIAGRAM
MAIN CIRCUIT:
SUB CIRCUITS:
Arduino with DC Motor:
Arduino with IR Sensor:
6.3 FLOW CHART
6.4 BILLS OF MATERIALS (BOM)
| SI NO | Parts | Quantity | Dimensions(mm) | Material |
|---|---|---|---|---|
| 1 | PVC Foam Cutout | 2 | 220x120x2 | Acrylic Sheet/PVC |
| 2 | 180x40x2 | Acrylic Sheet | ||
| 6 | 35x25x2 | Acrylic Sheet | ||
| 1 | 55x25x2 | |||
| 2 | Pulley | 2 | d=40 | Plastic/Steel |
| 3 | Shaft | 2 | 40mm | Steel |
| 2 | 10mm | Steel | ||
| 2 | 25mm | Steel | ||
| 1 | 80mm | Steel | ||
| 4 | Double shaft DC Motor | 1 |
6.5 MOTOR AND BATTERY SIZING OF THE SYSTEM
- DC Motor
- Total Weight=0.25kg
- Co-efficient of friction between acrylic sheet and Rope=0.5
- Total frictional force=0.25*0.5=0.125
- Radius of action=1cm
- Torque generated=0.175kg
- Torque after Factor of safety=0.175*1.5=0.2625kg-cm
- Therefore, selected motor for above calculated torque requirement is 60rpm motor.
Adaptor selection
- For DC Motor
- Voltage required to run DC Motor = 12V
- Current drawn by motor at full load = 300 mA
- Number of DC Motors = 1
- Total current required = 1 * 300 = 300 mA
- Current required after factor of safety of 1.2 = 1.2 * 300 = 360 mA Therefore Adapter required for DC Motor should be rated 12V, 1A.
