SPRINT 2 BUILDING PHASE - N-Division-2018-19-even/Repo-7 GitHub Wiki

ARC

FABRICATION PLAN:

Acrylic sheet of required dimensions was cut using laser cutting machine.The arc of required dimension was obtained and was further connected to the toy servo motor for the sliding mechanism of the arc on the platform the rotation of the servo motor was set in such a way that it takes the colored object form the start then to the rgb sensor then to the storage.The servo motor is then connected to the Arduino Mega 2560.

INTERACTION:

This Sub-System shares material interaction ,spatial interaction with sub-system 1.

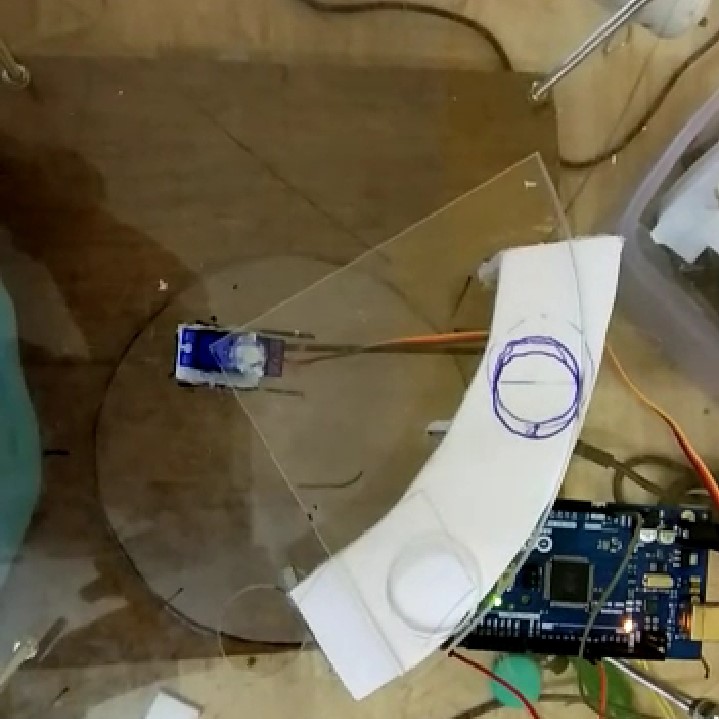

IMAGE OF SUB-SYSTEM :
