Synthetic_Tracking_Data_Generator - MontpellierRessourcesImagerie/imagej_macros_and_scripts GitHub Wiki

The tool allows to simulated particle moving away from a center, moving towards a center or particles diffusing around a center.

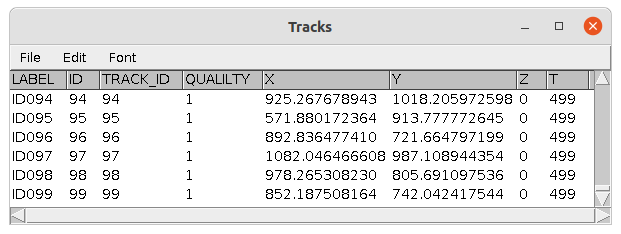

simulated_faster.gif tracks_table.png

The source code in git-hub can be found here.

Getting started

Download the synthetic_tracking_data_generator.ijm and put it into the macros/toolsets folder of your FIJI installation.

Select the "synthetic tracking data generator" toolset from the >> button of the ImageJ launcher.


  • The first button opens this help-page.
  • The second button creates the moving particles in form of a table containing the ids and coordinates.
  • The third button creates a time-series stack showing the moving particles.

Options

Right-click the c-button to open the options for the track creation.


Nr. of Frames
The number of frames in the time-series stack
Image width
The width of the images in pixel.
Image height
The height of the images in pixel.
Nr. of particles
The number of the particles. The number remains constant for all frames.
Center
The coordinates x, y around which the points are arranged and from which they move away.
Initial distance
The mean and stdDev of the initial distance of the points from the center.
speed
The mean and stdDev of the speed of the particles.
angular deviation
The mean and stdDev of the angle of deviation of the particles from their current direction in each step.
Reverse time
Reverses the time after creation of the tracks. This can be used to create particles moving towards the center

Right-click the d-button to open the options for the drawing of the particles.


  • spot radius - The radius with which the spots are drawn
