The tool detects and and counts the spots (or blobs) in an image. It has been created for the counting of bacteria colonies in in Petri-dishes. It separates the spots into two populations and counts each population individually. The populations are separated by the area of the spots. The tool uses expectation maximisation clustering [1] from the weka software [2].

Getting Started

To install the tool save the files Count_Spot_Populations_Tool.ijm and results_table-clusterer.py into the folder macros/toolsets of your FIJI installation.

Select the "3D_nuclei_clustering" toolset from the >> button of the ImageJ launcher.


  • the first button opens this help page
  • the c-button starts counting and clustering of the spots on the active image
  • the d-button runs a DoG-filter on the active image
  • the r-button runs the clustering by area on a results table
  • the p-button plots a histogram and the distributions of the spot areas
  • the e-button opens an extras menu, from which example images can be downloaded

Usage

Complete analysis

Open an input image. The tool will detect dark spots on a bright background. If necessary invert the contrast of the image (Edit>Invert) before running the tool. Set the options for the detection of the Petri-dish and the spots (see below). Make sure that Area is selected in Analyze>Set Measurements.... Press the c-button to run the analysis.

Running the analysis on a results table

The clustering can also be run on a results table, using the r-button. The results table must contain the column Area. The plotting of the area-histogram and distributions with the p-button is also possible in this case.

Options

Count spot populations

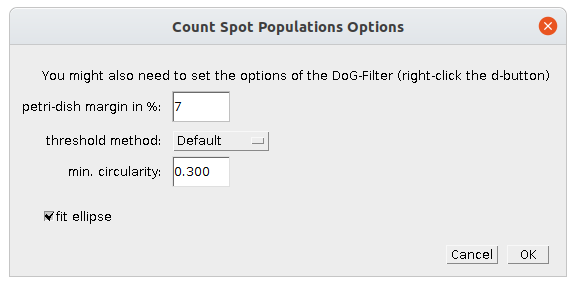

Right-click on the c-button to open the options dialog.


Petri-dish margin
Allows to exclude a smaller or bigger part that corresponds to the border of the Petri-dish. Set to zero to use the whole Petri-dish or the whole image
threshold method
The auto-thresholding method used for the spot-segmentation.
min. circularity
Allows to filter spots by their circularity.
fit ellipse
If selected an ellipse will be fit to each segmented spots.

DoG Filter


contrast
Select the contrast of the image: auto, normal or inverted.
min. diameter of spots
The minimum diameter of the spots
max. diameter of spots
The maximum diameter of the spots

Plot options


color cluster one
the color in which the distribution of the smaller areas is displayed
color cluster two
the color in which the distribution of the bigger areas is displayed
color histogram
the color in which the histogram of the areas is displayed
histogram bin width
the bin width of the area-histogram
distribution line width
the line width for the distributions in the plot
