DHT11 Temperature and Humidity Sensor DHT11 Sensor Pinout

Pin Identification and Configuration

For Sensor

No. Pin Name Description
1 Vcc Power supply 3.5V to 5.5V
2 Data Outputs both Temperature and Humidity through serial Data
3 NC No Connection and hence not used
4 Ground Connected to the ground of the circuit

For module

No. Pin Name Description
1 Data Outputs both Temperature and Humidity through serial Data
2 Vcc Power supply 3.5V to 5.5V
4 Ground Connected to the ground of the circuit

Specifications

  • Operating Voltage: 3.5V to 5.5V
  • Operating current: 0.3mA (measuring) 60uA (standby)
  • Output: Serial data
  • Temperature Range: 0°C to 50°C
  • Humidity Range: 20% to 90%
  • Resolution: Temperature and Humidity both are 16-bit
  • Accuracy: ±1°C and ±1%

Note: The DHT11 datasheet can be found at the bottom of the page

Equivalent Temperature Sensors

DHT22, AM2302, SHT71

Other Temperature Sensors:

Thermocouple, TMP100, LM75, DS18820, SHT15, LM35DZ, TPA81, D6T

Difference between DHT11 Sensor and module

The DHT11 sensor can either be purchased as a sensor or as a module. Either way, the performance of the sensor is same. The sensor will come as a 4-pin package out of which only three pins will be used whereas the module will come with three pins as shown above.

The only difference between the sensor and module is that the module will have a filtering capacitor and pull-up resistor inbuilt, and for the sensor, you have to use them externally if required.

Where to use DHT11

The DHT11 is a commonly used Temperature and humidity sensor. The sensor comes with a dedicated NTC to measure temperature and an 8-bit microcontroller to output the values of temperature and humidity as serial data. The sensor is also factory calibrated and hence easy to interface with other microcontrollers.

The sensor can measure temperature from 0°C to 50°C and humidity from 20% to 90% with an accuracy of ±1°C and ±1%. So if you are looking to measure in this range then this sensor might be the right choice for you.

How to use DHT11 Sensor

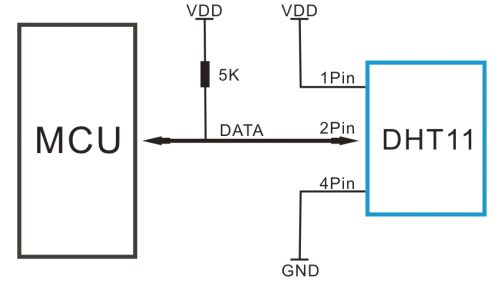

The DHT11 Sensor is factory calibrated and outputs serial data and hence it is highly easy to set it up. The connection diagram for this sensor is shown below.

As you can see the data pin is connected to an I/O pin of the MCU and a 5K pull-up resistor is used. This data pin outputs the value of both temperature and humidity as serial data. If you are trying to interface DHT11 with Arduino then there are ready-made libraries for it which will give you a quick start.

If you are trying to interface it with some other MCU then the datasheet given below will come in handy. The output given out by the data pin will be in the order of 8bit humidity integer data + 8bit the Humidity decimal data +8 bit temperature integer data + 8bit fractional temperature data +8 bit parity bit. To request the DHT11 module to send these data the I/O pin has to be momentarily made low and then held high as shown in the timing diagram below

The duration of each host signal is explained in the DHT11 datasheet, with neat steps and illustrative timing diagrams

What is Relative Humidity?

The DHT11 measures relative humidity. Relative humidity is the amount of water vapor in air vs. the saturation point of water vapor in air. At the saturation point, water vapor starts to condense and accumulate on surfaces forming dew.

The saturation point changes with air temperature. Cold air can hold less water vapor before it becomes saturated, and hot air can hold more water vapor before it becomes saturated.

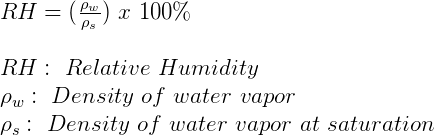

The formula to calculate relative humidity is:

Relative humidity is expressed as a percentage. At 100% RH, condensation occurs, and at 0% RH, the air is completely dry.

How the DHT11 Measures Humidity and Temperature?

The DHT11 detects water vapor by measuring the electrical resistance between two electrodes. The humidity sensing component is a moisture holding substrate with electrodes applied to the surface. When water vapor is absorbed by the substrate, ions are released by the substrate which increases the conductivity between the electrodes. The change in resistance between the two electrodes is proportional to the relative humidity. Higher relative humidity decreases the resistance between the electrodes, while lower relative humidity increases the resistance between the electrodes.

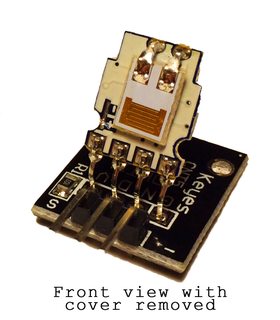

With the plastic housing removed, you can see the electrodes applied to the substrate:

An IC mounted on the back of the unit converts the resistance measurement to relative humidity. It also stores the calibration coefficients, and controls the data signal transmission between the DHT11 and the Arduino:

The DHT11 uses just one signal wire to transmit data to the Arduino. Power comes from separate 5V and ground wires. A 10K Ohm pull-up resistor is needed between the signal line and 5V line to make sure the signal level stays high by default (see the datasheet for more info).

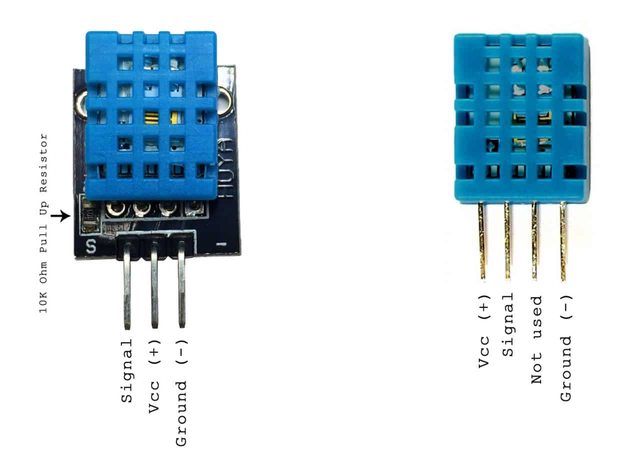

There are two different versions of the DHT11 you might come across. One type has four pins, and the other type has three pins and is mounted to a small PCB. The PCB mounted version is nice because it includes a surface mounted 10K Ohm pull up resistor for the signal line. Here are the pin outs for both versions.

How to Set Up the DHT11 On an Arduino?

Wiring the DHT11 to the Arduino is really easy, but the connections are different depending on which type you have.

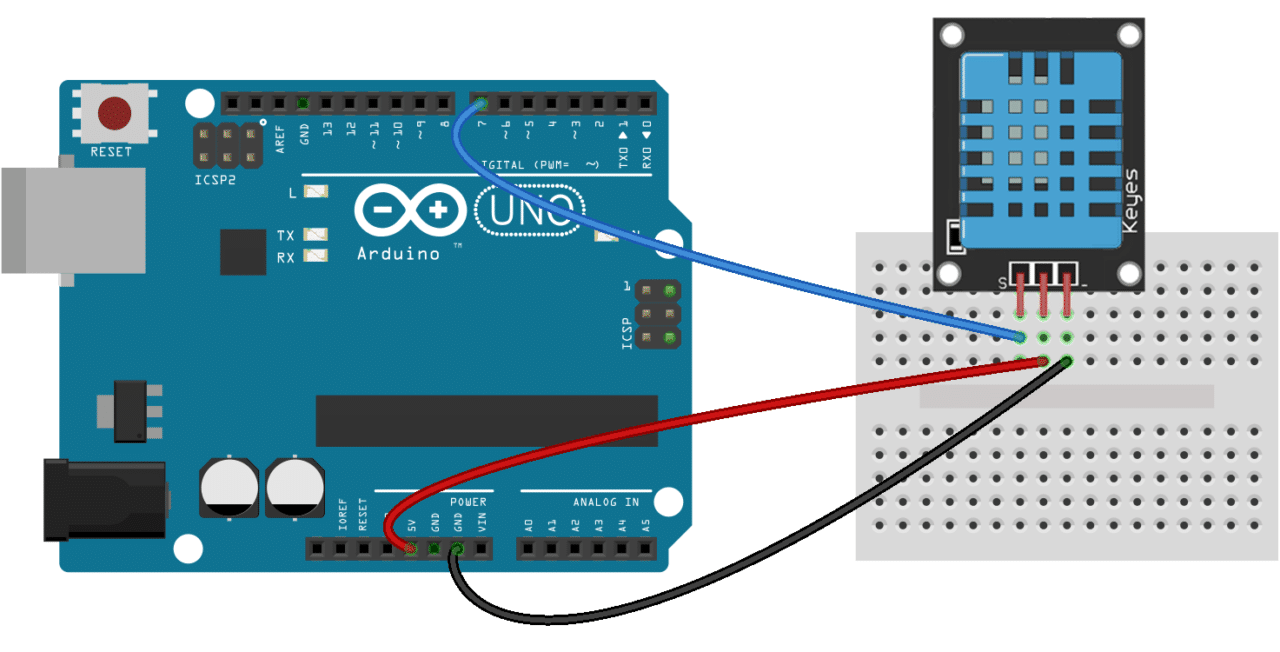

Connecting A Three Pin DHT11:

Connecting A Four Pin DHT11:

  • R1: 10K Ohm pull up resistor

Libraries & Code

Before you can use the DHT11 on the Arduino, you’ll need to install the DHT Sensor Library and Adafruit Sensor Master. It has all the functions needed to get the humidity and temperature readings from the sensor. It’s easy to install, just download the DHT_sensor_library.zip and Adafruit_Sensor-master.zip and open up the Arduino IDE. Then go to Sketch>Include Library>Add .ZIP Library and select the DHT_sensor_library.zip and Adafruit_Sensor-master.zip files.

After it’s installed, upload this example program to the Arduino and open the serial monitor:

#include <DHT.h>

#define DHTPIN 7            // Digital pin connected to the DHT sensor
// Feather HUZZAH ESP8266 note: use pins 3, 4, 5, 12, 13 or 14 --
// Pin 15 can work but DHT must be disconnected during program upload.

#define DHTTYPE DHT11       // DHT 11

DHT dht(DHTPIN, DHTTYPE);   // Initialize DHT sensor.

void setup() {
  Serial.begin(9600);
  Serial.println(F("DHTxx test!"));

  dht.begin();
}

void loop() {
  // Wait a few seconds between measurements.
  delay(2000);

  // Reading temperature or humidity takes about 250 milliseconds!
  // Sensor readings may also be up to 2 seconds 'old' (its a very slow sensor)
  float h = dht.readHumidity();
  // Read temperature as Celsius (the default)
  float t = dht.readTemperature();
  // Read temperature as Fahrenheit (isFahrenheit = true)
  float f = dht.readTemperature(true);

  // Check if any reads failed and exit early (to try again).
  if (isnan(h) || isnan(t) || isnan(f)) {
    Serial.println(F("Failed to read from DHT sensor!"));
    return;
  }

  // Compute heat index in Fahrenheit (the default)
  float hif = dht.computeHeatIndex(f, h);
  // Compute heat index in Celsius (isFahreheit = false)
  float hic = dht.computeHeatIndex(t, h, false);

  Serial.print(F("Humidity: "));
  Serial.print(h);
  Serial.print(F("%  Temperature: "));
  Serial.print(t);
  Serial.print(F("°C "));
  Serial.print(f);
  Serial.print(F("°F  Heat index: "));
  Serial.print(hic);
  Serial.print(F("°C "));
  Serial.print(hif);
  Serial.println(F("°F"));
}

You should see the humidity and temperature readings displayed at two seconds intervals.

If you don’t want to use pin 7 for the data signal, you can change the pin number in line 5 where it says #define DHTPIN 7

Applications

  • Measure temperature and humidity
  • Local Weather station
  • Automatic climate control
  • Environment monitoring

Component Datasheet

DHT11 Sensor Datasheet
