Tutorial Easy Driver and x.27 or x.40 Stepper Motor - MobiFlight/MobiFlight-Connector GitHub Wiki

Let's go

For this tutorial you need the following components

Newest Version of MobiFlight Connector (min. Version 7.9.0)
Arduino Mega 2560 with newest MobiFlight Firmware
x27 Stepper (Singleshaft) and/ or x40 (DoubleShaft) Stepper
Treibermodul -Easy Driver V4.4.-
Mains Lead, Soldering Iron, Soldering tin, Dupont-Pins e.g.

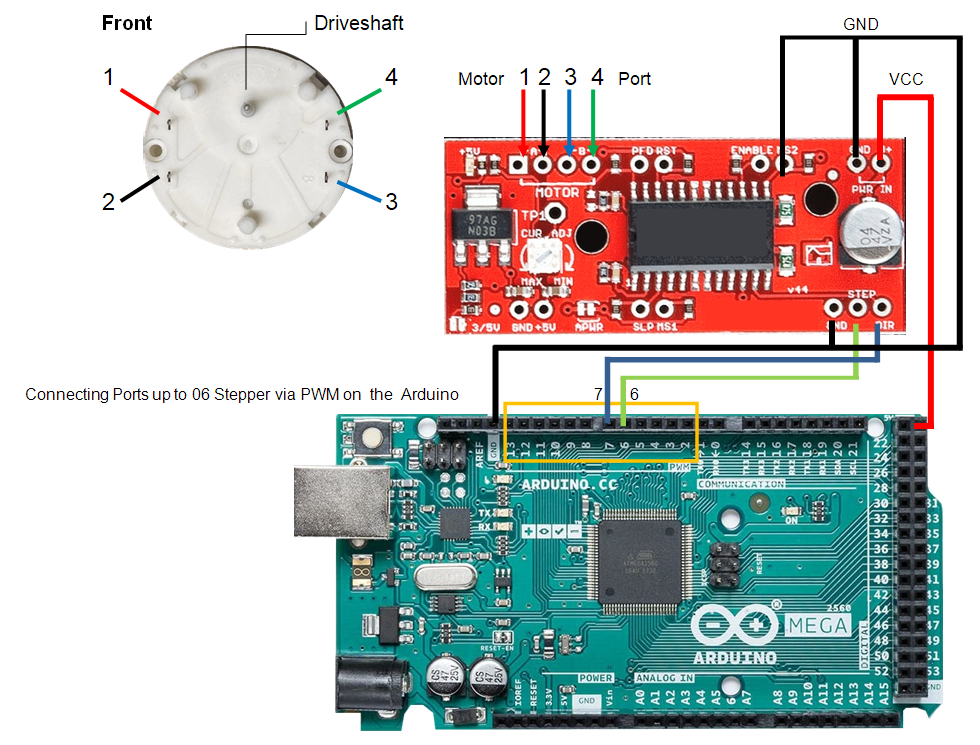

Connecting the x27 Stepper to the Arduino Mega

Configuration in the MF Connector

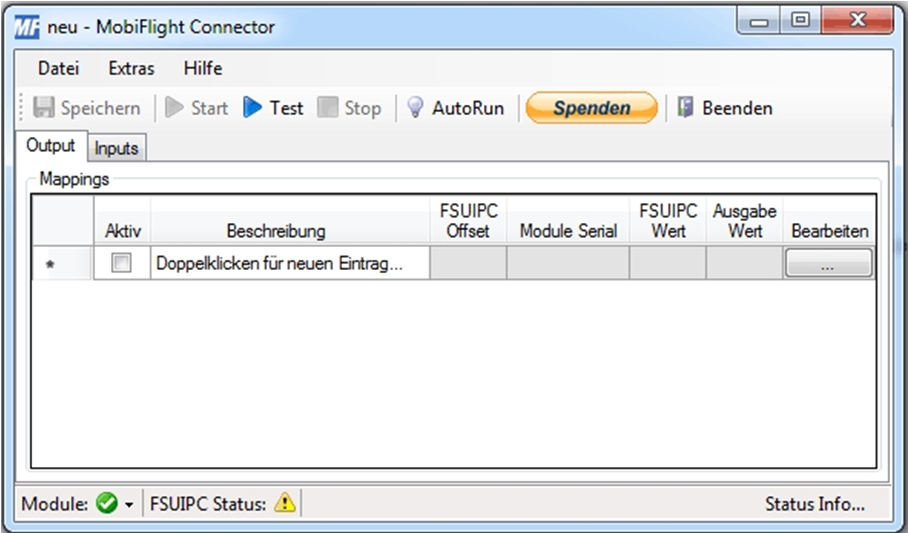

After opening the Mobiflight Connector, you will see an overview of the current Configuration. In the example this is empty because nothing has been configured yet.

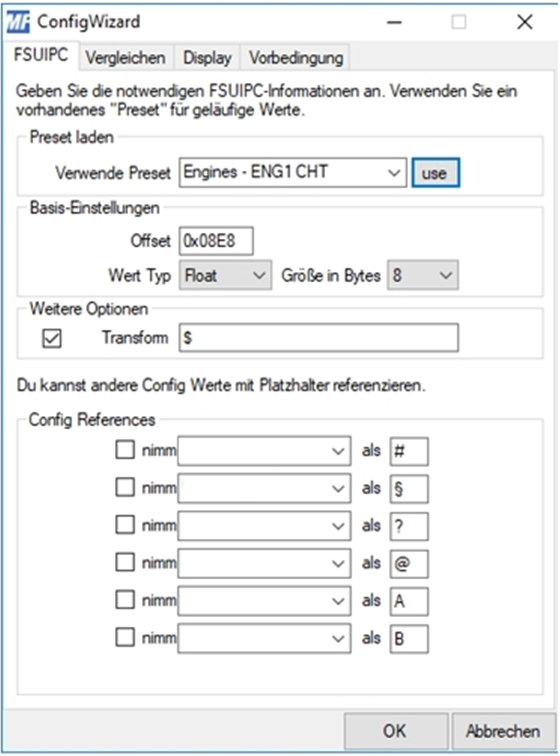

In the example on the next screenshot we configure the CHT via the Preset.

Here we manually set Pin 7 and Pin 6 under Modules. A double assignment is not provided in the drop down field.

However, no further setting may occupy these Pins. These may have to be changed or deleted.

Finally, the Config must be saved and uploaded to the Arduino Board.

UPDATE NOTE: Changes in the Mobiflight user interface do not allow the use of pins that have already been assigned. Workaround is to edit the board configuration mfmc file directly with a text editor app.

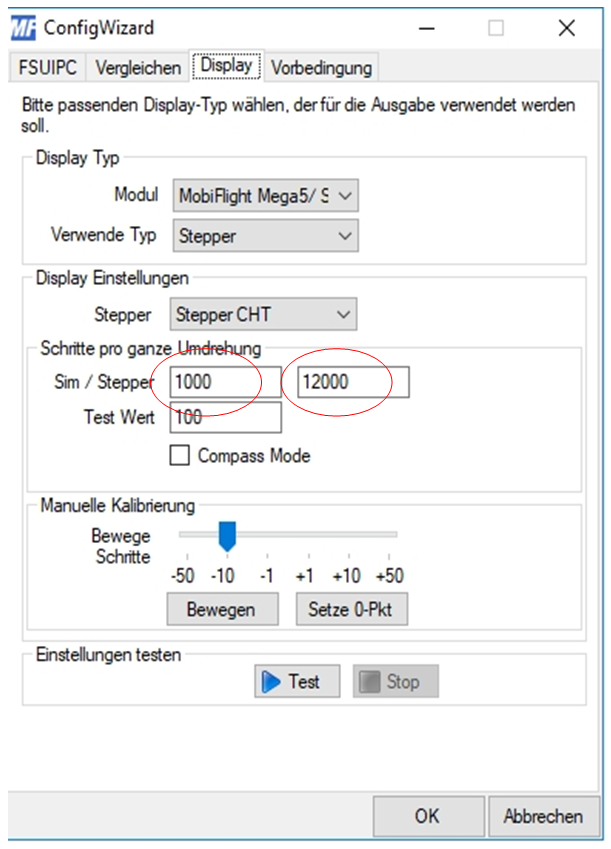

The Stepper Motor setting is to be carried out as follows.

Adjustments via

Compare
Transform
Presets

remain still possible.

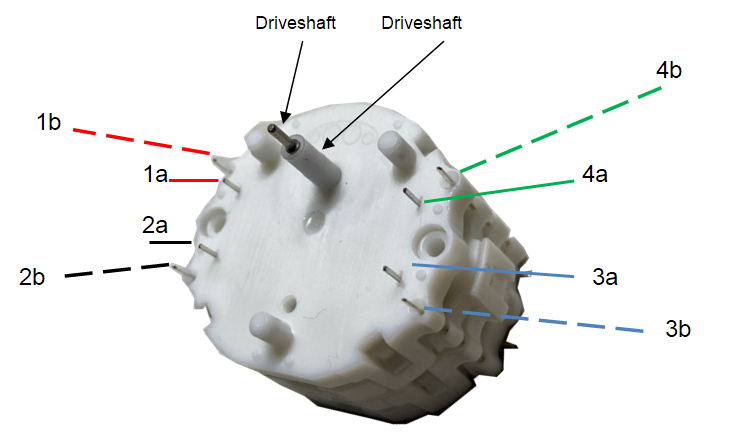

Connection the x40 Stepper Motor to the Arduino Mega

- EasyDriver for Motor: 1a, 2a, 3a,4a

- EasyDriver for Motor: 1b, 2b, 3b, 4b

Kudos to aero-max who created this tutorial for MobiFlight in January 2021.
