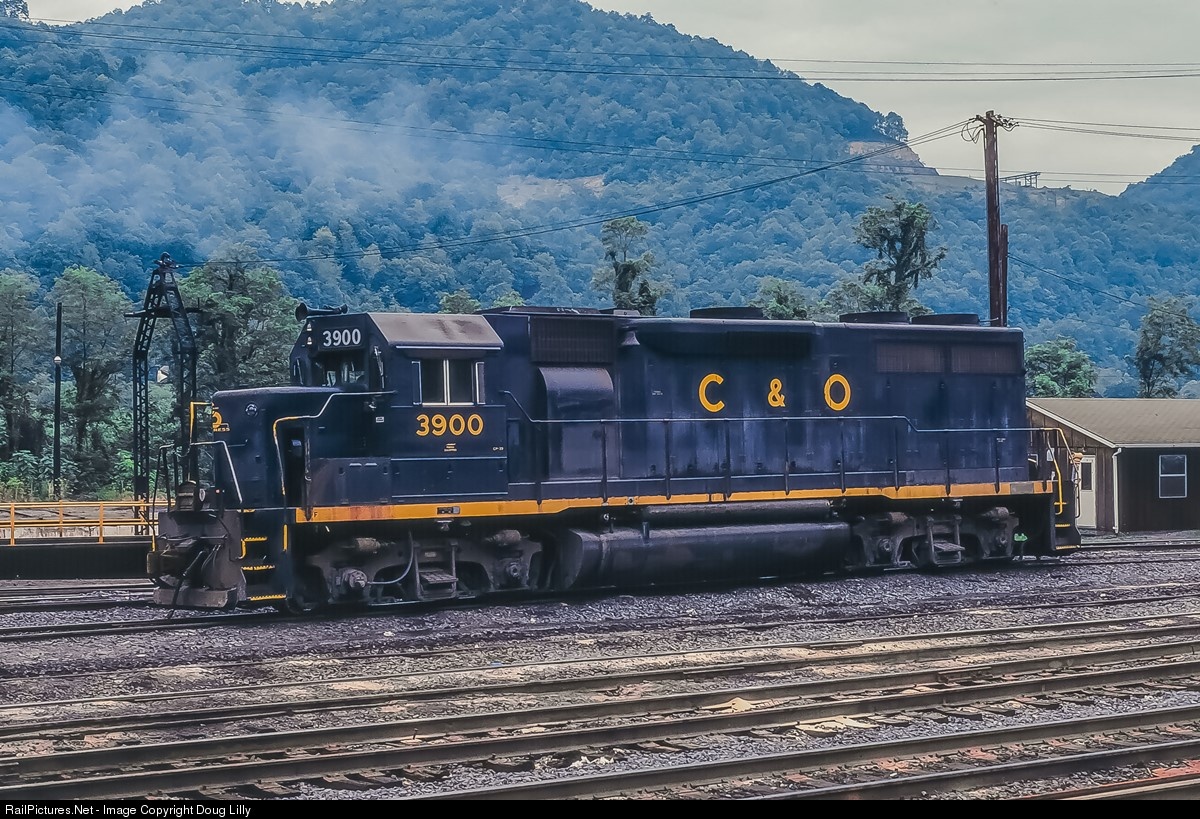

The GP39 was an uncommon road switcher offered by EMD. Sporting a turbocharged V12 version of the venerable 645E3, the GP39 clocked in at 2300 Horsepower, putting it between the GP38 and the GP40. While its successor, the GP39-2, performed much better in the market, the humble GP39 sold only 23 units total, 20 of which went to the Chesapeake and Ohio.
PT-Specific Information
| General Info |
- |
| Prime Mover |
EMD 12-645E3 |
| Horsepower |
2300 |
| Truck Type |
EMD "Blomberg" B |
| Axles |
4 |
| Traction Motors |
4 |
| Minimum Weight |
244,800 lbs |
| Maximum Weight |
278,000 lbs |
| Model Base Speed |
65 MPH |
| Top Speed |
65, 71, 77, 83, 90, or 96 MPH |
| Electrical System |
- |
| Generator Max Current |
3000 Amps |
| Max Traction Motor (TM) Current |
1500 Amps |
| Max Continuous TM Current |
1050 Amps |
| Traction Motor Type |
DC |
| Factor of Adhesion |
25% |
| Transition Mode |
Fully Automatic with Selector |
| Transition Groups |
2, 2, 1, 1 |
| Transition Shunts |
1, 0.75, 1 ,0.75 |
| Generator Transition |
No |
| Traction Control |
APR + Sand |
| Dynamic Braking (DB) Mode (if used) |
Mechanical Blowers |
| DB Max Current |
700 Amps |
| DB Max Continuous Current |
700 Amps |
| Blended Braking |
No |
| Miscellaneous |
- |
| Head-End Power (HEP) |
No |
| HEP Power Consumption |
N/A |
| HEP Standby/Run Mode |
N/A |
| Load Ramp Speed |
2 Amps/Tick |
| TM Overload Protection |
No |
| Starter Mode |
Manual Primer, Manual Start |
| Air Brake Schedule |
26-L |
| Compressor CFM |
254 (WBO @ 900 RPM) |
| Main Reservoir Volume |
33.8 Cubic Feet |
Notes
(⚠): Not Verified or Educated guess
